High speed motor Nice Spykit 650 HS BD with two-way control for sectional doors up to 10,5 m2 and for overhead and non-overhead sliding doors up to 11,5 m.

CHARACTERISTICS

Functional and design: the motor is the only element, which moves by the guide, without chains or other noisy elements. Ideal in all architectural settings.

Handled: separate control centre, for easy installation and maintenance. Courtesy light with built-in LED. Three handy buttons to activate the automatic.

Fast installation. What. New time-saving solution: a wired power unit that can be easily installed at either end of the guide, at your choice, in a few simple steps. Race finishes easily positioned in the guide. No chain attachment or other mechanisms.

Very simple with the BlueBus system: allows only two-wire connections between the control centre and pairs of photocells and other accessories with BlueBus technology.

Simple programming: Quick Setup procedure for basic, fast and intuitive programming. Advanced programming provided by O-View.

On/off unlocking system: when pulling the unlocking control once, the engine is unlocked; when pulling a second time, the engine is locked again in a position on the guide.

Saving and respect for the environment: when connected to the network, in standby mode, the power station consumes only 0.5 W. When connected to the battery or the Solemyo, the power consumption in standby mode is reduced to 0.1 W.

No power outage: operation also without power guaranteed by the optional auxiliary battery PS234.

I 'm sure: obstacle detection, motor absorption monitoring in the race, self-diagnosis by flashing light and courtesy light.

Adjustable acceleration and deceleration at the beginning and end of each manoeuvre.

Pre-installation to connect the most recent 8,2 kOhm resistive sensitive edges.

Optimised logistics: for ease of transport and handling, the guides are available in various formats: a single section of 3.2 m, 2 guides of 1.6 m each and an extension of 0.8 m, which can be added to the other guides.

* Considering a typical installation, 2 m high garage door, excluding acceleration and deceleration.

Bi-directional products Nice indicate the status of the automatic systems and the receipt of the order.

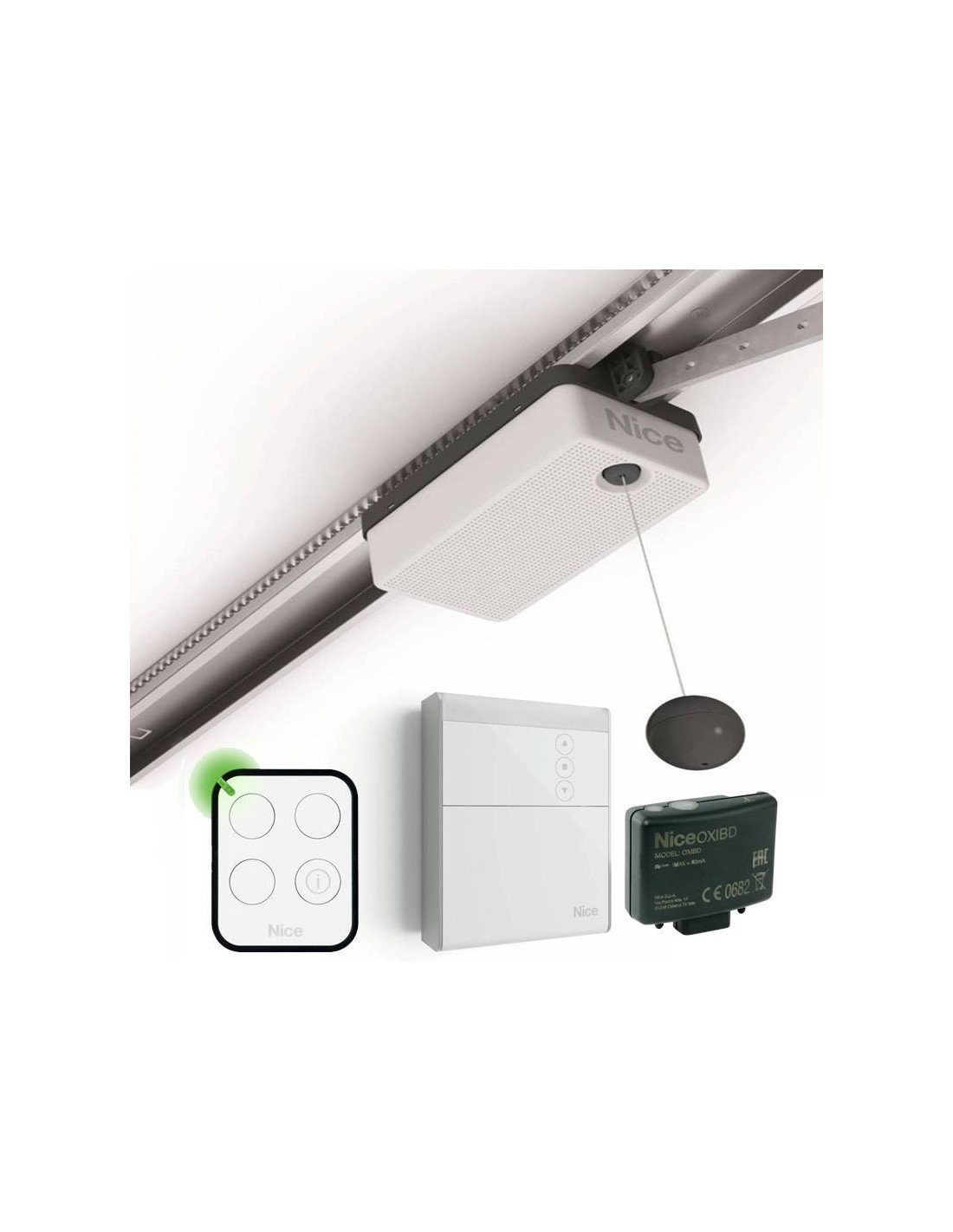

THE KIT CONTAINS:

■ SPY650H1 gearbox, 650 N.

■ SPYBOXES: 1 Control centre with courtesy light with LED.

■ OXIBD: 1 Plug-in two-way radio receiver.

■ ON3EBD: 1 Transmitter 433.92 MHz with 3 channels, bidirectional.

TECHNICAL CHARACTERISTICS

MANUAL

A quick guide Nice Spy

Instruction manual Nice Spy
