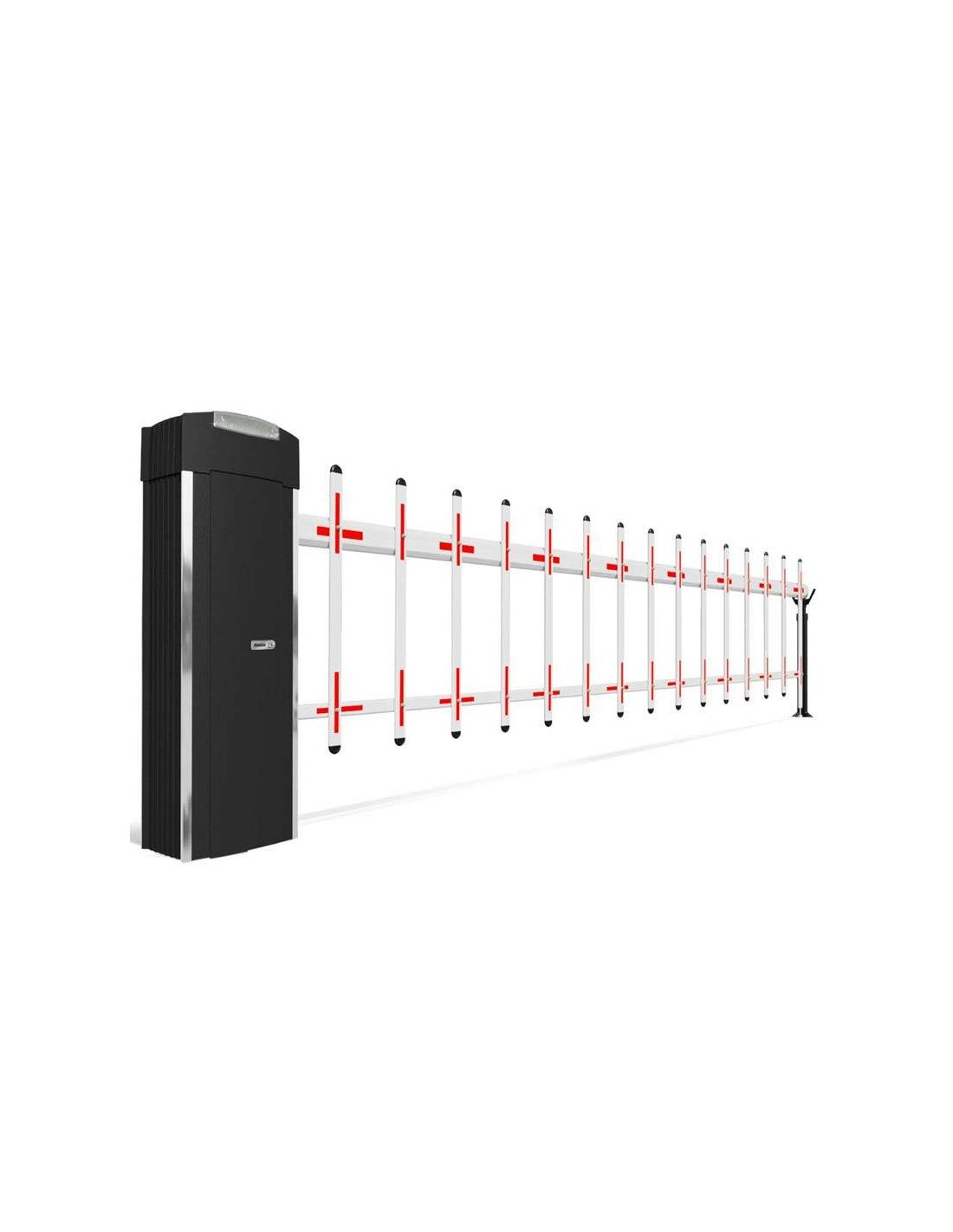

Electromechanical barrier 24V Motorline SIGMA-XS5 with mast up to 5m.

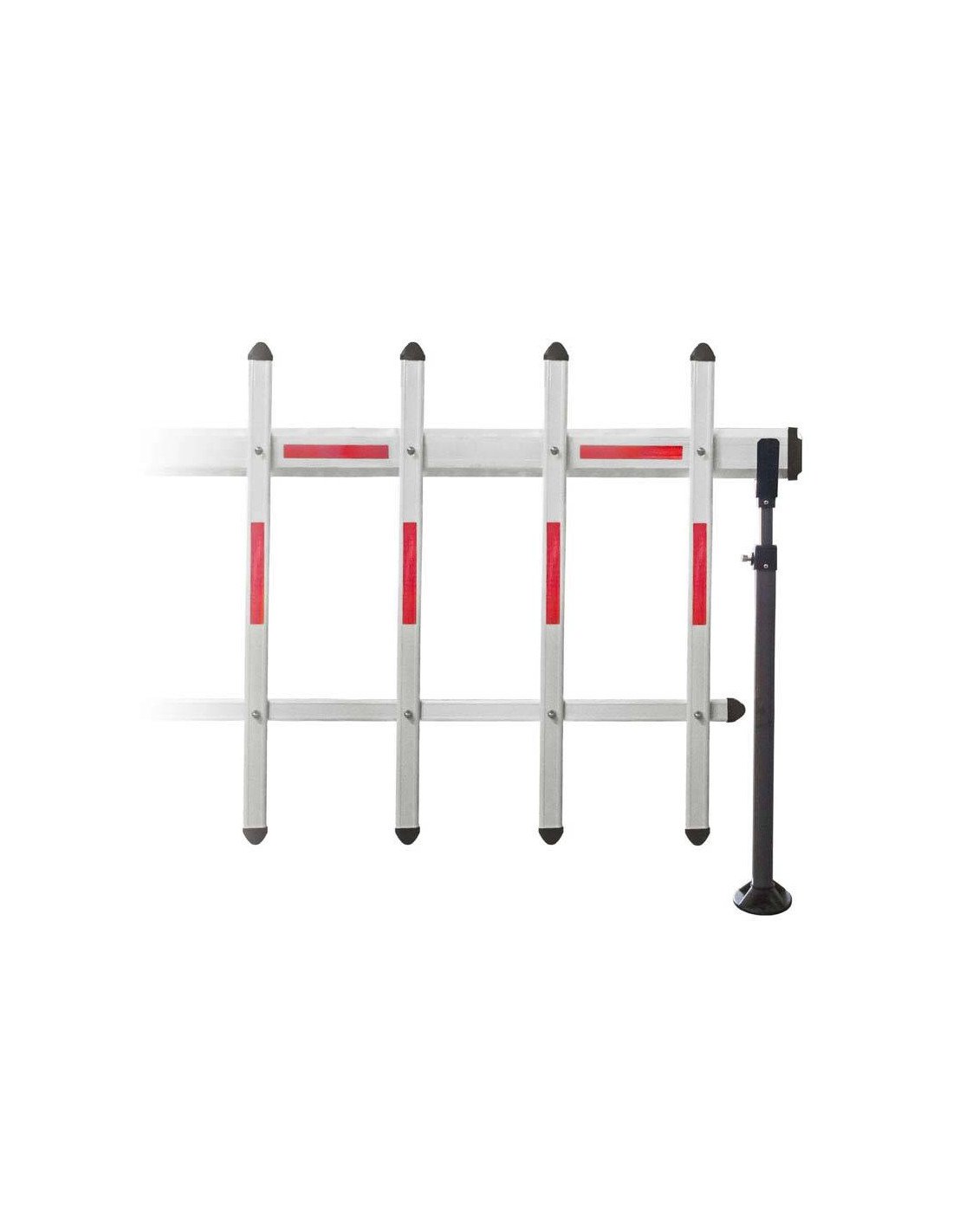

Ideal barrier for traffic control and passage barging. The SIGMA-XS5 barrier is an electromechanical barrier for intensive use (ventilated motor) that has an aluminum mast with a maximum length of 5m. The mast is composed of struts for vertical protection.

THE KIT CONTAINS

■ Aluminium mast up to 5m with skirt

■ 1 x 24Vdc motor

■ 1 MC60 control unit, with soft start and stop

■ 1 x MF30 Photocell Set

■ 2 FALK Controls

■ Built-in RGB flashing lamp

3-COLOR LED LIGHTING: Flashing LED built into the top of the barrier, emits red light at the close, green at the opening and blue at the pause time.

RESISTANCE: All-steel and aluminium construction, developed for intensive use and high resistance.

VERSATILITY: This product is adaptable to various environments and situations

SILENT: Motorization and mechanical system developed for silent movement

SPEED: Total opening of the barrier between 3 and 6sec (adjustable in the control unit).

OBSTACLE DETECTION: Possibility of applying an 8k2 safety rubber in the lower area of the rod.

PROTECTED AND EASILY ACCESSIBLE ELECTRONICS: Location of the control plate at the top of the barrier ensures protection from snow/moisture and provides quick access for programming and maintenance.

SPECIFICATIONS

■ Power supply: 230Vac 50Hz

■ Power: 90W

■ RPM: 2800

■ Operation time: 3~6s

■ Bar size: 5 meters

MANUAL

Instruction manual Motorline SIGMA-XS5
