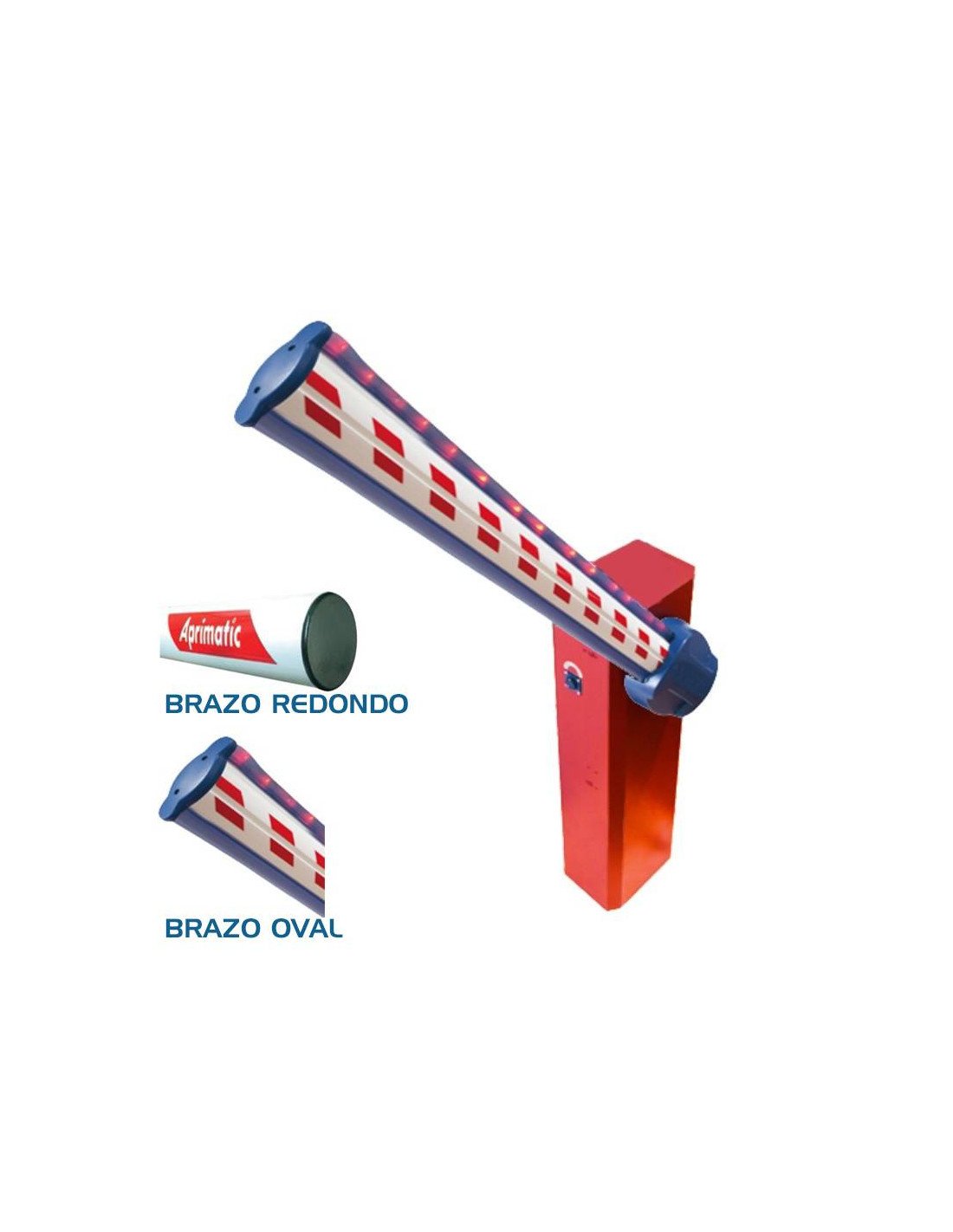

Electromechanical barrier Aprimatic PATROL PLUS at 24V with mast from 3 to 6 meters with built-in control panel.

It consists of an irreversible geared motor with external key release , control panel with deceleration at limit switches and white lacquered arm with reflective stripes. Semi-intensive use in small communities.

The barrier has a body made of baked lacquered sheet steel, which contains an irreversible geared motor with external key release and a control panel with multiple functions. Adjustable deceleration. Optionally, the arm of the automatic barrier has a lower profile of the safety band, LED lighting and articulation kit.

CHARACTERISTICS

• 24 Vdc geared motor with external key release.
• Control panel with deceleration at limit switches.
• White lacquered arm with reflective stripes.
• Adjustable deceleration at the end of travel.
• Adjustable anti-crush reversal in the event of an impact.
• Possibility of connection to a solar panel.
• Possibility of incorporating an arm folding system.
• Possibility of incorporating LED lighting (not included but can be added optionally)
• Opening in 5 s and 200 cycles/day.

SPECIFICATIONS

KIT'S AVAILABLE

KT02SBJ7

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 piece round ARM, Ø 70 mm, L=3 m

KT02SBJ1

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 piece round ARM, Ø 70 mm, L=4 m

KT02SBJ3

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 pc round ARM, Ø 70 mm, L=5 m

KT02SBJ4

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1pc oval ARM, 76x49 mm, L= 3 m

KT02SBJ2

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 pc oval ARM, 76x49 mm, L= 4 (2+2) m

KT02SBJ5

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 pc oval ARM, 76x49 mm, L= 5 (3+2) m

KT02SBJ6

• 1pc PATROL PLUS Electromechanical Barrier 24 Vdc
• 1 pc oval ARM, 76x49 mm, L= 6 (3+3) m

Note: all barriers come without receiver and controls, so if you need them you can add them additionally from the product accessories.

MANUAL

Instruction manual Aprimatic PATROL PLUS

Data sheet Aprimatic PATROL PLUS

Data sheet Aprimatic TRAFFIC 24

Instruction manual Aprimatic TRAFFIC 24
