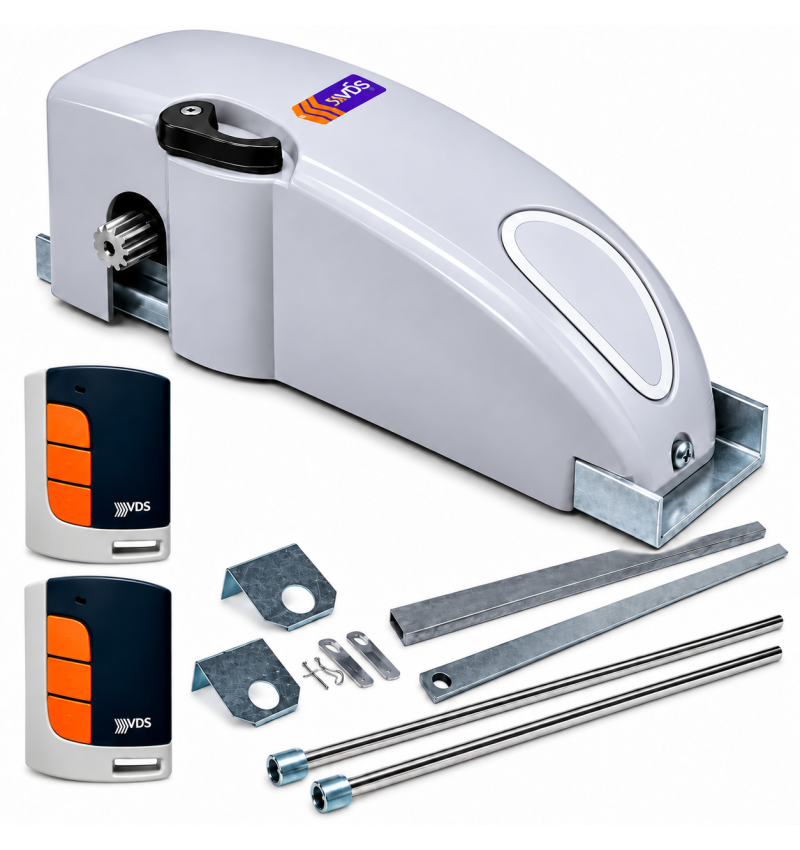

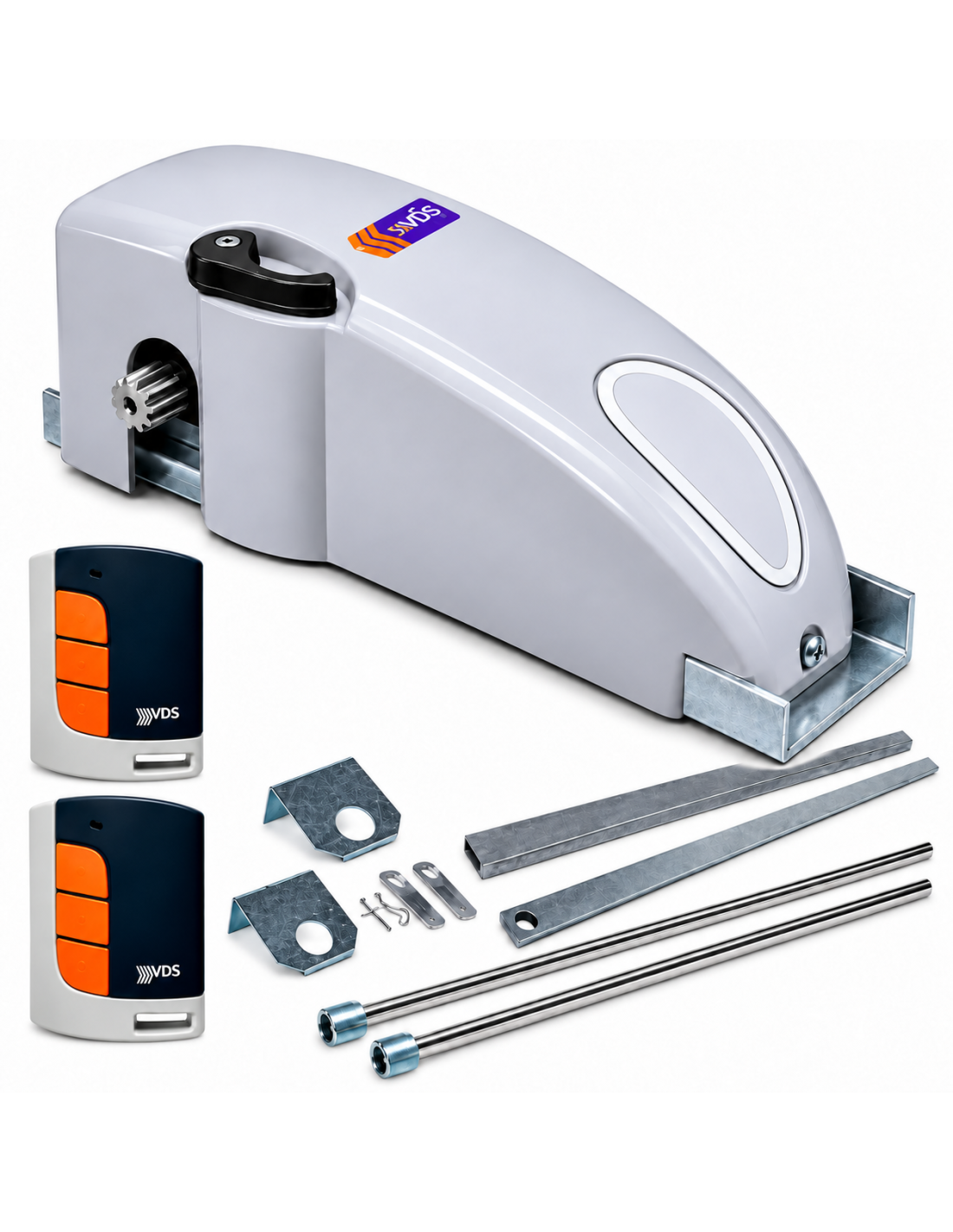

Electromechanical motor kit VDS Basic 230V Telescopic Hardware Tilting Doors up to 10m²
KIT BASIC-ON
€338.00
VAT excluded
408,98 €
Tax incl.
Kit VDS Basic-on 230V For counterweight tilting doors up 10 m². Includes motor, central 230 m1 with receiver, encoder, pair of telescopic arms and 2 Controls Rolling Code 433 MHz.
Select the length of the bars: Kit available with 2 bars of 1.5 m or 2 bars of 2 m.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Motor kit VDS BASIC-On 230V for countered tilting door
The VDS BASIC-ON 230V is an irreversible electromechanical engine designed for the automation of basted tilting doors.
This kit incorporates the BASIC-ON engine together with the electronic picture 230 M1, integrated radio receiver, encoder, leaders telescopic, torsion bars and 2 controls VDS E010 Rolling Code 433 MHz.
The product is available in two configurations, which differ by the length of the 2 torsion bars included: 1.5 meters or 2 meters.
Select the appropriate bars length for installation in the drop-down.
Two available versions
✓ BASIC-ON kit with 2 1.5 m torsion bars.
✓ BASIC-ON kit with 2 torque bars of 2 m.
Select the length of the torsion bars
| Feature | Kit 1.5 m | Kit 2 m |
|---|---|---|
| Engine | BASIC-ON 230V | BASIC-ON 230V |
| Number of bars | 2 | 2 |
| Length of each bar | 1,500 mm | 2,000 mm |
| References for order | 1 × 759 / 1MD 1 × 112529/2 2 × E010 |
1 × 759 / 1MD 1 × 112529/6 2 × E010 |
| Maneuvering | 230 M1 | 230 M1 |
| Controls included | 2 × E010 | 2 × E010 |
KIT BASIC-ON - 2 torsion bars of 1.5 meters
References Articles:
1 × 759 / 1MD
1 × 112529/2
2 × E010
1 × 759 / 1MD
1 × 112529/2
2 × E010
This configuration includes:
■ 1 × electromechanical motor VDS BASIC-ON 230V.
■ 1 × fixing base.
■ 1 × condenser.
■ 1 × maneuver box 230 m1.
■ 1 × integrated radio receiver.
■ 1 × encoder.
■ 1 × pair of lead telescopic arms.
■ 2 × 1,500 mm torsion bars.
■ 2 × controls VDS E010 ROLLING CODE 433 MHz.
BASIC-ON KIT - 2 torque bars 2 meters
References Articles:
1 × 759 / 1MD
1 × 112529/6
2 × E010
1 × 759 / 1MD
1 × 112529/6
2 × E010
This configuration includes:
■ 1 × electromechanical motor VDS BASIC-ON 230V.
■ 1 × fixing base.
■ 1 × condenser.
■ 1 × maneuver box 230 m1.
■ 1 × integrated radio receiver.
■ 1 × encoder.
■ 1 × pair of lead telescopic arms.
■ 2 × 2,000 mm torsion bars.
■ 2 × controls VDS E010 ROLLING CODE 433 MHz.
Important: Select the length of the bars
Both kits incorporate the same engine, electronics, telescopic arms and controls.
The difference between the two configurations is the length of the 2 torque supplied bars and, therefore, the reference of the corresponding set. Select 1.5 m or 2 m in the drop-down before adding the product to the cart.
Advantages of the engine VDS BASIC-ON
✓ Irreversible engine for a safe and resistant closure.
✓ Compatible with countered tilting doors up 10 m².
✓ Silent performance with a sound level less than 30 DBA.
✓ Simple programming software to facilitate installation.
✓ Electronic regulation of torque for a soft and precise movement.
✓ Deceleration in opening and closing to reduce mechanical blows.
✓ Anti-explashing system according to IN 12453.
✓ Lubricated mechanical components with lithium fat to improve its durability and protection against corrosion and oxidation.
✓ Electronic picture with integrated receiver and antenna.
✓ Especially indicated to automate tilting doors of residential garages.
Technical characteristics
| Feature | BASIC-ON |
|---|---|
| Feed | 230V |
| Maximum | 200 N |
| Maximum door | 10 m² |
| Engine speed | 1,400 rpm |
| Middle consumption | 1.3 TO |
| Power | 250 W |
| Capacitor | 12.5 μF |
| Sound level | <30 dBA |
| Operating temperature | -20 ºC / +55 ºC |
| Degree | IP30 |
Motor for countered tilting doors
The VDS BASIC-ON 230V it is a solution to automate counterattomed garage tilting doors, combining gearmotor, control electronics, encoder and transmission system.
The electronic regulation of force and the deceleration in opening and closure allow to achieve a more progressive movement during the maneuvers.
The two lengths available from torsion bars allow to better adapt the kit to the dimensions and door configuration.
Before placing the order
Check the measurements and configuration of the door to select correctly between the bars of 1.5 m or 2 m.
The door must be properly balanced by means of its counterweights and manually scroll smoothly before installing the automation.
