Medva Aura | Hydraulic swing motor

The MEDVA AURA is a hydraulic motor for swing doors designed for demanding installations where it is required Power, Softness of Maneuver and Maximum Reliability. Available in versions Aura280 BAC and Aura400 BAC, it adapts to different length lengths thanks to its rod tour of up to 400 mm and a Push force greater than 600 kg, which makes it an ideal solution for intensive residential accesses, communities and industrial environments.

This operator stands out for incorporating Blocking both opening and closing, soft stop at the end of the maneuver and anti-regulation, guaranteeing controlled movements even under adverse conditions. In addition, its reversible system in both directions facilitates safety and manual release if necessary.

The hydraulic construction of the aura, along with its IP65 protection, allows reliable operation in extreme temperature ranges, from -15 ° C up to 80 ° C. Your high performance pump, the use of Oil MVD-32 and integrated thermal protection ensure a long service life and minimal maintenance.

The Medva Aura is the perfect choice for those seeking a Robust, precise and prepared swing motor for intensive jobs, with the quality and durability of professional solutions.

Benefits

✔ Locking the opening

✔ Soft unemployment at closure

✔ Lock at closing

✔ Anti-revive regulation

✔ Block on both maneuvers

✔ Reversibility in both maneuvers

Technical characteristics

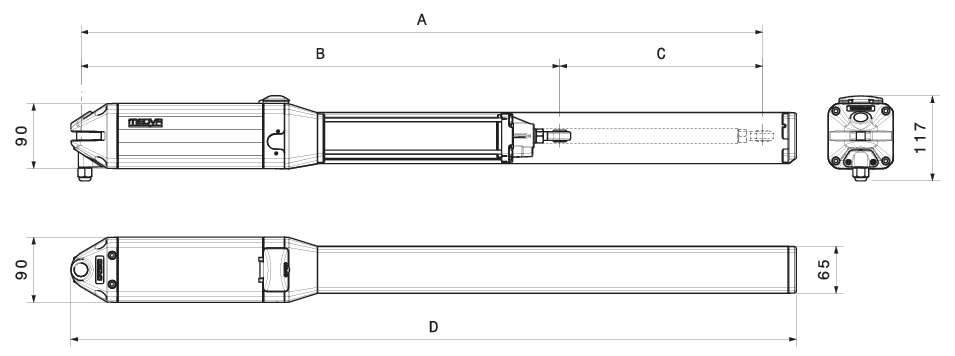

Measures Medva Aura

Graphic

Kit's available

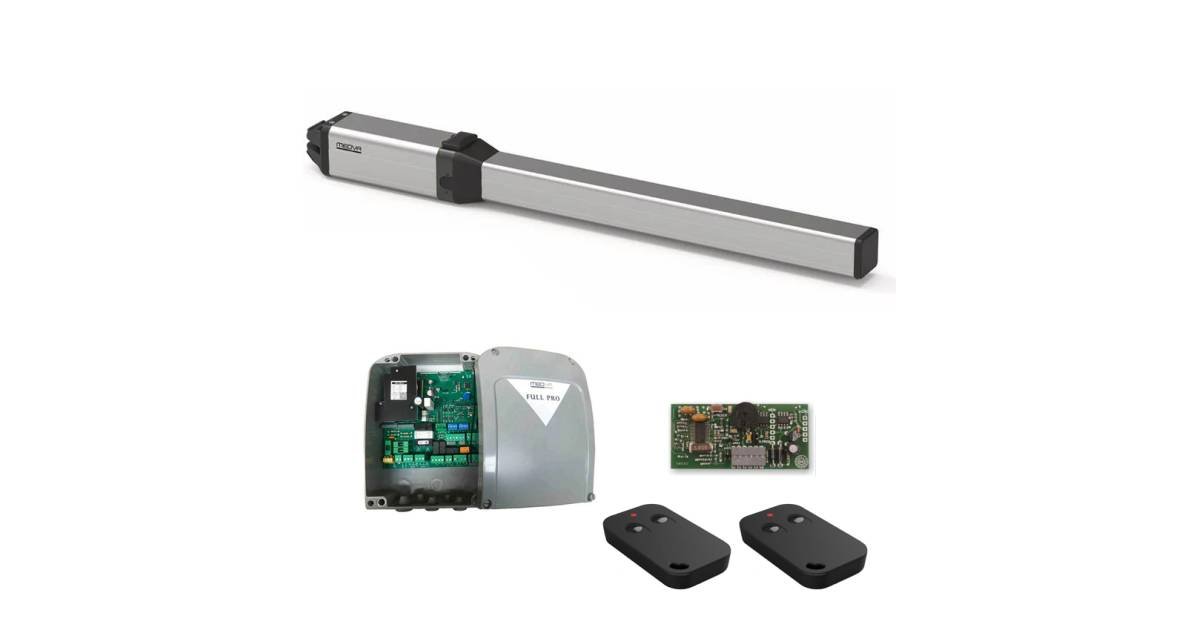

Kit Aura280 BAC

• 1x Aura280 BAC-1.3: 280mm Hydraulic Race Motor for swing doors up to 4m.
• 1x Full Pro-FC: Full Pro FC maneuver box for 1 or 2 230VAC actuators.
• 1x SRT-255: 6-pin plug-in receiver at 433.92 MHz
• 2x PC Roll A4: RollingCode Command 2 channels 433,92 MHz Medva Code

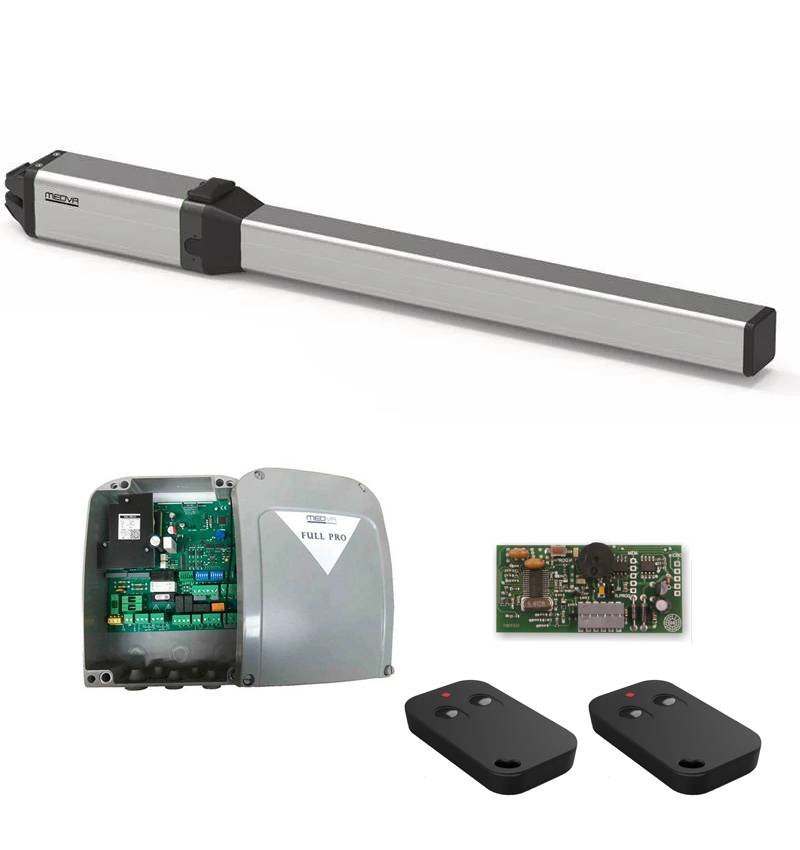

Kit Aura400 BAC

• 1x Aura400 BAC-1.3: Hydraulic motor 400mm race for swing doors up to 6m.
• 1x Full Pro-FC: Full Pro FC maneuver box for 1 or 2 230VAC actuators.
• 1x SRT-255: 6-pin plug-in receiver at 433.92 MHz
• 2x PC Roll A4: RollingCode Command 2 channels 433,92 MHz Medva Code
