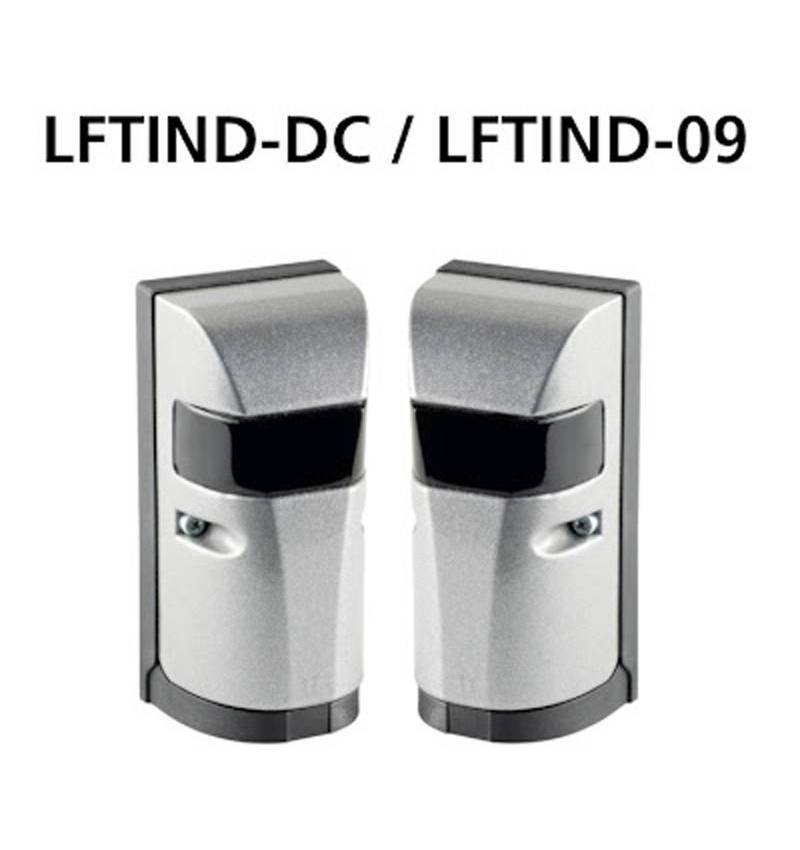

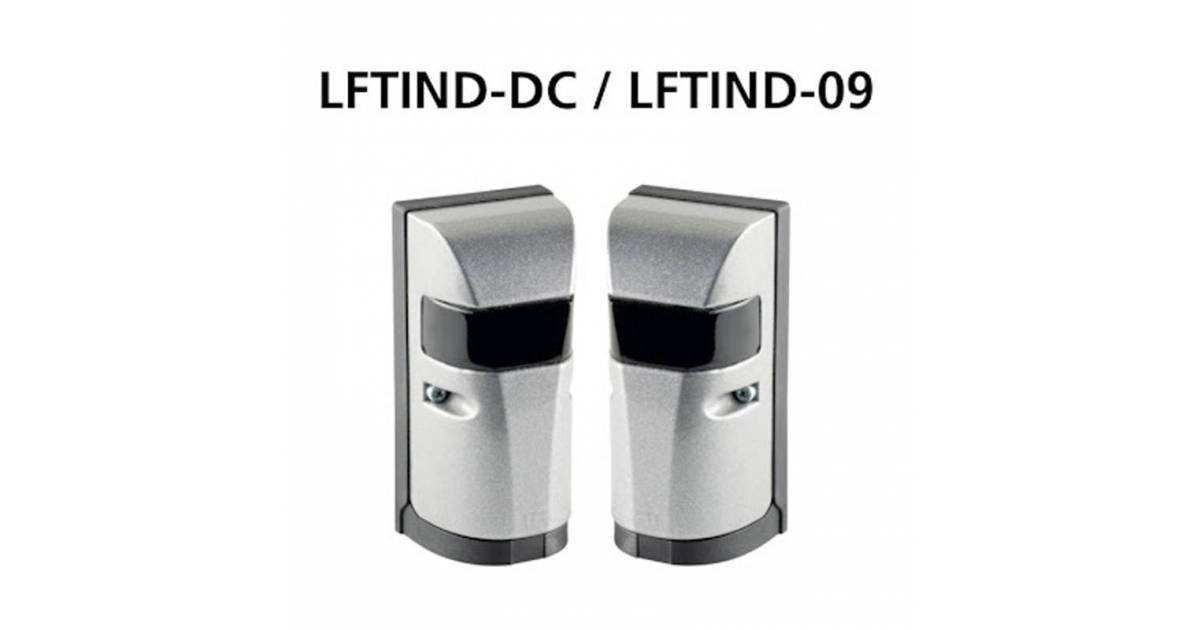

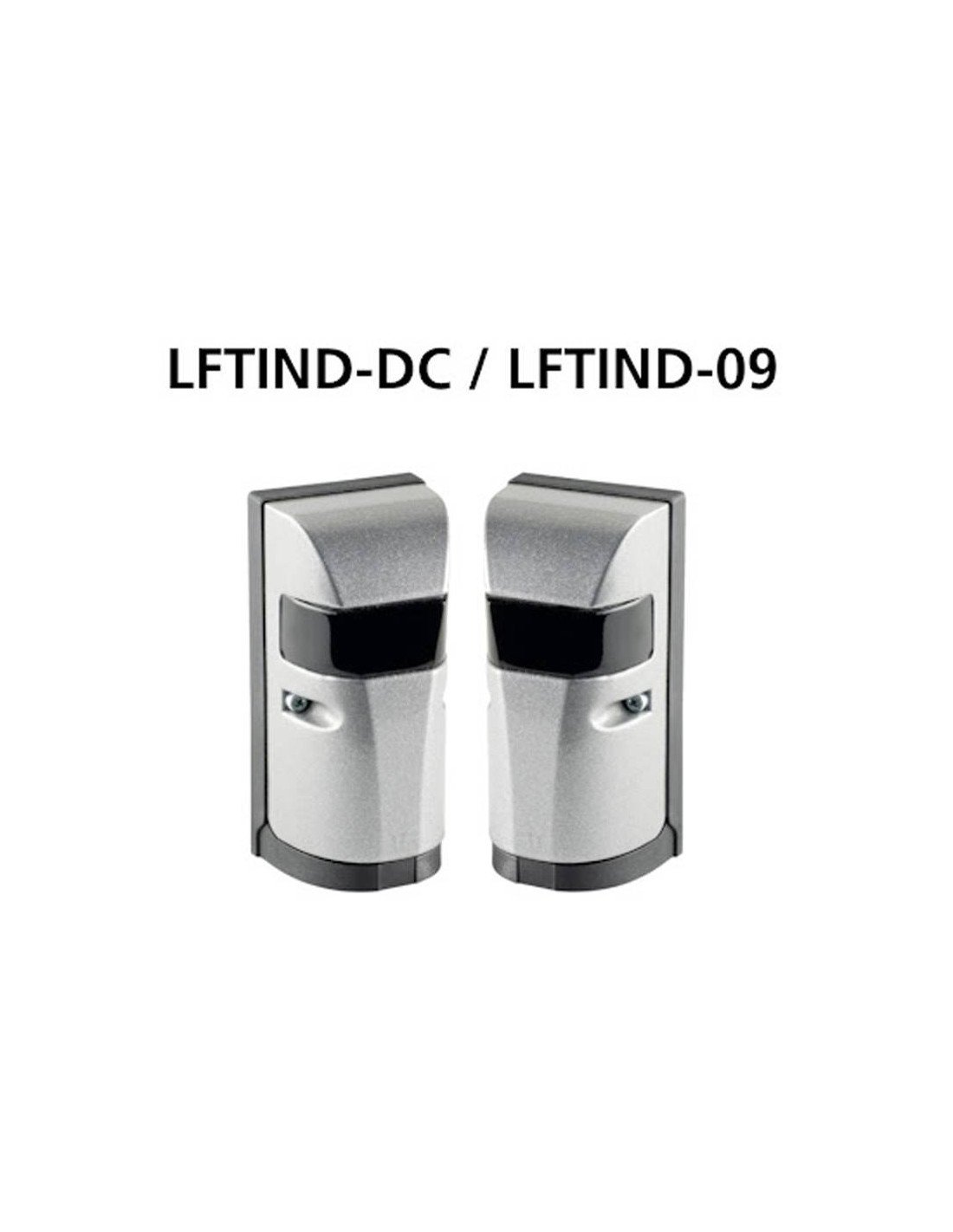

Industrial photocell Erreka LFTIND and anti-vandalic, designed for the protection of automatic doors, barriers and industrial accesses. The set is formed by a transmitter and a receiver housed in a metal aluminum housing, robust and stagnate.

The photocell Erreka Lftind Detects the infrared beam interruption and sends a signal to the control panel by contact NA / nc. Thanks to its industrial design, it is a highly recommended option for outdoor installations, frequently used access or areas where a resistant photocell is needed.

Models available

• Lftind-09: Anti-vandalial industrial photocell with feeding 12/24 VAC / DC, selectable by jumper.
• Lftind-ad: Anti-vandalial industrial photocell with feeding 32-36 VDC.

Main advantages

• Maximum scope of 60 meters indoors and up 40 meters outdoors.
• Optical Horizontally orientable up to 90º To facilitate the alignment between transmitter and receiver.
• Aluminum metal housing, especially indicated for industrial use.
• Degree Ip66, Fit for installations exposed to dust and humidity.
• Output NA and NC With double relay in series.
• Power LED on the transmitter and LED alignment in the receiver.
• Compatible with maneuver frames that support security entrance through potential-free contact.

Technical characteristics

Installation and alignment

The transmitter and receiver must be installed on the same geometric axis and at the same height with respect to the ground. Once fed, optics should be oriented until a correct alignment, which will be confirmed by the receiver LED.

In facilities with several photocells, it is recommended to respect a correct separation between transmitters and receivers to avoid interference between infrared beams.

Manual

Download instruction manual Erreka Lftind
