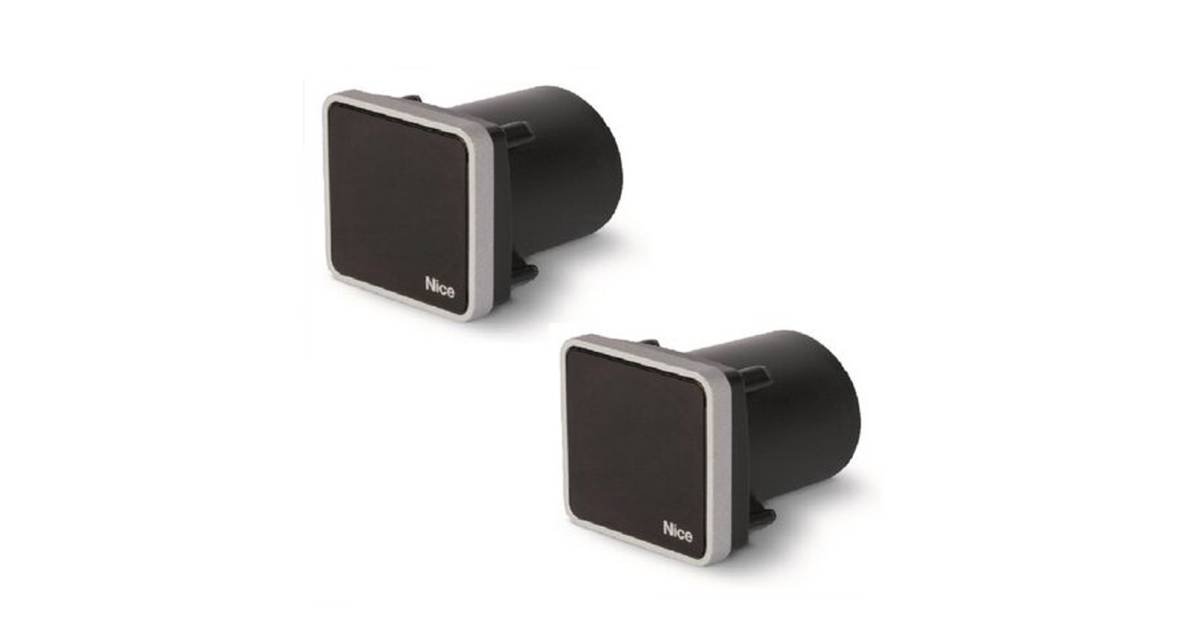

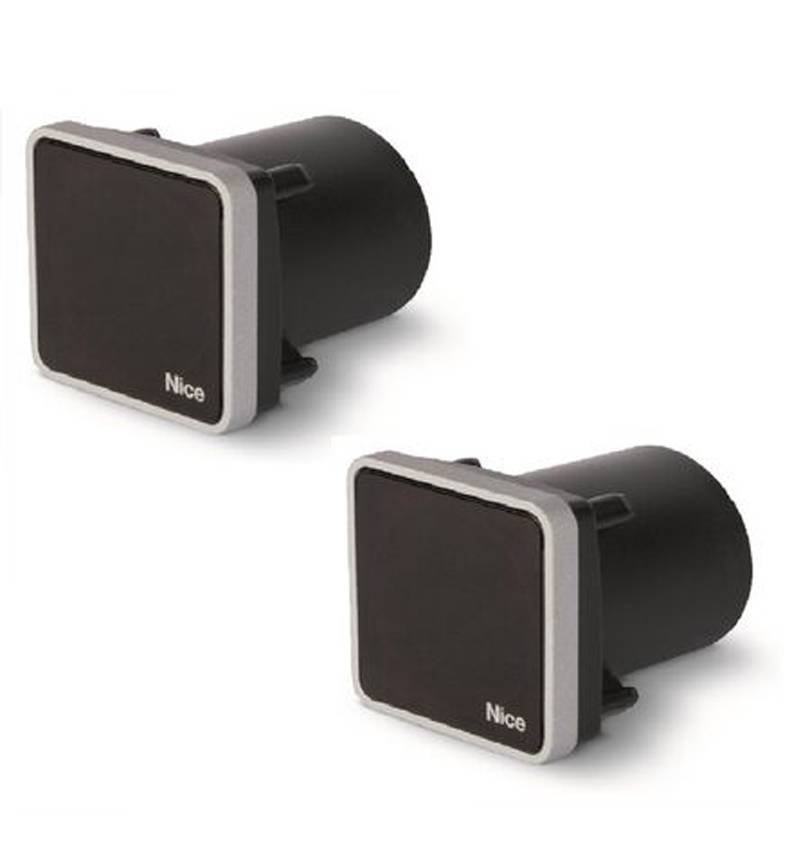

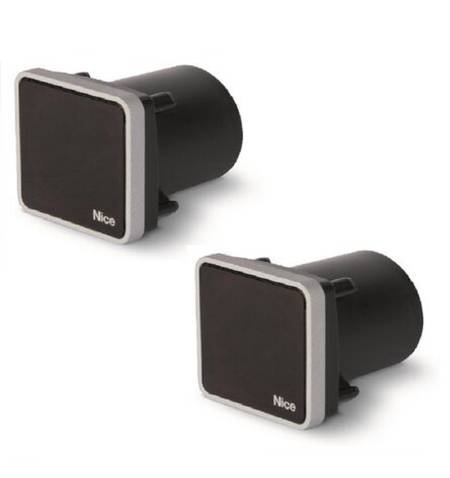

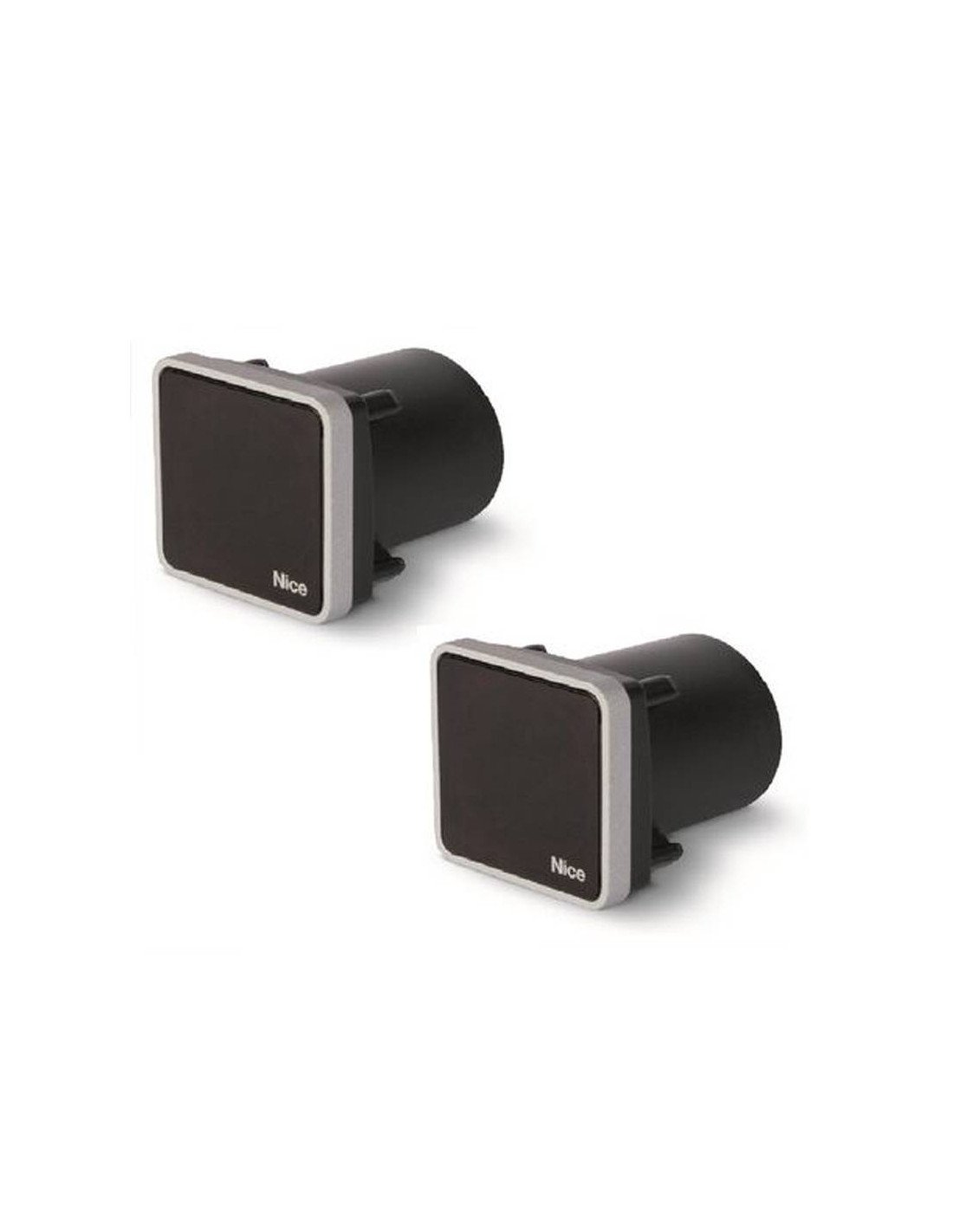

Manufacture from materials of any heading Nice "It was Photocell L" Emitter-receiver 'EPLIO' and 'EPLIOB'.

Easy and versatile: versions of EPLIO inserts, compatible with the most widespread standards on the market, to replace old photocells or to cover annoying existing pre-installations without additional adapters.

Secured: equipment of type D according to standard EN12453, which allows the detection of obstructions on the optical axis between transmitter (TX) and receiver (RX).

Using the phototest function, it is switched to fault safety category 2 according to EN 954-1.

The EPL, EPLO, EPLIO models have two levels of scope.

Anti-glare circuit, which eliminates possible interference from sunlight.

The adjustable versions compensate for centering differences of up to 30°.

Discreet: very robust polycarbonate housing, minimum protrusion of 9 mm from the wall in the recessed version.

Comforts: adapter bell EKA03 for convenient pre-installations useful for mounting.

Technology Nice BlueBUS: versions with the system Nice BlueBUS allows all equipment to be easily connected to the central with only two wires; they are simply connected in parallel and selecting the routing bridges depending on the function demanded.

The system automatically acquires the equipment connected to the BlueBUS network and allows automatic synchronization between several pairs of photocells to avoid other possible interference.

Interface IB: allows you to connect photocells to the technology Nice BlueBUS to switchboards with traditional contact tickets.

MODELS AVAILABLE

• THE FOLLOWING: Pair of steerable photocells with universal 4-wire connection.
• THE FOLLOWING: Pair of steerable photocells with BlueBUS connection.

CHARACTERISTICS

• Estimated scope: 15 m (30 m with bridge + “10” cut off).
• Foodwithout bridge 24 Vac/ Vdc limits: 18-35 Vdc, 15-28 Vac with bridge.
• Other, of circular cross-section: approximately 30° on all axles.
• Absorption (mA): 25 RX, 30 TX
• Degree of protection (IP)44
• Temp. in the case of vehicles with a maximum mass not exceeding 2000 kg:: -20 ÷ +50
• Range of the relay: maximum 500 mA and 48 V
• Dimensions (mm)The following: 70x66+9x70 h
• Weight (g)185

CHARACTERISTICS

• Estimated scope: up to 15 per maximum TXRX misalignment ± 5 (the device can also indicate an obstacle in adverse weather conditions)
• Output feedThe equipment can only be connected to “BlueBUS” networks from which it draws power and sends output signals.
• Other, of circular cross-section: approximately 30° on all axles.
• Degree of protection (IP)44
• Temp. in the case of vehicles with a maximum mass not exceeding 2000 kg:: -20 ÷ +50
• Dimensions (mm)The following: 70x66+9x70 h
• Weight (g)185
