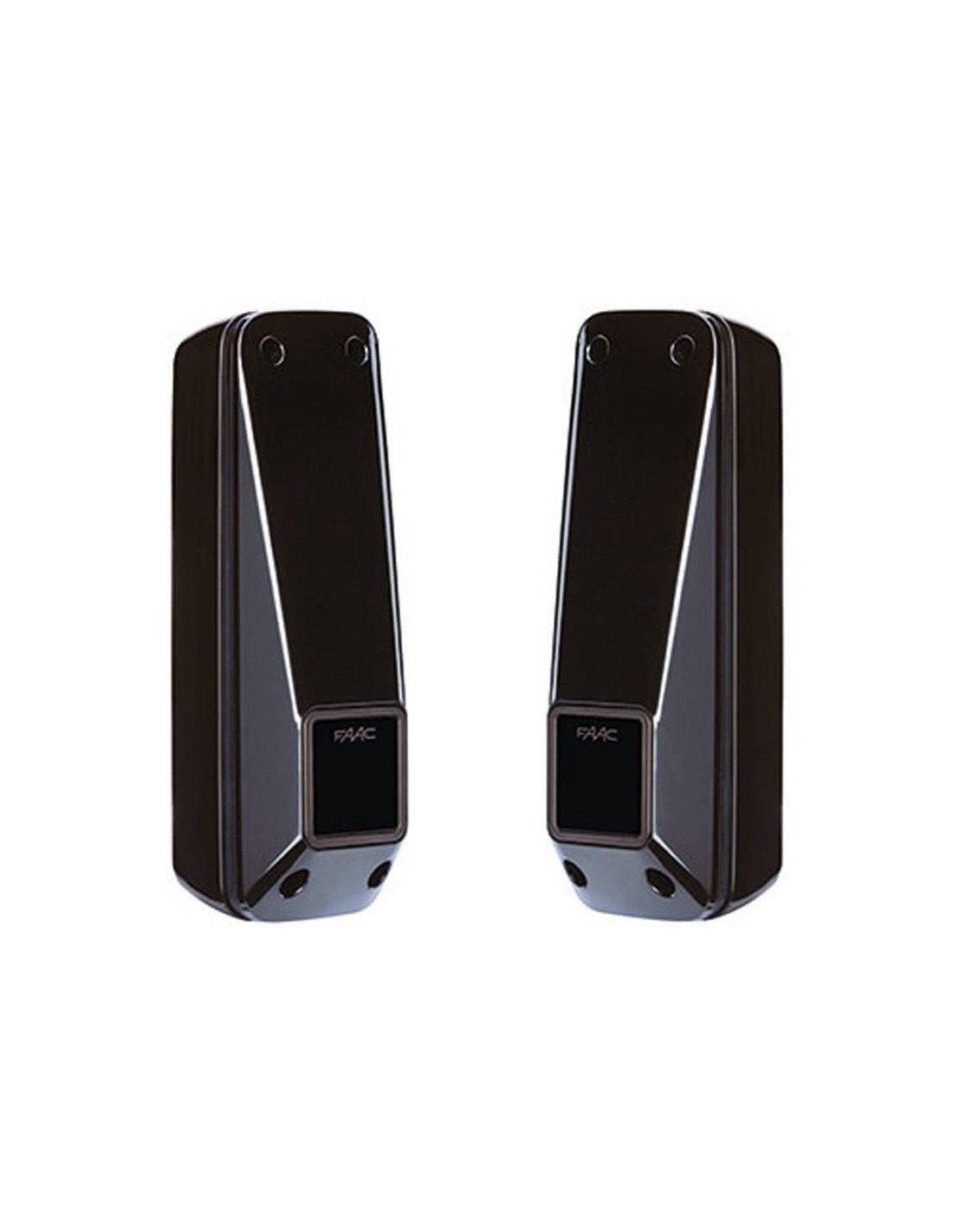

Wall security photocell FAAC XP20 steerable transceiver system
Referencia: XP20
€39.00
IVA excluido
47,19 €
IVA incluido
Wall security photocell FAAC XP20 steerable transceiver system with a maximum range of 20 metres and IP protection.
This auxiliary safety device is used for all types of garage doors and locks, reversing the maneuver in case of infrared beam cut.
We ship your order in 24/7 hours
Payment by credit card, bank transfer, Paypal or Bizum
Free shipping to the peninsula
Adjustable FAAC XP20 wall safety photocell with transmitter-receiver system with a maximum range of 20 meters and IP protection.
This auxiliary safety device is suitable for all types of garage doors and gates, reversing the manoeuvre in the event of an infrared beam cut.
XP 20 D
- Model No.: XP 20 D
- Power supply: 24 V - 24 V~
- Nominal capacity: 20 m
- Installation: wall-mounted
- Degree of protection: IP 54
- Self-aligning angle: ± 7° (20 m) ± 13.5° (5 m)
- Horizontal mechanical adjustment angle: -90° +90°
- Dimensions (L x W x H): 41.5 x 42.5 x 130 mm
- Absorption: Rx (30 mA) + Tx (20 mA)
- Contacts Type: N.C.
- Maximum Contact Capacity: 60 VA / 24 W
- Ambient operating temperature: -20°C ÷ +55°C
XP 20B D
- Model No.: XP 20B D
- Power supply: from BUS 2 Easy, 2-wire non-polarized 24 V
- Capacity: nominal 20 m
- Installation: wall-mounted
- Degree of protection: IP 54
- Self-aligning angle: ± 7° (20 m) ± 13.5° (5 m)
- Horizontal mechanical adjustment angle: -90° +90°
- Dimensions (L x W x H): 41.4 x 42.5 x 130 mm
- Absorption: Rx (10 mA) + Tx (10 mA)
- Ambient Operating Temperature: -20°C ÷ +55°C
Up to 16 photocells can be installed on the same device
XP 20W D
- Model No.: XP 20W D
- Power supply: Rx: 12 ÷ 24 V~ - 12 ÷ 24 V Tx: 12 ÷ 24 V~ - 12 ÷ 24 V or with battery (3 VcR2 - does not include)
- Nominal capacity: 20 m
- Installation: wall-mounted
- Degree of protection: IP 54
- Self-aligning angle: ± 7° (20 m) ± 13.5° (5 m)
- Horizontal mechanical adjustment angle: -90° +90°
- Dimensions (L x W x H): 41.4 x 42.5 x 130 mm
- Absorption: RX (30 mA) + Tx (40 mA battery or 5 mA at 24/V)
- Ambient operating temperature: -20°C ÷ +55°C
Possibility of installing up to 4 photocells in the same device
