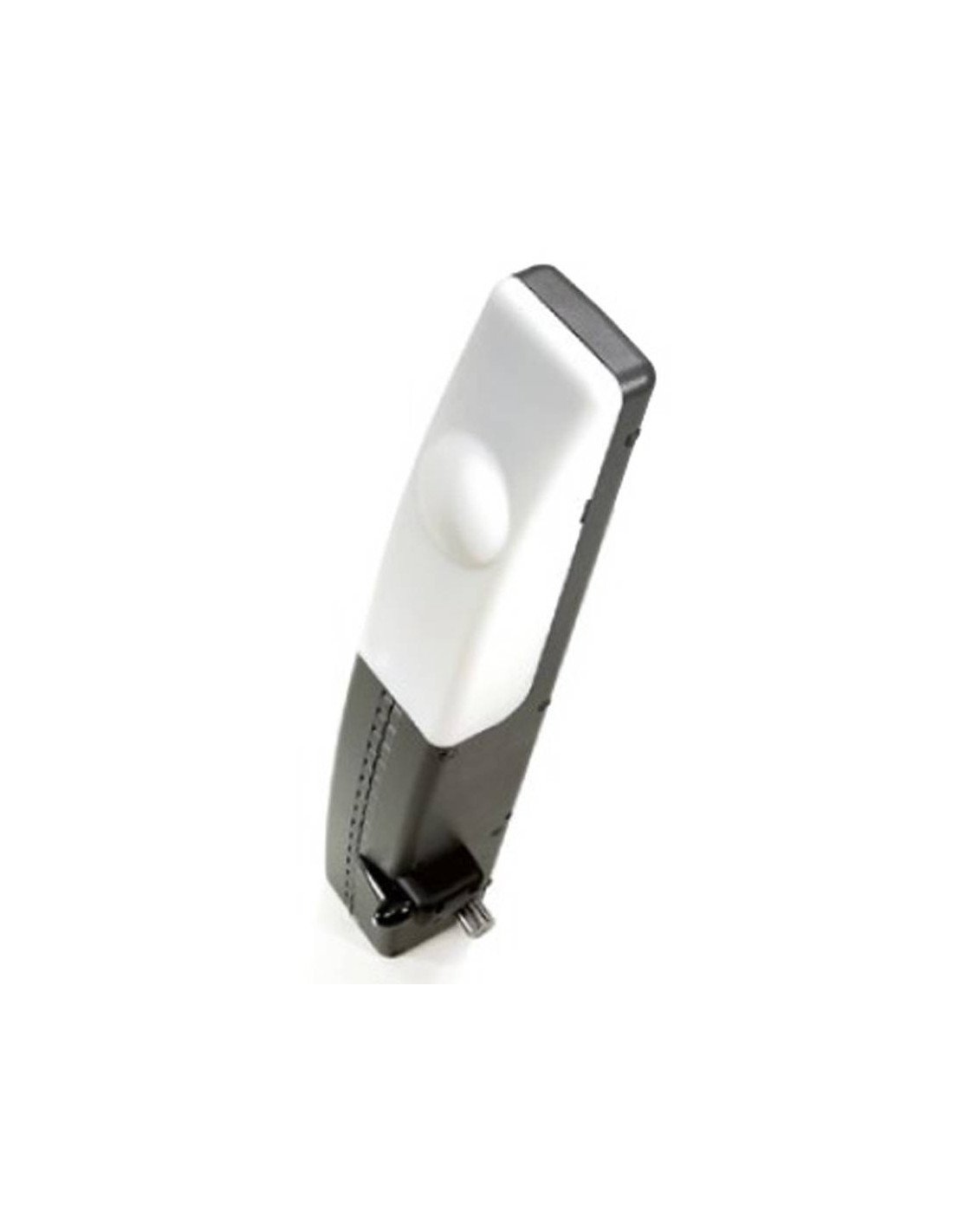

DMIL RAYO 1 230V electromechanical motor with limit switches and encoder, for residential overhead doors up to 9m², built-in analogue control panel (EVOLUTION) and receiver compatible with 868 MHz Forsa transmitters.

The RAYO 1 EVO motor can be installed on 1 or 2 overhead doors.

■ Automation for residential use

■ Manual unlocking

■ Timed courtesy light

■ Automation for semi-intensive use

■ Increased strength and power

■ Complies with EN 12445-12453

■ Encoder for obstacle detection

■ Self-locking motor

■ Small height to make better use of the passage span

■ Integrated EVOLUTION circuit

SPECIFICATIONS

• Power supply: 220 Vac
• Reduction ratio: 1/820
• Frequency: 50/60 h
• Laps min: 1.8
• Consumption: 1.3 A
• Heat protection: 140°C
• Power: 290 W
• Capacitor: 12.5 mf
• Torque: 450 Nm
• Manoeuvring time: 8 sec

TECHNICAL DESCRIPTION

• Motor-gearbox monoblock.

• Single-phase motor mounted in aluminum housing, with built-in thermal relay.

• Irreversible gearbox mounted on aluminium housing, equipped with release knob and

Lubrication with permanent fluid grease.

• Folded and zinc-plated steel base.

• Built-in opening limit switch sensor.

• Built-in control panel ready to attach radio receiver card (DMIL)

and equipped with:

• Manoeuvring time regulation.

• Open door time regulation.

• Engine torque limiter.

• Time-regulated output for additional courtesy light.

• Four microswich programming.

• Acoustic manoeuvring signal.
