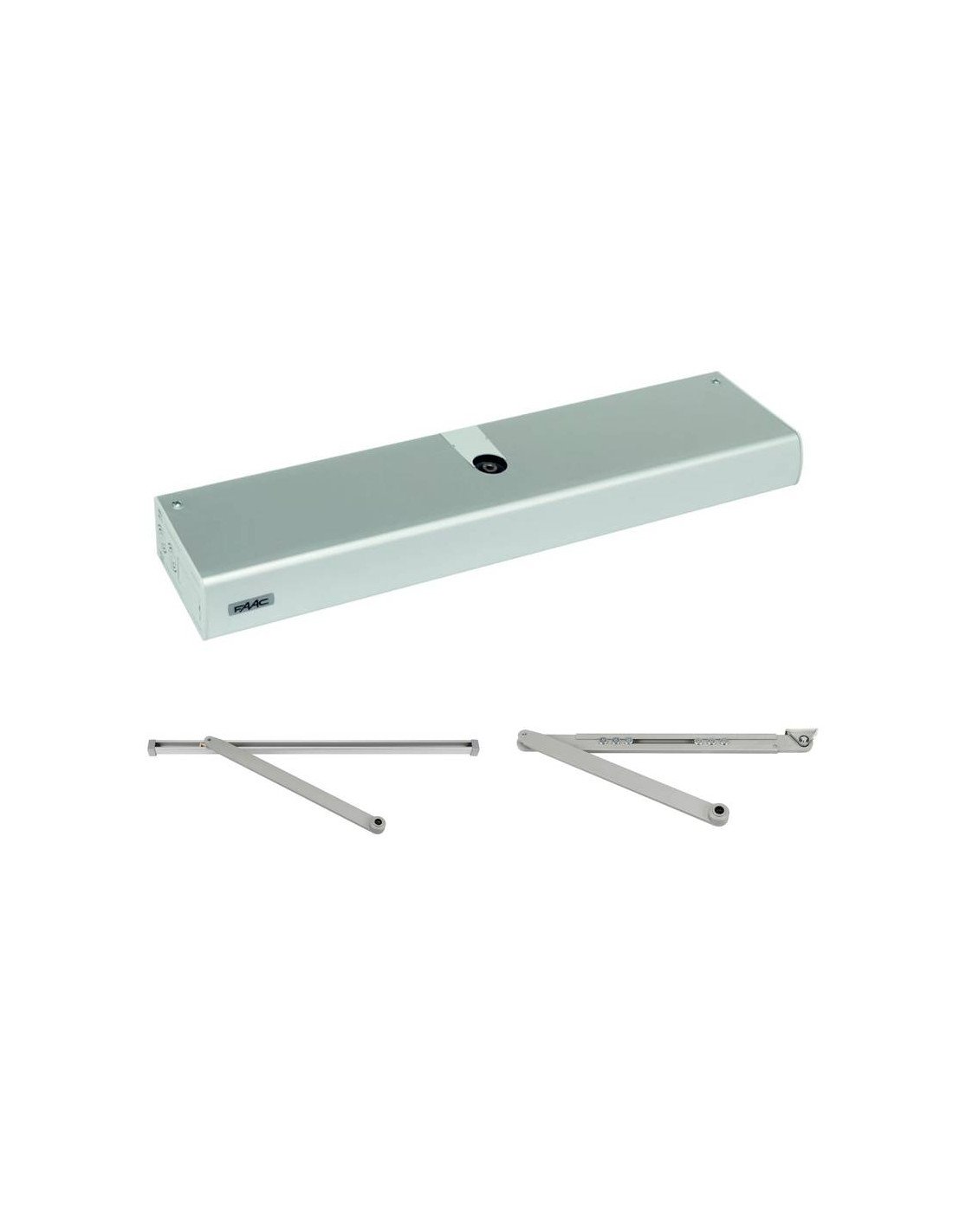

FAAC A952 Δ Automation for Intensive Peatonal Doors

Automation FAAC A952, according to EN16005, allows the movement of the pedestrian door, with a weight up to 800 KG, in absolute silence and continuous service. It can be evacuation facilities in accordance with EN16005, meeting all the security criteria of EN13489-1 PLD.

• Variable relationship pinion and zipper for constant compression of the spring (PATENTE FAAC)

• Parallel Axis Gears of Variable Relation for Fluent and Effective Movement Management (PATENTE) FAAC)

• Compact and ideal dimensions for moving firewall doors and smoke control doors

• The cover carter is made of silver anodized aluminium.

✓ 700 to 1,600 mm

✓ Jacket arm 800 Kg - 700 mm

✓ Joint arm 700 Kg - 750 mm

Technical characteristics FAAC A952

• Network feeding voltage: 110-240 V~ - 50/60 Hz
• Max power.: 350 W
• Standby power: 5 W
• Frequency of use100%
• Electric motor: 24 V powered motor
• Max load. accessories: 1A - 24V
• Electro-lock feeding voltage: (N.O./N.C.) 24 V / 500 mA max.
• Dimensions (LxPxH): 715x150x74 mm
• Weight: 12 Kg
• Operation in the absence of network tension: Manual opening of push/tiring - Spring lock
• Max angle. opening sheet: 100° ÷ 125°
• Adjustment of opening speed: 4 s ÷ 10 s (regulable)
• Setting closing speed: 4 s ÷ 10 s (regulable)
• Partial opening: 10% ÷ 90% of the total opening
• Time of pause: 0 ÷ 30 s
• Night break time: 0 ÷ 90 s
• Codifier: Series
• Monitoring protection sensors (EN16005): Serial (excluding possibility)
• Low Energy Operation (EN16005): Serial (excluding possibility)
• Operating environment temperature: -20°C ÷ +55°C
• Protection Degree: IP 23 (only for internal use)
• Compliance with standards: EN 16005; EN 61000-6-2; EN 61000-6-3; EN 13849-1 Pl. D; EN13849-2

Automation FAAC includes:

CONTROL UNIT

• Microprocessor control unit integrated with self-diagnosis and continuous check of all door functions

• Active anti-plasting safety both in closing and opening phase thanks to a high-precision magnetic encoder

• Function selector integrated into the operating device with logics:

AUTOMATICS - MANUAL/

IT 'S OPEN AT NIGHT

• Self-learning of the "open" and "closed" door positions"

• Selection of arm type used

• Function "GOLPE DE CIERRE" to ensure that the door closes even in the presence of strong wind

• Function of "Partial STOP Security" that defines the security detection space in the opening phase

• Function "PUSH and GO" that controls the motorized opening after an initial manual push operation of the door

• Function "SCP" to increase strength in the final part of the closing phase

• Function “HOLD-CLOSE”, automatism opposes the attempt to open the door of manual origin or caused by wind blows

• MAESTRO-ESCLAVO version for doors with double sheet

• enslavement function

• INTERCOM function

• Firmware update and download/load of certain information (configurations, timer, log) via USB key

• Predisposition for connection

sIMPLY CONNECT cards

Predisposition for keyboard functions KP EVO, LK EVO and KS EVO

The use of the KP EVO function keyboard allows the following functions:

Introduction user access password and installer;

– speed opening and closing settings;

– adjustment force opening and closing;

– anti-plastering adjustment;

– regulation time pause;

– diagnostic management;

Weekly calendar management;

– blockade management;

– I/O programming;

– maintenance cycle warning;

– display cycles performed;

ACTIONING GROUP INCLUDING:

• Electromechanical automation for swing doors with continuous current engine and spring

• Possibility of installation in evacuation, firewall doors and smoke control doors

• In the absence of tension, the dock can be opened or closed depending on the type of installation

• Silver anodized aluminium cover

• Pattin or articulated steel drive arm(s separately)

• Coverage of the arms of Geomet 321 (Rohs compliant) of high corrosion resistance

• Installation both on the lintel and on the door with opening to the outside or to the interior

Types of Arms FAAC A952
