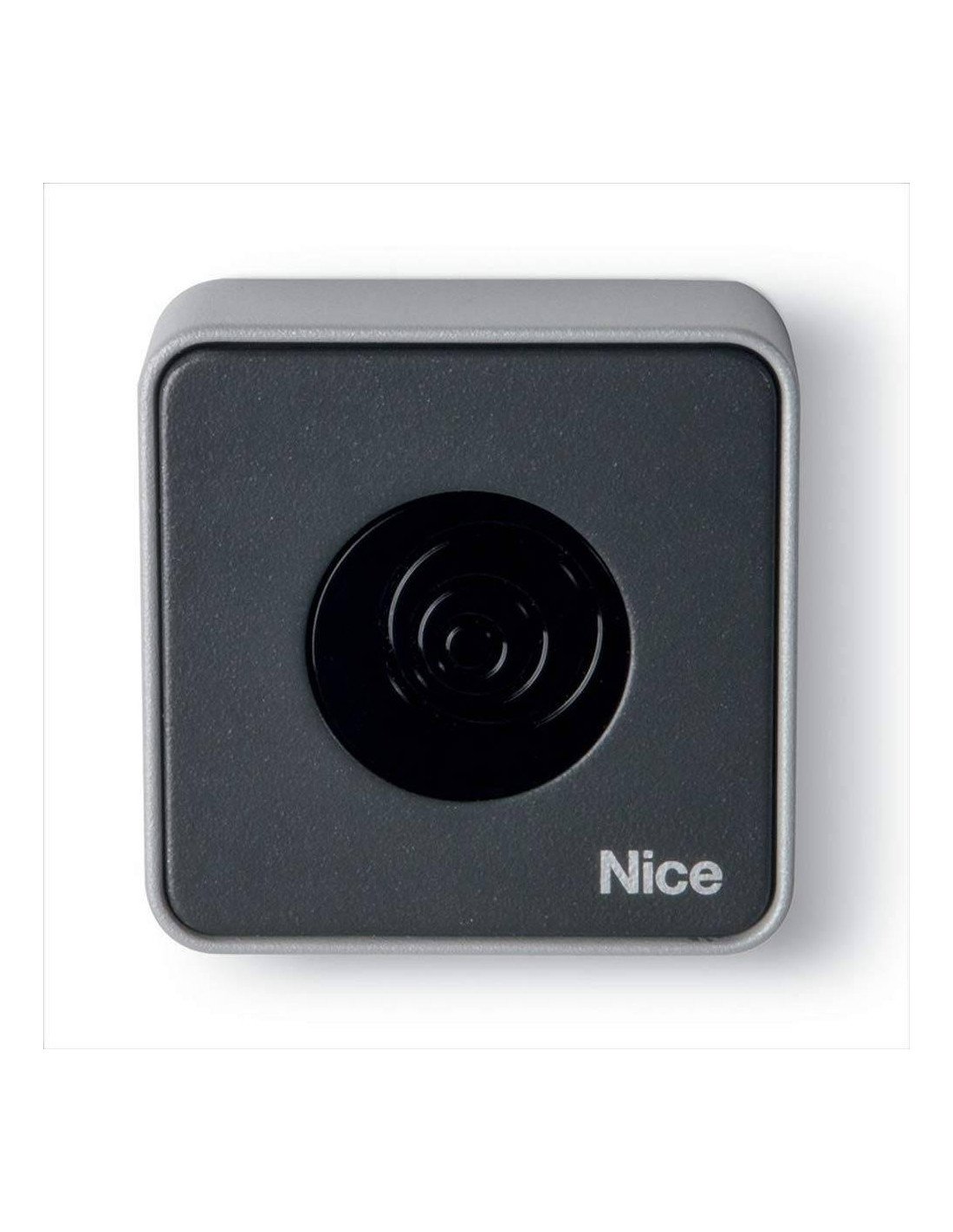

Era Transponder reader

Proximity reader for cards and badges with transponder, Flor-m bimodal transmitters, also with Nice connection technology BlueBUS

Easy Programming:

• 2 programming modes: Easy or Professional;

• allows you to set which cards to enable in the system;

• Option to schedule the number of uses for a given card/badge;

• 255 expandable memorizable cards/badges, up to 510 cards/badges with the second additional memory BM1000;

• 2 modes (static and dynamic) to activate two different orders (ETP version).

The O-Box interface makes it extremely easy to manage all types of programming of the BM1000 memory, either close to the system or remotely, directly from the installer's office.

O-Box communicates with the PC to archive all installations in order.

BlueBUS Nice technology: available with the BlueBUS Nice system (ETPB), which allows all equipment to be easily connected to the control panel with just two wires; They are simply connected in parallel and with other exclusive functions:

• 2 modes (static and dynamic) to activate two different commands chosen from the 6 available (e.g. step-by-step, close, open) depending on the control panel to which they have been connected;

• Option to connect an automatism lock/unlock;

• up to 4 EDBSB/EDSIB and ETPB control devices, which can be connected via BlueBUS Nice , also in the mixed configuration.

HSB1 transponder badge: practical to use, can be worn on the key ring to always have it within reach.

AVAILABLE MODELS

• ETP: Proximity card reader with MOCARD and MOCARDP transponder, to be combined with the MORX Decoder
• ETPB: Proximity reader for transpondered cards, with BlueBUS Nice technology

ACCESSORIES

• HSB1: Badge with reprogrammable transponder via O-Box, with sequential coding for multiple entry.
• MOCARD: Card with transponder reprogrammable via O-Box.

MANUAL

• ETP Nice Instruction Manual
• Instruction Manual Nice ETPB
