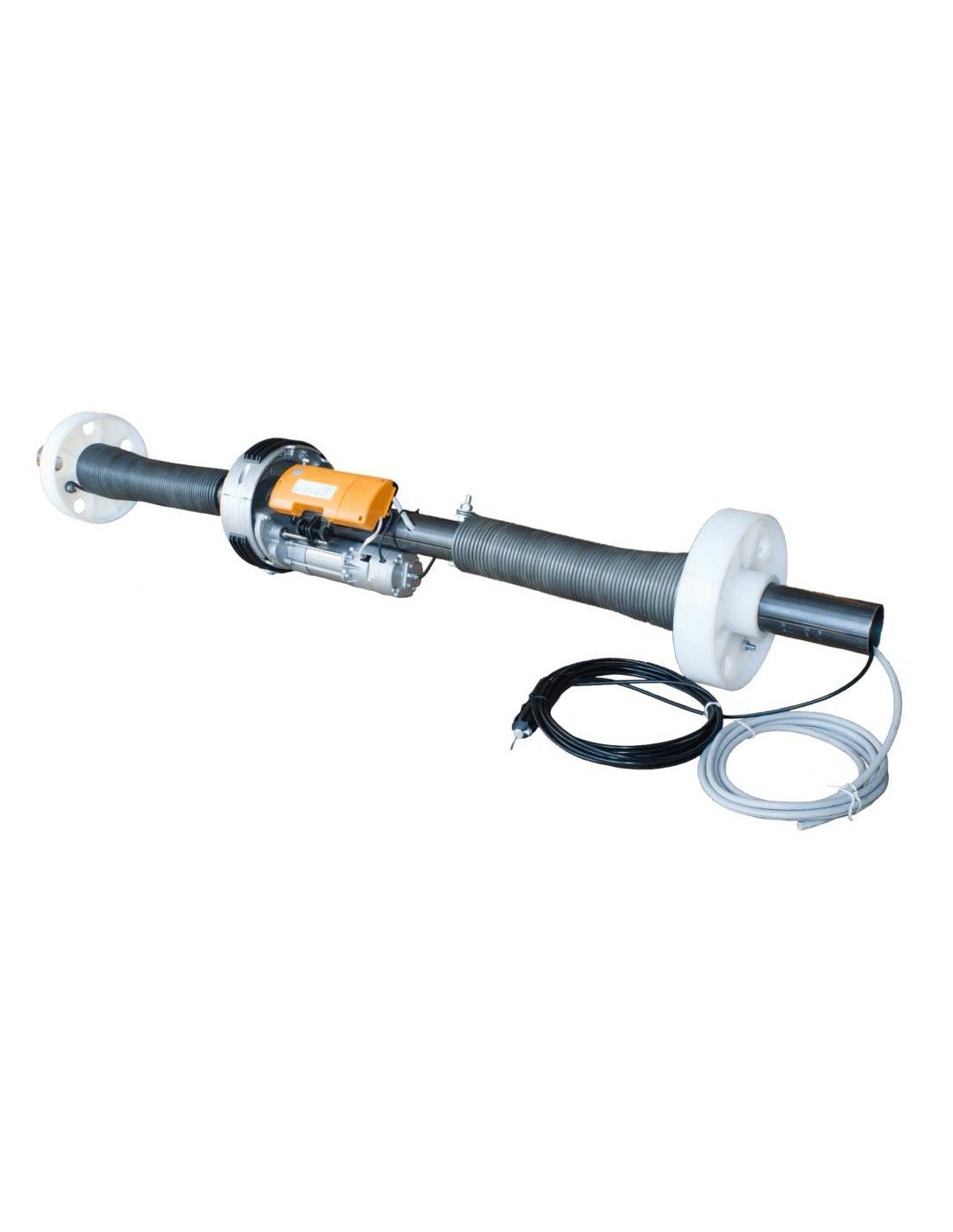

ACM center axis motor with electro-brake for roller shutters up to 170 kg of lift, ideal for motorizing commercial doors or private garages.

The electro-brake brakes the shutter once it is closed, locking it and preventing it from opening manually. The motor includes an auto-brake release (black cable) to operate the roller shutter in the event of a power failure in the premises or garage.

Noteit is advisable to install a motor with an electric brake when there is an alternative access. However, it is possible to install an unlocking device on the outside in order to be able to access the unlocking by means of a key.

The ACM motor for rolling doors gives us the possibility to perform mechanical or electronic maneuvers by control panel and receiver with remote controls.

TECHNICAL FEATURES

• Powerful motor of 170Nm. of 630W at 10rpm speed.
• To operate blinds up to 170Kg.
• For metal roller shutter shaft diameters 48 or 60 with adapters (included)
• Power supply in alternating current at 220Vac
• Equipped for 200/220 pulleys with corresponding adapters.
• To operate shutters up to 9 square meters.
• Easily programmable mechanical limit switches

" ON SHAFTS SMALLER THAN 42MM DIAMETER (DUE TO ITS SMALL THICKNESS) IT IS NOT RECOMMENDED TO INSTALL IT. HOWEVER , IN THE PRODUCT'S ACCESSORIES YOU CAN FIND SHAFT ADAPTERS "

- Body and crown in die-cast aluminum in steel
- Crown sliding on roller bearings
- Transmission shaft on double ball bearings
- Asynchronous motor at 4 pol.: 1.400 rpm.
- Insulation class: B
- Thermoprotection on the motor: 160° C.
- Stop with easily adjustable screw
- Maximum height of the metallic seal: 6 meters
- Power supply cable: 4x1 mm2 for Unititan
- Operating temperature: -20° C.+ 85°c.
- Predisposition for the application of the electrobrake P-PBM-P115.

KIT INCLUDES

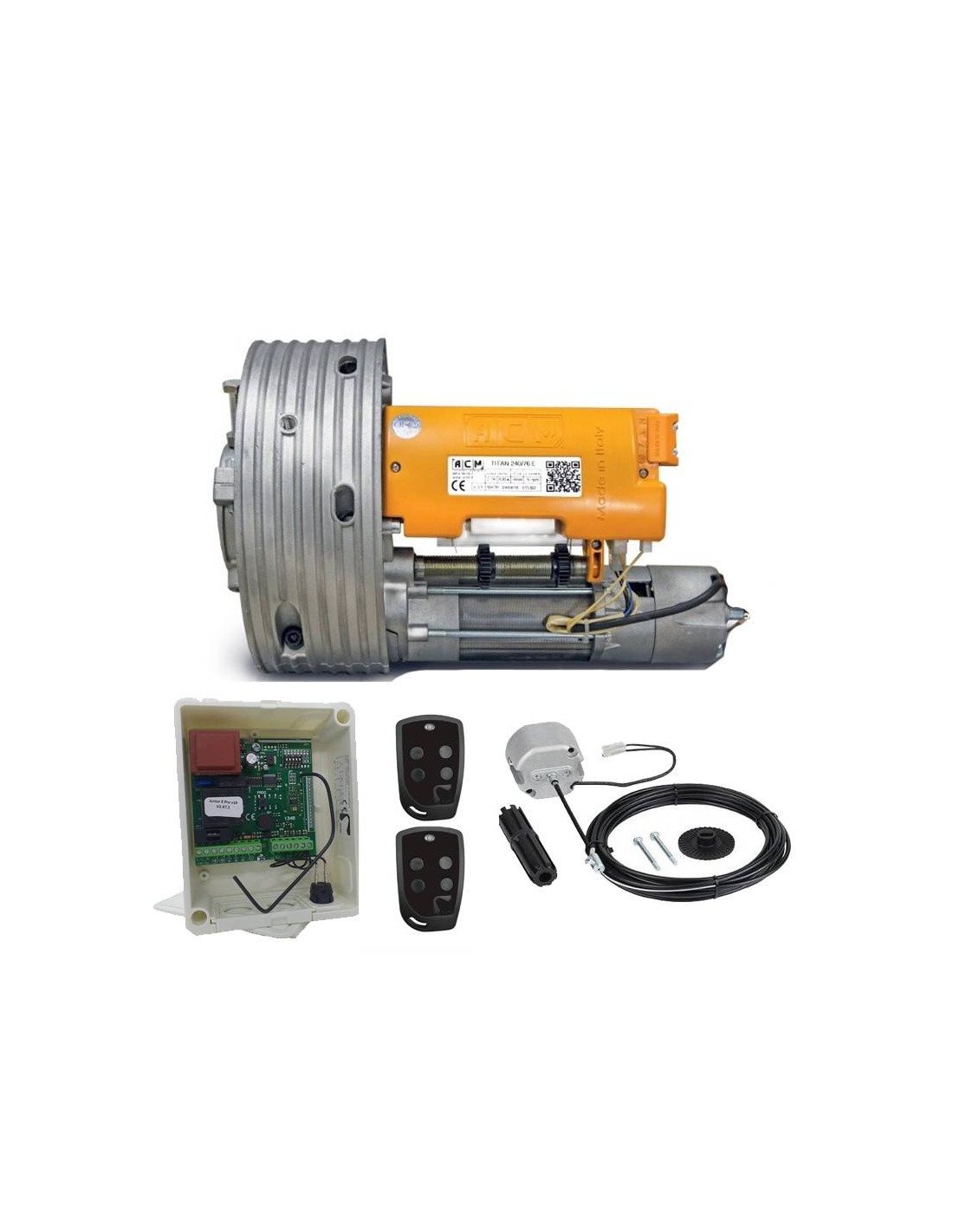

• ACM motor with electrobrake
• Control panel with built-in receiver at 433.92 MHz
• 2 Pujol Rollingcode controls at 433,92 MHz

MANUAL

Installation manual ACM Titan 170 Kg

VIDEO ASSEMBLY
