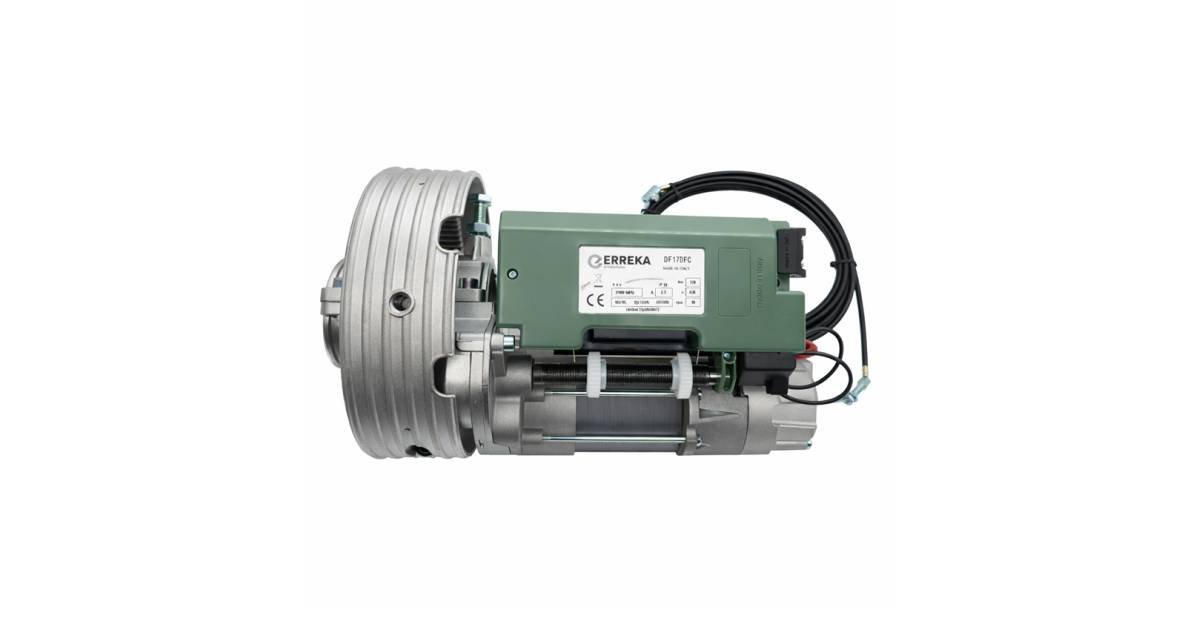

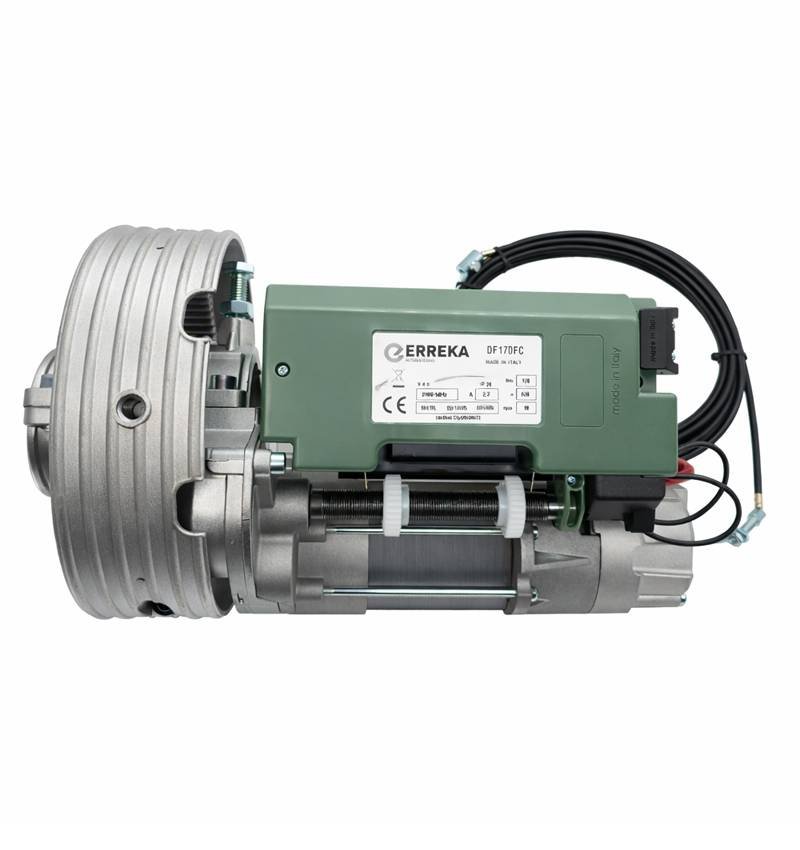

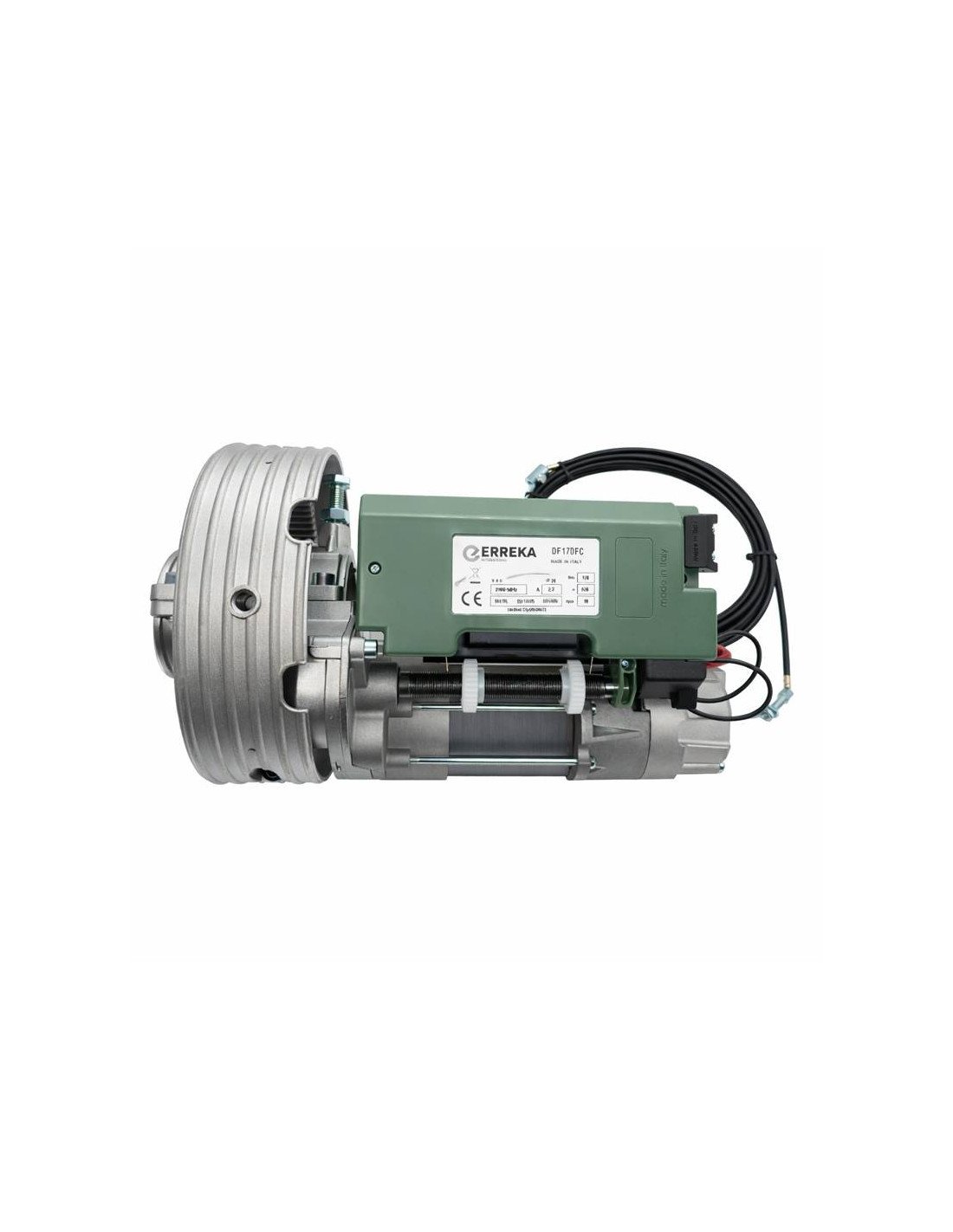

230V ERREKA DELFOS electromechanical motor for residential and industrial roller doors with lifting capacity from 170 to 360 kg, for tubes with 48mm, 60mm and 76mm shafts.

The DELFOS motor is powered at 230Vac and incorporates electromechanical limit switches, and has a model without electrobrake (the motor does not block the shutter and can be raised and lowered manually), and a model with electrobrake (the shutter is blocked and cannot be raised or lowered by hand if it is not unlocked with the lever).

AVAILABLE MODELS

• DF170C: 170 Kg 48/60 shaft coaxial electromechanical motor without brake
• DF170FC: 170 Kg 48/60 shaft coaxial electromechanical motor with brake
• DF180FC: 180 Kg 76 Kg Shaft Coaxial Electromechanical Motor with Brake
• DF280FC: 280 Kg 48/60 axle twin-motor coaxial electromechanical motor with brake
• DF360FC: 360 Kg 76 Kg Twin-Motor Coaxial Coaxial Electromechanical Motor with Brake

SPECIFICATIONS

• 230Vac power supply.
• Maximum force between 170Nm-400Nm depending on model.
• Max. Curtain weight between 170kg-360Kg.
• Speed 10 r.p.m.
• Locked/not locked.
• Electromechanical limit switches.
• No encoder.
• Curtain shaft diameter between 48mm-76mm.
• Easy to assemble.
• IP20 degree of protection.
