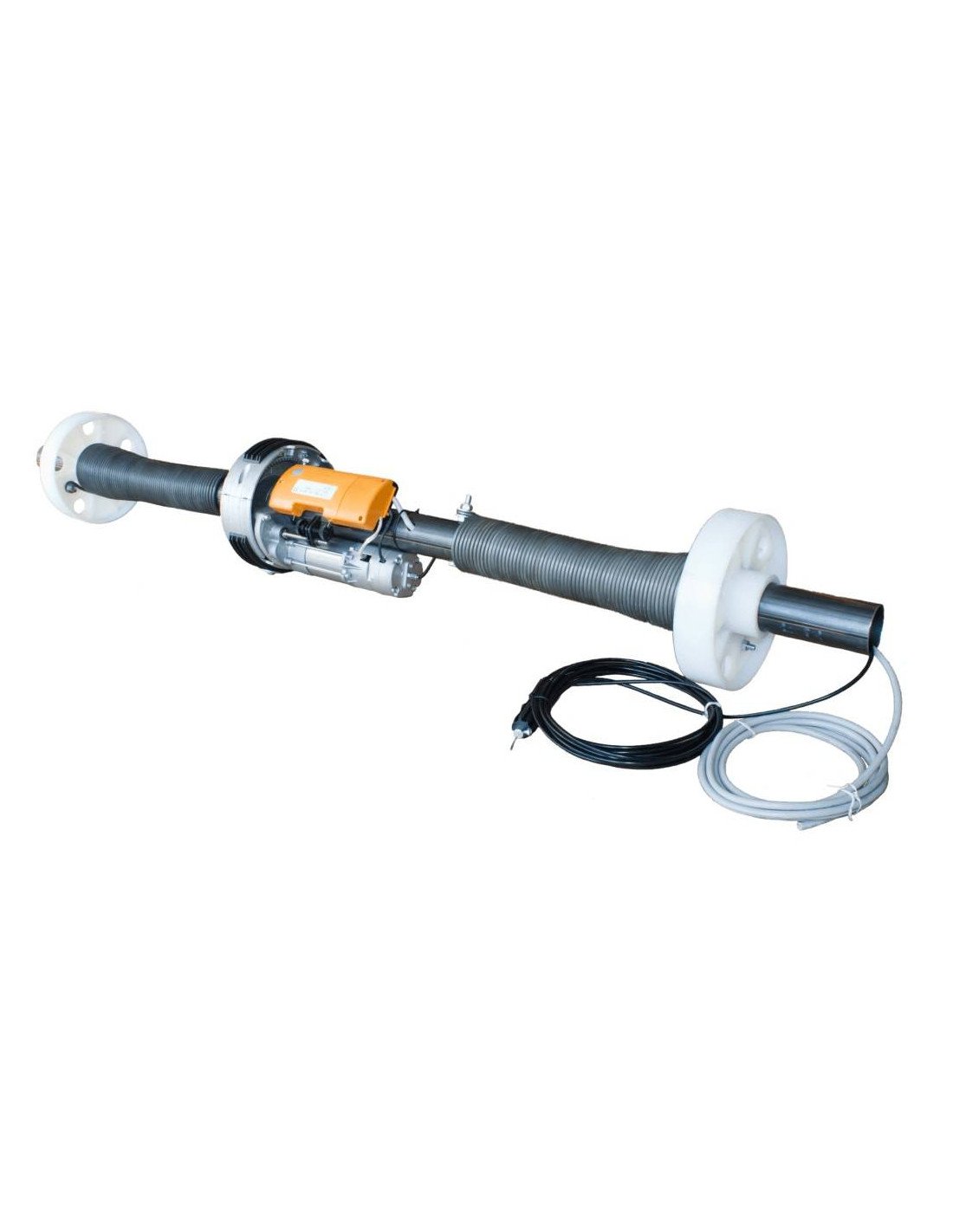

Motor centre axle ACM of a kind used in motor vehicles, ideal for powering commercial doors or private garages.

The electro-brake brakes the blind once it's closed and avoiding opening it manually. The motor includes the auto brake unlock (black cable), to be able to activate the blind in case of lack of electric current in the room or garage.

Notes: it is advisable to install an electric brake engine when other alternative access is available. Although there is the possibility of installing an unlocking device on the outside to access the unlock using a key.

The engine ACM it gives us the possibility of machines and apparatus for the manufacture of semiconductor wafers with remote controls.

TECHNICAL CHARACTERISTICS

• Powerful engine of 170 Nm. of 630 W at 10 rpm.
• To operate shutters up to A hundred and seventy pounds.
• Machinery for making pulp of fibrous cellulosic material
• AC power supply at 220Vac
• Equipped for 200/220 pulleys with corresponding adapters.
• To operate blinds up to 9m square.
• Mechanical race finishes with simple programming

" IN AXLES LESS THAN 42 MM IN DIAMETER (DUE TO THEIR SMALL THICKNESS) THEIR INSTALLATION IS NOT RECOMMENDED. ANYWAY IN THE PRODUCT ACCESSORIES YOU CAN FIND SHAFT ADAPTERS "

• Aluminium body and crown pressurised in steel grates
• Slip of the crown on roller bearing
• Transmission shaft on double ball bearings
• Asynchronous motor at 4 in. it's about 1400 rpm.
• Insulation class: B
• Thermal protection in the engine: 160°C.
• Easily adjustable screw cap
• Maximum height of the metal closure: 6 metres
• Power cable: 4x1 mm2 for Unititan
• Temperature for operation: -20°C. + 85 degrees.
• Preparation for the application of the P-PBM-P115 electrobrake.

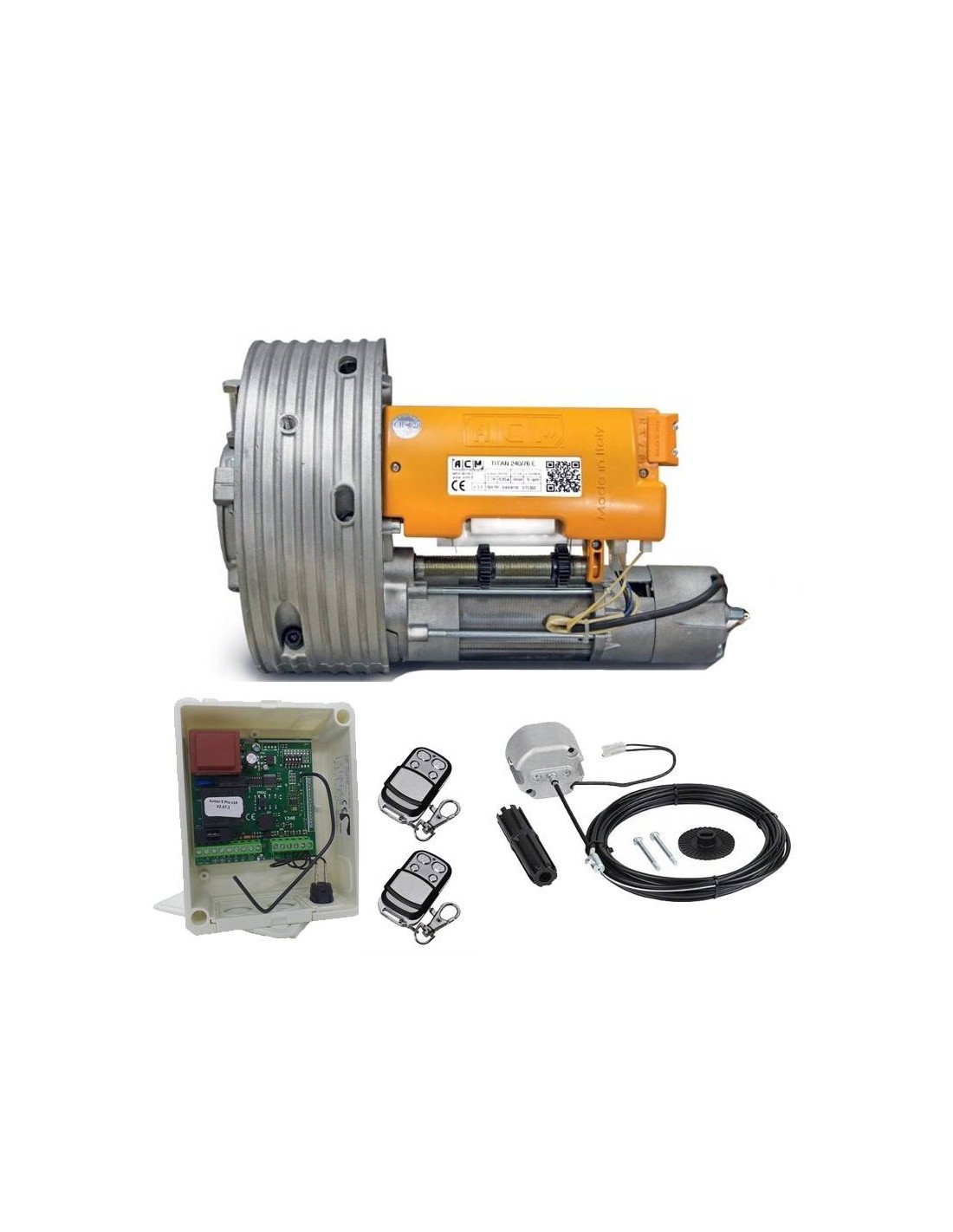

THE KIT INCLUDES:

• Engine ACM with an electric brake
• Manoeuvre table with built-in receiver at 433,92 MHz
• 2 Rollingcode controls at 433.92 MHz with coding Pujol

MANUAL

Installation manual ACM Titanium 170 Kg
