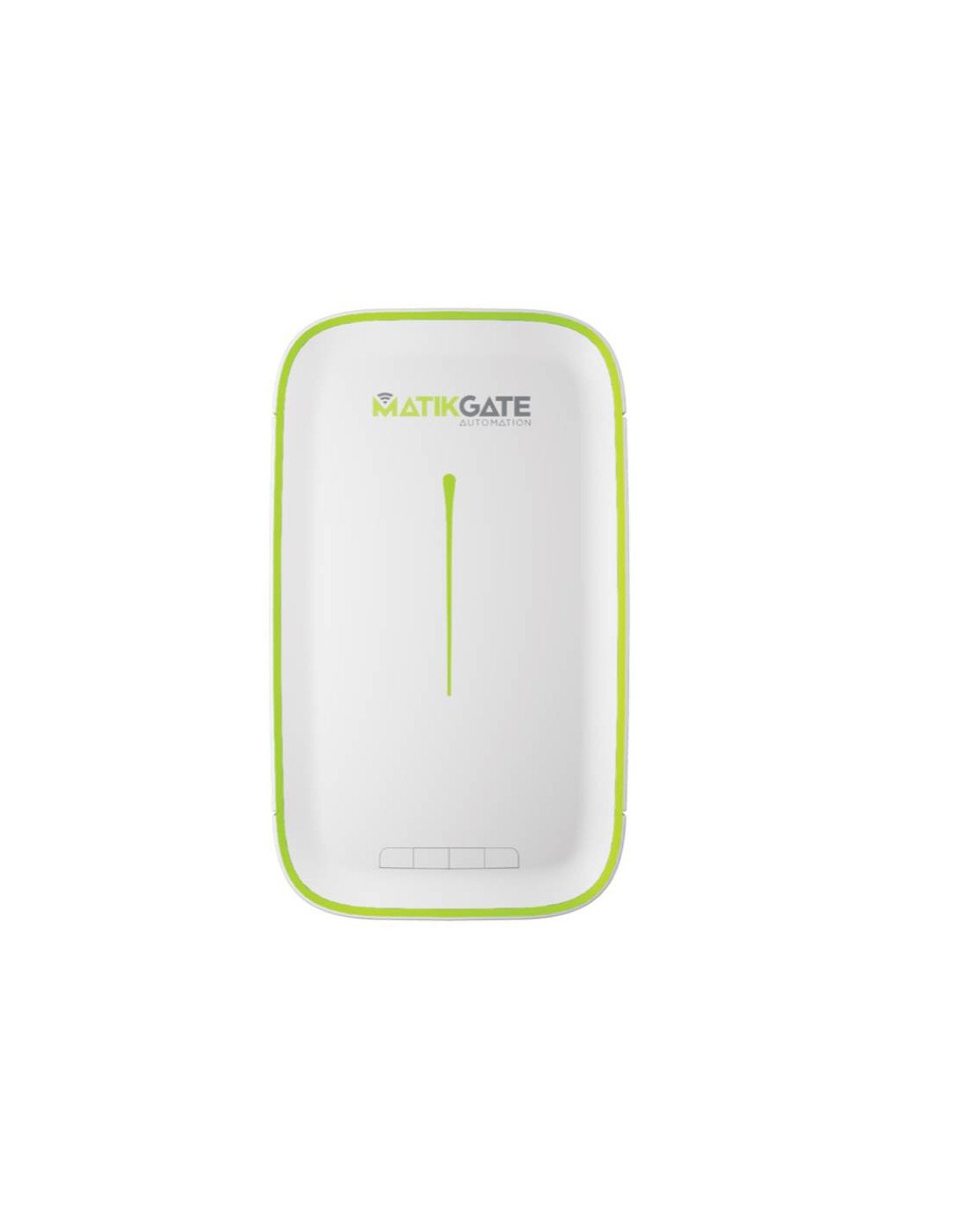

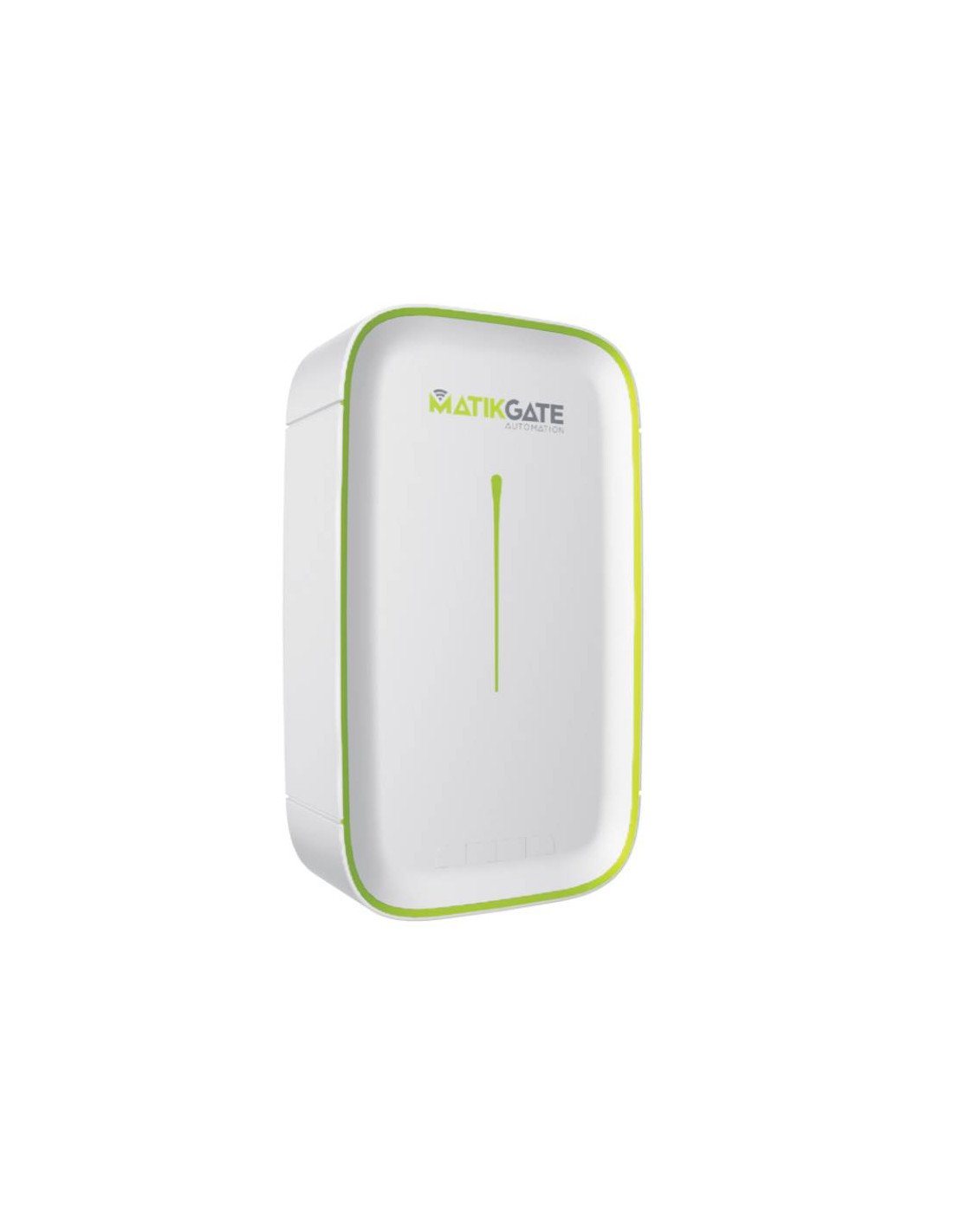

SECTIONAL MOTOR BRUSHLESS MATIKGATE LIFE Residential doors up to 17m²
LIFT
€233.00
VAT excluded
281,93 €
Tax incl.
Brushless roofing engine Matikgate LIFE of 24VDC for residential sectional doors with Iron guide with strap.
Intended for the residential segment, the LIFT is a 24V DC Belt Brushless Motor with Power up to 200W To automate doors Sectionals up to 17m². Developed for intensive use, stands out for its high quality materials and its modern and distinctive design, guaranteeing silence, reliability and reduced maintenance. Allows connection to the Matikgate App (Optional).
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
SECTIONAL MOTOR BRUSHLESS MATIKGATE LIFE
Brushless roofing engine Matikgate LIFE of 24VDC for residential sectional doors with Iron guide with strap.
Intended for the residential segment, the LIFT is a 24V DC Belt Brushless Motor with Power up to 200W To automate doors Sectionals up to 17m². Developed for intensive use, stands out for its high quality materials and its modern and distinctive design, guaranteeing silence, reliability and reduced maintenance. Allows connection to the Matikgate App (Optional).
Technical characteristics
| Model | 800n | 1200n | 1800n |
| Feed | 230vac | 230vac | 230vac |
| Engine | 24v | 24v | 24v |
| Power | 80w | 120w | 180w |
| Strength | 800n | 1200n | 1800n |
| Frequency | Intensive | Intensive | Intensive |
| Speed | 18cm /'s | 18cm /'s | 18cm /'s |
| Operating temperature | -20ºC + 50ºC | -20ºC + 50ºC | -20ºC + 50ºC |
| Protection | Ip20 | Ip20 | Ip20 |
| Max dimensions Door | 12m² | 14m² | 17m² |

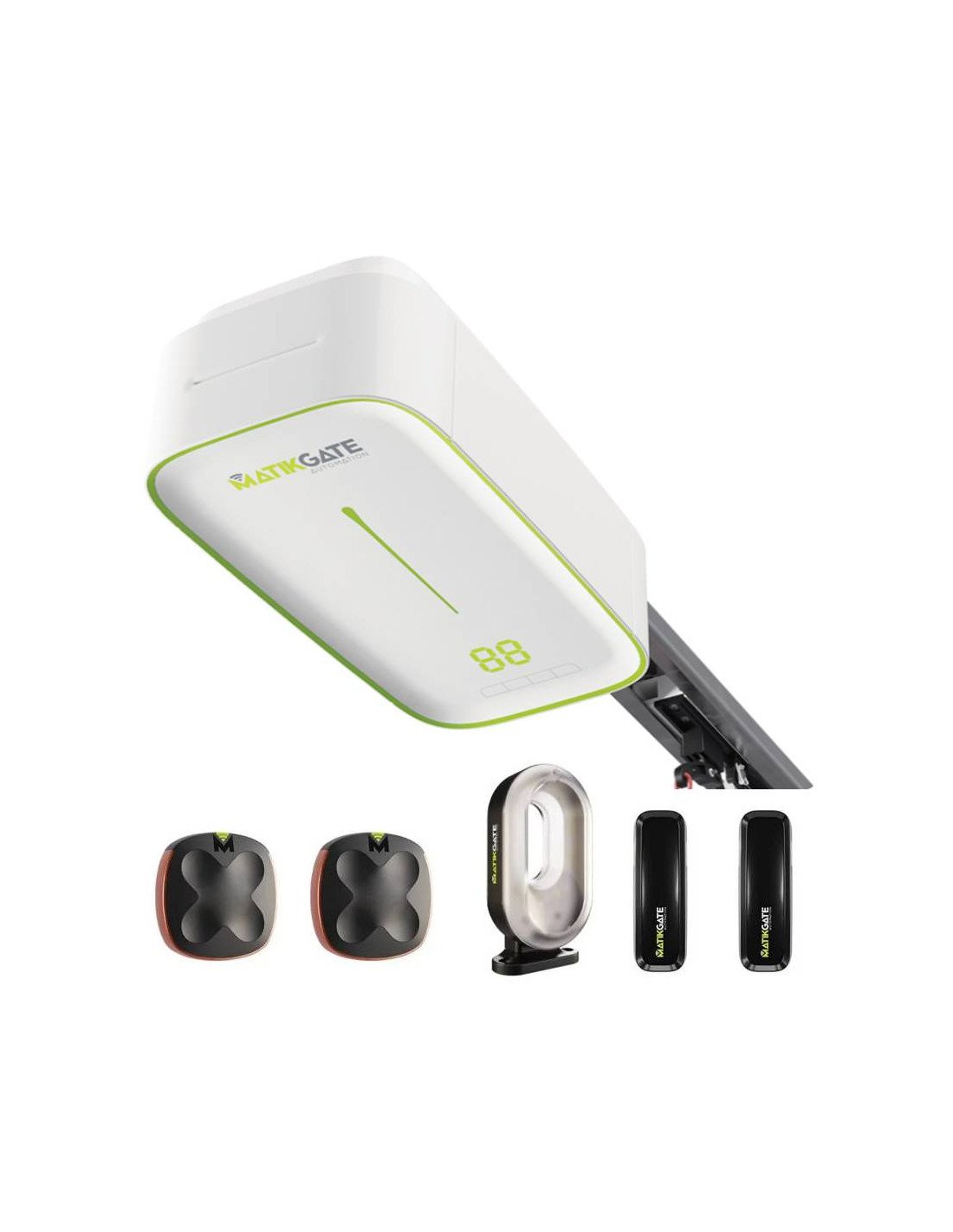

Composition of the kit:
- 1 BRUSHLESS MOTOR
- 1 Belt Guide
- 2 Copper RollingCode Estabilors 433.92 MHz
- 1 pair of F180 photocells
- 1 Blink flashing lamp
Measures Matikgate Lift
- Type of engine
- Electromechanical 24V
- Force (N)
- 1,000N
From 1,200N - Maximum door area (m2)
- from 10m² to 13m²
from 14m² to 17m²
