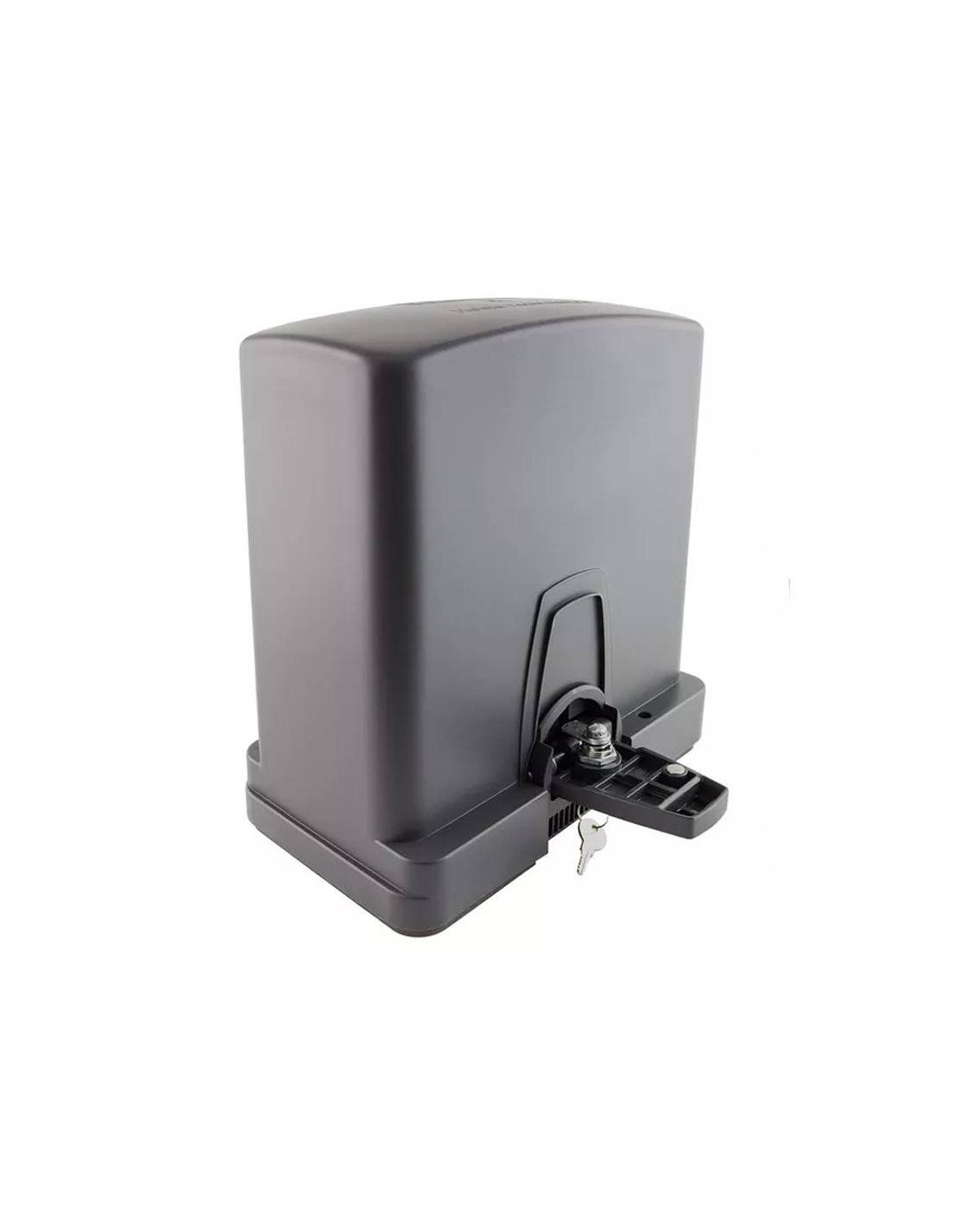

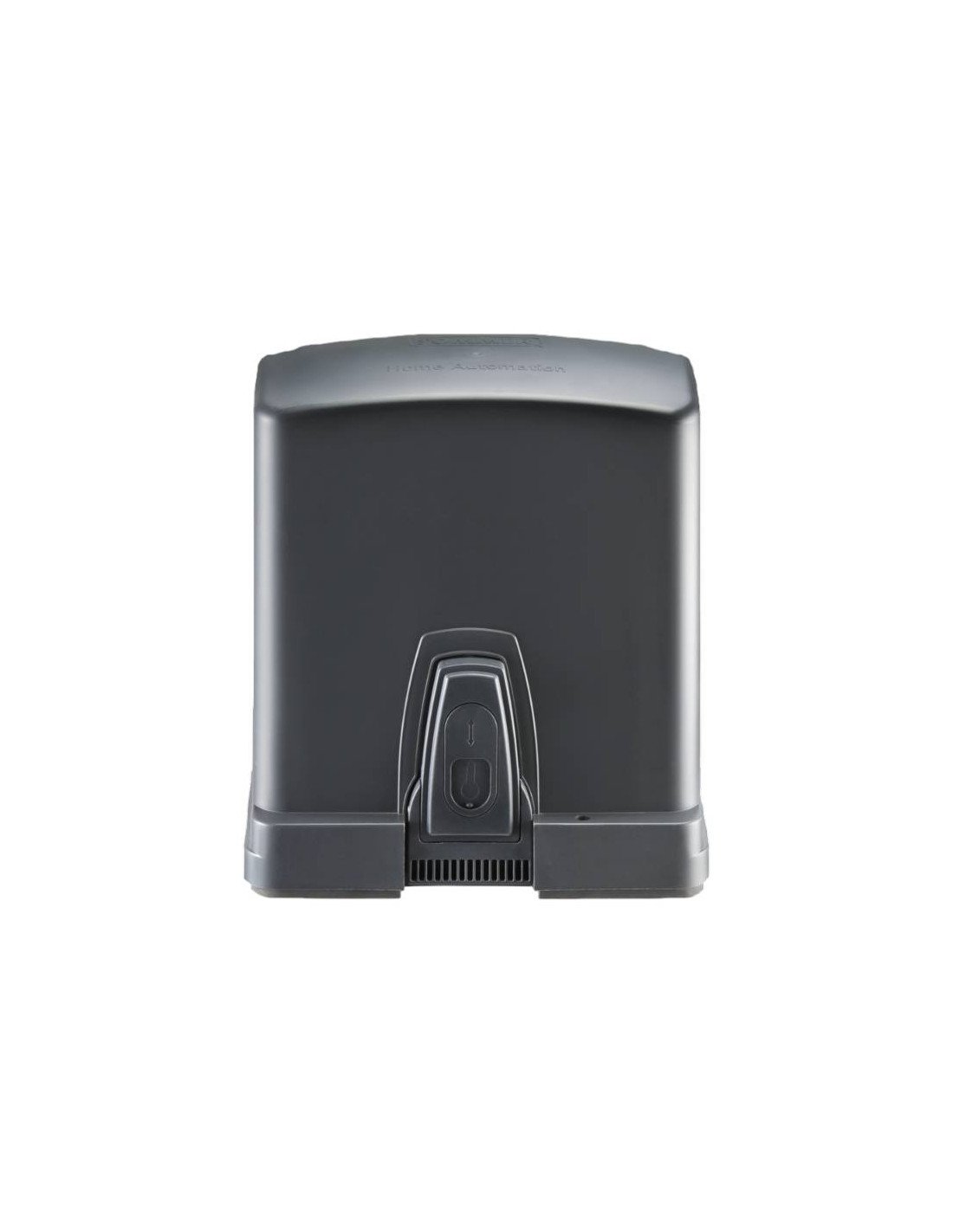

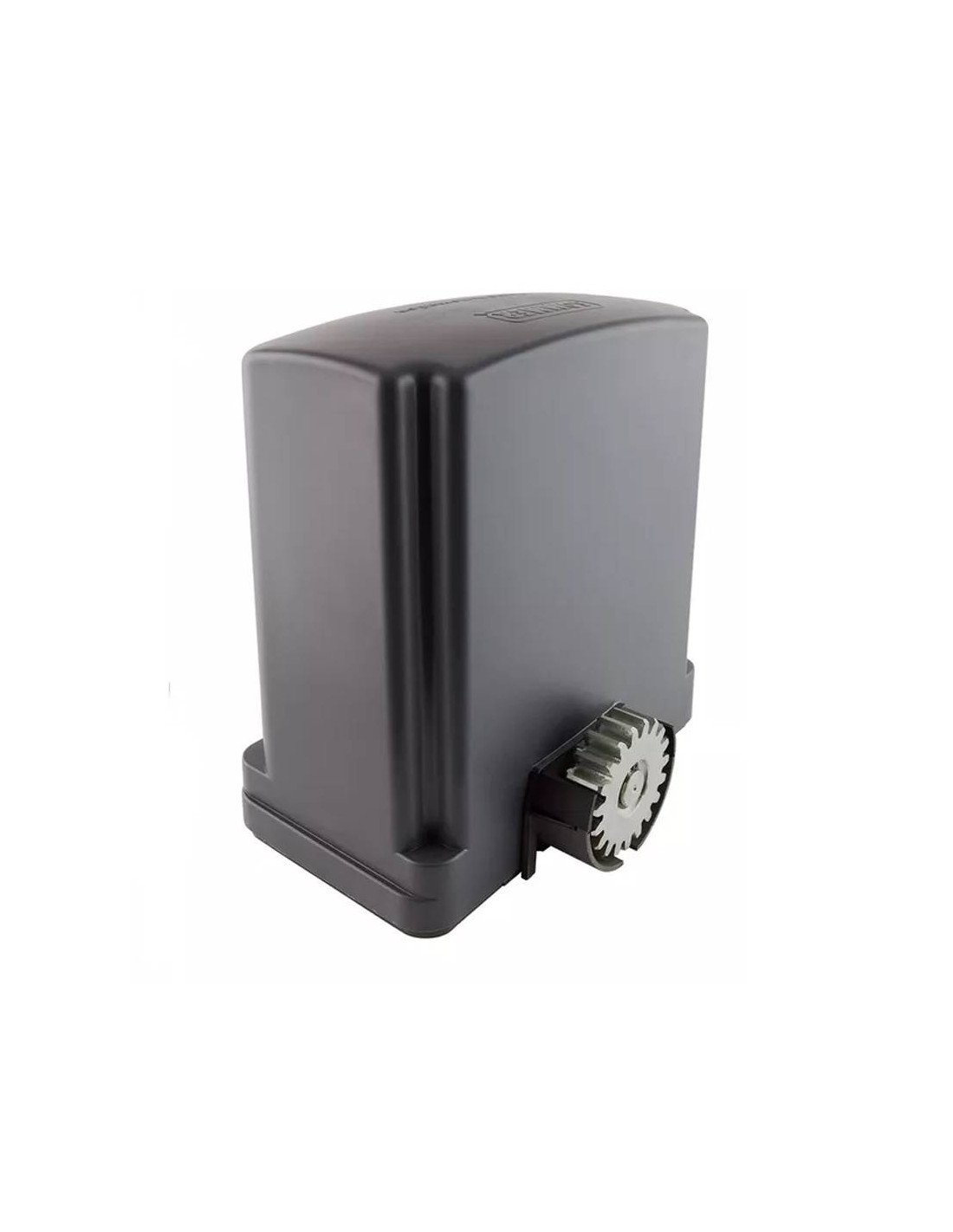

SOMMER RUNNER+ 800KG

SOMMER RUNner+ sliding motor for residential doors up to 800KG with magnetic finishes, with boot and soft stop for progressive operation in the maneuvers of the door. Incorporates maneuvers with receiver FM 868.95 MHz SOMloq2 and intelligent barrier detection function for maximum security.

Technical characteristics

• Max. door weight: 800 kg
• Max.: 12,000 mm
• Max pendant of the puerta: 5%
• Opening speed max.: 190 mm/s
• Maximum: 28 Nm
• Power consumption (in standby): 0.5 W
• Power supply: 220-240 V
• Nominal frequency: 50-60 Hz
• Temperature min.: -30 °C
• Max temperature.: 50 °C
• Protection class: IP54
• Radio system: SOMloq2
• Radiofrequency: 868.95 MHz
• Number of radio memory positions: 112

Content:

• Motor Sommer RUNner+
• Table of maneuvers incorporated
• Fixing plate (optional)
