Motor Kit CAME BXV06AGS to 24V for sliding doors up to 600 kg, both residential and community.

CHARACTERISTICS

• Ideal for sliding doors up to 600kg.
• Includes a two-channel RollingCode 433.92 MHz controller
• Frequency change possible via the optional AF868 card.
• Display-programmable panel.
• Obstacle detection safety system.
• Compatible with Came Connect and Rio System 2.0.

SPECIFICATIONS

• Power supply: 230V - 50/60Hz
• Motor power: 24V
• Stad-by power consumption: 5.5W
• Power: 270W
• Maximum current absorbed: 11A
• Colour: RAL 7024
• Operating temperature: -20 ÷ +55 °C
• Thrust: 600N
• Maximum manoeuvring speed: 12m/min
• Working Time: 180s
• Intermittent/Working: Intensive
• Degree of protection: IP44

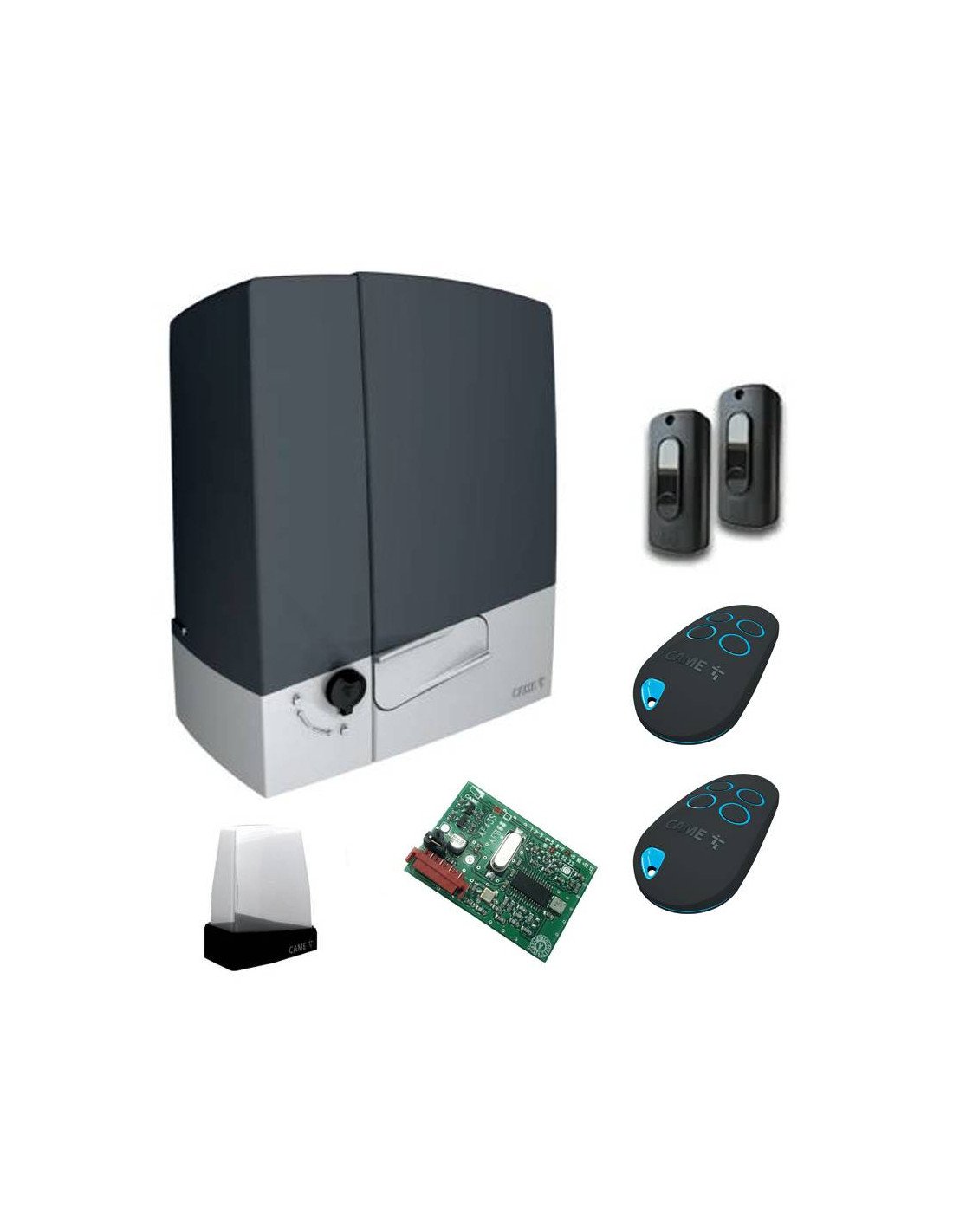

KIT INCLUDES

■ BXV06AGS: Automation with 24V DC motor. For doors up to 600Kg. And 18 meters long.

■ 806TS-0092: Dual Frequency Transmitter TOPD2FKS Fixed Code (2 units)

■ 001AF43S: 433.92 MHz plug-in radio card.

■ 001DIR20: Pair of synchronized photocells 12-24V up to 10 meters.

■ 001KLED24: LED indicator flashing light 24V dc.

■ 001KIAROS: Wall mount bracket for lamp.

■ 119RV826: Automatic door signage plate.
