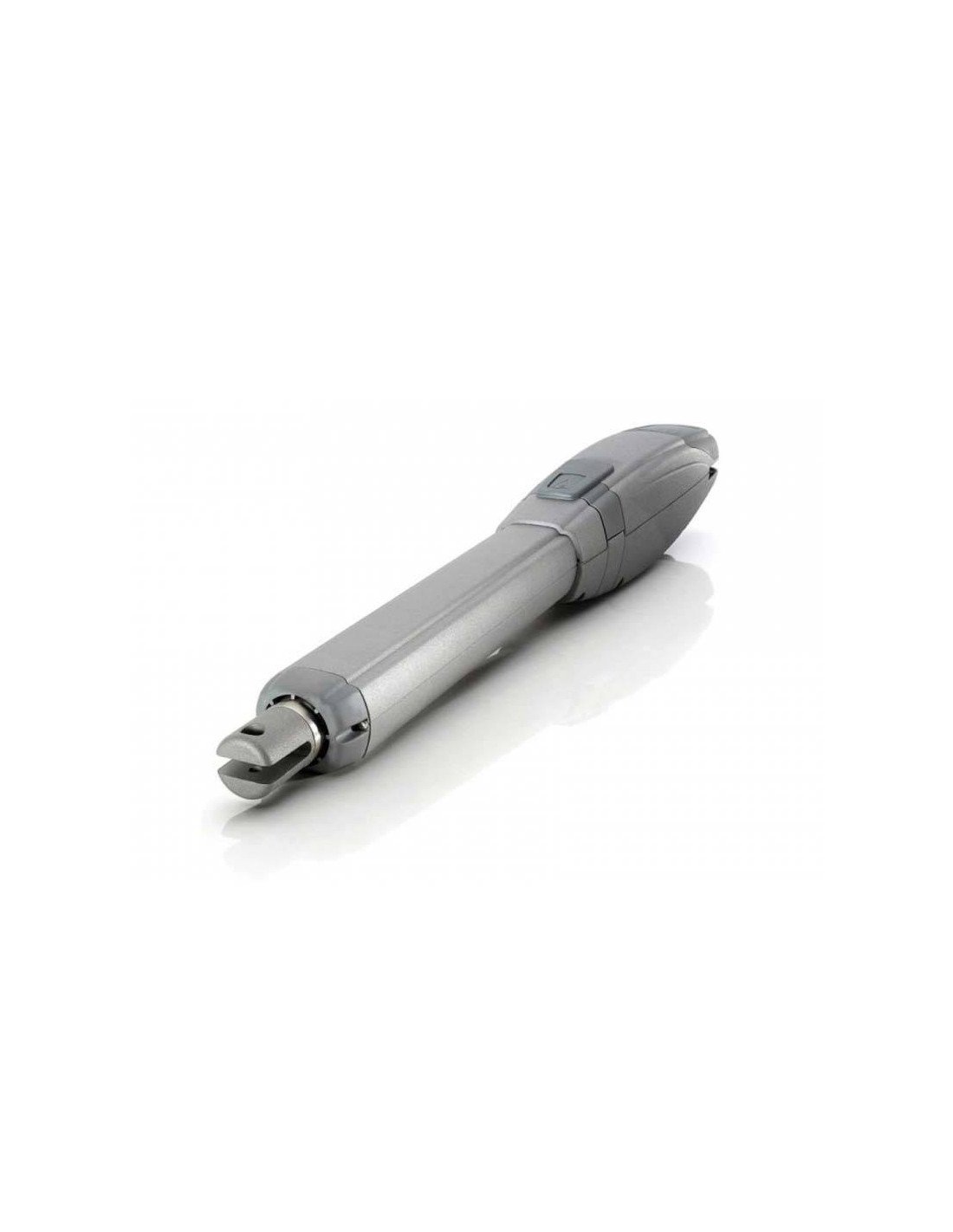

Electromechanical engine EMFA "TRO" 18V Semi-intensive use with obslutive optical encoder and 425mm stroke for swing doors up to 4 metres.

TECHNICAL CHARACTERISTICS

• FoodOther: 230Vac 50Hz
• Capacitor: 10 uF
• Absorbed current1A
• Power: 120W
• Engine speedother:
• Career425 mm
• Maximum length of door: 4000 mm
• Reduction ratio1/24
• Operating temperature20oC to +55oC
• Weight: 8,10 kg
• Degree of protection: IP44
• Full thrust: 2300 N
• Work cycle: 36%
• Opening time 90o25 seconds .

MODELS AVAILABLE

■ 201043 OTHER: Irreversible electromechanical arm 18V 425 mm stroke with absolute optical encoder for doors up to 550 kg and 4 mtrs. Semi-intensive use.

■ 201044: OTHER: Reversible electromechanical arm 18V 425 mm stroke with absolute optical encoder for doors up to 550 kg and 4 mtrs. Semi-intensive use. ALLOW THE ENGINE TO LOCK WHEN OPEN TO PREVENT THE DOOR FROM CLOSING DUE TO DRAFTS.

MEASURES

MANUAL

Instruction manual EMFA THE
