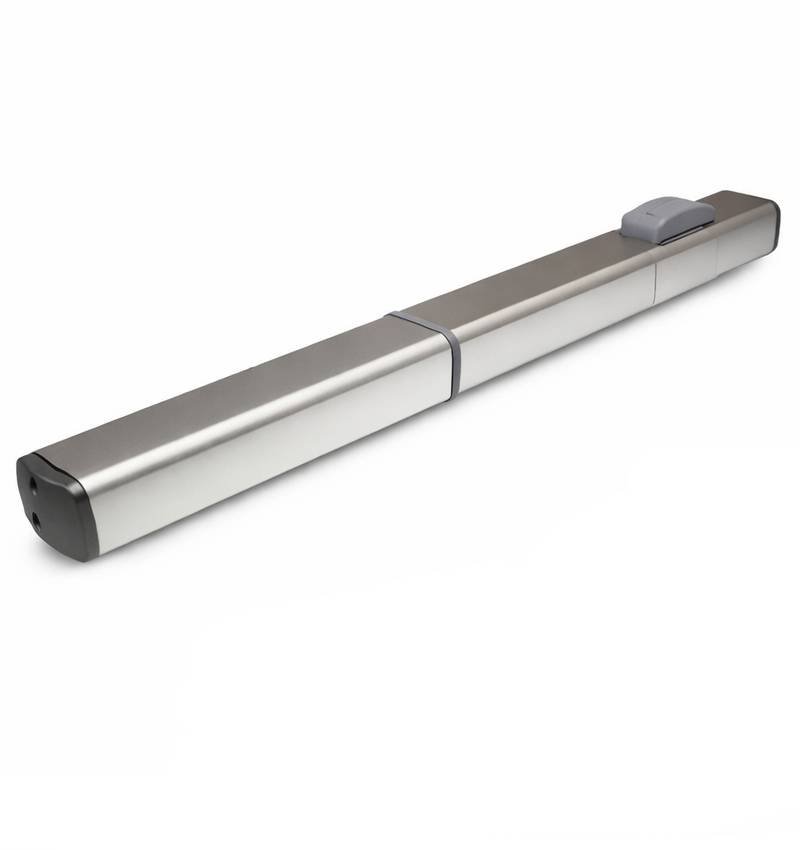

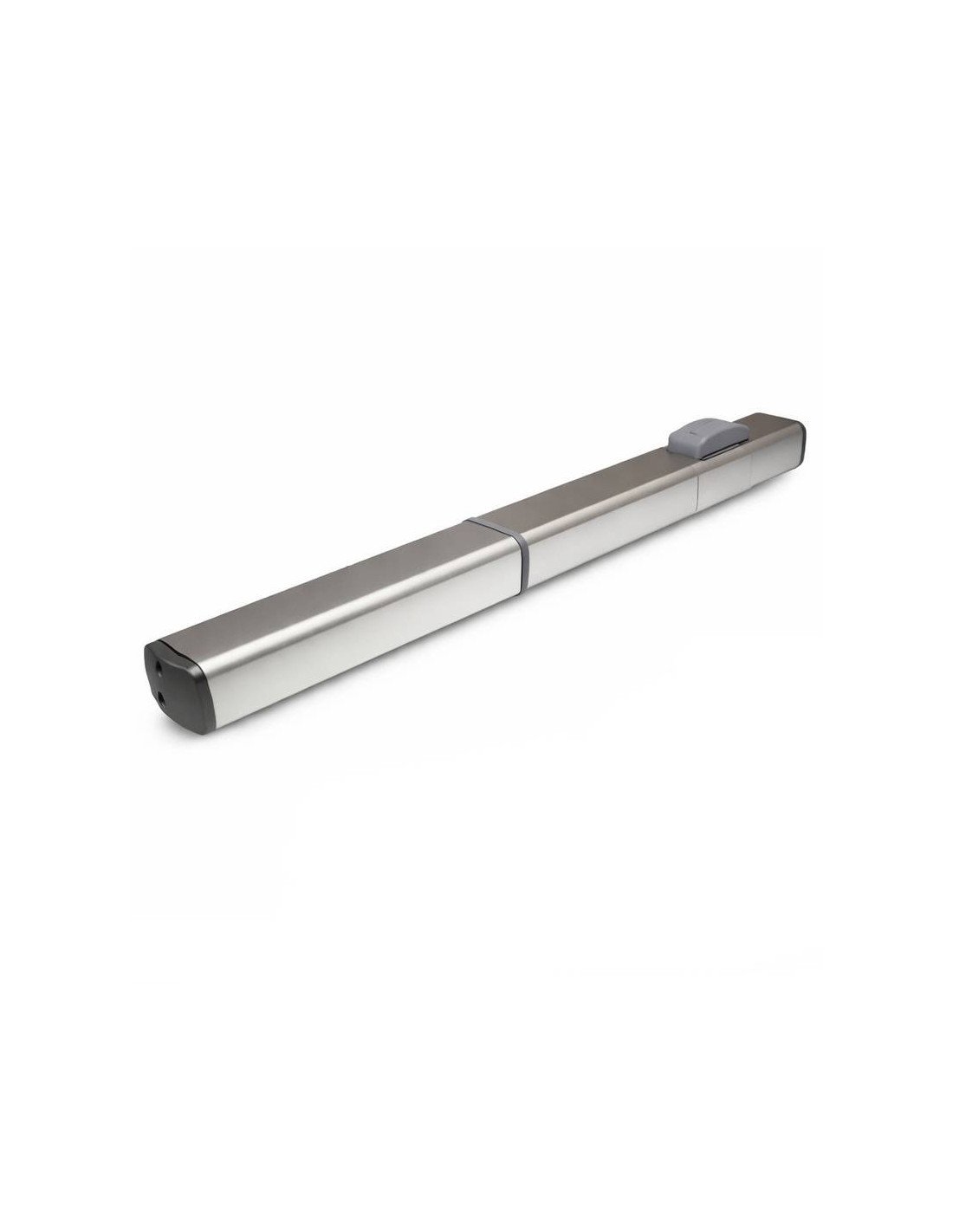

Hydraulic motor Aprimatic Forty 270/390 for swing doors up to 7 m

Name: Hydraulic motor Aprimatic Forty 270/390 for swing doors up to 7 m
Brand: Aprimatic
SKU: FORTY 270/390
Price: 447 EUR
Availability: InStock

Reference FORTY 270/390

€447.00

VAT excluded

540,87 €

Tax incl.

Hydraulic motor Aprimatic Forty for swing doors, Available in versions Forty 270 sf, forty 270 c and forty 390 sf. 270 or 390 mm racing, 230VAC feed, hydraulic deceleration in closing and sheet models up 7 meters according to version.

FORTY 270/390

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Description
Product Details

Hydraulic motor Aprimatic Forty for swing doors

The range Aprimatic FORTY 270 / FORTY 390 it is formed by hydraulic operators for the automation of swing doors and cancels of one or two leaves.

They are specially indicated motors for installations where it is required reliability, high frequency of maneuver and silent operation, incorporating hydraulic strength regulation system, anti-explaught safety valves and hydraulic deceleration in closing.

The range is available with stem racing 270 mm and 390 mm, allowing to automate sheets of different lengths according to the selected version.

In this product you can select through the drop-down versions Forty 270 sf, forty 270 c and forty 390 sf.

Models available

Model	Race	Block	Sheet
FORTY 270 SF	270 mm	Unlocked	Up to 5 m
FORTY 270 C	270 mm	In closure	Up to 2 m
FORTY 390 SF	390 mm	Unlocked	Up to 7 m

Important: Hydraulic lock and electric lock

Models Forty 270 SF and Forty 390 SF do not have a hydraulic lock, so it is necessary to install a electric lock to guarantee the mechanical block of the door when the automation is stopped.

The model Forty 270 C has hydraulic lock in closing, so it keeps the sheet hydraulically blocked when the engine is not working.

Main features

✓ Operator hydraulic for swing doors.

✓ Feeding 230VAC / 50 Hz.

✓ Available with career 270 mm or 390 mm.

✓ Hydraulic deceleration in closing to reduce blows at the end of the maneuver.

✓ Hydraulic valves of anti-explashing security.

✓ unlock emergency manual.

✓ Stem of 20 mm in diameter.

✓ Silent and reliable operation.

✓ Linear speed of 1.3 cm / s.

✓ 70 cycles per hour.

✓ Range of operation of -25 ° C to +70 ° C.

✓ Rear anchor flange with mechanical protection of the power cord.

Technical characteristics

Feature	FORTY 270	FORTY 390
Feed	230VAC / 50 Hz	230VAC / 50 Hz
Absorbed	250 W	350 W
Absorbed current	1 A	1.9
Race of the Stem	270 mm	390 mm
Linear speed	1.3 cm / s	1.3 cm / s
Diameter of the stem	20 mm	20 mm
Maximum leaf width	Up to 5 m *	Up to 7 m *
Cycles / hour	70 c / h	70 c / h
Thermal range	-25 ° C / +70 ° C	-25 ° C / +70 ° C
Degree	IP55	IP55
Weight	9 kg	10 kg
Capacitor	8 μF - 400 V	10 μF - 400 V

* The maximum length length depends on the selected version: forty 270 sf up to 5 m, forty 270 c up to 2 m and forty 390 sf up to 7 m.

Dimensions

Model	TO	B	C
FORTY 270	1090 mm	705 mm	270 mm
FORTY 390	1330 mm	825 mm	390 mm

What version will choose?

FORTY 270 SF: race of 270 mm without hydraulic lock, indicated for sheets up to 5 m.

FORTY 270 C: 270 mm version with closing hydraulic lock, indicated for sheets up to 2 m.

FORTY 390 SF: long race version of 390 mm without hydraulic lock, indicated for sheets up to 7 m.

Important before selecting the engine

The maximum length length is a manufacturer's orientative fact. Before choosing the automation, the weight and door structure, hinged state, wind resistance, pillar geometry, hinge position and installation dimensions. The door must be scrolled manually on a regular basis and without friction.
