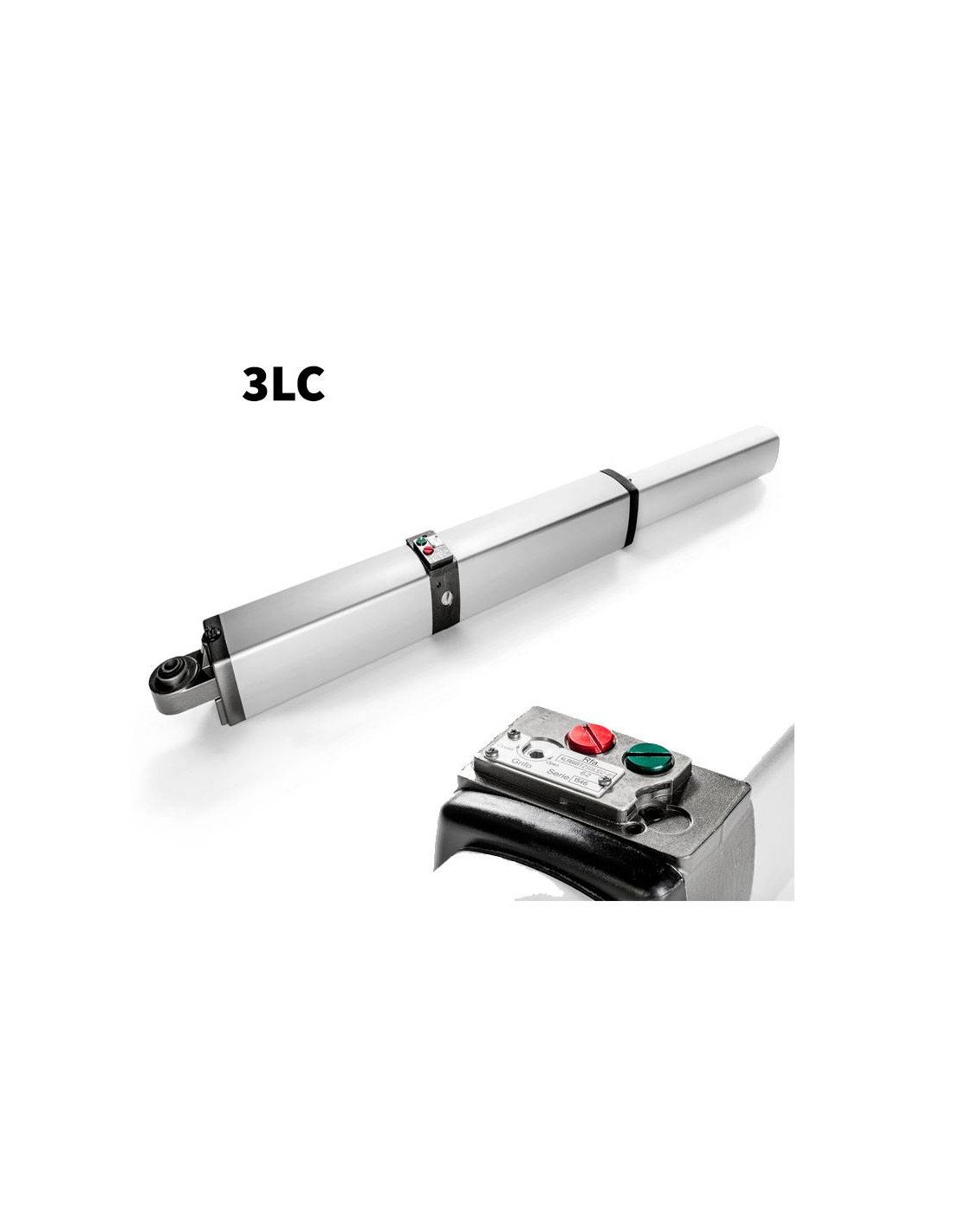

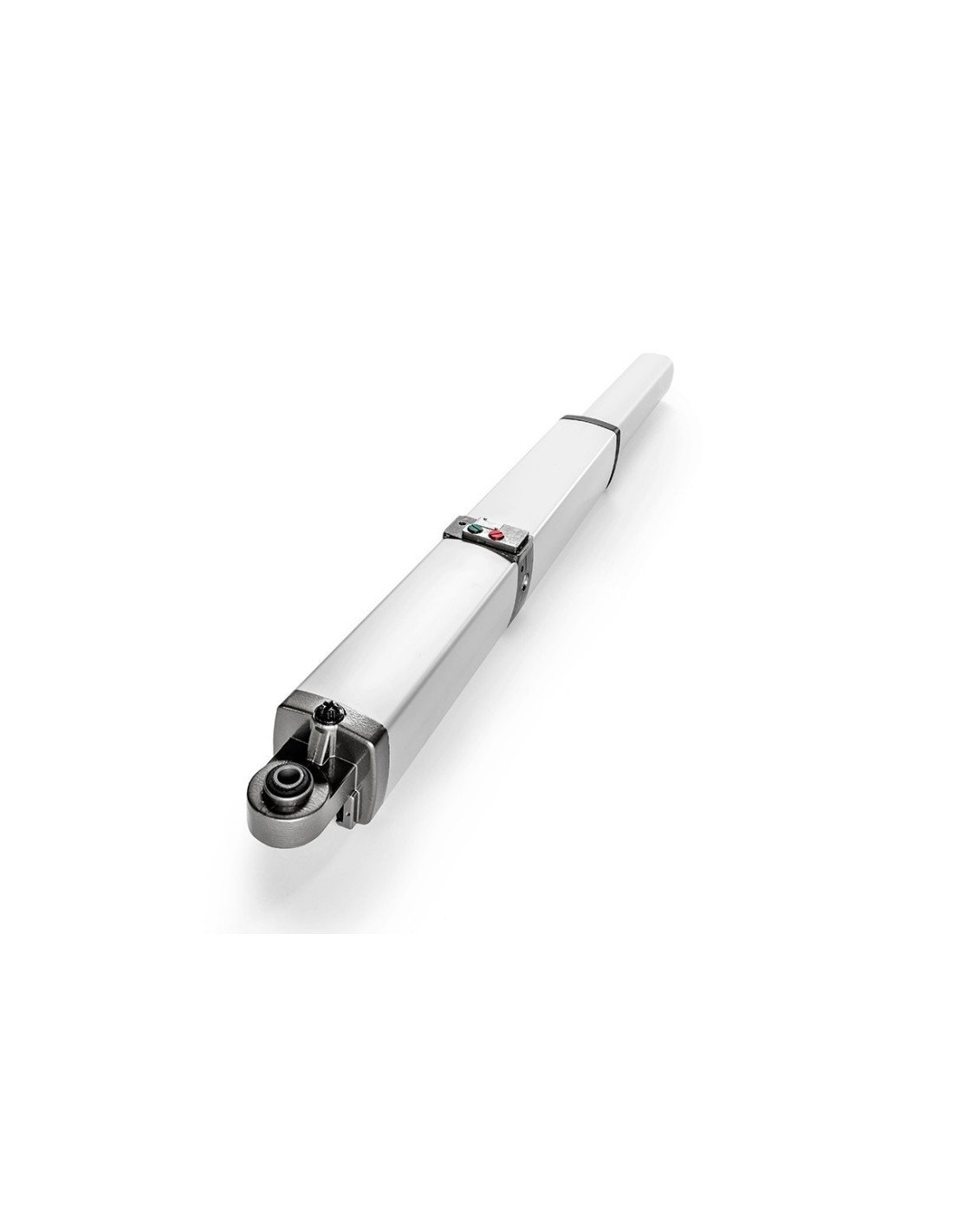

Swing door motor Hy-Dom intensive use at 230v. It incorporates an angle reader (encoder) and an anti-crushing system in opening and closing, a manual help manoeuvre activation system, and detection in the event of an untimely closing of the door due to gusts of wind.

CHARACTERISTICS

• Oil-hydraulic actuators for doors up to 6 meters
• Slim line with high resistance to atmospheric agents
• Possibility of hydraulic self-locking
• Damping at both ends
• Non-locking system (mod. D) or double lock (mod. RT)
• Stroke: 250mm (4LR/3LC), 400mm (3LC)
• No need for physical bumpers
• Adjustable closing speed on RT models
• Extension and retraction force regulation

AVAILABLE CARRERA 250 MODELS

• 3LC33D250A3A1: Non-locking hydraulic motor, heavy duty, 250 stroke, 23" time (needs electric lock).
• 3LC66D250A3F1: Hydraulic actuator with large oil tank without blockage for heavy use. Stroke 250mm.
• 3LC33RT250A3A2: Hydraulic motor with double lock, heavy duty, stroke 250, time 23".
• 3LC50S250A3A2: Selectable Locking Hydraulic Actuator (Non-Locking or Locked), Heavy Duty. Stroke 250 mm.

AVAILABLE CARRERA 400 MODELS

• 3LC50D400A3A1: Non-locking hydraulic motor, heavy duty, 400 stroke, 25" time (needs electric lock).
• 3LC66D400A3F1: Non-blocking oil tank hydraulic actuator. Stroke 400mm.
• 3LC50RT400A3A2: Hydraulic motor with double lock, heavy duty, 400 stroke, 25" time.
• 3LC66RT400A3F2: Large hydraulic oil tank motor with double locking , intensive use, 400 stroke.
• 3LC33RT400A5G2: Double lock hydraulic actuator. Stroke 400mm. Special for heavy doors.
• 3LC33RT400A5G2-TG: Double lock hydraulic actuator. Stroke 400mm. Special for heavy doors. Back cover rotated 90º.
• 3LC50S400A3A2: Selectable Locking Hydraulic Actuator (Non-Locking or Locked), Heavy Duty. Stroke 400mm.

MODEL Linear 250 up to 3.5m per sheet

• Retraction: 765 mm
• Extension: 1015 mm
• Overall: 1076 mm

MODEL Linear 400 up to 6m per sheet

• Retraction: 915 mm
• Extension: 1315 mm
• Total: 1365 mm

PACKAGE INCLUDES

• 250/400 Linear Hydraulic Motor
• Fixing brackets (anchors and screws)
•Condenser
• Assembly manual

MANUALS

• Hydom 3LC instruction manual

• Hydom 3LC data sheet
