KIT engines Aprimatic XT2500 electromechanical 230V for sturdy doors up to 3m
KIT engines Aprimatic XT2500 electromechanical 230V for sturdy doors up to 3m
KIT engines Aprimatic XT2500 electromechanical 230V for sturdy doors up to 3m

KIT engines Aprimatic XT2500 electromechanical 230V for sturdy doors up to 3m

KT02CPRQ
€774.00
VAT excluded

936,54 €

Tax incl.

KIT engine Aprimatic XT2500 electro-mechanical 230 Vac for hinged doors up to 10 feet per leaf.

Do you want to add any extra commands?



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



KIT engine Aprimatic XT2500 electro-mechanical 230 VacFor hinged doors up to10 feet per leaf.

Built on a sturdy aluminium chassis injected and oven-laced with special exterior epoxy resin. Residential use and small community.

  • Robust chassis with endless drive in one piece supported on bearings.
  • Endless drive nut made of bronze.
  • Integrated race finishes (optional closing).
  • Quick and easy unlock.

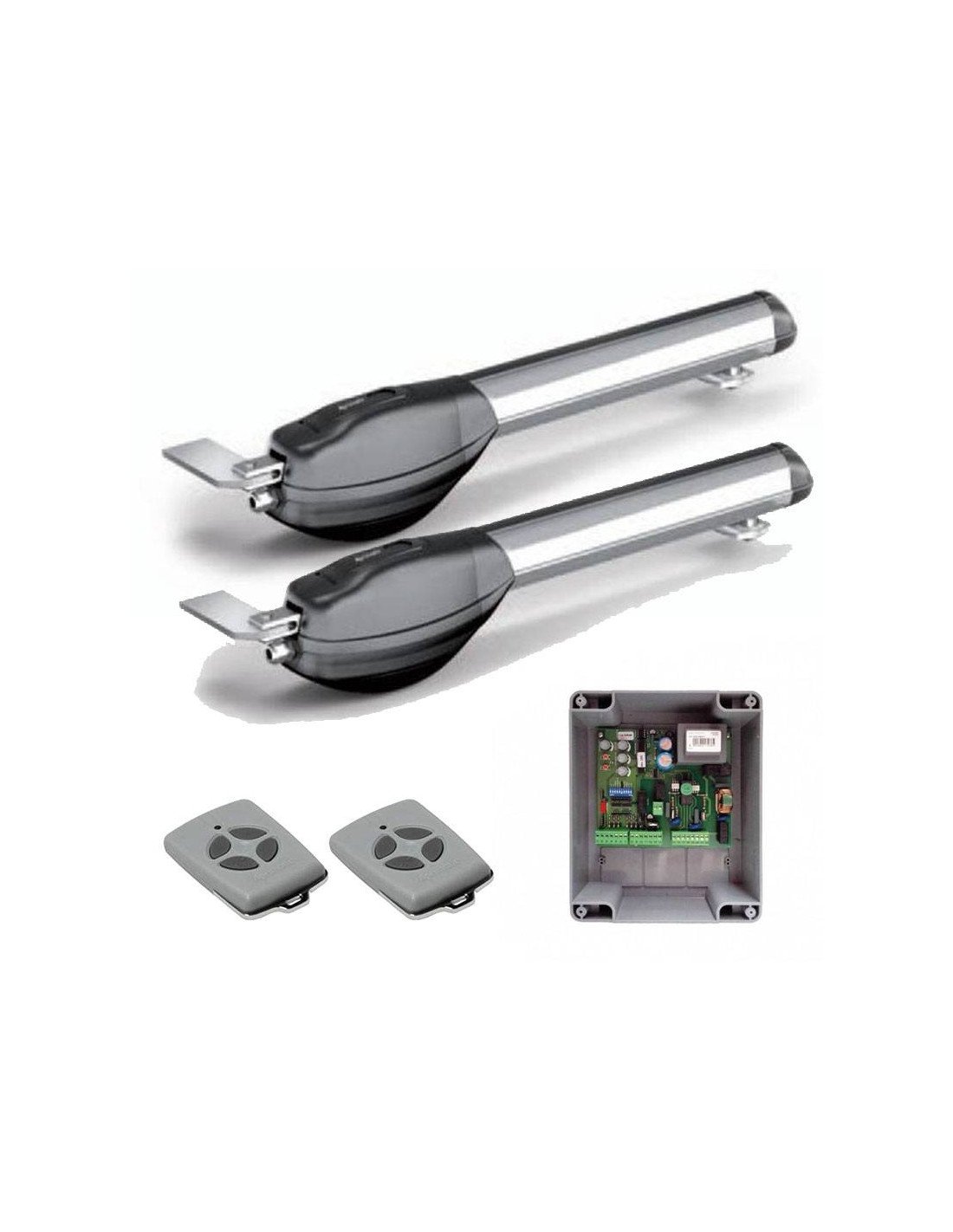

THE KIT INCLUDES:

  • 2 Engines Aprimatic XT2500 rod 320mm
  • 1 Table A45M with receiver
  • 2 Controls TX4E with 4 channels 433,92 MHz

MANUALS

TECHNICAL SPECIFICATIONS

XT 2500XT 2500L
FOOD 230 VAC/50 Hz 230 VAC/50 Hz
POWER 200 W 200 W
CURRENT 1.1 TO 1.1 TO
PUSH 2500 N 2500 N
TRAVELLED Other Other
Opening time 90o 19 s 27 s
WORKING FACTOR 40% 40%
ENGINE HEAT PROTECTION 140 oC 140 oC
THERMAL RANGE -20 °C or +55 °C -20 °C or +55 °C
DEGREE OF PROTECTION IP 43 IP 43
WEIGHT 7,2 kg Other
BUILT-IN CONDENSER 15 μF 15 μF
SPEED 1,66 cm/s 1,66 cm/s
LEAF WIDTH 3 m 4 m

Type of engine
Electromechanical 230V
Sheets from the door
2-leaf door
Full kit
Complete kit for 2 sheets
