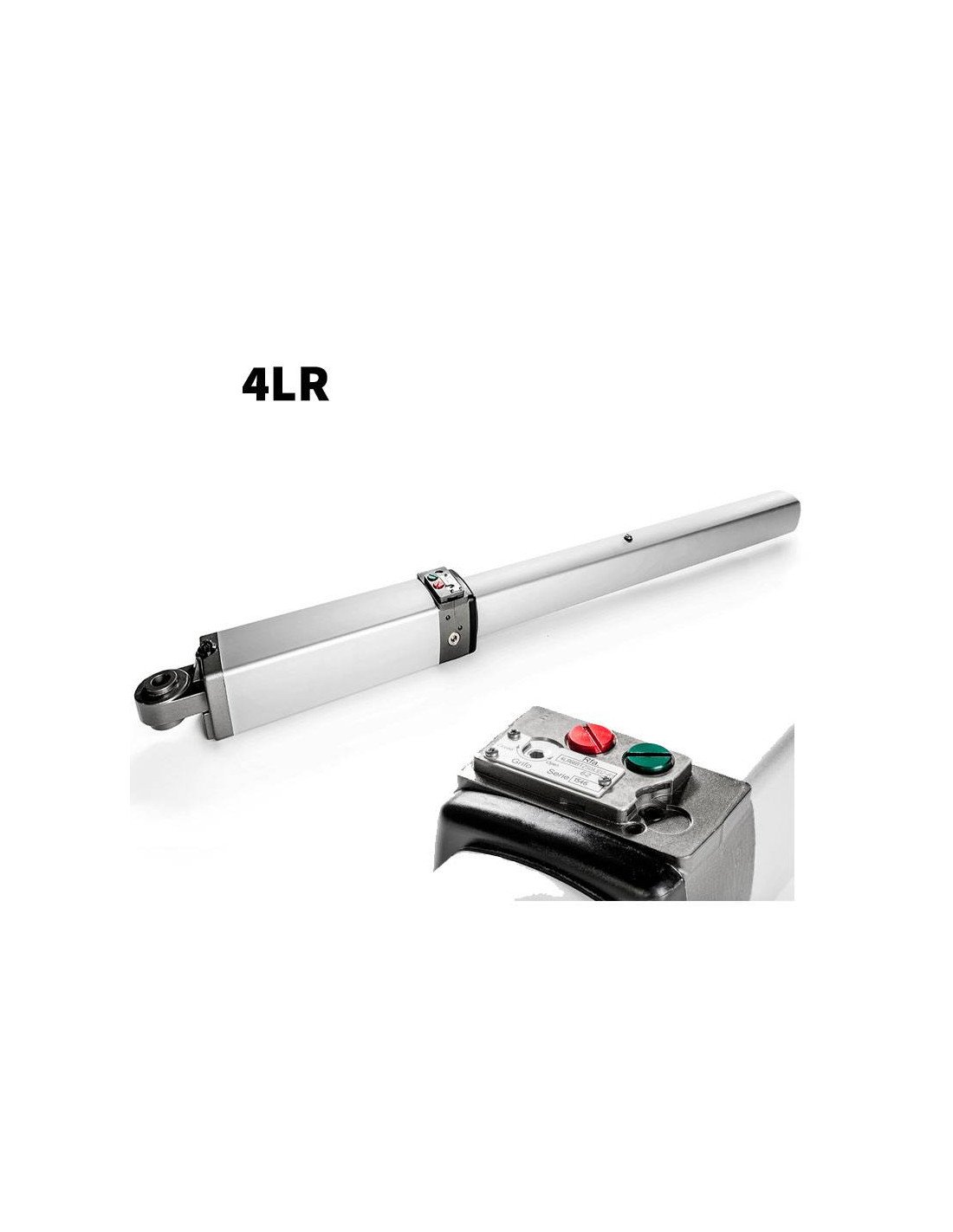

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1

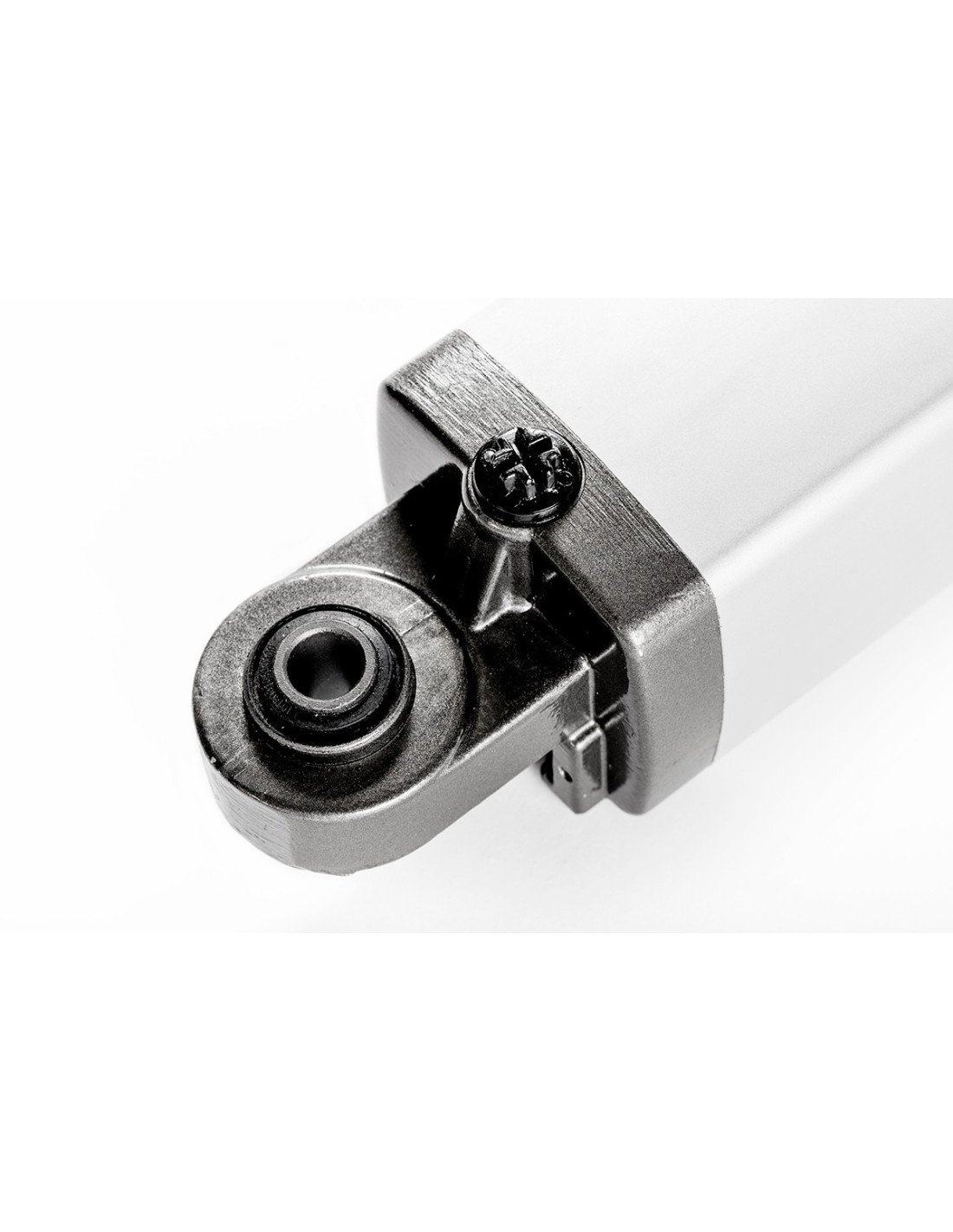

Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3
Hydraulic motor HYDOM 4LR Semi Intensive swing doors residential use up to 3.5 meters
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 1
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 2
Semi-intensive HyDom hydraulic motor for residential swing doors up to 3.5m - Figure 3

Hydraulic motor HYDOM 4LR Semi Intensive swing doors residential use up to 3.5 meters

4LR33D250A3A1
OTHER

This product has a special discount!

To view the price or buy the product you have to  Register or you can ask us.



We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum



Fast shipping from Spain Except bulky



HYDOM 4LR Semi Intensive hydraulic motor for residential swing doors up to 3.5 meters per leaf. The actuators are powered at 230V and have a 250mm stroke, hydraulic damping in opening and closing, available in a non-locking and double-locking version.

CHARACTERISTICS

  • Oleo-hydraulic actuators for doors up to 6 meters
  • Slim line with high resistance to atmospheric agents
  • Possibility of hydraulic self-locking
  • Cushioning at both ends
  • Non-locking system (mod. D) or double lock (4LR33RT250A3A2)
  • Shank stroke 250mm
  • No need for physical bumpers
  • Adjustable closing speed on RT models

Carrera 250 model up to 3.5m per sheet

• Retraction: 765 mm
• Extension: 1015 mm
• Overall: 1076 mm

SPECIFICATIONS

  • Power supply: 230V 50-60 Hz
  • Motor power: 125W - 3000 RPM
  • Thermal Protection: Internal
  • IP Rating: 44
  • Capacitor: 10 uF
  • Temperature range: -20ºC to 80ºC
  • Speed. Retro/Ext.: 12.4 / 10.1 mm/s
  • Stroke: 250 mm
  • Maximum pressure: 40 Bar
  • Flow rate: 1L/min
  • Ext. / Retro Force: 5500 / 4200 N
  • Oil: Renolin MR-2835

PACKAGE CONTAINS

  • HYDOM 4LR Hydraulic Motor Semi-Intensive Use
  • Front and rear mounting brackets
  • Hardware
  • 10 uF capacitor
  • Instruction manual

MANUAL

Hydom 4LR Instruction Manual

Hydom 4LR datasheet

Type of engine
Hydraulic
Sheets from the door
1-leaf door
