DEA ANGOLO

Kit Joint motors DEA ANGOLO 24V for small sized doors up to 2.3m per sheet or 200 KG, with possibility of choose between articulated arm or arm with slider.

One of the engines has nET24N manoeuvre box 433 MHz receiver incorporated.

Automation of ANGOLO arm motorizes doors for residential use of weight and reduced dimensions.

The strength point of this engine is represented by the reduced dimensions. With a little more than 11 cm wide, ANGOLO responds to the demand of those who want to automate a swing door, but they have a scarce space for installation.

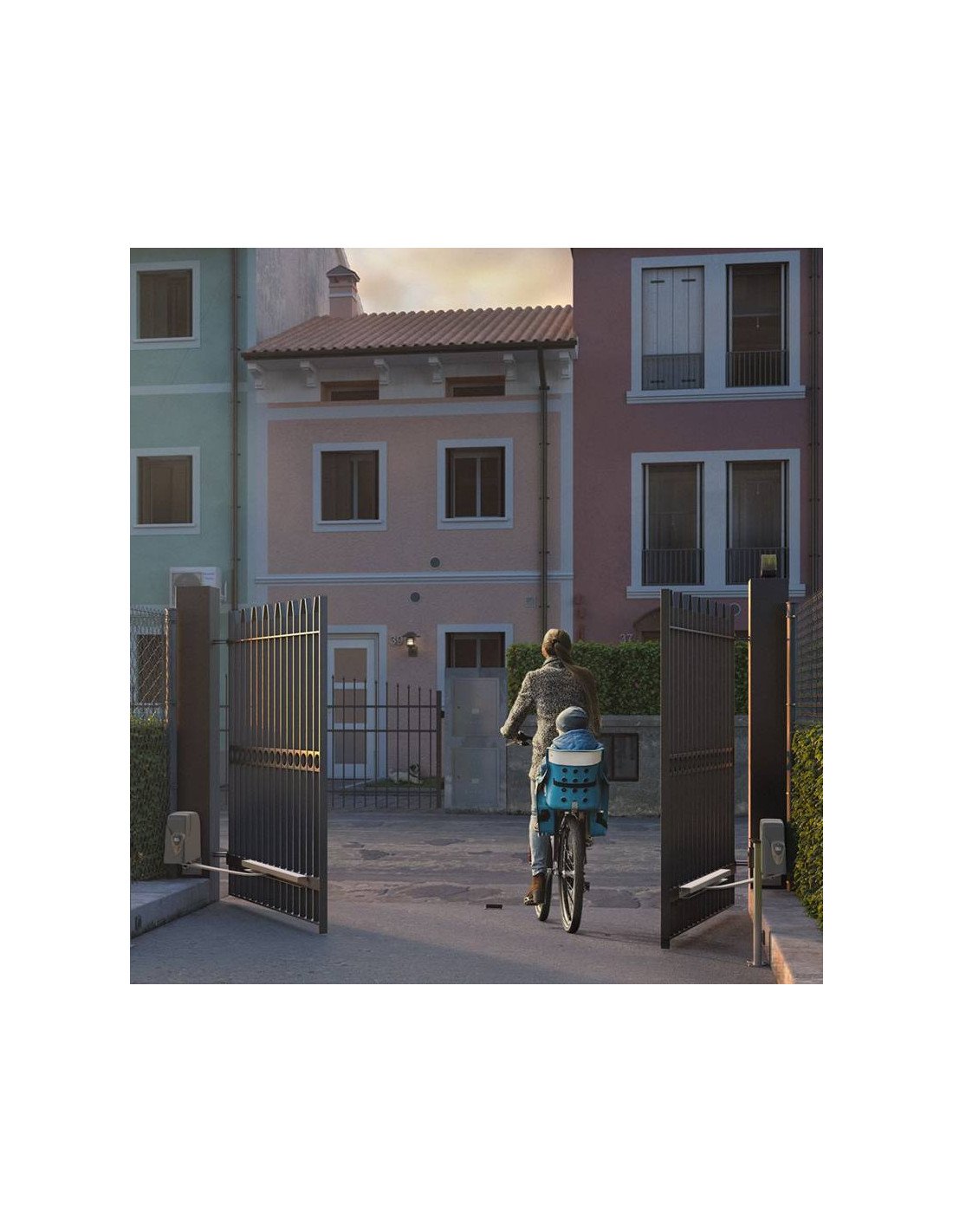

When combined with the slide arm, the engine optimizes available space. During the opening and closing movement of the blade, the arm remains inside the rail and does not exceed the size of the engine in width. When maneuvering spaces are especially reduced, for example in presence of perimetric walls or adjacent private properties to the door, motors with sliding arm are the ideal choice.

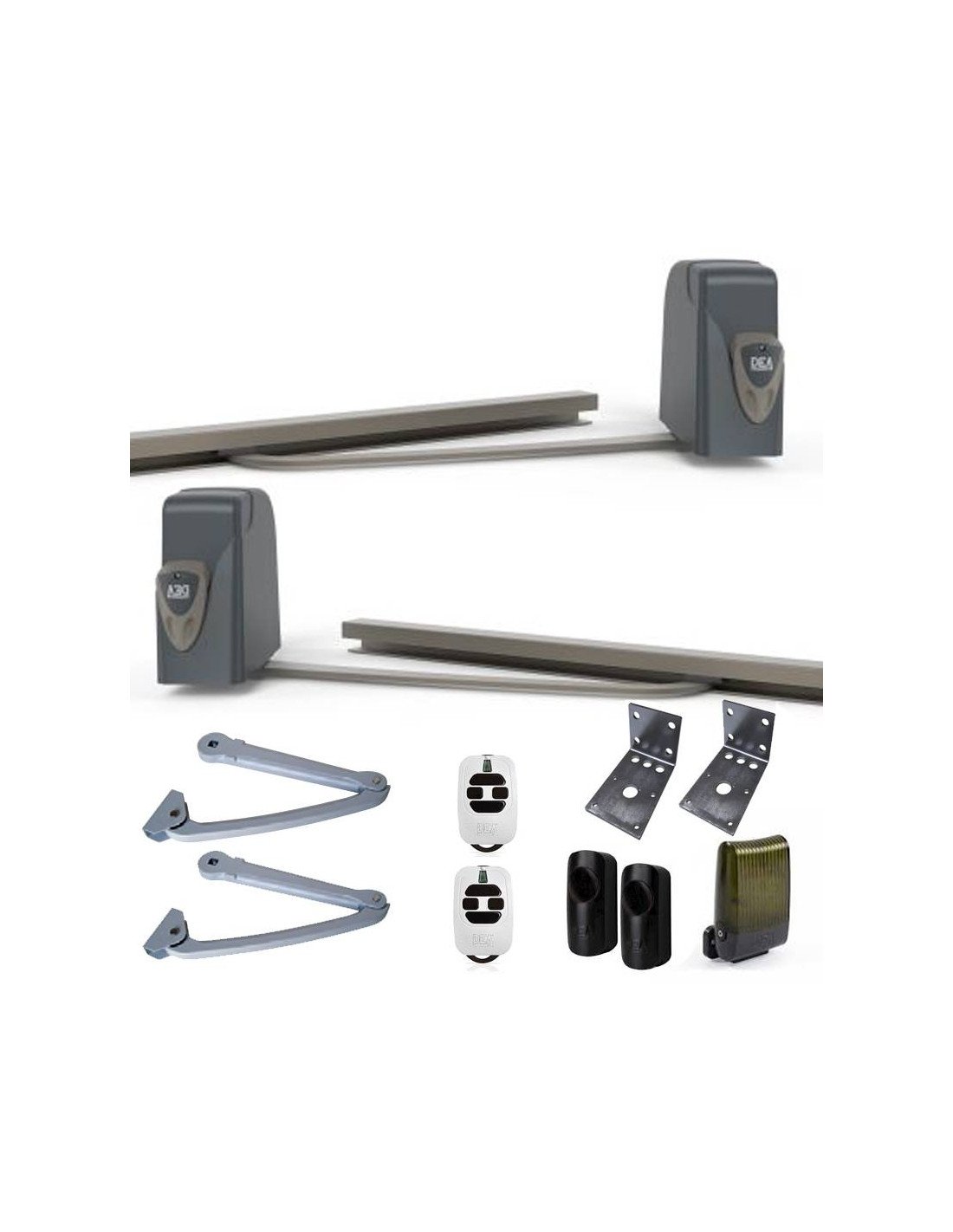

THE KIT ANGOLO CONTIENE:

• 1 unid Motor ANGOLO24NET/1 with NET24N manoeuvre box.
• 1 unid ANGOLO motor without maneuvering frame.
• 2 unid Vertical fixing plate 580V.
• 1 unid photocell pair LINEAR/XS.
• 1 unite AURA/N flash lamp.
• 2 unid RollingCode 433 MHz GTI4.

BRAZOS TO SCOGER:

• 2 unid GEKO/X/BA (629265): Aluminum articulated arm.
• 2 unid GEKO/X/BS (629266): Brazo with slider in galvanized and painted steel.

CHARACTERISTICS DEA ANGOLO

• Power supply: 24V :
• Maximum power absorbed: 60W
• Maximum torque: 120Nm
• Operating cycle: 25 maneuvers/h
• Number of maneuvers in 24h60
• Operating limit temperature: -20 ÷ 50 °C
• Opening time 90°15 seconds
• Weight with packaging: 12.5 Kg
• Sound level: 70 dBA
• Degree of protection: IP44
