KIT engine Aprimatic XT2500L electro-mechanical 230V for robust doors up to 4m
Referencia: KIT XT2500L
€739.00
IVA excluido

894,19 €

IVA incluido

KIT engine Aprimatic XT2500L electro-mechanical 230 Vac for hinged doors up to 4 meters per leaf.

Do you want to add any extra commands?
Quantity

favorite_border
Add to Wishlist
Add to Wishlist


We ship your order within 24/72 hours



Secure payment: Card, Bank transfer, Bizum

  Fast shipping from Spain

Except bulky

Motor kit Aprimatic XT2500L Electromechanical 230 Vac for hinged doors up 4 meters per leaf.

Built on a robust aluminum chassis injected and baked lacquered with special outdoor epoxy resin. Residential use and small community.

  • Robust chassis with a single transmission symphin in one piece supported in bearings.
  • Sinfin transmission nut manufactured in bronze.
  • Integrated stroke end (optional closing).
  • Unlock fast and soft.

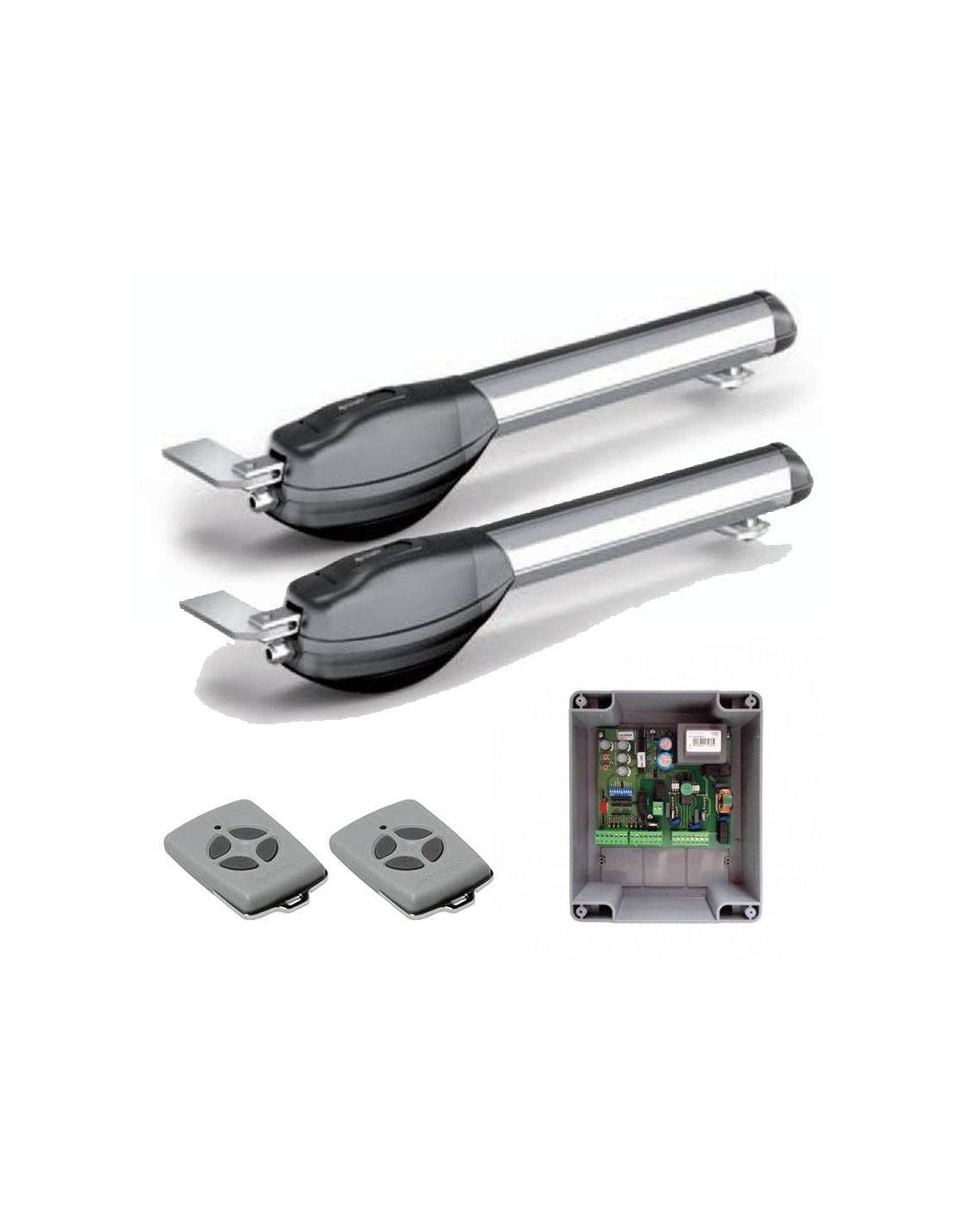

The kit includes

  • 2 engines Aprimatic XT2500L Stem 520mm
  • 1 picture A45m with receiver
  • 2 TX4E Conditions of 4 channels 433,92 MHz

MANUALS

Technical specifications

XT 2500 XT 2500L
Feed 230 VAC / 50HZ 230 VAC / 50HZ
POWER 200 w 200 w
CURRENT 1.1 to 1.1 to
PUSH 2500 n 2500 n
TOUR 320 mm 520 mm
90º opening time 19 s 27 s
Work factor 40% 40%
Thermoprotection engine 140 ºC 140 ºC
Thermal range -20 ºC / + 55 ºC -20 ºC / + 55 ºC
Degree IP 43 IP 43
WEIGHT 7.2 kg 7.8 kg
Built-in condenser 15 μF 15 μF
SPEED 1.66 cm / s 1.66 cm / s
Leaf width 3 mts 4 meters

KIT XT2500L

Data sheet

Type of engine
Electromechanical 230V
Sheets from the door
2-leaf door
Full kit
Complete kit for 2 sheets
