Mechanical V2 LEX Limit Stroke tubular motor for domestic blinds with a diameter of Ø45 designed to motorize blinds and roller blinds with tubes from 52 to 70mm.

The operator is powered at 230Vac and has a diameter of 45mm. It has a mechanical manual limit switch with progressive screw adjustment.

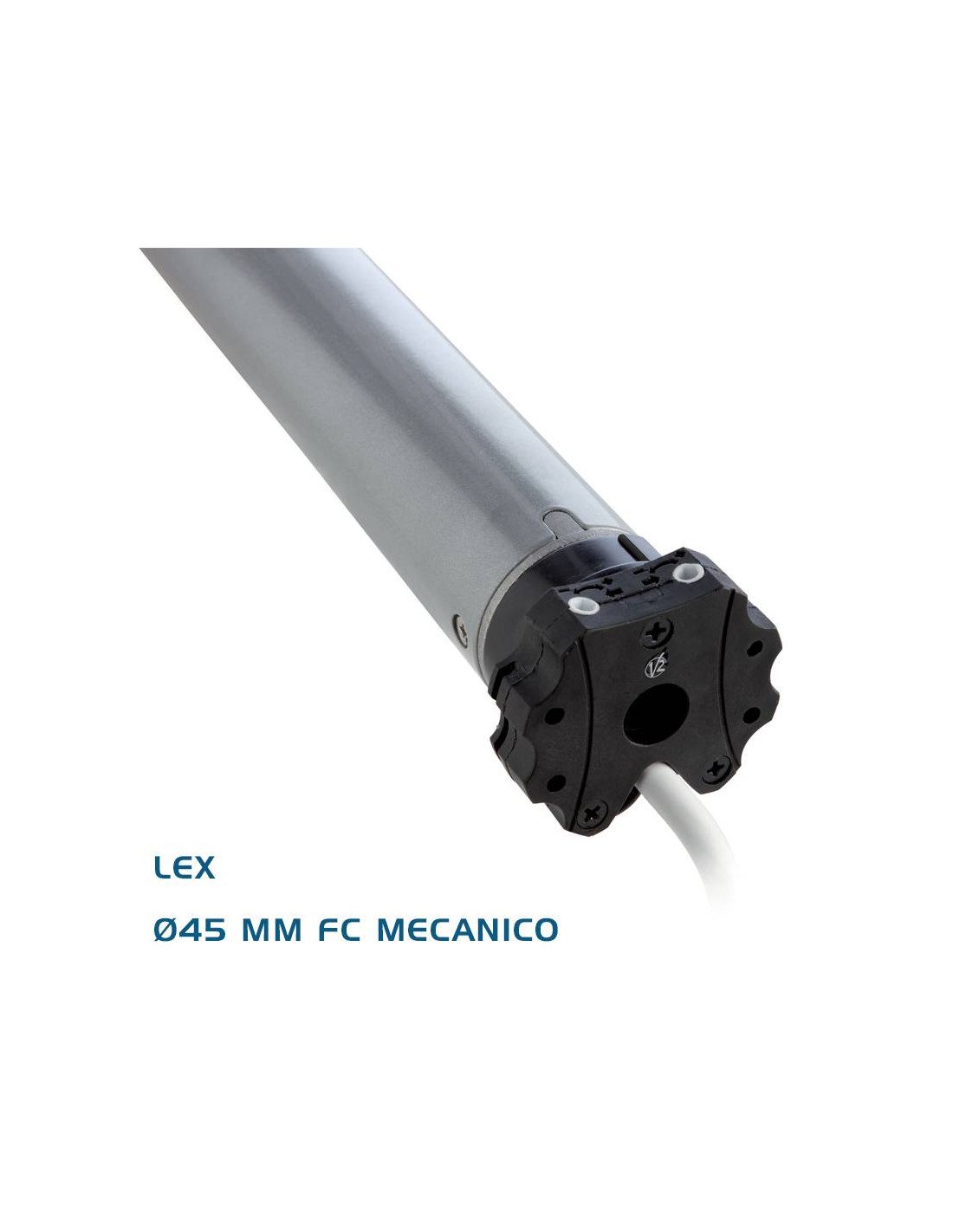

LEX FEATURES

• Mechanical limit switch: simple to regulate and reliable over time

• Compact head for easy installation phases

• Quick-release bracket to simplify gearmotor attachment (accessory)

• 2 meters of cable connected to the motor

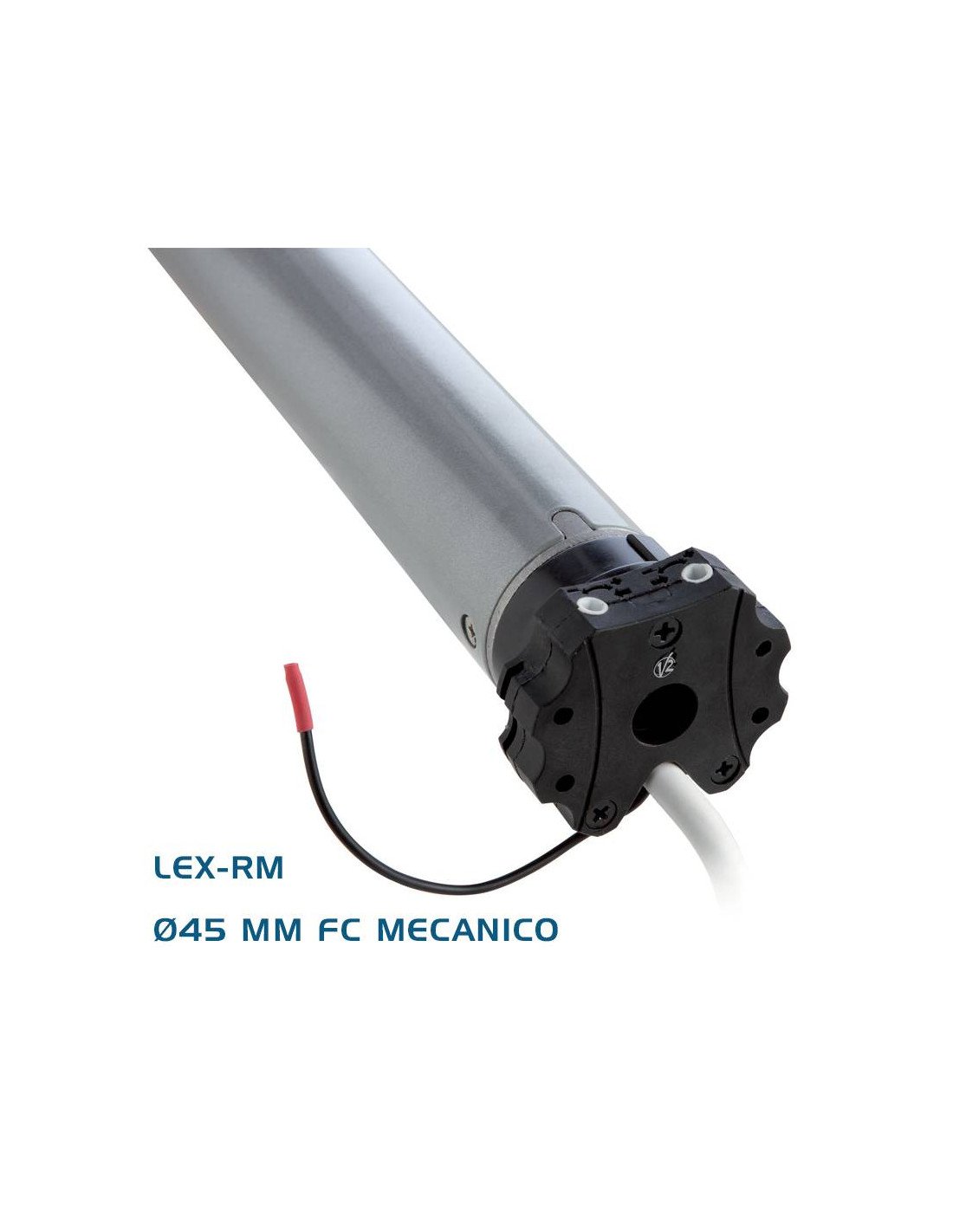

LEX-RM FEATURES

• Mechanical limit switch: simple to regulate and reliable over time

• Radio operation to control automation, memorize new emitters and regulate sensor intervention threshold

• Possibility to connect an external push button to control the automation

• Quick-release bracket to simplify gearmotor attachment (accessory)

• 2 meters of cable connected to the motor

LEX AVAILABLE MODELS (WITHOUT RECEIVER)

• LEX20-230V (27B222): 20 Nm mechanical motor.

• LEX30-230V (27B223): 30 Nm mechanical motor.

• LEX40-230V (27B224): 40 Nm mechanical motor.

• LEX50-230V (27B225): 50 Nm mechanical motor.

• LEX60-230V (27B311): 60 Nm mechanical motor.

AVAILABLE MODELS LEX-RM (BUILT-IN RECEIVER)

• LEX-RM20-230V (27B226): 20 Nm mechanical motor with built-in receiver.

• LEX-RM30-230V (27B227): 30 Nm mechanical motor with built-in receiver.

• LEX-RM40-230V (27B228): 40 Nm mechanical motor with built-in receiver.

• LEX-RM50-230V (27B229): 50 Nm mechanical motor with built-in receiver.

BRACKETS INCLUDED

Square Bolt Clamp (Ref 163417)

Wall bracket 10 x 10 mm (Ref 162829)

ADAPTERS

The motors come with an adapter (Pulley and Crown) of the size chosen by the customer. In the drop-down menu, choose the desired size according to the dimensions of the octagonal tube.

MANUAL

LEX V2 Instruction Manual

Instruction manual V2 LEX-RM
