Kit Motorline Telica DL-52 230V with sliding arms for swing doors

Kit Motorline Telica DL-52 of 230 Vac to automate two-sheet beating doors up to 2.5 meters each.

The DL Apartment is a compact automation equipped with sliding arms, Developed for installations where the available space is reduced.

Its design allows you to perform a discrete and functional installation, while the Electronic central MC52 incorporated in one of the engines Simplifies the assembly of automation.

Main features

• Automation Two-leaf beating doors.
• Engines fed 230 VAC.
• Application on sheets up 2.5 meters without electrobery.
• Supports leaves up 4 meters using electrobery.
• System of sliding straight arm For reduced spaces.
• Electronic Motorline MC52 incorporated in the engine.
• User unlocking to operate the door in case of electric cut or failure.
• Degree Ip54.

Important: In discharged doors or subjected to a high wind pressure, it is recommended to install an electron. For leaves above 2.5 meters, the electronization is necessary.

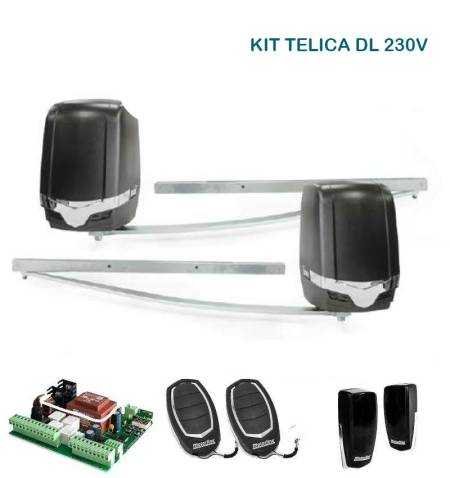

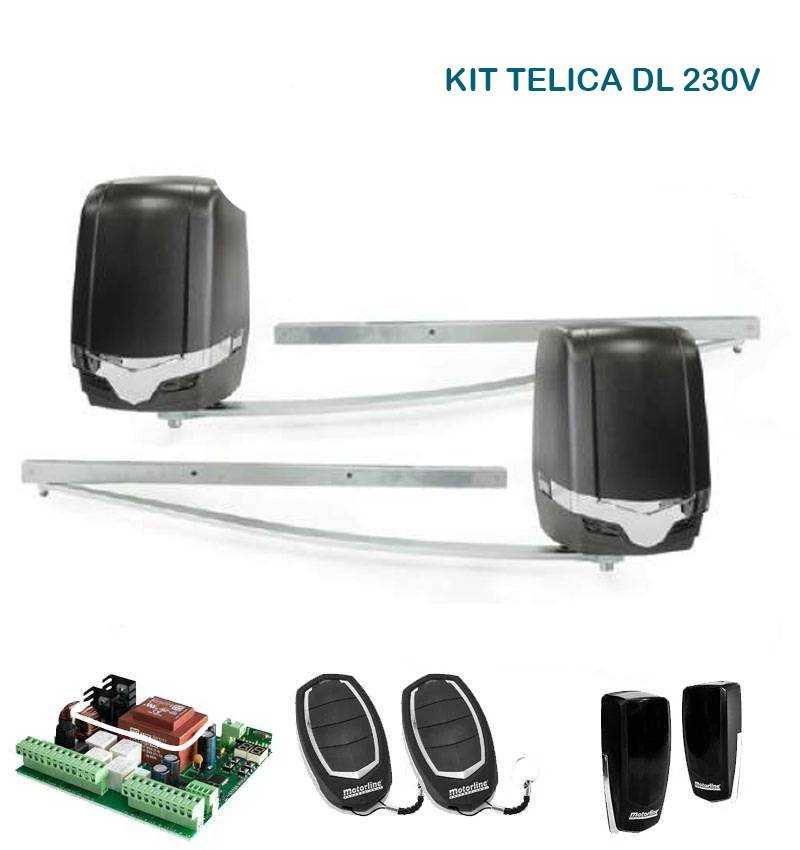

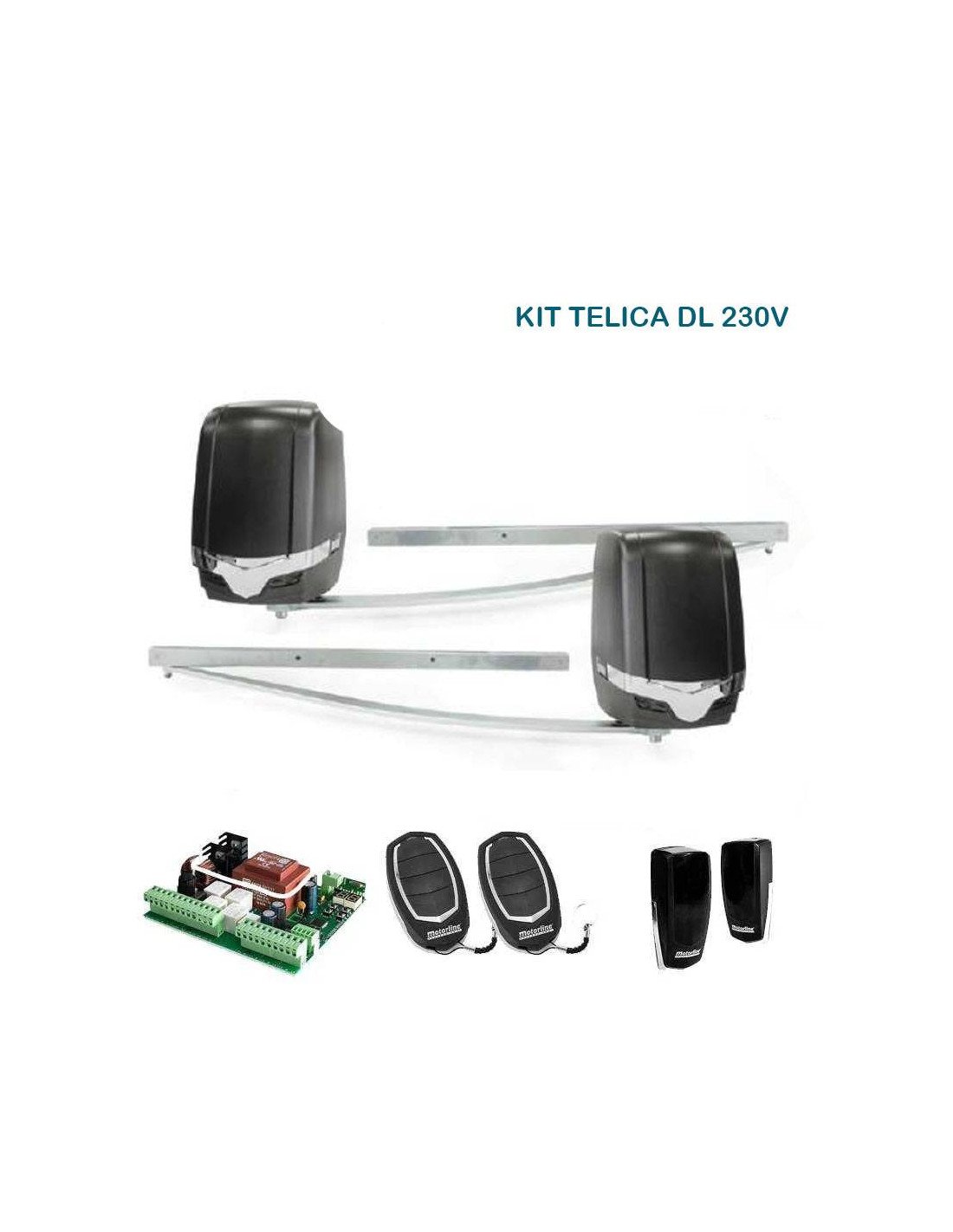

Composition of the DL-52 Telica Kit

• 2 engines Motorline Telica DL of 230 Vac.
• 1 Electronic Center Motorline Mc52 Built-in one of the engines.
• 2 controls Motorline Falk.
• 1 game of photocells Motorline Mf30.
• Mounting Accessories.

Technical characteristics

Installation

The maximum measures indicated depend on the characteristics, the weight, the structure and exposure to the wind of each door. The installation and regulation of the automation must be carried out by a qualified professional, respecting the dimensions established by the manufacturer.

Documentation

Manual Motorline Telica dl

Manual Motorline Mc52
