Nice HOPP | 24V articulated electromechanical motor

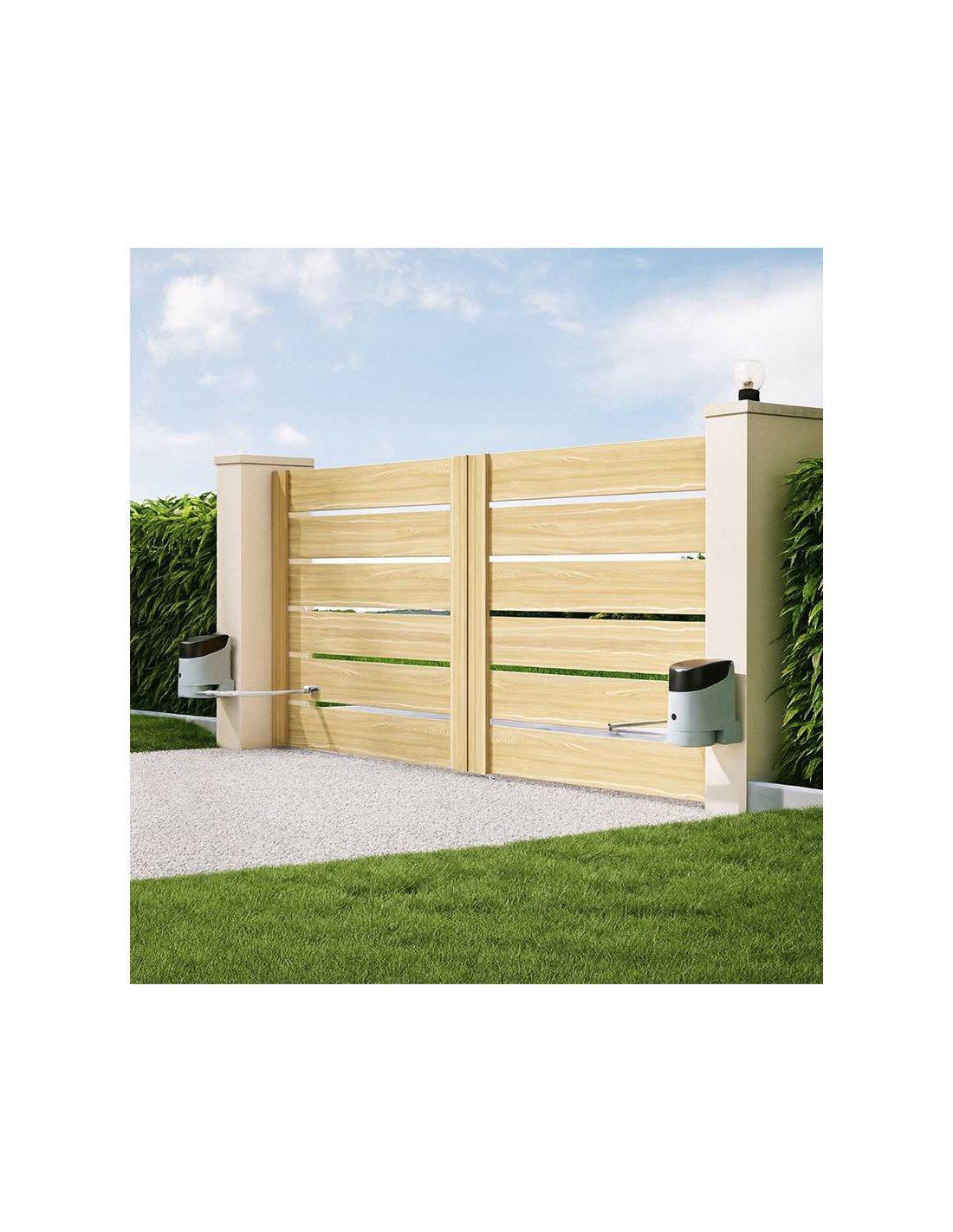

For swing cancelas with leaves up to 2.4 m

Articulated electromechanical motor Nice HOPP for swing doors with large columns and light structures.

Information Nice Hopp

Irreversible electromechanical gearmotor of 24 VDC, with an articulated arm and outdoor assembly.

Two versions Irreversible 24 VDC with mechanical stops of millimetric regulation in opening and closing: with integrated plant (HO7124) and without Central (HO7224).

Powerful with the torque of 250 nm.

Resistant and compact: 180 mm wide,

Ideal for all kinds of columns. Anti-compact housing of reduced dimensions and base

aluminum

Robust arm antique aluminum.

Easy to install: Using the new fixing bracket with quick coupling for the engine. Without welding.

Sophisticated electronics with the central integrated control, only 3 buttons to manage programming operations.

Energy saving and without energy cuts: 3 standby modes to reduce network or battery consumption in case of connection to the Solemyo kit. Operation also without current with optional batteries (PS124).

Everything under control: Pre-installation for the Opera Bus T4 system allows you to use the Pro-View unit to expand the programming, control and diagnostic options of in situ and remote automatism.

Technical characteristics

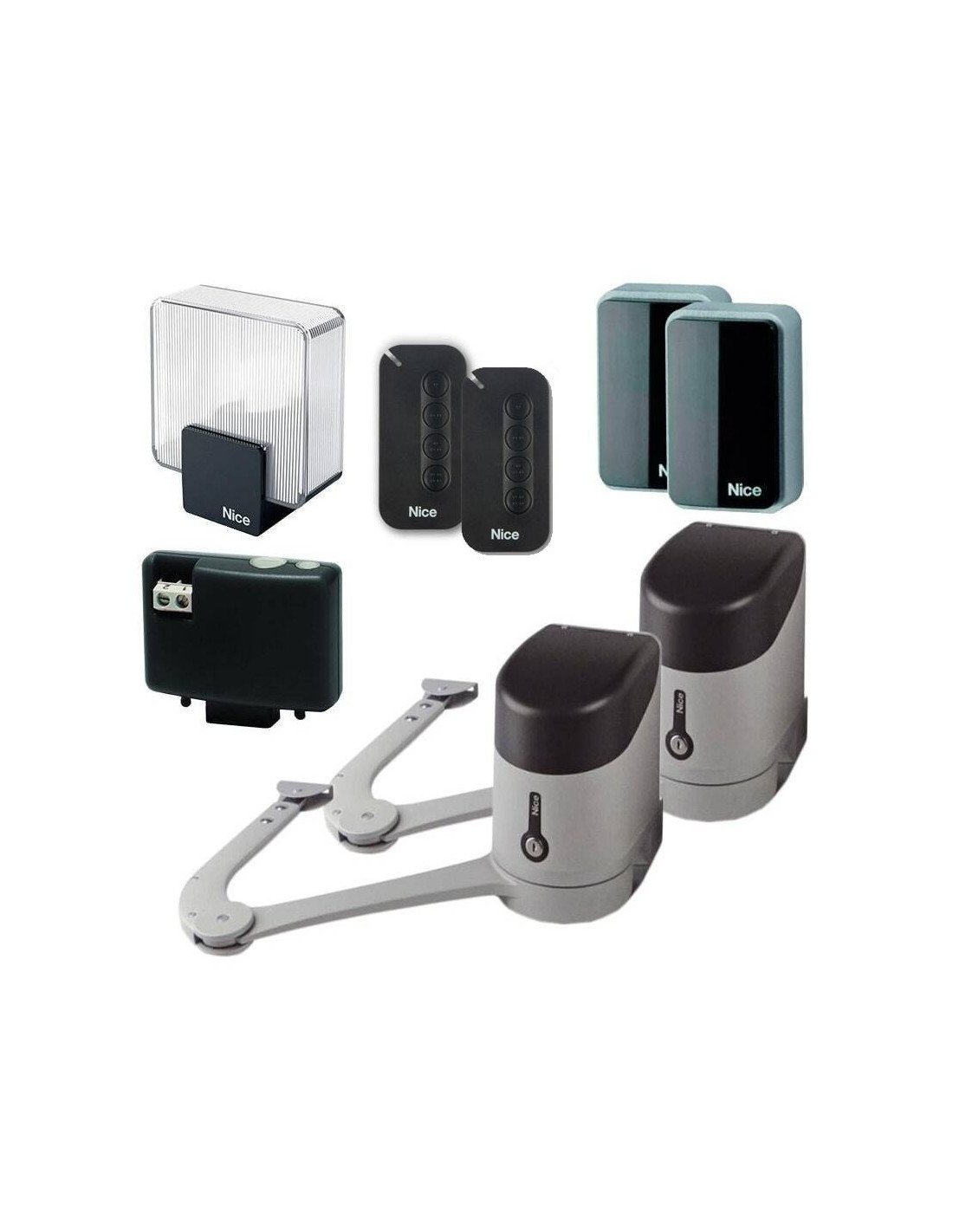

Kit content:

• 1 pc Ho7124: Electromechanical motor with included control center and slot to connect plug-in receiver.
• 1 pc Ho7224: Electromechanical motors without control unit.
• 1 pc Oxibd: Plug-in radio receiver 433.92 MHz.
• 2pc Mygo4: 4-channel transmitter 433.92 MHz.
• 1 pc Epmb: Pair of outdoor photocells for connection via Nice Bluebus.
• 1 pc Eldc: LED flashing light, 12-36VDC.

Use limits

Measures

Manual

Manual Nice Hopp
