Kit Motorline DL-24V telica with sliding arms for swing doors

Kit Motorline DL-24V to automate two-sheet swing doors up to 2.5 meters each.

The DL Apartment is a compact automation equipped with sliding arms, Developed for installations in which the available space is reduced.

This version incorporates 24 VDC engines and offers a working frequency higher than the 230 V version. Electronic Central MC62 is incorporated into one of the engines, simplifying the assembly of automation.

Main features

• Automation Two-leaf beating doors.
• Engines fed 24 VDC.
• Application on sheets up 2.5 meters without electrobery.
• Supports leaves up 4 meters using electrobery.
• System of sliding straight arm For reduced spaces.
• Electronic Motorline MC62 incorporated in the engine.
• Work frequency of the 55%.
• User unlocking to operate the door in case of electric cut or failure.
• Degree Ip54.

Important: In discharged doors or subjected to a high wind pressure, it is recommended to install an electron. For leaves above 2.5 meters, the electronization is necessary.

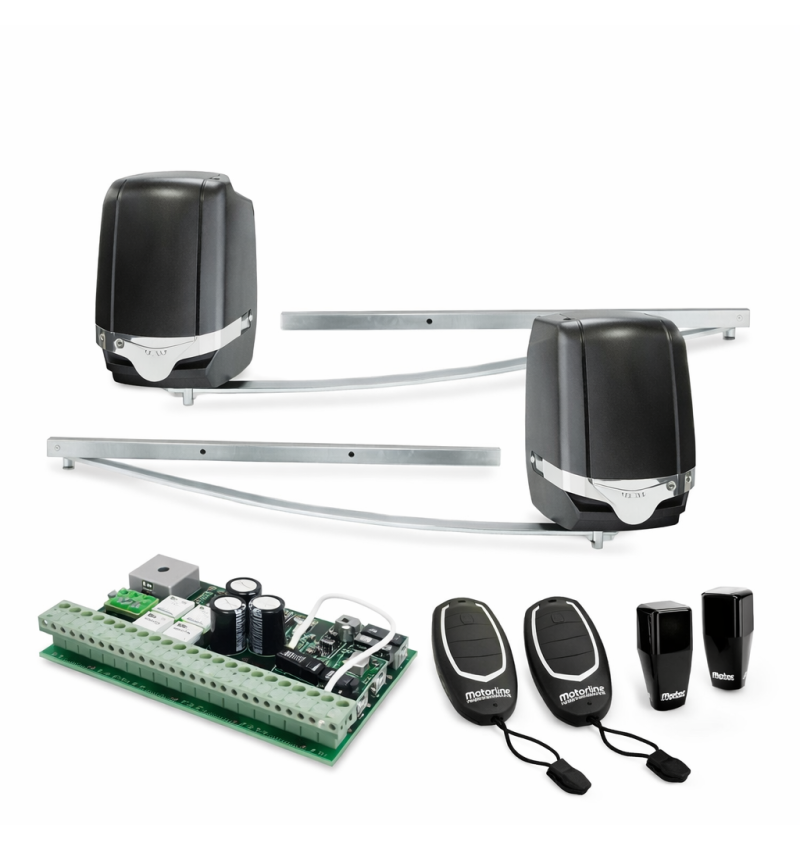

Composition of the DL-24V Telica Kit

• 2 engines Motorline DL DL of 24 VDC.
• 1 Electronic Center Motorline Mc62 Built-in one of the engines.
• 2 controls Motorline Falk.
• 1 game of photocells Motorline Mf30.
• Mounting Accessories.

Technical characteristics

Documentation

Manual Motorline Telica dl

Manual Motorline Mc62
