1.032,13 €
24VDC articulated arm motor For swing doors up to 2.5m per leaf
The motor Articulated arm pyrene is designed especially for residential swing doors of maximum length of 2.5m per sheet up to 250kg of weight.
24VDC Arm Electromechanical Engine, especially indicated To cancel with large pillars With displaced hinges of the edge of the pillar.
It is an engine with Security for obstacle detection and soft electronic stop.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky

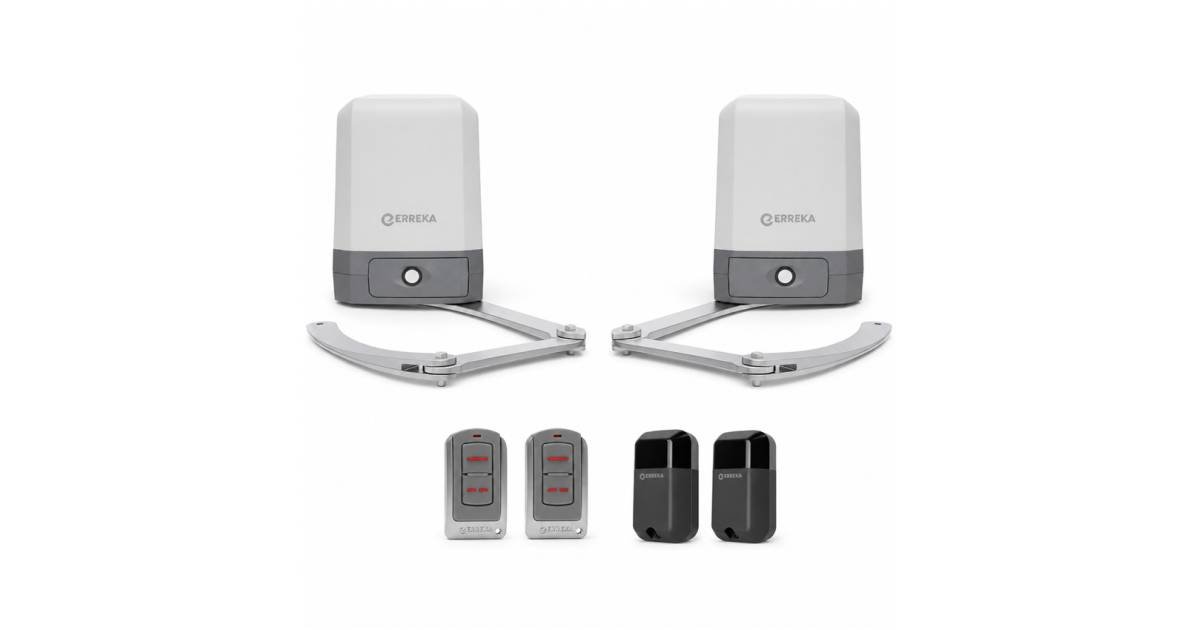

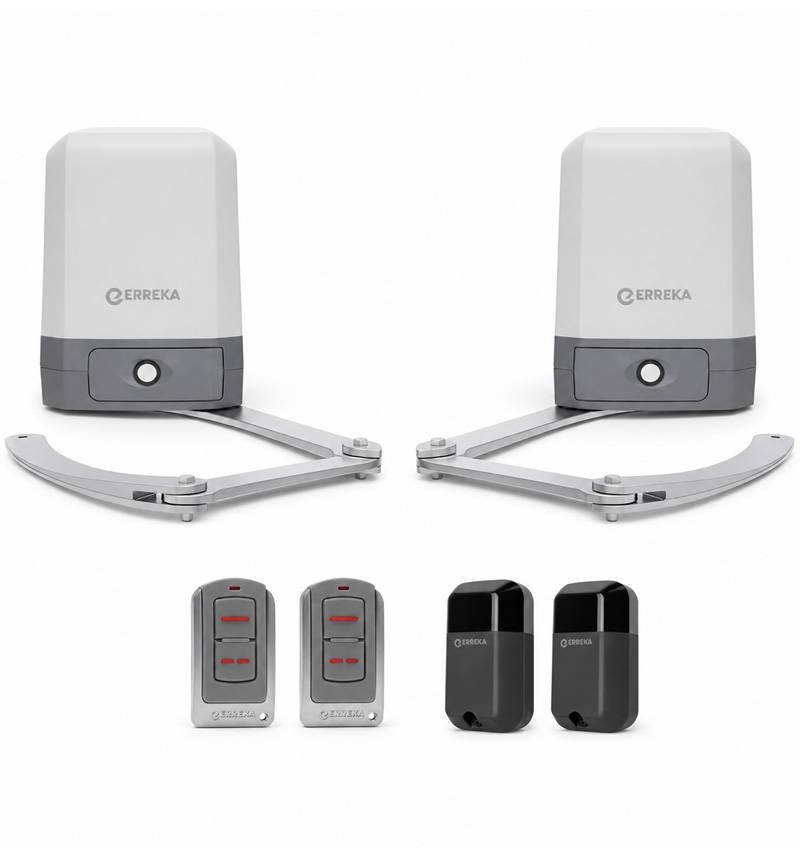

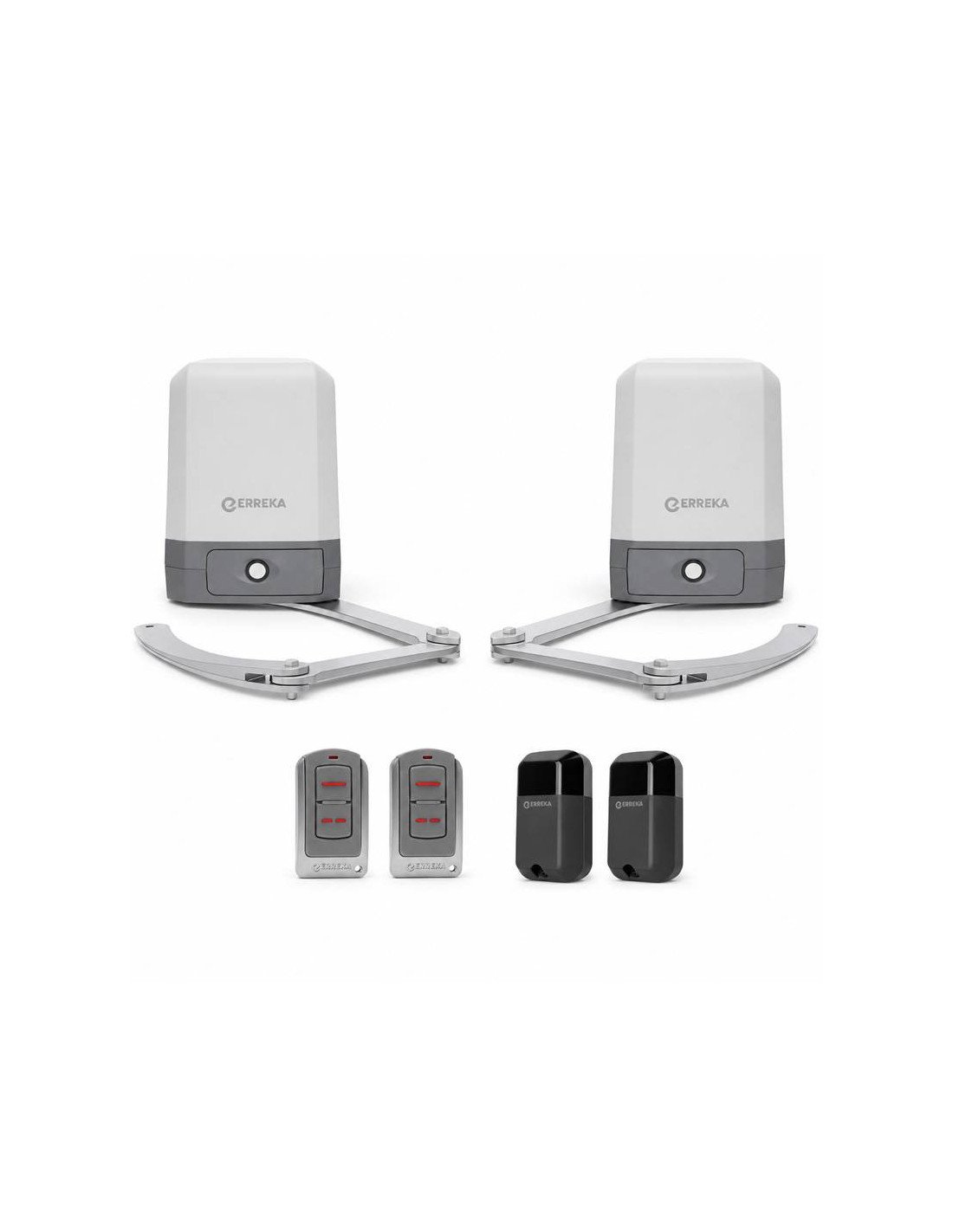

The kit Erreka PYRENE it is an automatism of articulated Arm 24 VDC designed to motorize residential swing doors up 2.5 m per leaf and a maximum weight of 250 kg per leaf.
This electromechanical articulated arm motor is especially indicated for canceled with large pillars o Facilities where the hinges are displaced from the edge of the pillar, allowing a comfortable and safe opening of the door.
Thanks to its operation 24 VDC, the kit Erreka Pyrene offers a soft, controlled and suitable movement for intensive use. In addition, it incorporates obstacle detection, , soft electronic unemployment and manual unlocking system to be able to operate the door if necessary.
| Quantity | Reference | Description |

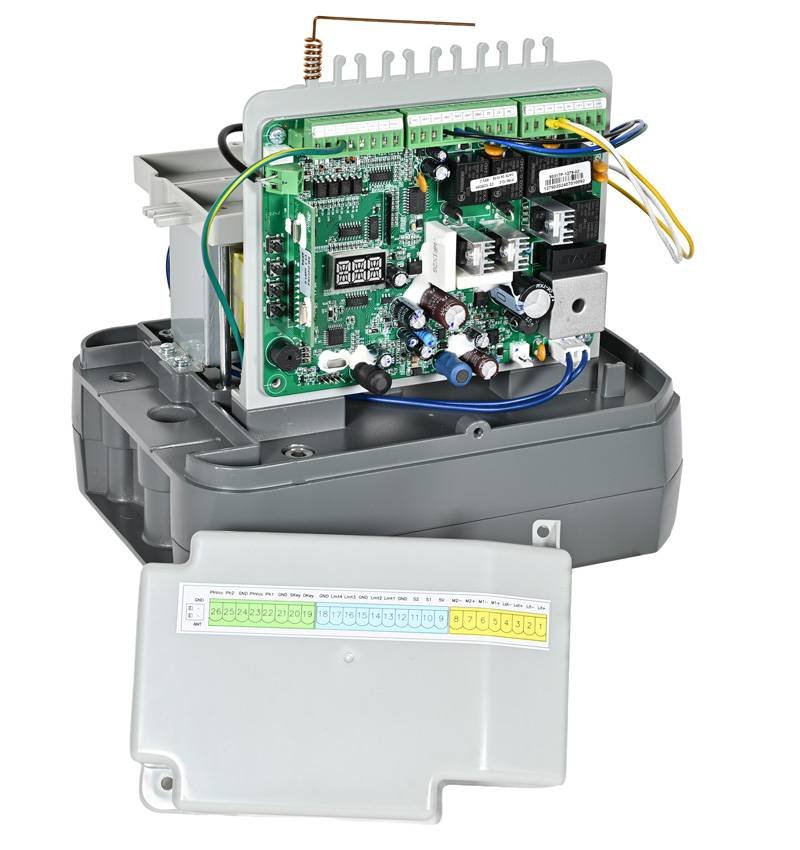

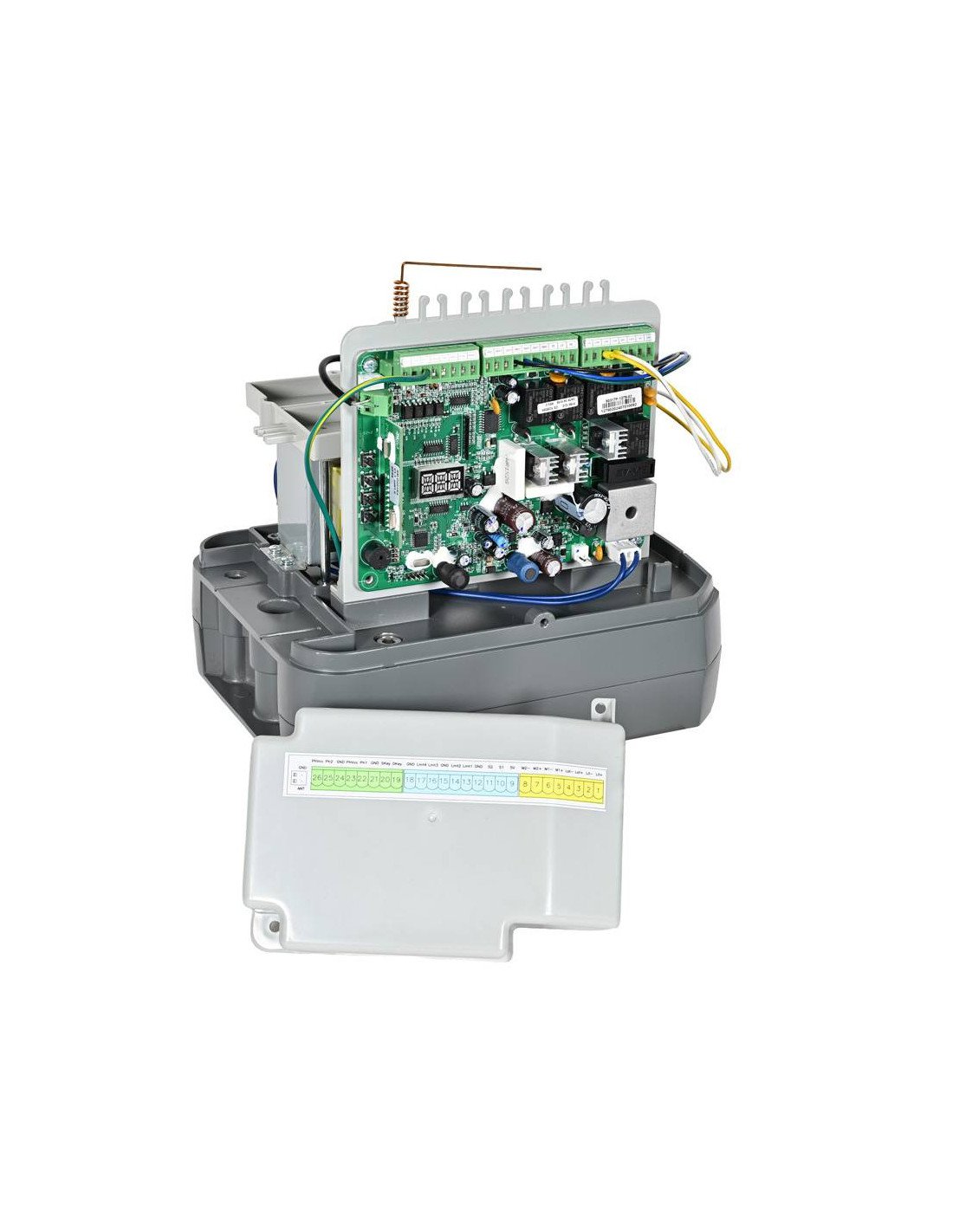

| 1 unit | Py2524ec | Master Motor 24 VDC with built-in and receiver box |
| 1 unit | Py2524c | Slave motor 24 VDC |
| 2 units | Ir02 | I send Erreka IRIS 433 MHz of 2 channels |
| 1 game | Ft06 | Pair of photocells emitting-receiver |
| Py2524ec TEACHER |
Py2524c Slave |
|
|---|---|---|
| Food (VAC / HZ) | 230 / 50-60 | - |
| Capacitor (μF) | - | |
| Motor power (VDC) | 24 | |
| Absorbed power (W) | 100 | |
| Intensity (a) | 4,2 | |
| Maximum torque (NM) | 250 | |
| Speed (RPM) | 1,7 | |
| Opening time 90 ° (s) | 11 | |
| Work cycles | Intensive use | |
| Block | Yes | |
| Run-up | Yes | |
| Encoder | Not | |
| Maximum opening | 110 ° | |
| Degree | Ip44 | |
| Service temperature | -20 ° C / + 50 ° C | |
| Motor weight | Kit: 20 kg | |
| 10 kg | 10 kg | |
| Dimensions packaging | Kit: 55 x 32 x 41 cm | |
| 40 x 23 x 32 cm | 40 x 23 x 32 cm | |
| Max door length. | 2.5 m | |
| Max door weight. | 250 kg | |
The kit Erreka PYRENE it is recommended for two-leaf residential swing doors, especially when the installation has width pillars or when the position of the hinges hinders the installation of conventional linear motors.
Your articulated arm allows you to better save the distance between the turning axis of the door and the fixing point of the engine, offering a practical and aesthetic solution to automate cancels of entry to homes, small communities or particular accesses.
