Kit VDS Tekno 230V articulated motors for 2-leaf swing doors up to 3.5 m

Name: Kit VDS Tekno 230V articulated motors for 2-leaf swing doors up to 3.5 m
Brand: VDS
SKU: TEKNO 230V 2 HOJAS
Price: 535 EUR
Availability: InStock

Reference TEKNO 230V 2 HOJAS

€535.00

VAT excluded

647,35 €

Tax incl.

Kit VDS Tekno 230V It is designed to automate Two-leaf beating doors using irreversible electromechanical engines with articulated arm.

Each engine VDS Tekno 230V, reference 100055, is indicated for leaves up 3.5 meters and it is especially suitable for installations with Large or deep pillars, where a conventional linear actuator can present assembly difficulties.

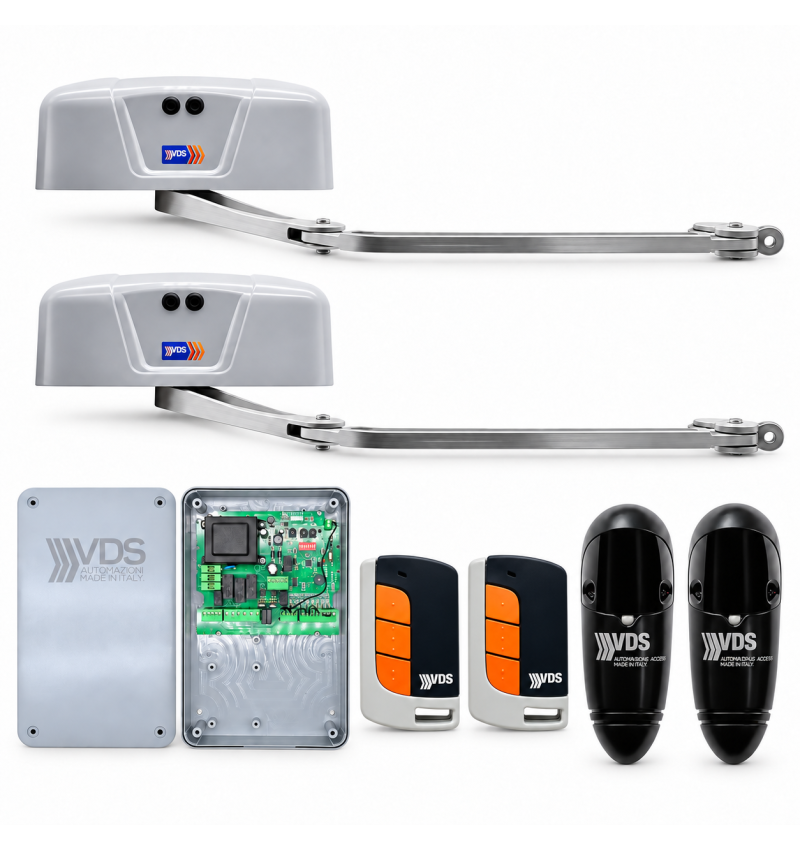

The kit incorporates two motors, maneuver box for 230VAC, radio receiver, two controls VDS Eco-R and a set of security photocells.

Do you want to add any extra commands?

We ship your order within 24/72 hours

Secure payment: Card, Bank transfer, Bizum

Fast shipping from Spain Except bulky

Kit VDS Tekno 230V articulated for 2-leaf swing doors

Kit VDS TEKNO 230V it is designed to automate two-leaf beating doors using irreversible electromechanical engines with articulated arm.

Each engine VDS TEKNO 230V, reference 100055, is indicated for leaves up 3.5 meters and it is especially suitable for installations with large or deep pillars, where a conventional linear actuator can present assembly difficulties.

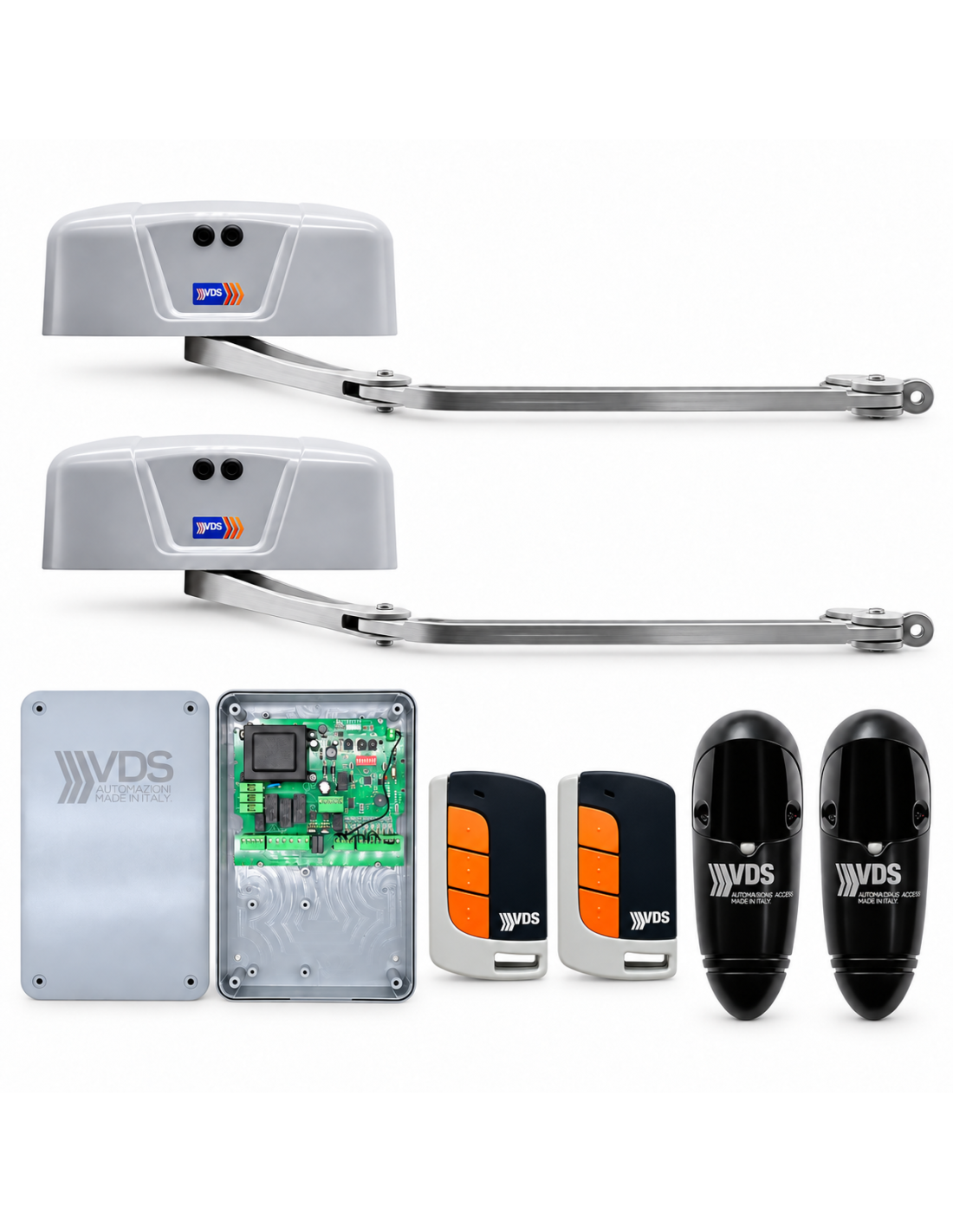

The kit incorporates two motors, maneuver box for 230VAC, radio receiver, two controls VDS ECO-R and a set of security photocells.

The engines have articulated aluminum arm, mechanical unlocking and electric opening and closing end.

Especially indicated for large pillars

The geometry of articulated arm it allows to use the Tekno in installations where the position of the hinge or the depth of the pillar hinder the assembly of traditional linear motors.

Main features

✓ Kit for two-leaf beating doors.

✓ Irreversible electromechanical engines of 230Vac.

✓ For leaves up 3.5 m per leaf.

✓ Maximum weight indicated by the manufacturer up 800 kg, depending on the dimensions and characteristics of the door.

✓ Maximum opening up to 120 °.

✓ Especially indicated for park of large dimensions.

✓ Articulated aluminum arm with antique design.

✓ Electric career end in opening and closing.

✓ Mechanical unlock by triangular key.

✓ Internal steel gears, cast iron and bronze.

✓ The same version allows installation on the right or left sheet.

Kit content VDS TEKNO 230V

Golden Kit Articulated Tekno 230V – 2 leaves

■ 2 × VDS TEKNO 230V – Ref. 100055
Irreversible electromechanical motors with articulated arm for leaves up to 3.5 m.

■ 1 × Euro 230 m2 EVO + STABLE BOX + Receiver – Ref. E105al
Maneuver box for the management of the two 230VAC engines, supplied with a box and radio receiver.

■ 2 × controls VDS ECO-R 433 – Ref. E010
Rolling Code controls at 433.92 MHz for remote control of automation.

■ 1 × photocell game VDS 12 / T
Safety photocelling-receiving photocelling for access protection.

Components included

Qty.	Reference	Description
2	100055	Articulated engine VDS TEKNO 230V
1	E105AL	Euro 230 m2 EVO + STANDING BOX + Receiver
2	E010	I send VDS ECO-R ROLLING CODE 433,92 MHz
1 game	12 / T	Safety photocells emitting-receiver

Technical characteristics VDS TEKNO 230V

Feature	TEKNO 230V
Motor reference	100055
Motor feed	230Vac
Maximum length length	Up to 3.5 m
Maximum indicated weight	Up to 800 kg
Engine power	250 W
Mean absorption	1.3 TO
Motor revolutions	1400 rpm
Push force	250 Nm
Opening time / closure	15 s
Frequency	50%
Type of use	Semi-intensive
Maximum opening	120 °
Race	Electrical
Capacitor	12.5 μF
Operator weight	8 kg
Sound level	<30 dBA
Operating temperature	-20 ° C / +55 ° C
Degree	IP44

Recommendation for leaves greater than 2 meters

For facilities with leaves more than 2 meters long, , VDS recommends using a electric lock to improve the block and stability of the door when it is closed.

Important before selecting the automatism

The maximum values of length and weight should be interpreted together with the real characteristics of the door. Before performing the installation it is necessary to check dimensions, weight, geometry of the pillars, wind resistance, state of hinges and ease of movement of leaves.

Type of engine: Articulated arm
Full kit: Complete kit for 2 sheets
Type of door: Residential door
