Kit VDS TEKNO 230V Handiculated motor for swing door 1 sheet up to 3.5 m

Kit VDS Tekno 230V articulated for 1 leaf swing door

Kit VDS Tekno 230V of 1 sheet it is designed to automate single-leaf beating doors by an irreversible electromechanical motor with articulated arm.

The motor VDS TEKNO 230V, reference 100055, is indicated for leaves up 3.5 meters and it is especially suitable for installations with large or deep pillars, where the installation geometry can hinder the use of a conventional linear motor.

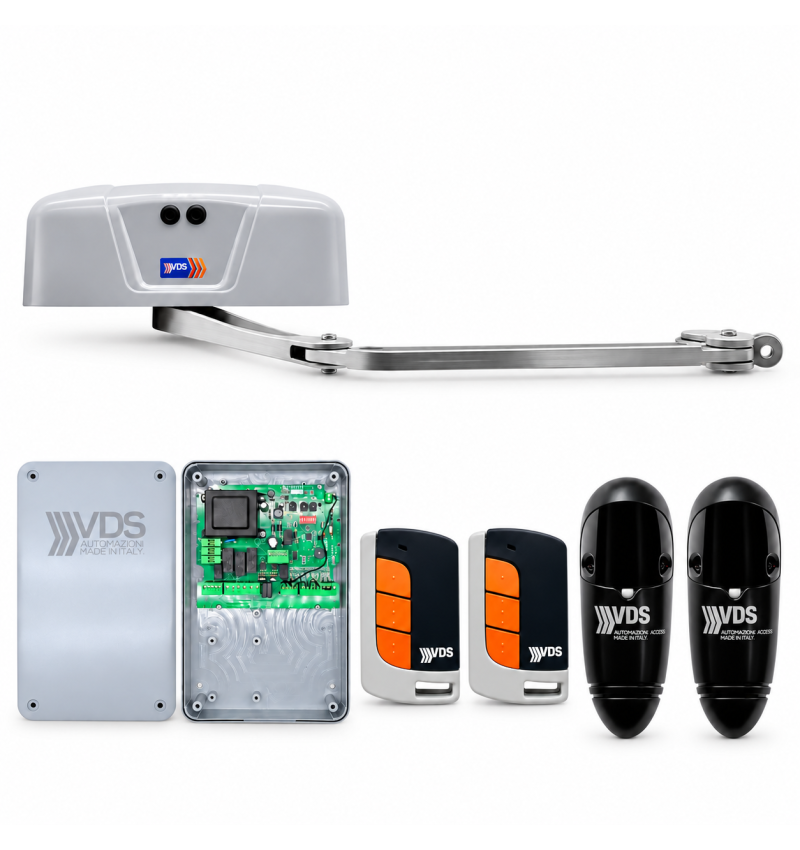

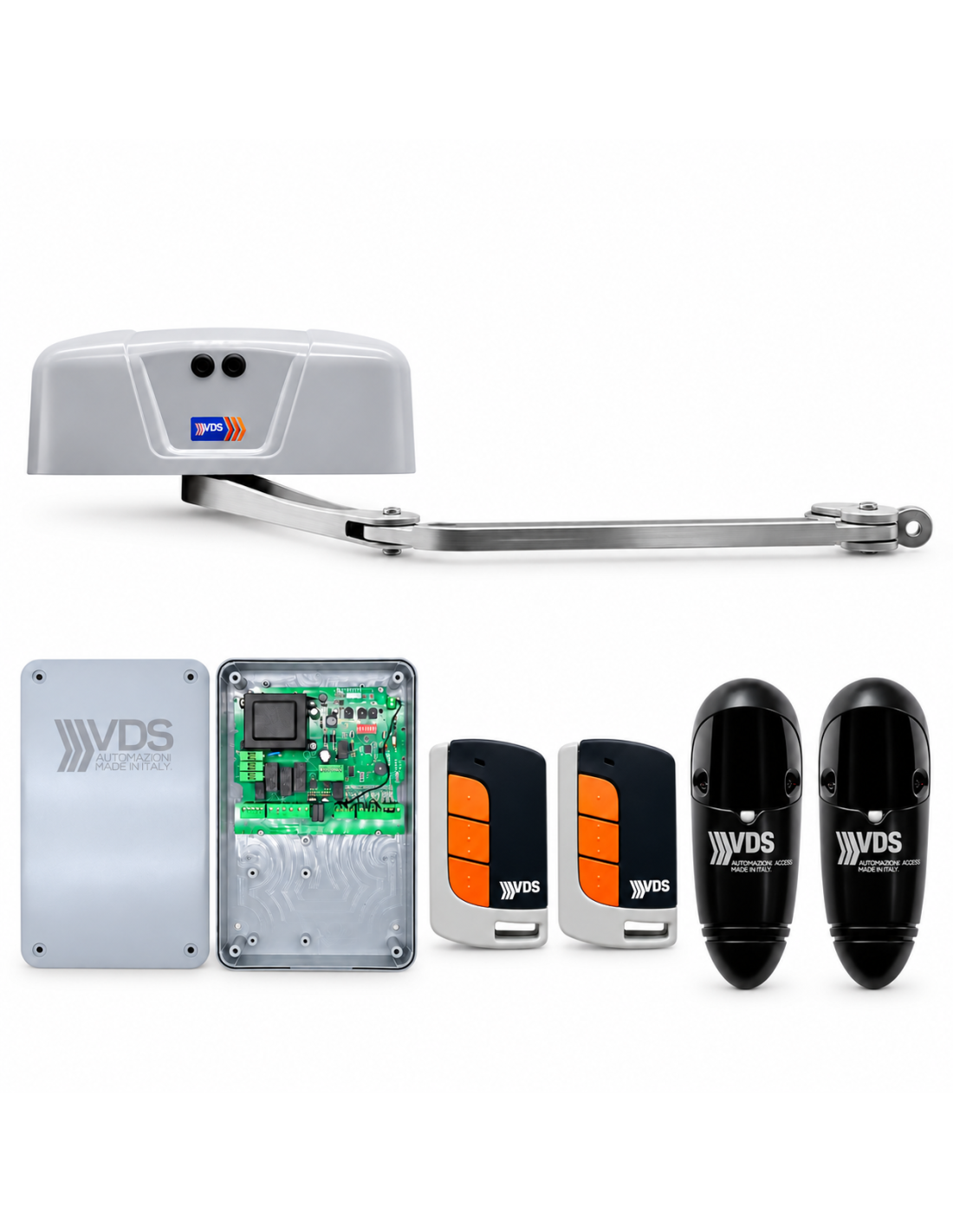

The kit incorporates the Tekno engine, maneuver box for 230VAC, radio receiver, two controls VDS ECO-R and a set of security photocells.

The engine has articulated aluminum arm, mechanical unlocking and electric opening and closing end.

Single-leaf swing door kit

This product includes 1 single engine VDS TEKNO 230V and is set specifically to automate a beating door of a single sheet. For a two-leaf door it is necessary to use the corresponding TEKNO kit with two engines.

Especially indicated for large pillars

The articulated arm of the VDS Tekno facilitates the automation of doors installed in pillars of large dimensions or with a hinge position that hinders the assembly of traditional linear actuators.

✓ Kit for beating door of a single sheet.

✓ Irreversible electromechanical motor 230Vac.

✓ For leaves up 3.5 m.

✓ Maximum indicated weight of up 800 kg, depending on the dimensions and characteristics of the door.

✓ Maximum opening up to 120 °.

✓ Especially indicated for park of large dimensions.

✓ Articulated aluminum arm.

✓ Electric career end in opening and closing.

✓ Mechanical unlock for manual drive.

✓ Complete Kit with central, receiver, 2 controls and photocells.

Recommendation for leaves greater than 2 meters

For facilities with leaves more than 2 meters long, it is recommended to use a electric lock to improve the lock and stability of the sheet when the door remains closed.

Important before selecting the automatism

The maximum values of length and weight should be assessed together with the real characteristics of the door. Before performing the installation it is necessary to check dimensions, weight, depth of pillar, hinge position, wind resistance, hinged state and leaf movement ease.
