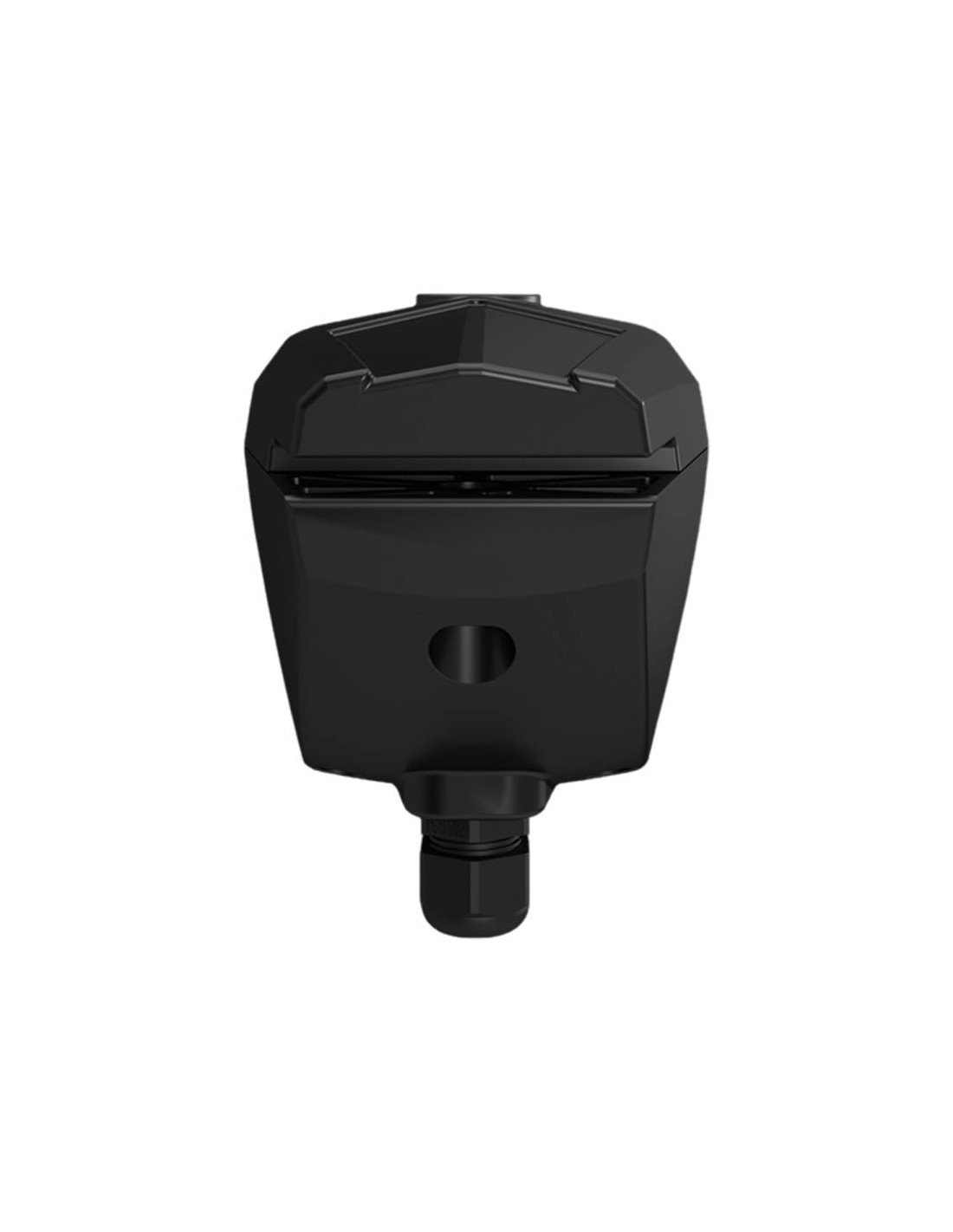

Matikgate Sway | Electromechanical motor for swing doors

The Electromechanical Motor SWAY, available in 24V DC and 230V versions, is designed for Beating doors with a maximum width up to 4 meters and a weight up to 400kg. Practical, resistant and elegant, has Electric career end and built-in mechanics and optional battery (24V versions). Its power of 120W or 150W guarantees a linear and efficient operation even under intense use.

Technical characteristics Matikgate Sway

Measures

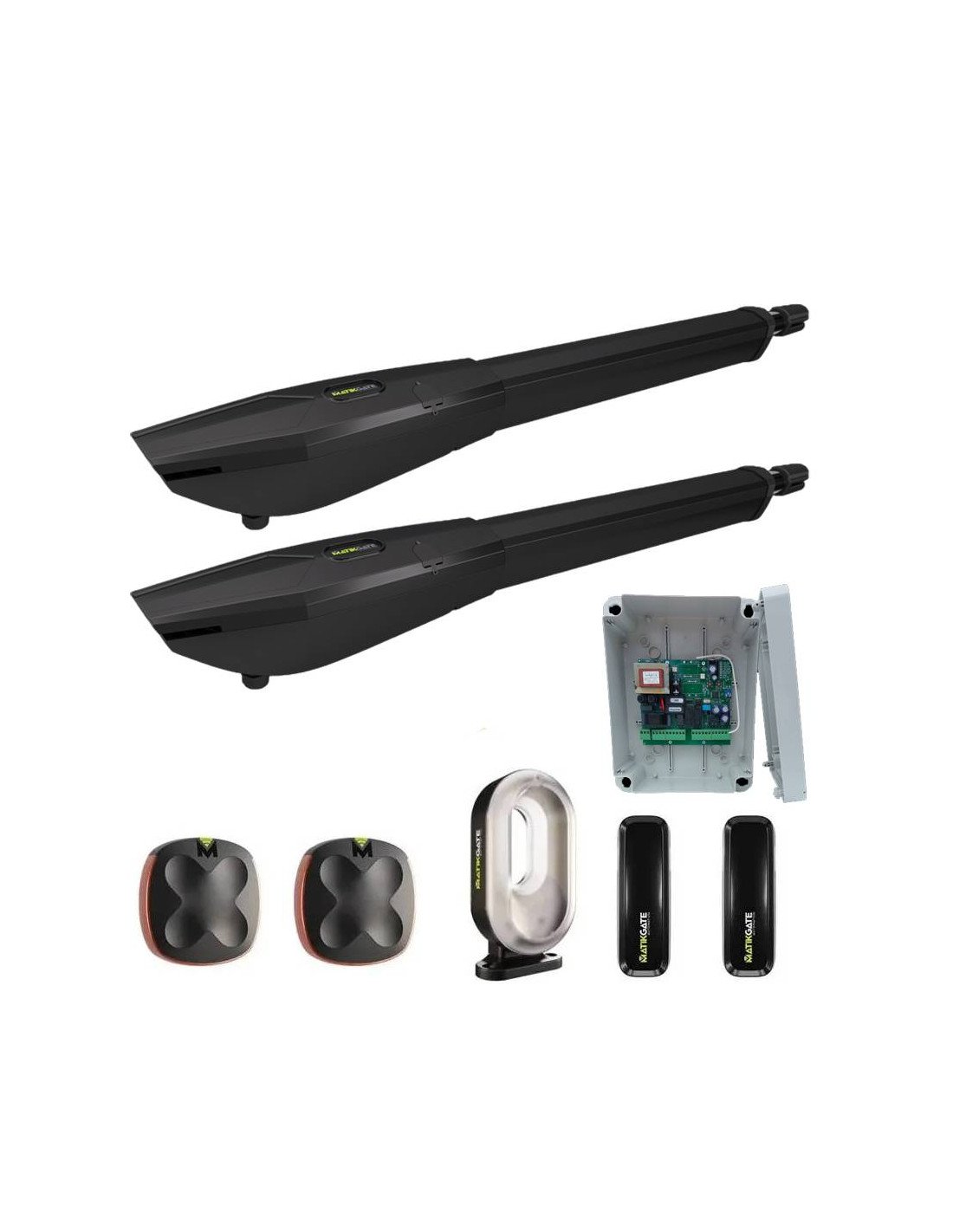

Content of the Kit 04K-Sway 400:

• 2x 04Sway 400: 230VAC electromechanical motors for doors up to 3m per leaf
• 1x L2w: 230VAC maneuver box with integrated receiver
• 2x Copper: Rollingcode 433MHz controls
• 1x F180: Pair of TX-RX security photocells
• 1x Blink: Flashing lamp

Kit content 04K-SWAY 600:

• 2x 04Sway 600: 230VAC electromechanical motors for doors up to 4m per leaf
• 1x L2w: 230VAC maneuver box with integrated receiver
• 2x Copper: Rollingcode 433MHz controls
• 1x F180: Pair of TX-RX security photocells
• 1x Blink: Flashing lamp

Content of 04K-SWAY 400-24V:

• 2x 04Sway 400-24V: 24V electromechanical motors for doors up to 3m per leaf
• 1x L24: 24V maneuver box with integrated receiver
• 2x Copper: Rollingcode 433MHz controls
• 1x F180: Pair of TX-RX security photocells
• 1x Blink: Flashing lamp

Content of 04K-SWAY 600-24V:

• 2x 04Sway 600-24V: 24V electromechanical motors for doors up to 4m per leaf
• 1x L24: 24V maneuver box with integrated receiver
• 2x Copper: Rollingcode 433MHz controls
• 1x F180: Pair of TX-RX security photocells
• 1x Blink: Flashing lamp

Manual

Instruction Manual Matikgate Sway

Instruction Manual Table L2W
