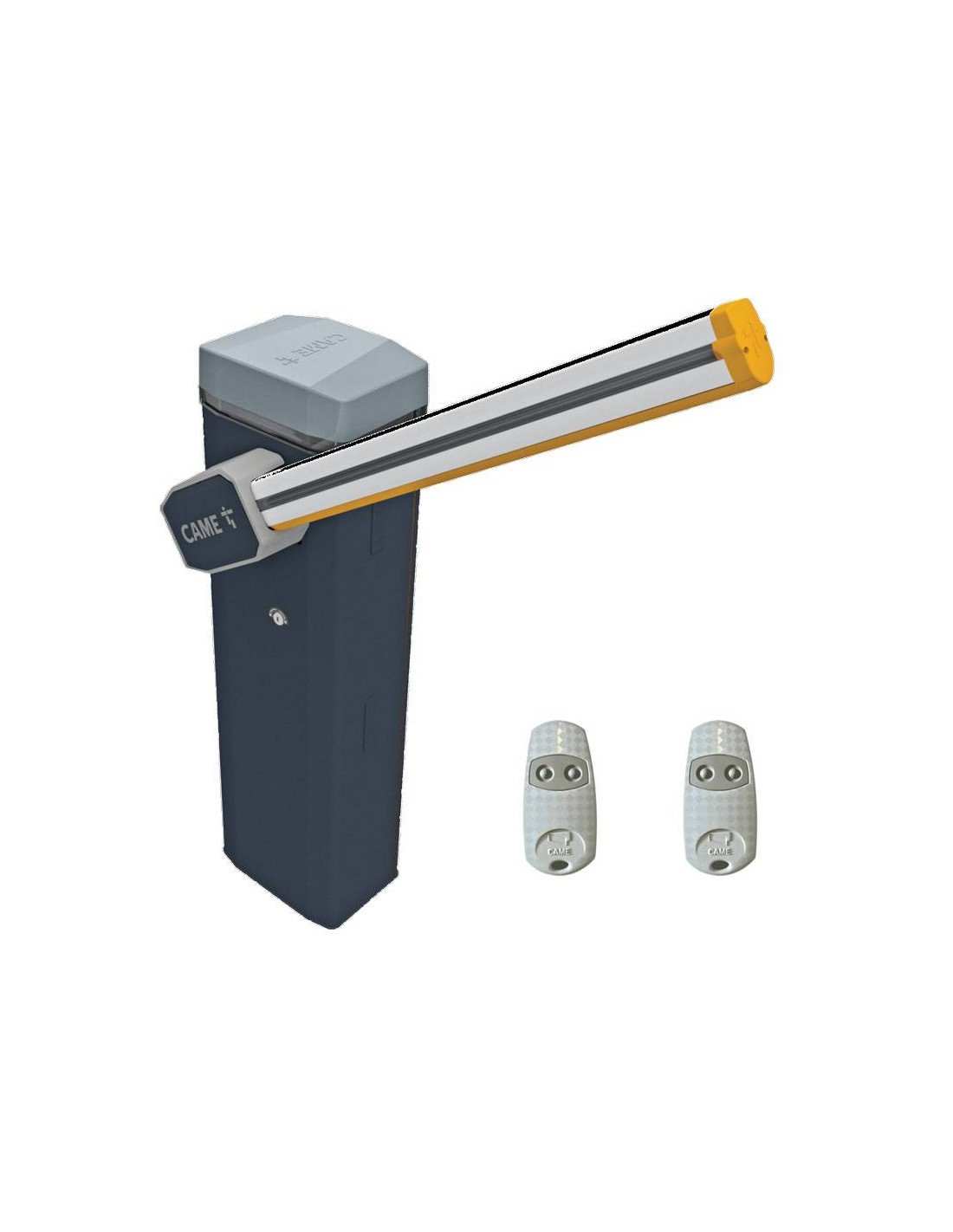

24V CAME Gard GT4 electromechanical barrier for intensive use with 90x60 white lacquered aluminium mast with a length of 4220mm.

CHARACTERISTICS

■ 24 V DC geared motor with Advanced Speed Control.

■ Tested for intensive use of 350 cycles/hour with MCBF 3 million cycles.

■ Cabinet available in galvanised and painted steel RAL7024, AISI 304 and AISI 316 steel, or in custom colour.

■ Electronic card with display, CONNECT technology and CXN BUS accessory inputs.

■ Accessories can be mounted directly on the cabinet.

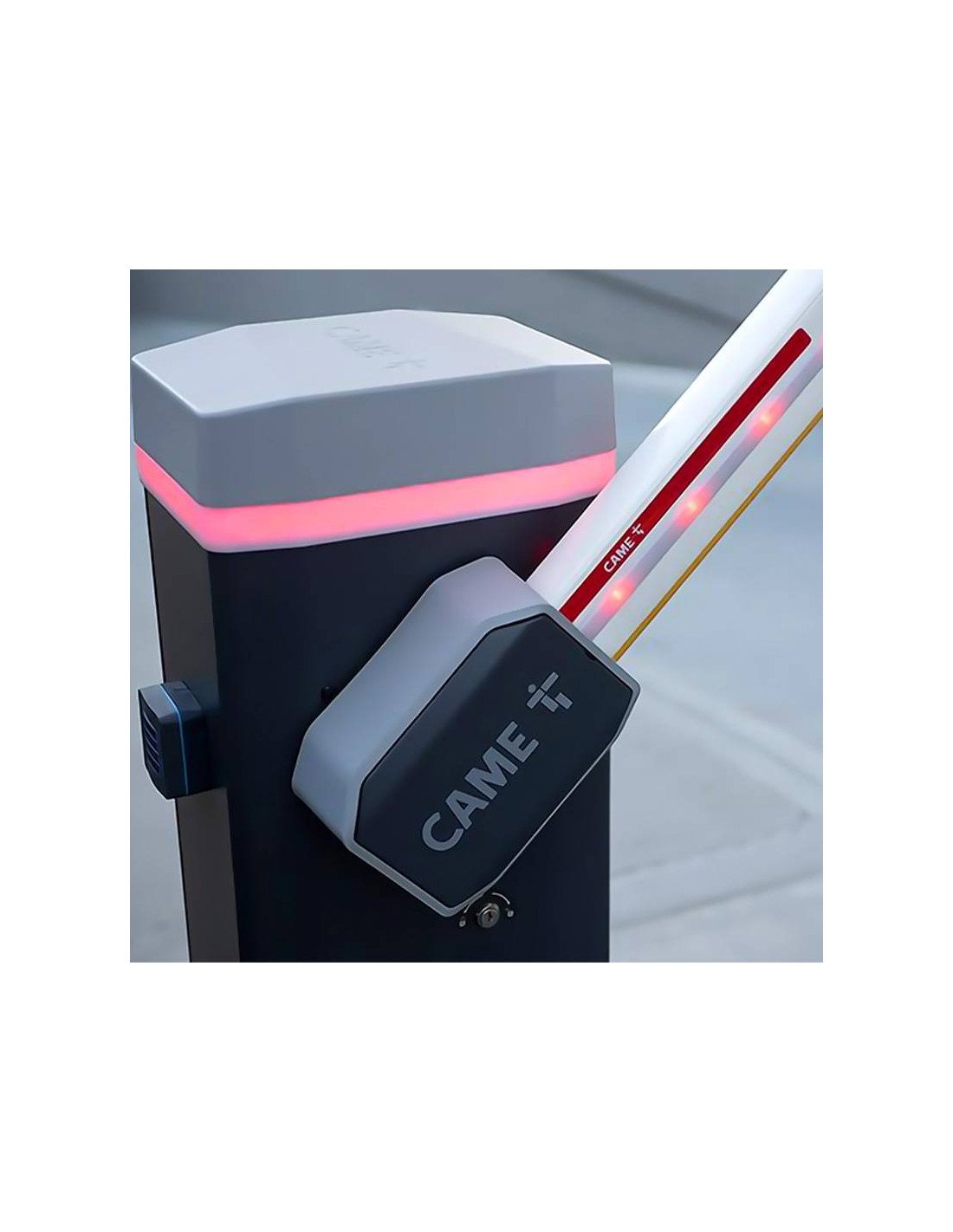

■ High-visibility red/green indicator LEDs on the crown and on both sides of the mast.

■ Compatible with third-party systems via MODBUS protocol.

SPECIFICATIONS

■ Degree of protection: IP54

■ Power supply: 230Vac

■ Motor power: 24Vdc

■ Power: 240W

■ Open time at 90°: 2 ÷ 6 sec

■ Cycles/hour: 350

■ Operating temperature: -20 ÷ +55 °C

THE KIT CONTAINS

■ 1pc 803BB-0160: GT4 automatic barrier with 24Vdc geared motor.

■ 1 pc 803XA-0270: 90x60 white lacquered aluminium mast with internal reinforcement, L=4220mm.

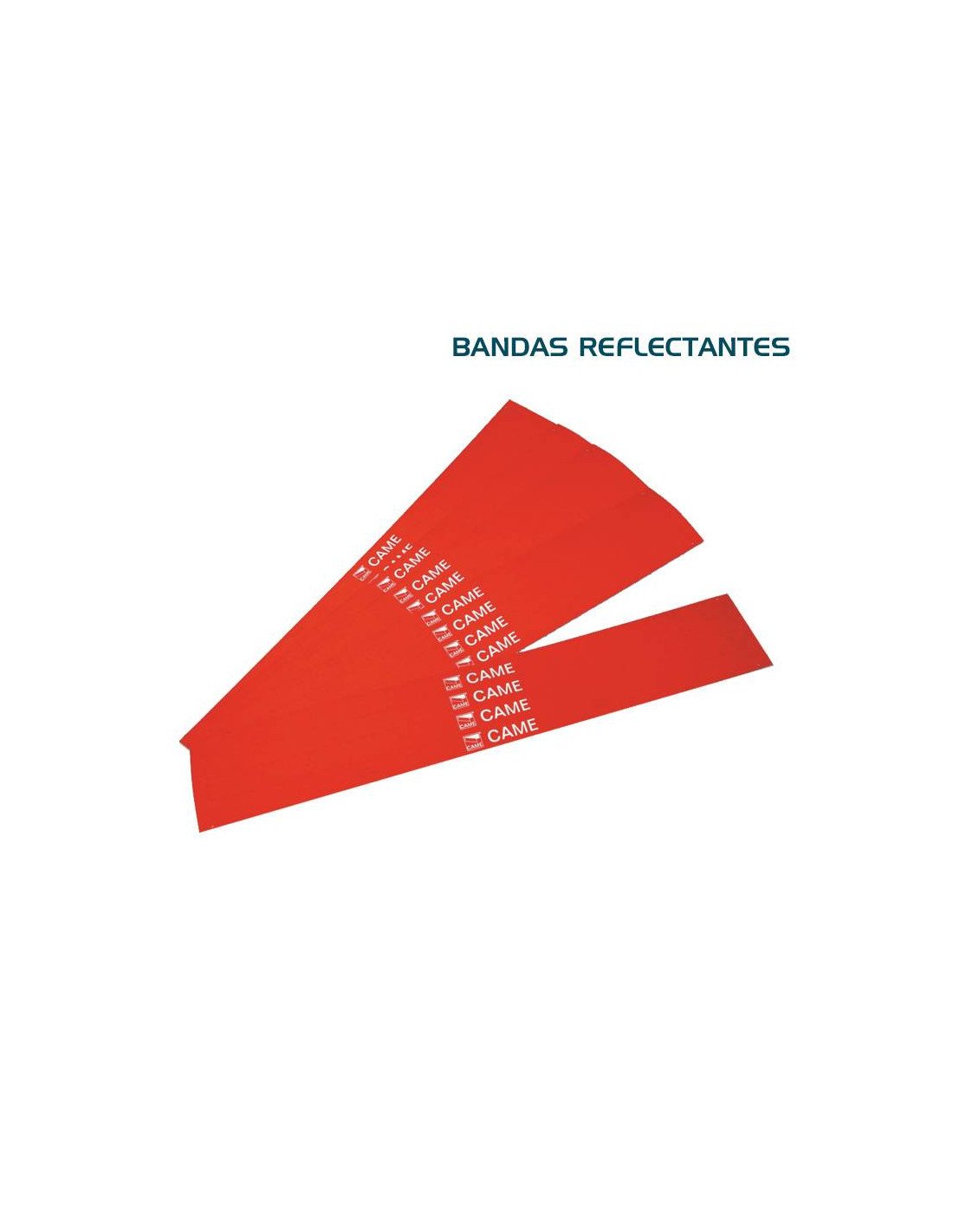

■ 1 pc 001G02809: Pack 20 red adhesive reflective stripes.

■ 1pc 001AF43S: 433.92 MHz plug-in radio card.

■ 2 pcs 001TOP-432EE: Two-channel Fixcode transmitter 433,92.
