230Vac electromechanical barrier for access to residential, community and industrial accesses up to 6 metres, equipped with an anti-crush system and external limit switches.

CHARACTERISTICS

■ Ideal barrier for car parks.

■ Obstacle detection for greater safety.

■ Intensive use.

■ Possibility of adaptation of red and green LED band.

■ Easy unlocking.

■ High degree of protection against water and dirt.

■ Mechanical acceleration and deceleration.

ULTRA barrier for residential, community and industrial use, equipped with an anti-crushing system for consumption, with external limit switches.

The poles can be equipped with rubbers (to avoid chafing in the event of an impact) and high-visibility red-green LED lighting that acts as a traffic light.

The installation of 2 barriers facing each other makes it possible to cover 12 m wide gaps.

SPECIFICATIONS

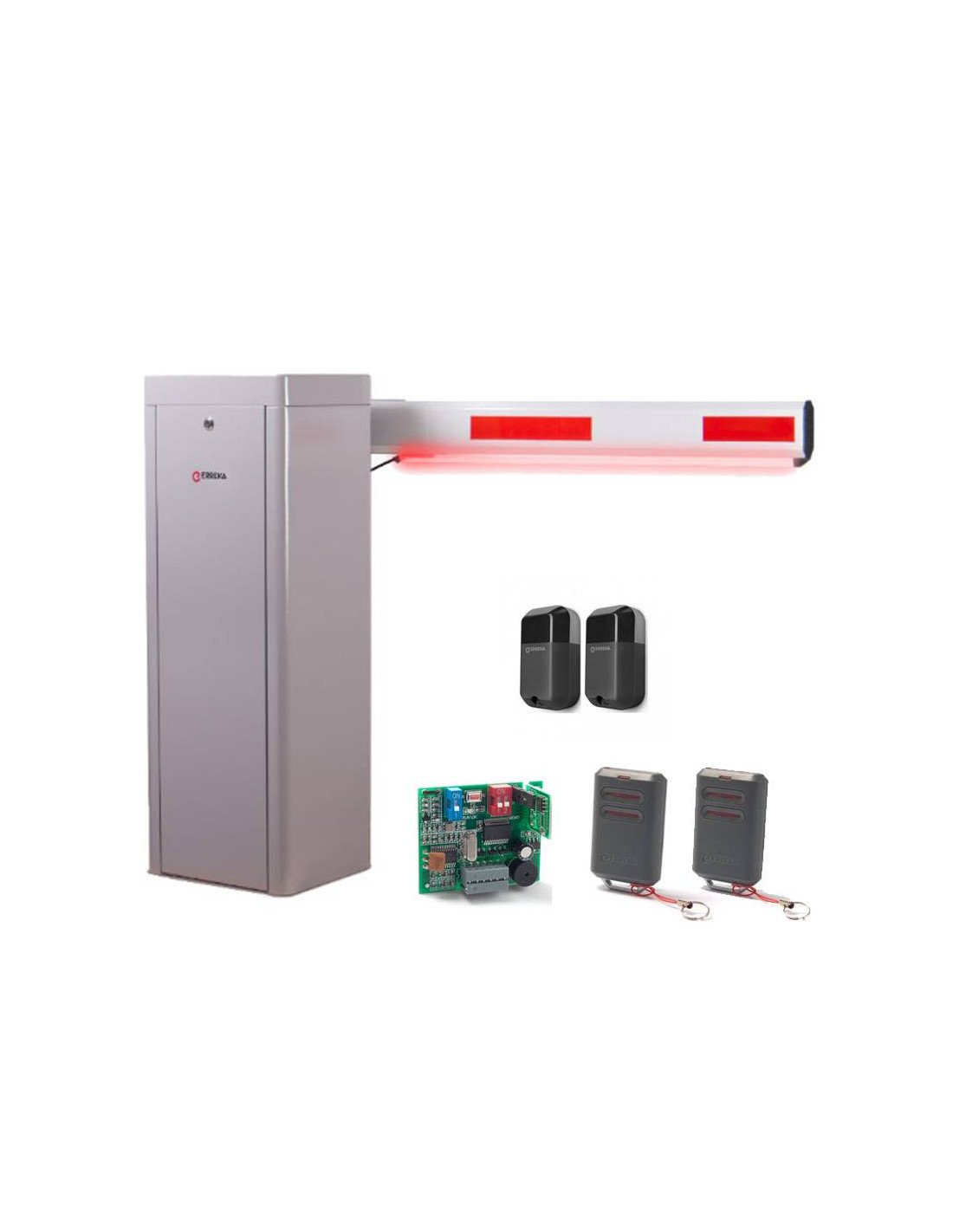

KIT ULS45ECI

■ 1 pc ULS45ECI: 4.5m 230 Vac electromechanical barrier with built-in frame. (Left side seen from the inside)

■ 1pc AUL12: 4.5m octagonal rubber mast with integrated LED.

■ 1pc AUL10: Power supply + traffic light card.

■ 1 pc IRRE2: 433.92 MHz receiver card.

■ 2 pc KU02: KUMA transmitter fixed code 433.92 MHz.

■ 1 pc FT06: Transmitter-receiver safety photocell.

KIT ULS45ECD

■ 1 pc ULS45ECD: 4.5m 230 Vac electromechanical barrier with built-in frame. (Right side seen from the inside)

■ 1pc AUL12: 4.5m octagonal rubber mast with integrated LED.

■ 1pc AUL10: Power supply + traffic light card.

■ 1 pc IRRE2: 433.92 MHz receiver card.

■ 2 pc KU02: KUMA transmitter fixed code 433.92 MHz.

■ 1 pc FT06: Transmitter-receiver safety photocell.

KIT ULS6ECI

■ 1 pc ULS6ECI: 6m 230 Vac electromechanical barrier with built-in panel. (Left side seen from the inside)

■ 1pc AUL11: 6m octagonal mast in rubber with integrated LED.

■ 1pc AUL10: Power supply + traffic light card.

■ 1 pc IRRE2: 433.92 MHz receiver card.

■ 2 pc KU02: KUMA transmitter fixed code 433.92 MHz.

■ 1 pc FT06: Transmitter-receiver safety photocell.

KIT ULS6EC

■ 1 pc ULS6ECD: 6m 230 Vac electromechanical barrier with built-in panel. (Right side seen from the inside)

■ 1pc AUL11: 6m octagonal mast in rubber with integrated LED.

■ 1pc AUL10: Power supply + traffic light card.

■ 1 pc IRRE2: 433.92 MHz receiver card.

■ 2 pc KU02: KUMA transmitter fixed code 433.92 MHz.

■ 1 pc FT06: Transmitter-receiver safety photocell.
