BFT MOOVI30 | Electromechanical barrier

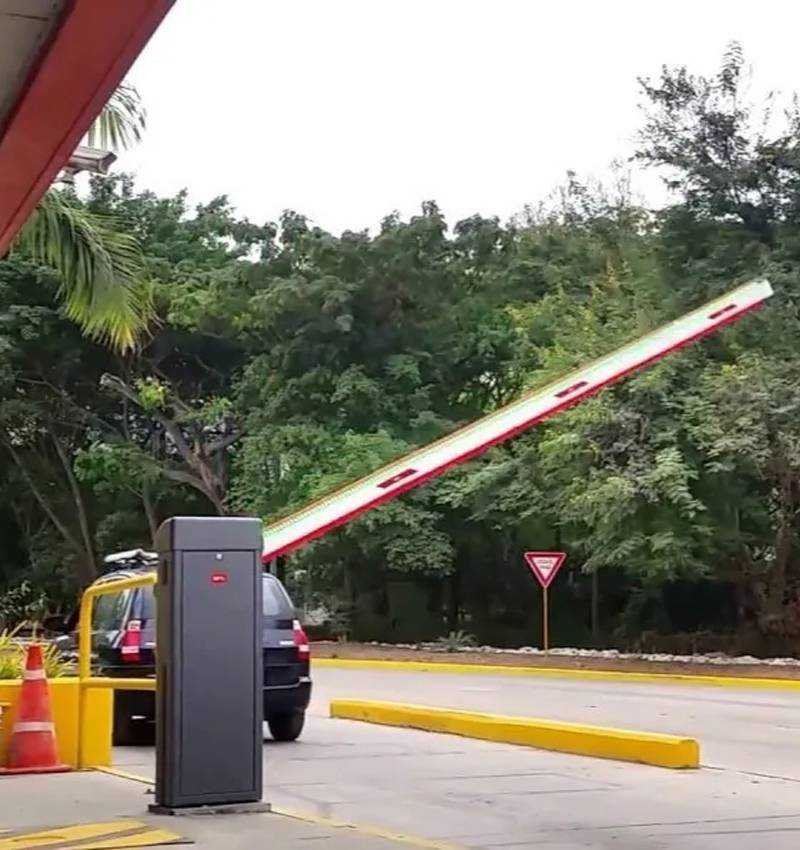

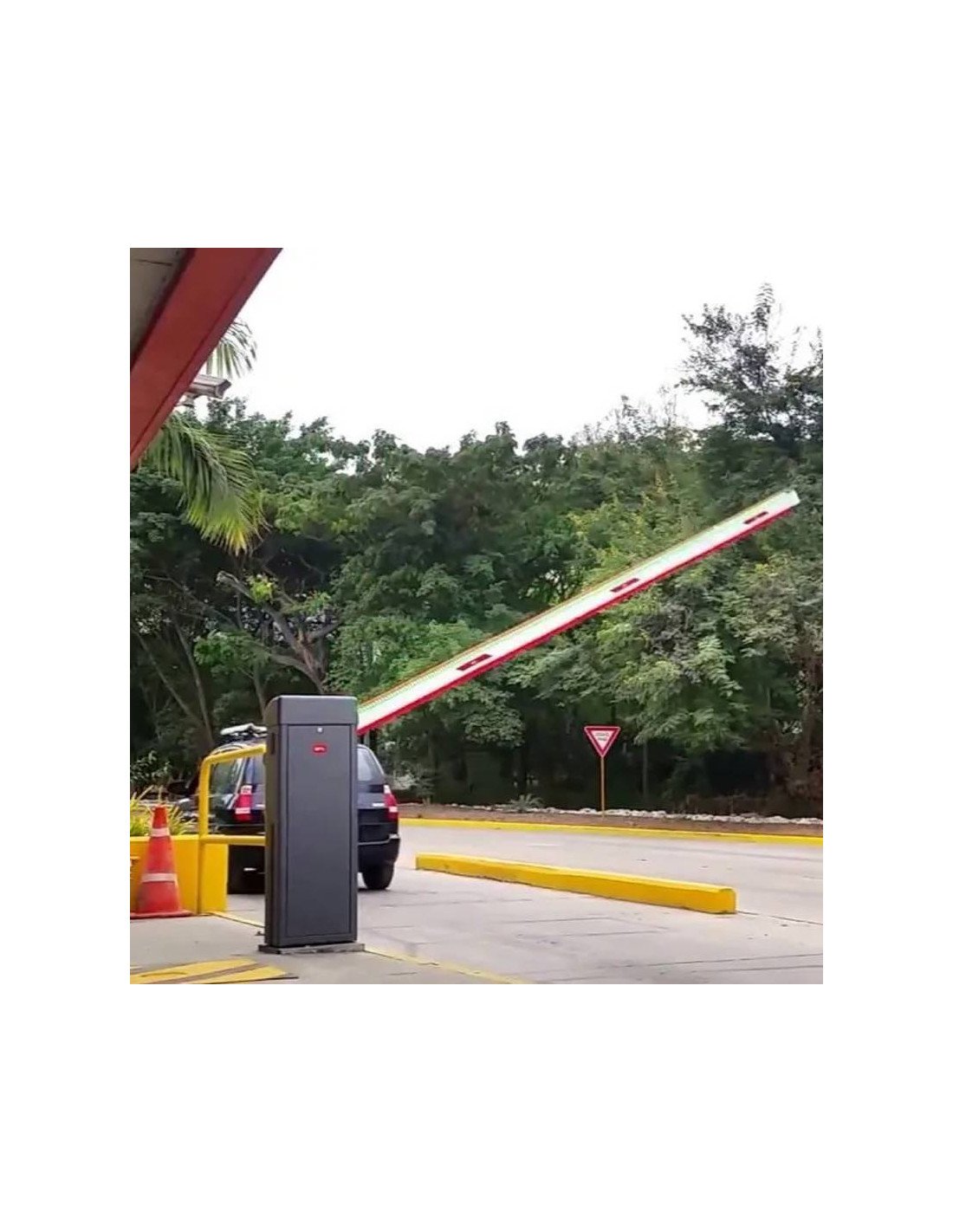

Electromechanical barrier BFT Semi-intensive MOOVI30 with 3M rectangular mast, Compact suitable for delimiting private areas, parking and exclusively vehicular access accesses.

The barrier is supplied in color gray ral 7015 and has a 3300mm mast with a useful step of 3000mm with a 4.0 sec opening time. Reaction to the impact by sensitive bar. Central with built-in viewfinder.

Features BFT Moovi30

• The mast has a rectangular shape with a length of 3300 mm.
• The adjustable electromechanical endpoints guarantee the correct position of stopping the mast.
• Emergency unlock for manual maneuver is driven from a lock with a custom key.
• Speed in the execution of maneuver and silence, they are two of the characteristics of the barrier BFT Moovi. Adapted to current regulations, it comes equipped with an anti-explashing system and manual unlocking system.

Main features

• Emergency feeding system with batteries, installable on the computer.
• System of career end with electronic regulation that facilitates installation and guarantees maximum precision of movement.
• Central control located in an easily accessible and separate position from the mechanical part.

Technical characteristics

• Feed: 220-230 V 50/60 Hz (*)
• Max power absorbed: 300w
• Capacitor: 8μF 450V (220-230V): 32μF 250V (110V)
• Absorption (with accessories): 1.4 A: 2.8 A
• Insulation class: F
• Internal lubrication: permanent grease
• Max: 85 nm
• Opening time: 4s
• Length mast: 3m max
• Reaction to impact (sensitive band): Stop or stop and investment
• Unlock Mechanical Manual: personalized key
• Type of mast: rectangular
• Run-up: Electric built-in and adjustable
• Type of use: semi-intensive
• Operating temperature: from -10 ° C to + 55 ° C
• Degree: IP 24
• Actuator Weight (No mast): 35.6 kg
• Blinking light: 220-230V ~ 25W max.

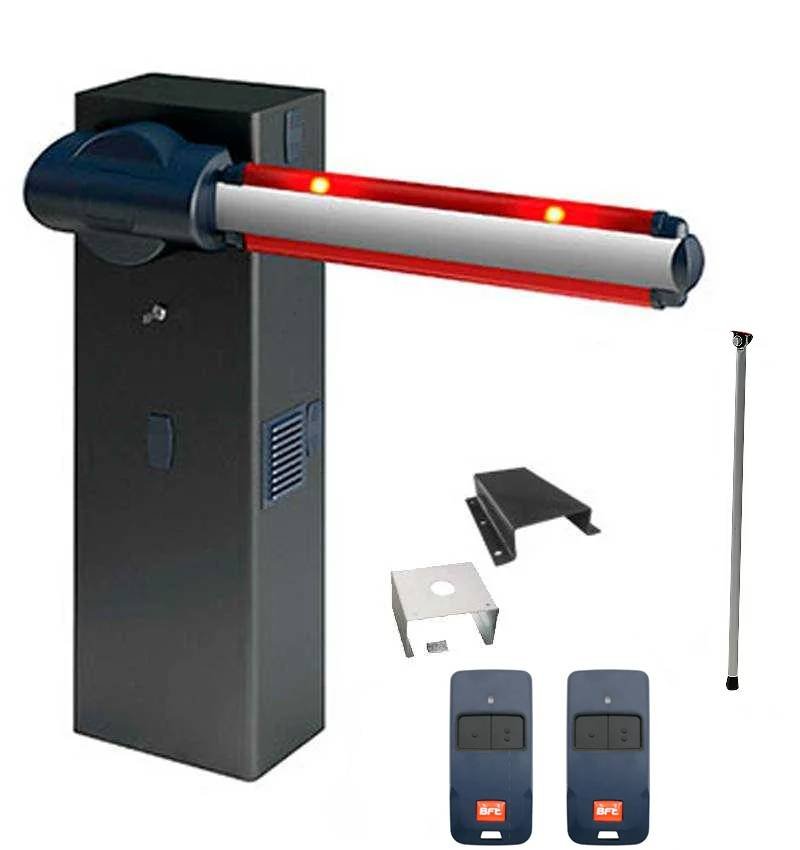

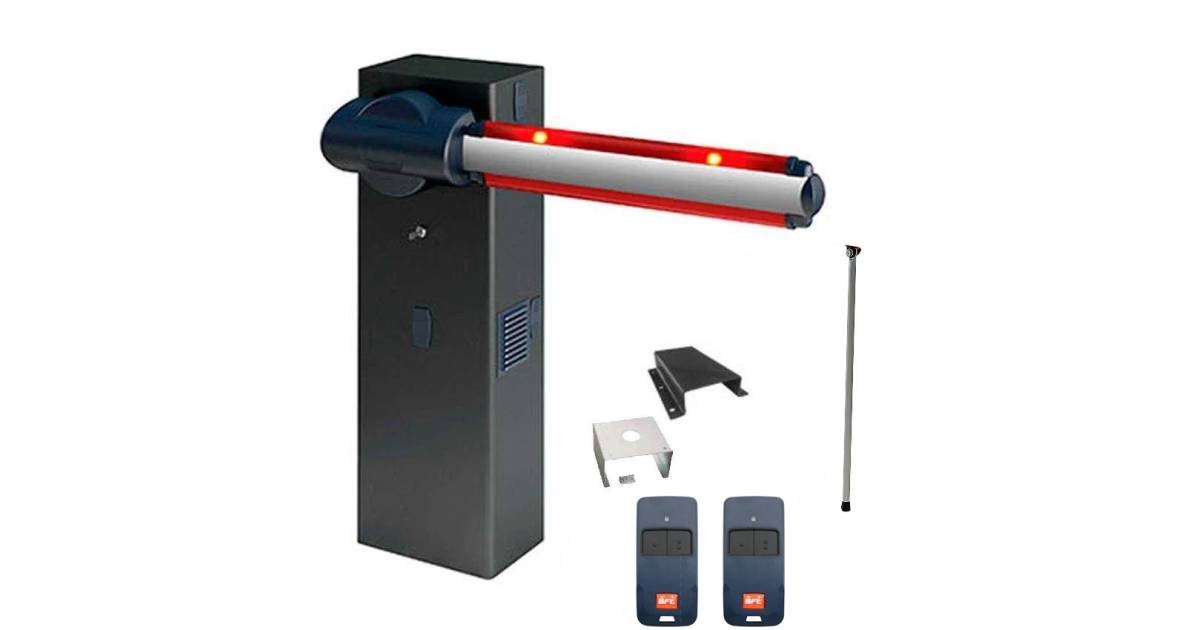

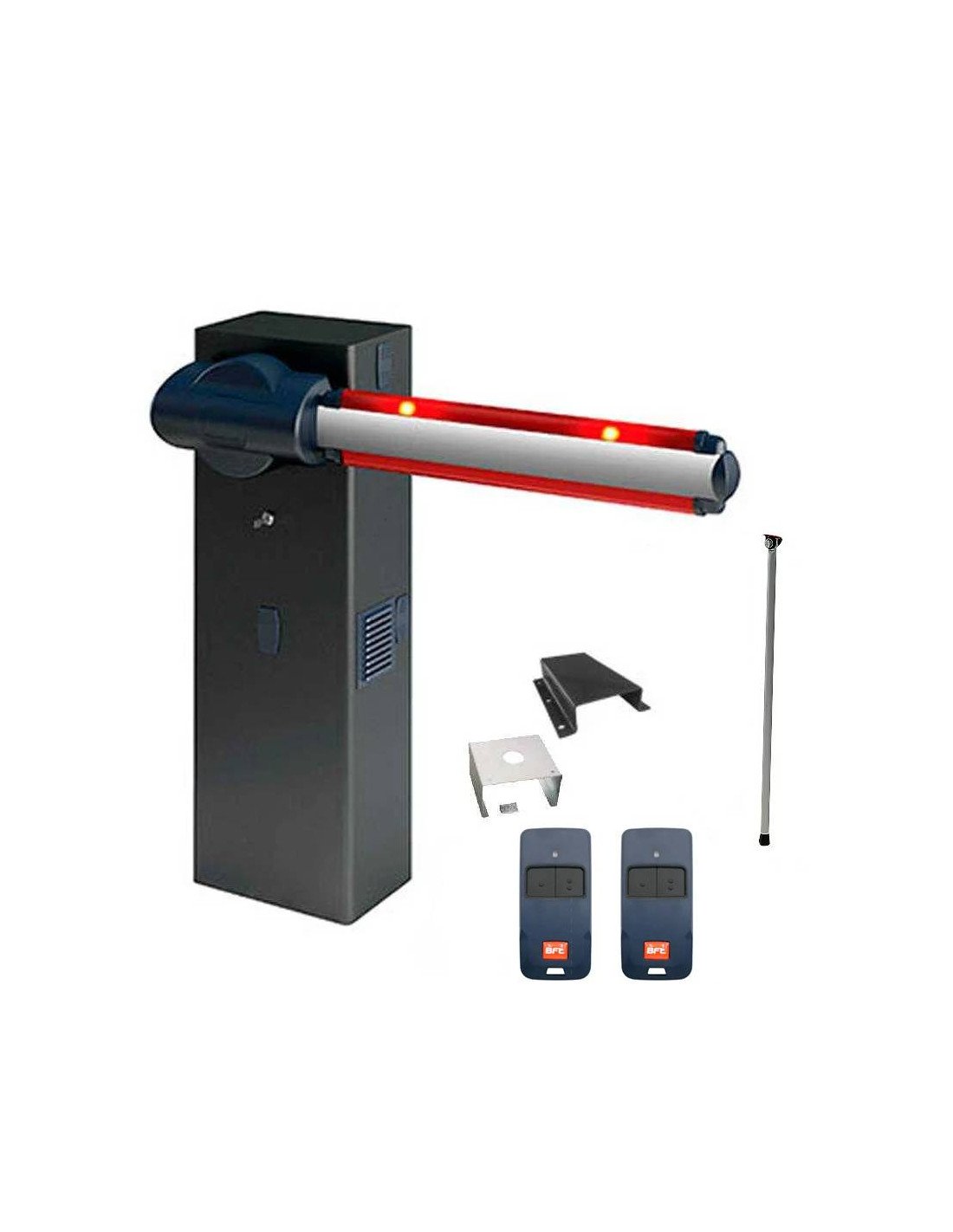

Content of the barrier

• 1 pc P940062 00002: Automatic barrier BFT Moovi
• 1 pc N728033: 3300 mm rectangular mast
• 1 pc N999507: Omega for rectangular mast
• 1 pc P120128: Anchor base for Moovi barrier
• 1 pc D940007: Support for mast
• 2pc D112306: Cool2 Transmitter 433 MHz

Measures

Manual

Manual BFT Moovi30
