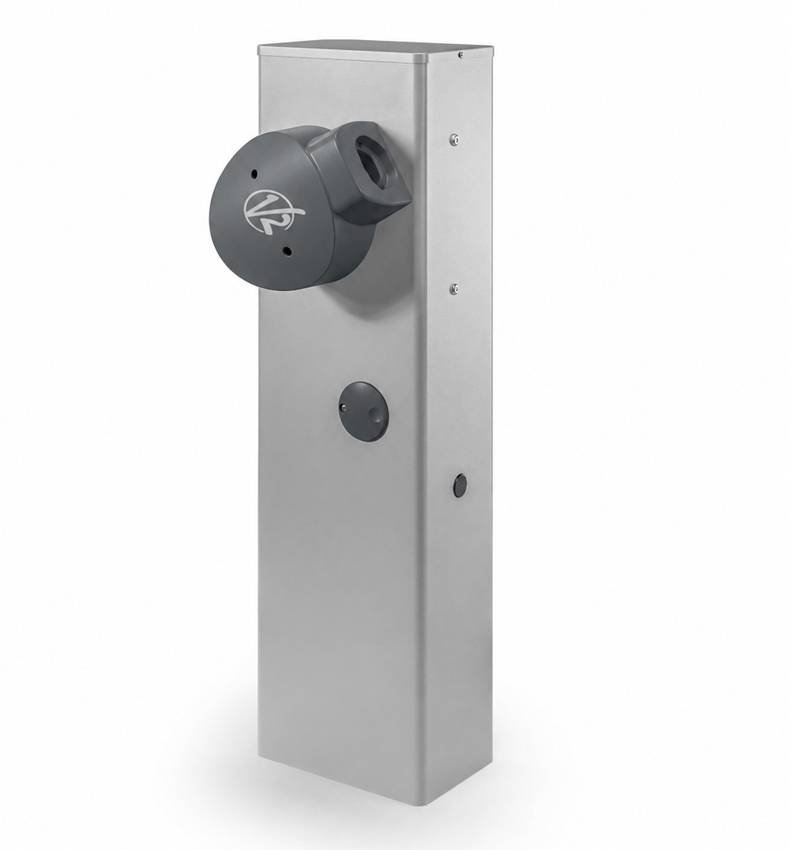

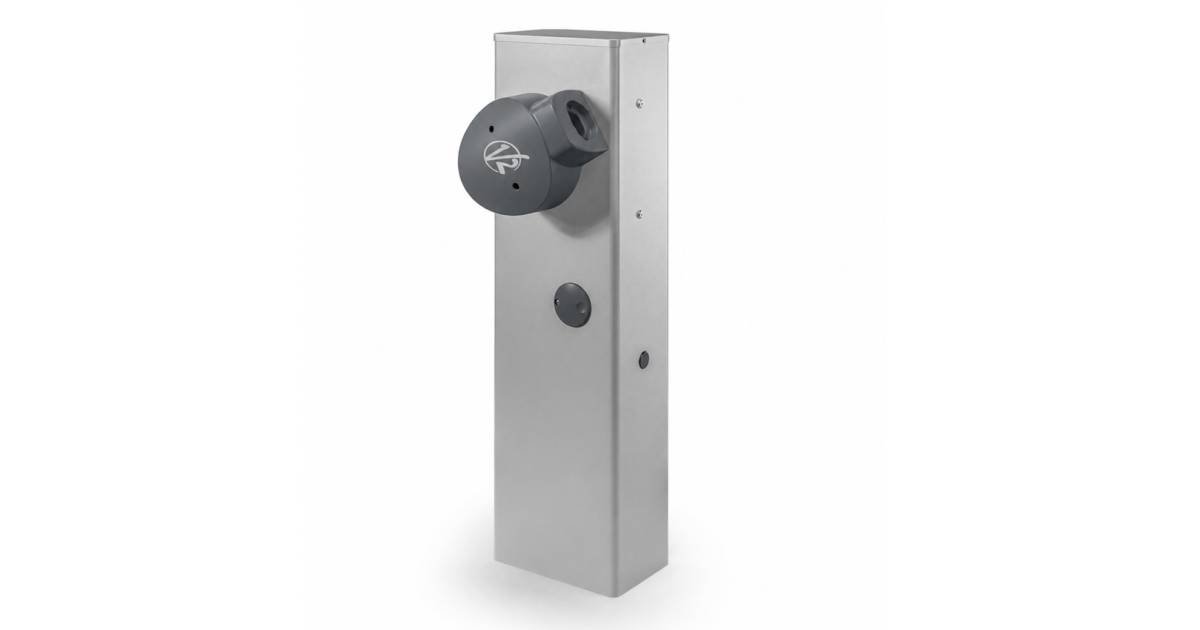

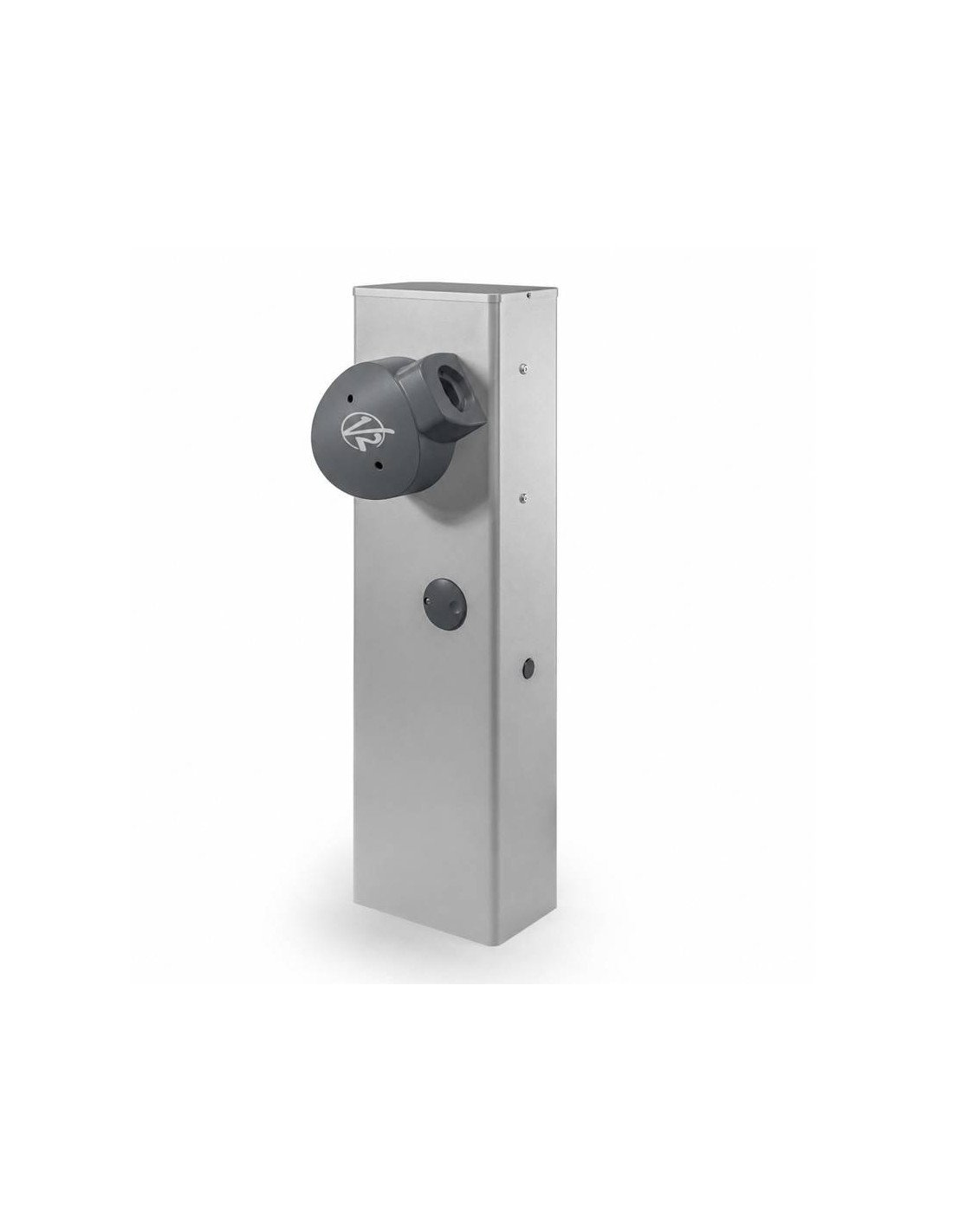

Barrier V2 Nuur6 24V with built-in maneuver frame (no mast)

Automatic barrier V2 24V Nuur6 for the control of residential, community and collective access, designed for steps up 6 meters by using the corresponding mast (not included).

This version is supplied with Built-in maneuver box Inside the closet, offering a compact, reliable and prepared solution for precise movement management. Is an ideal option for installers who need the Motorized barrier column without mast, either for replacement, renewal of an existing installation or personalized configuration of the system.

The barrier incorporates 24V engine with safe and precise operation by encoder, allowing a controlled maneuver, with obstacle detection, soft unemployment in opening and closing, as well as self-learning of times To facilitate the start-up.

Your Programmable digital center, with Screen and three push buttonsIt allows a simple and professional configuration of the operating parameters. In addition, it has multiple entries and outputs to integrate security and control elements, adapting to modern and demanding facilities.

Important: this product corresponds only to the barrier V2 Nuur6 with built-in picture. Does not include mast, remote controls or other accessories, except for compensation dock Indicated by the manufacturer.

Main advantages

• 24V engine For intensive and safe maneuvers.
• Encoder For precise operation.
• Obstacle detection To improve the safety of use.
• Self-learning of the opening and closing times.
• Soft unemployment In opening and closing.
• Accelerations and programmable decelerations.
• Built-in digital maneuver box, programmable from screen and pushbuttons.
• Modular receiver connector MR2.
• ADI connector for module Wf01 and control through App V2 Go.
• Entrance for photocells with Autotest.
• Entrance for mechanical safety bands.
• Exit for courtesy light.
• Output for electromagnetic suction cup.
• Energy Saving Function To reduce consumption in Stand by.
• Possibility of operating with battery In case of electric cut.
• Compatible with solar feeding by Eco-logic.
• Compatible with optional Synclux module.

Advanced features with optional Synclux module

• Synchronized operation of two barriers.
• Traffic light.
• Management of a programmable relay output.

Supply content

• Barrier V2 Nuur6 24V.
• Built-in maneuver box.
• Compensation spring included.

Not included

• Mast / Asta.
• Remote control.
• Radio MR2 receiver.
• WF01 module.
• Synclux Module.
• Batteries.
• Photocells and other accessories.

Technical characteristics

The V2 Nuur6 24V without mast It is an excellent solution for professionals who need only the Barrier column with built-in center, maintaining freedom to select or take advantage of an existing mast and the most suitable accessories for each installation.
