Kit Bat Storage Bat 2x12V 1,2Ah for 24V (629290) Engines (629290)

DEA 629290 BAT is a 24 V Emergency Battery Kit of Automatisms, Designed to allow the operation of the motor when a cut is produced in the power supply.

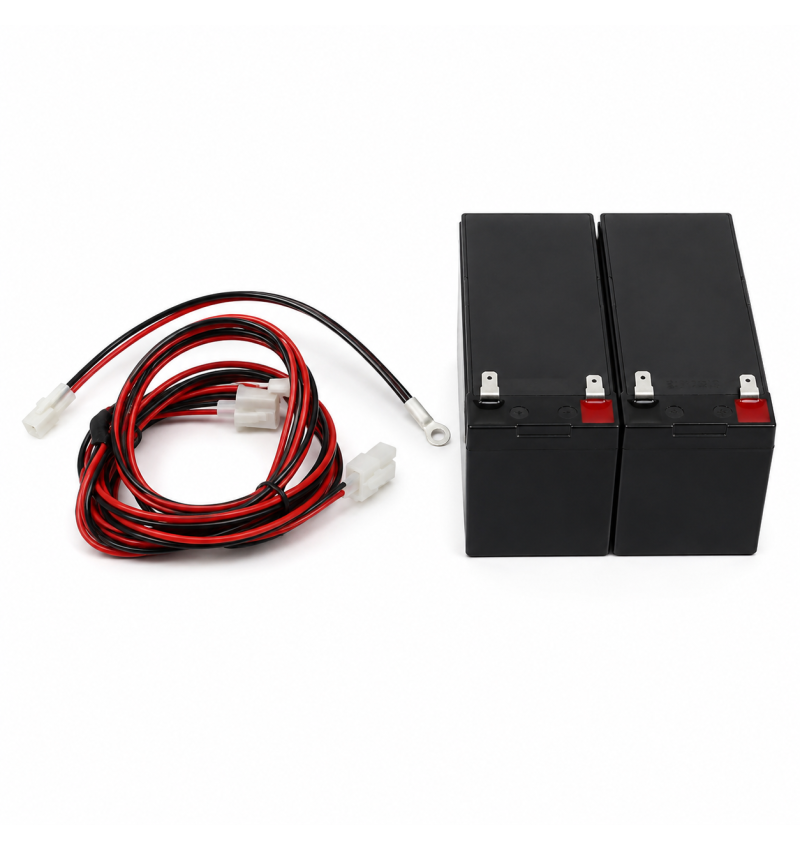

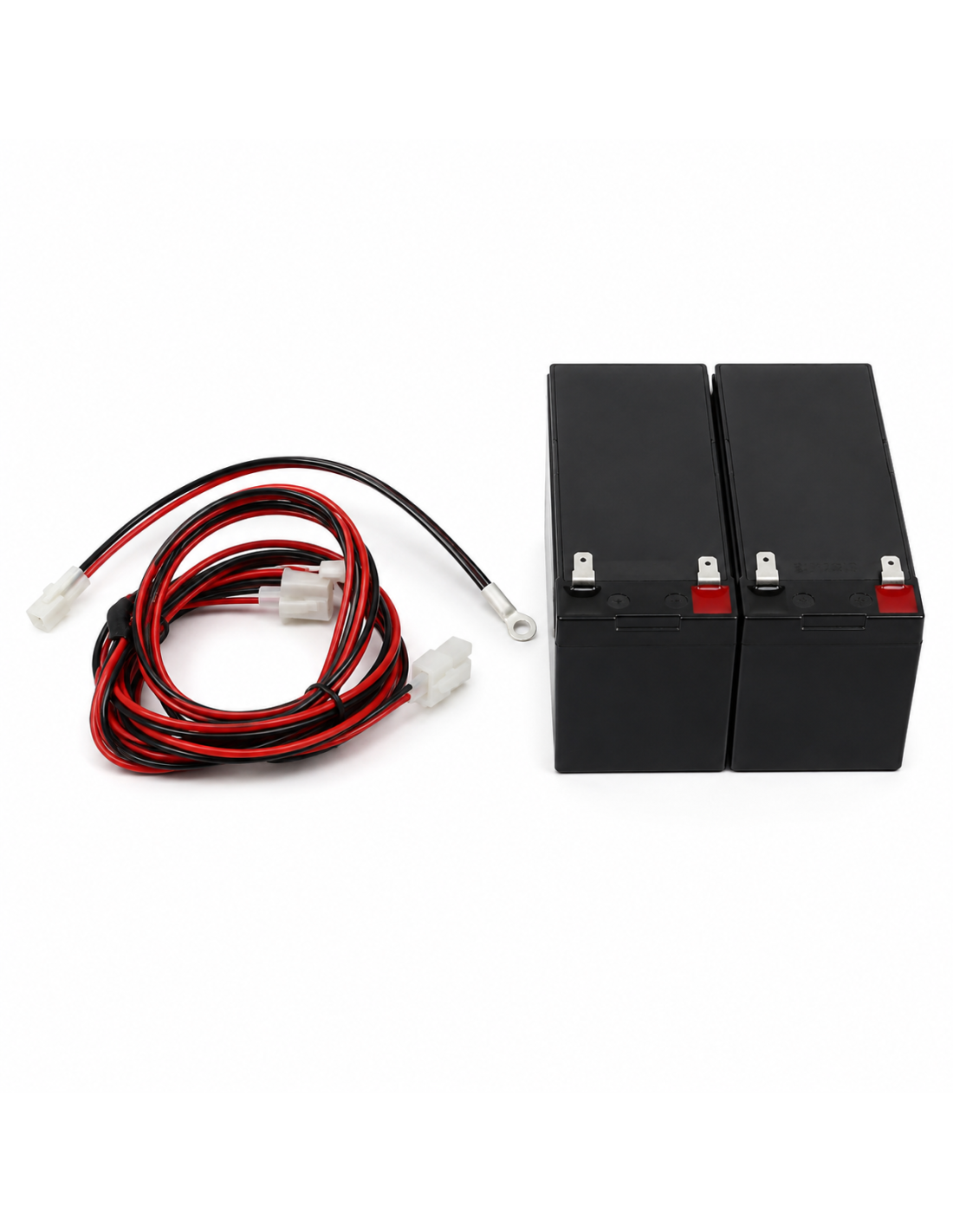

The kit is composed of 2 Rechargeable batteries of 12 V and 1,2 ah, together with the Cables needed for your connection to the compatible maneuver box.

Battery Kit DEA 629290 BAT

This accessory is especially suitable for installations where you want to have a emergency supply, avoiding the automatic door to be out of service before a temporary loss of electric current.

The two 12 V batteries work together to provide the necessary feeding to the system of 24 V.

Main features

• Original Kit Dea System.
• Reference Manufacturer: 629290.
• Model / denomination: Bat.
• Includes 2 12 V batteries.
• Capacity of each battery: 1.2 ah.
• Prepared for automatisms of ASA with feeding 24 V.
• Includes the Cables needed for the connection to the maneuver box.
• Allows maneuvers even when there is a Electric current cut.

Compatibility

Among compatible applications is the buried engine:

• DEA GHOST 200 / 24CL - Reference 621050.

In facilities with the DEA GHOST 200 / 24CL, the kit can be used in conjunction with the maneuvering box DEA NET24N / C Compatible with this operator.

Technical specifications

What does the kit include?

• 2 Rechargeable batteries of 12 V / 1,2 ah.
• Connection cables For installation in the compatible maneuver box.

What is an emergency battery for?

When automation works normally, the system is powered from the electrical network. If there is a supply cut, the batteries allow to temporarily feed the picture and the engine to continue performing opening and closing maneuvers.

The Autonomy and the number of maneuvers available They will depend on the type of automation, weight and dimensions of the door, number of installed motors, status and load of the batteries and accessories connected to the maneuver box.
