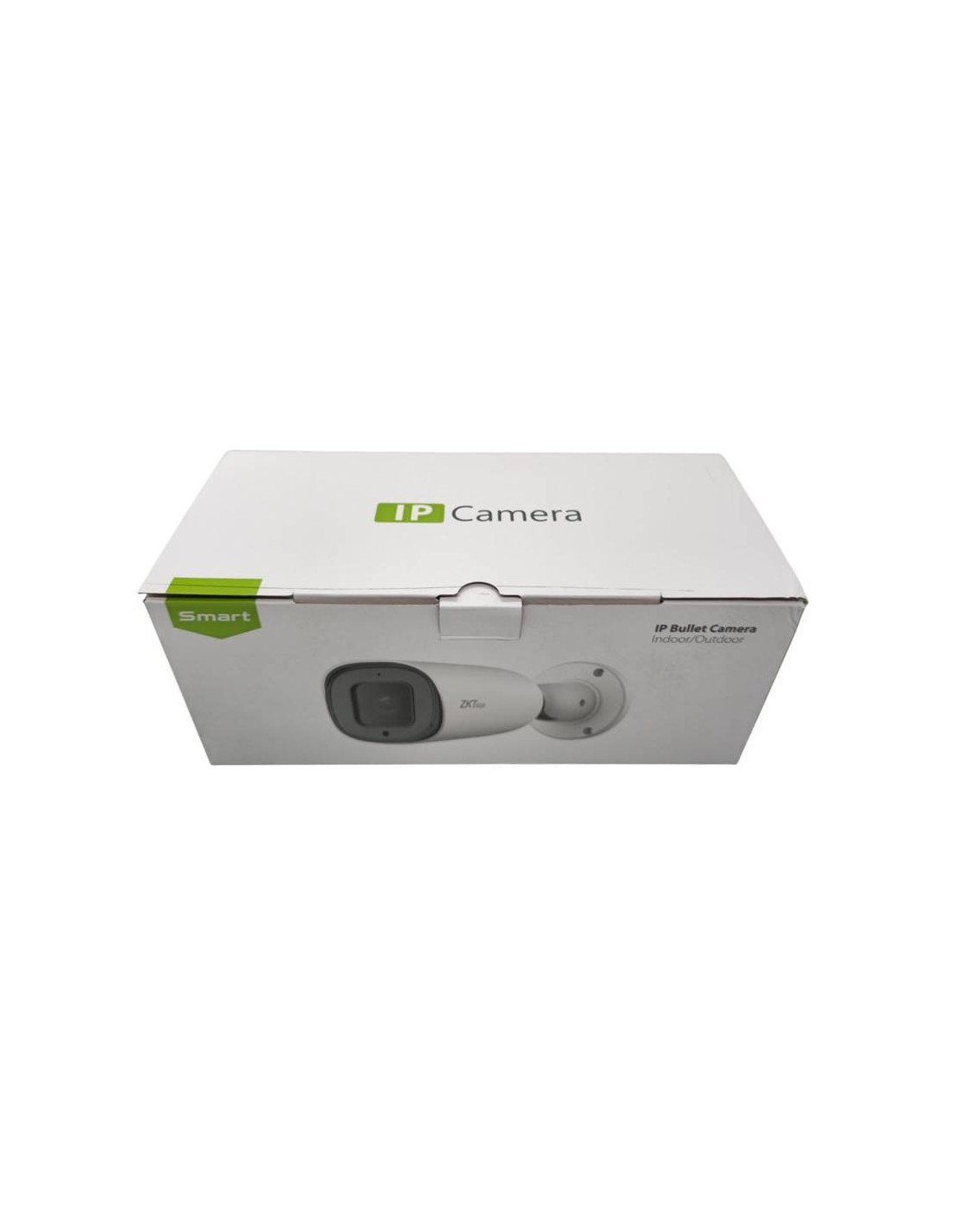

Autonomous License Plate Reader Camera for outdoor use.

The stand-alone License Plate Recognition System (LPR) is particularly recommended for accesses that do not require a permanent connection to a PC. Due to its compact size and easy attachment, it is perfectly suited to ramped garage entrances with little passage space.

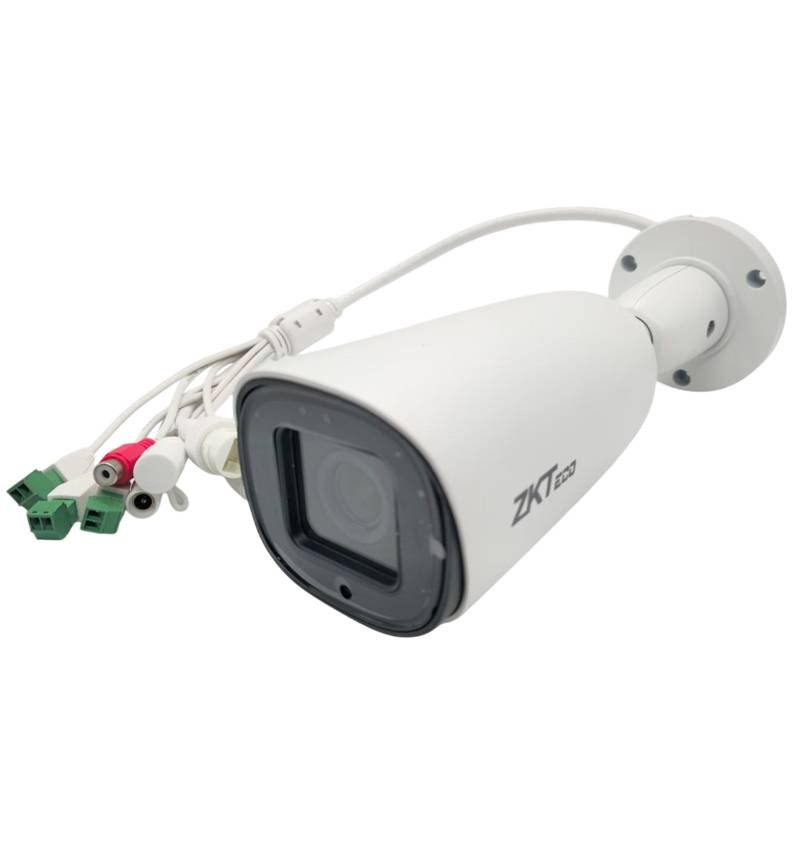

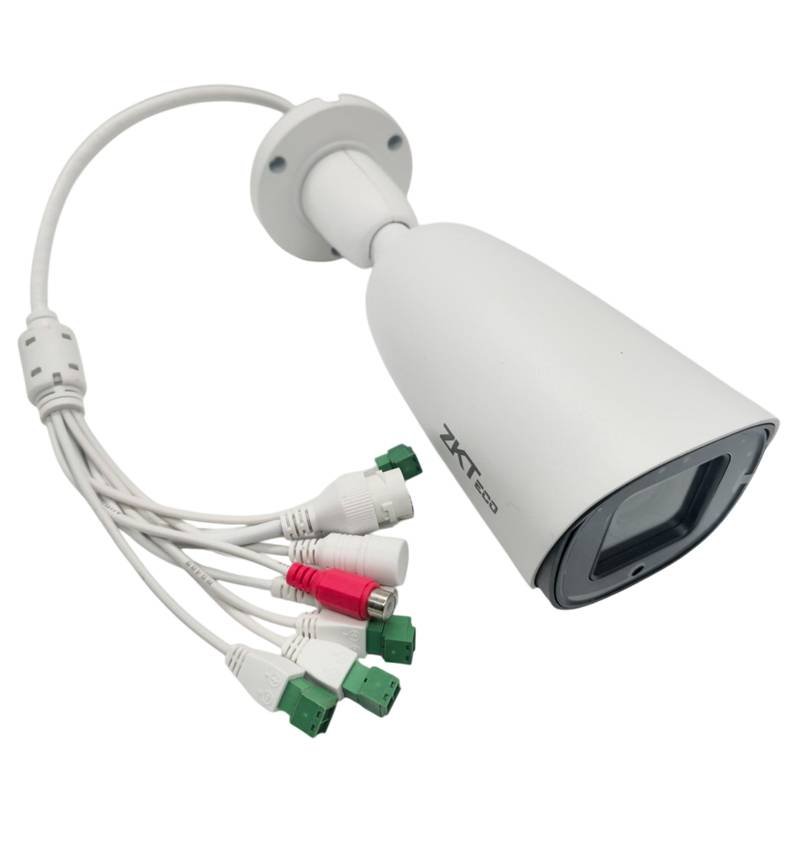

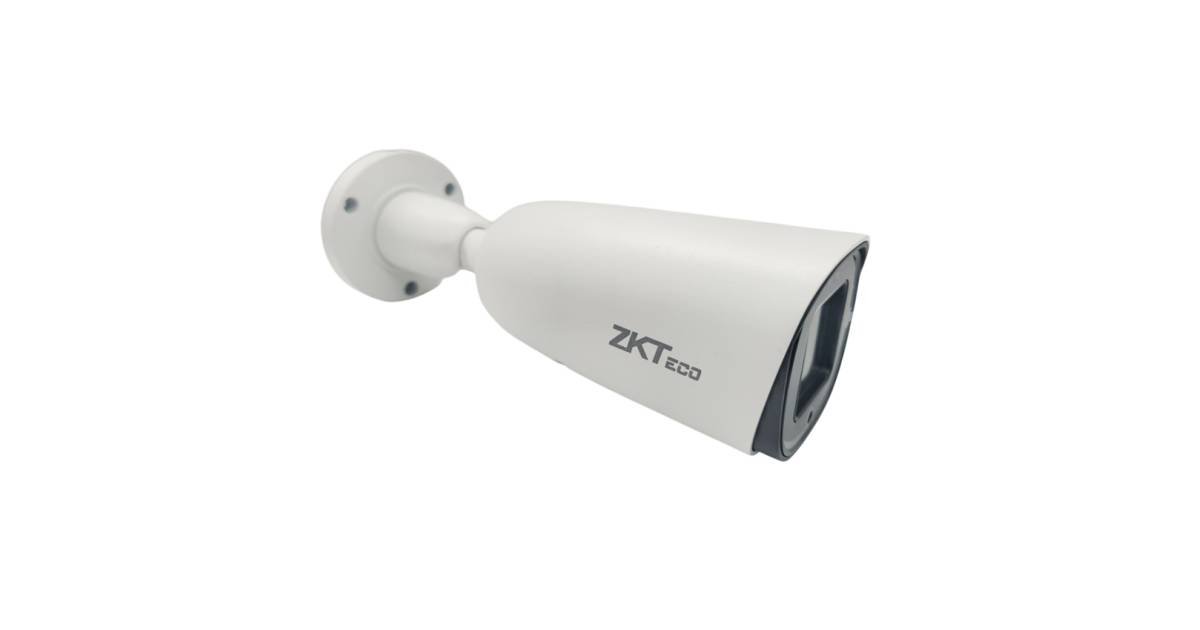

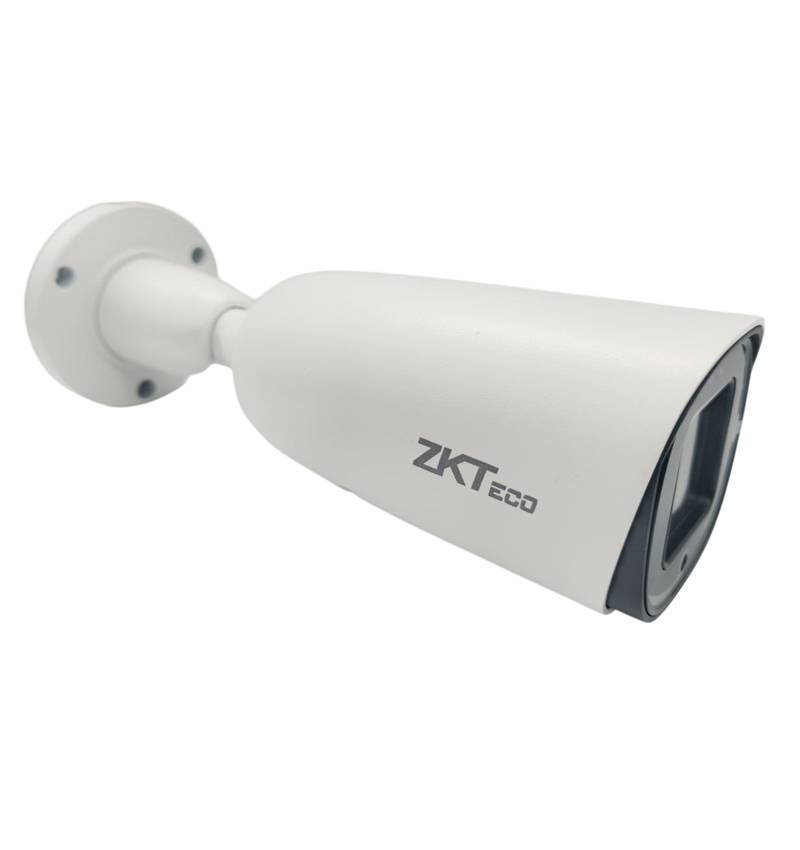

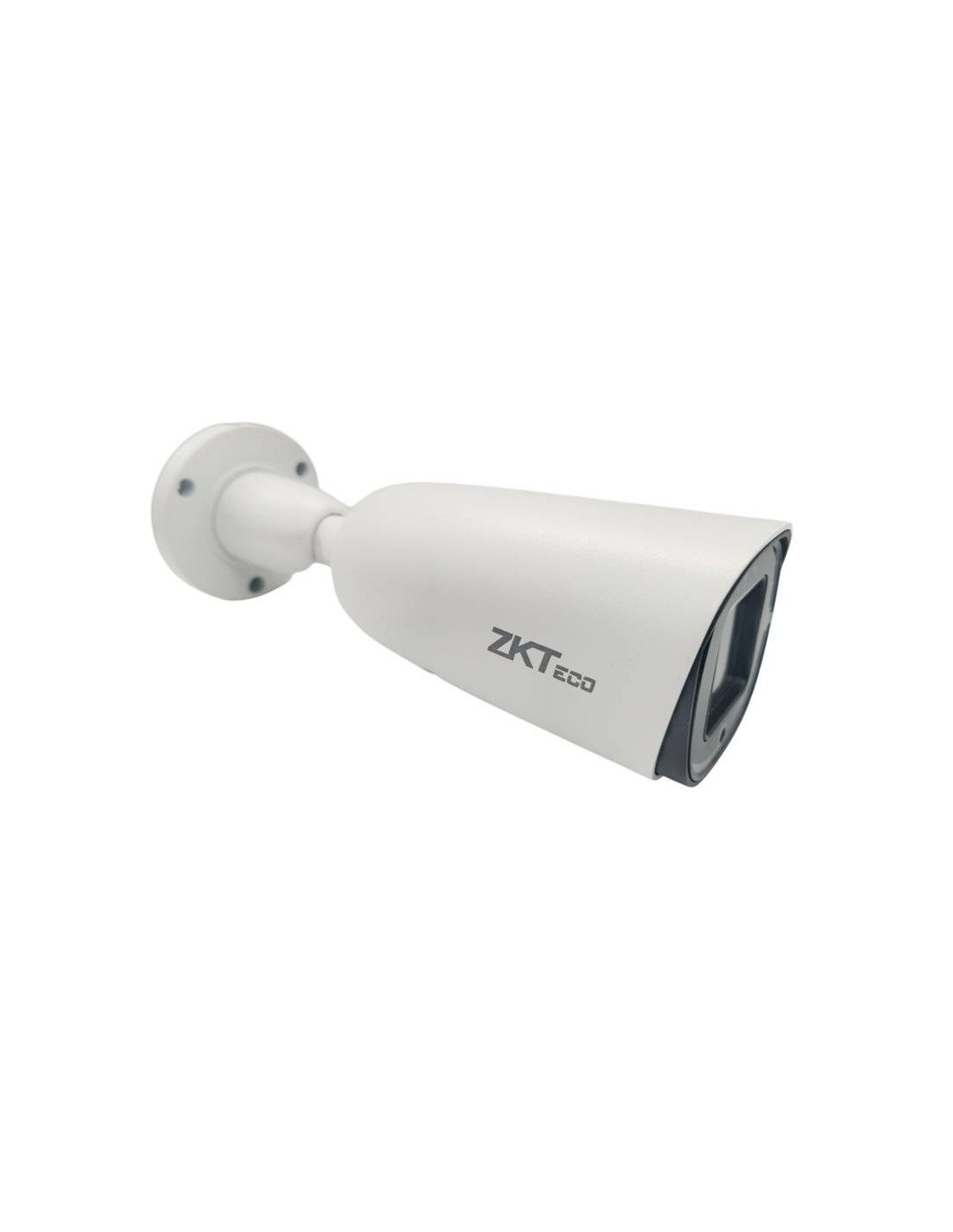

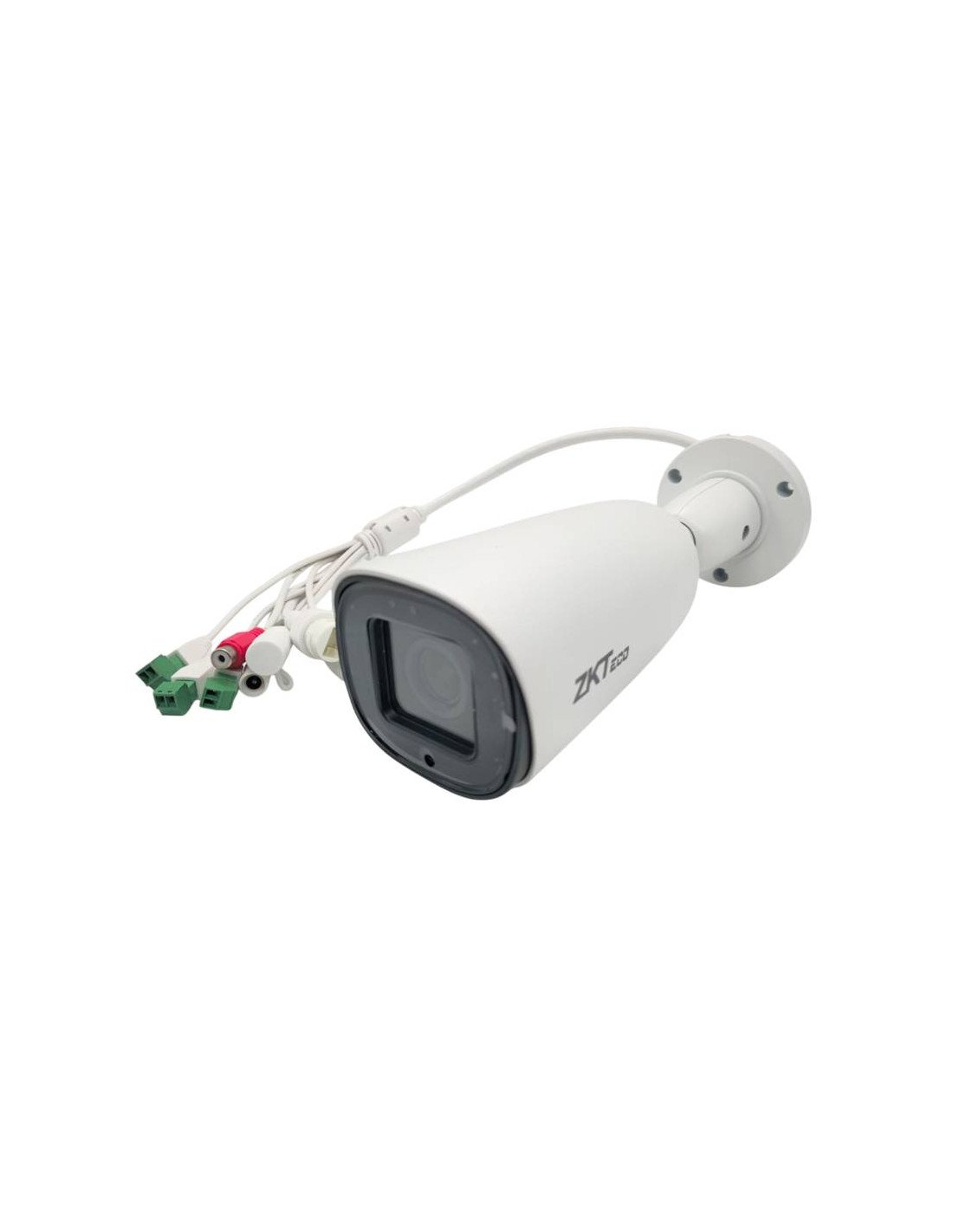

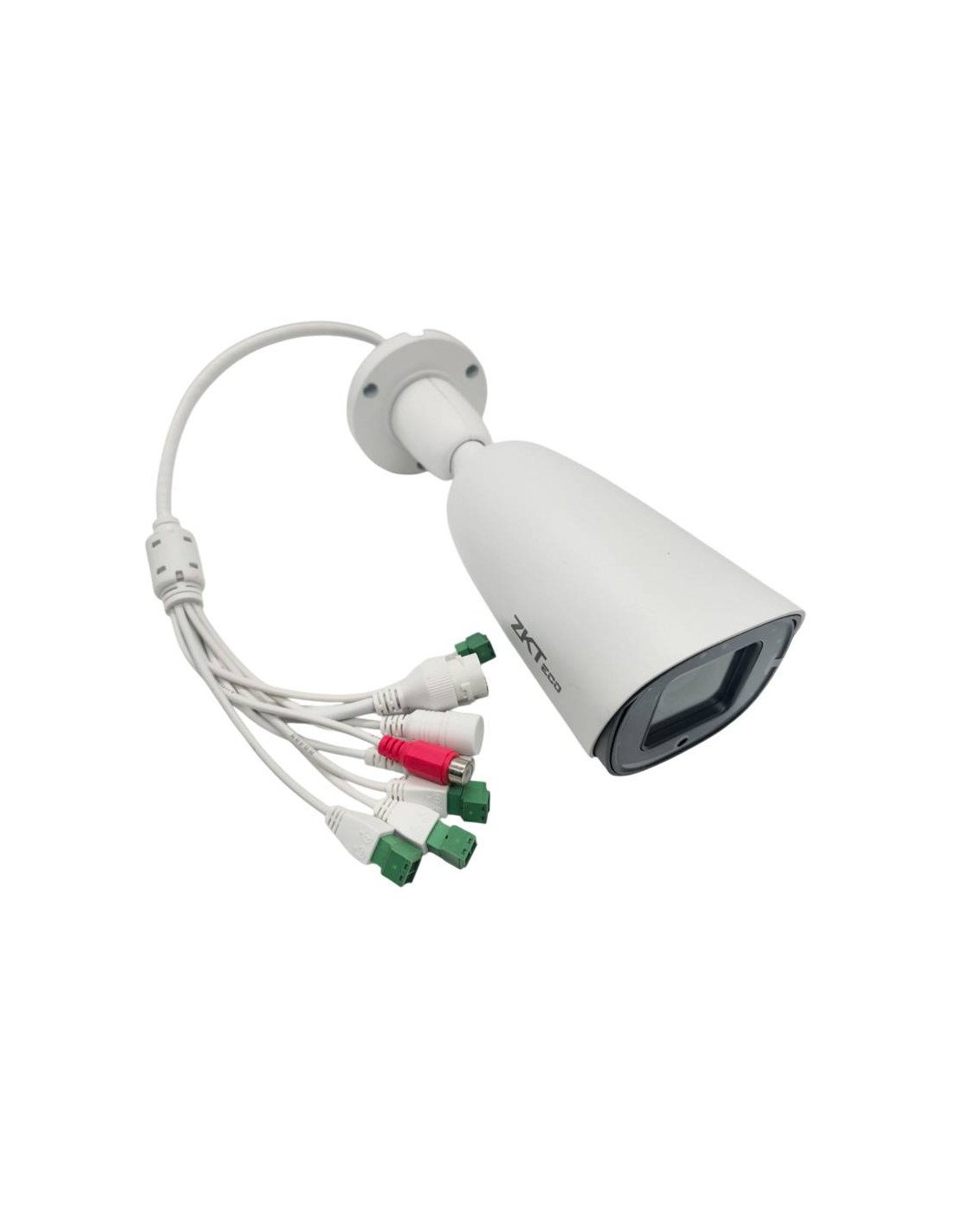

It is a capture unit consisting of a 2 Megapixel outdoor IP camera, motorized lens and LED IR spotlight. It includes the Character Recognition Engine (OCR) and an output relay to send an opening command to the door or barrier. The license plate capture distance is between 2 and 6 m.

• Stand-alone operation without the need for a PC.
• They keep in memory a list of accredited license plates that is easily loaded during commissioning.
• Up to 100,000 Authorized Vehicles.
• Plug & Play.
• It incorporates Auto-Calibration functionality.
• Solution that can be integrated into an ethernet network.

SPECIFICATIONS

• Model: Auto DC Day/Night IP Camera
• Image Sensor: 1/2.8' progressive scan RGB CMOS
• Lens: 2.8 – 1.5mm motorized zoom, F1.2
• Video Compression: Motion JPEG / MPEG 4 / H.264
• Resolution: Configurable from 160×90 to 1920×1080
• Frame rate: * HDTV 1080p (1920×1080) with WDR 25/30 ips with 50H/60Hz power * HDTV 1080p (1920×1080) without WDR 50/60 ips with 50H/60Hz power in all resolutions
• Video Transmission: Multiple H.264, Motion JPEG and Tecn streams. Axis Zipstream in H.264
• Bandwidth: VBR/MBR H.264 controllable frame rate and bandwidth
• Shutter Speed: 2 seconds to 1/66500 second
• Connectors: 10baseT/100baseTX Ethernet, RJ-45, PoE
• I/O: 4-pin terminal block for 1 alarm input and 1 output
• Processor: ARTPEC. RAM: 1024 MB, Flash: 512 MB
• Power: PoE Type 1 Class 3 max 12.95 W, typical 5.6 W
• Operating Conditions: -40ºC – 60ºC Relative humidity 10-100% (condensation)

APPROVALS

• EMC:EN55032 Class A
• EN 50121-4
• IEC 62236-4
• EN 61000-6-1
• EN 61000-6-2
• FCC Part 15 Subpart B Class A
• ICES-003 Class A
• VCCI Class A
• RCM AS/NZS CISPR 32 Class A
• KCC KN32 Class A
• KN35
• Safety: IEC/EN/UL 62368-1.
