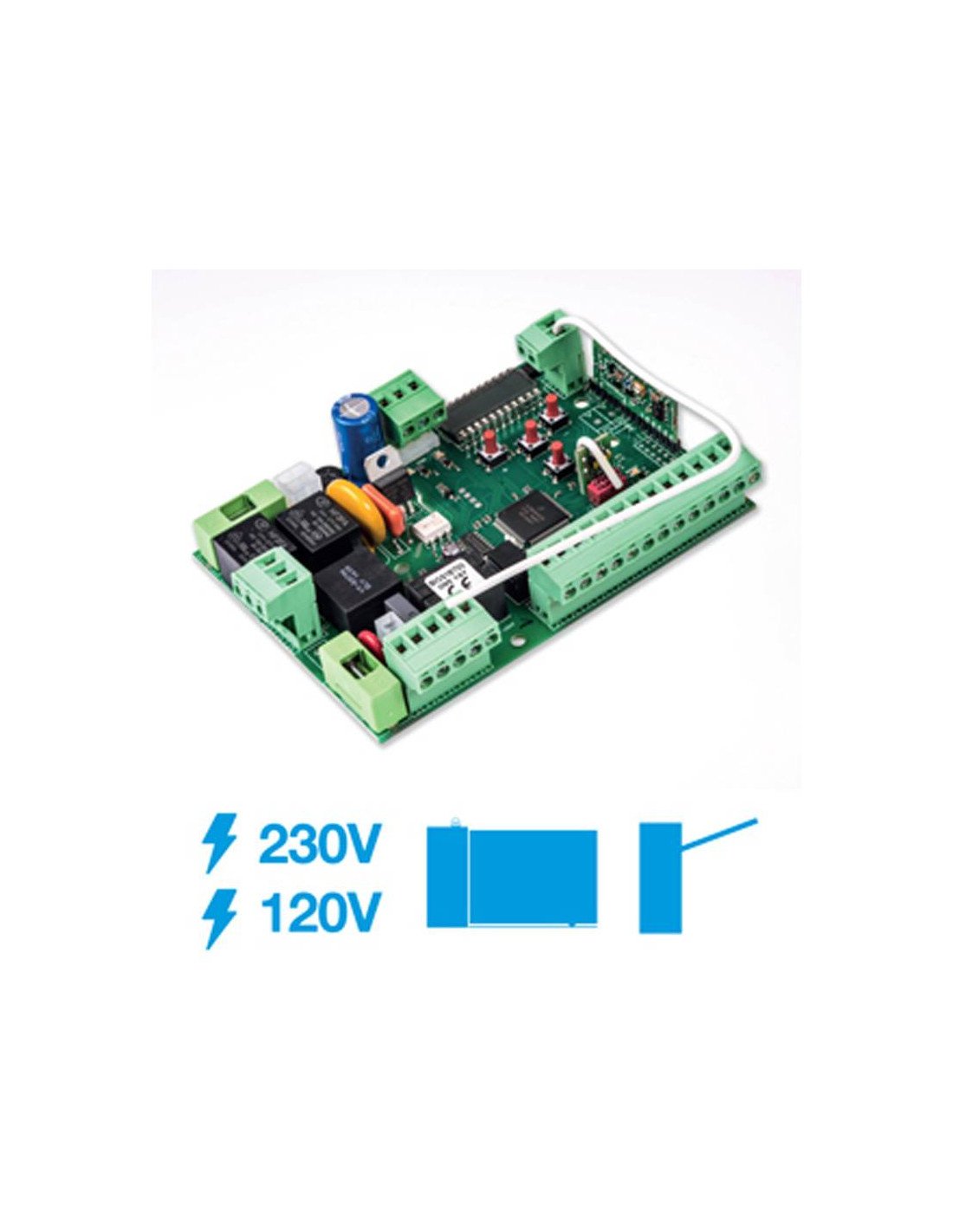

Control panel for sliding gates and barriers of 1 motor 230Vac. Selection of functions via a display. With obstacle detection and device self-diagnostics. Dashboard with transmitter management via the display. Includes TCT transformer.

Main features:

• Central control unit with transmitter management through the display.

• Removable memory and terminal strip.

• Electronic torque regulation.

• Remote learning of up to 1000 controls.

• Selection of functions via display.

• Self-learning of the route.

• Differentiable deceleration in opening and closing.

• Adjustable obstacle lifting.

• Automatic diagnostics of safety devices.

• LED status indication inputs.

• Radio receiver module.

Inputs: push button opens, push button closes, stepper button, pedestrian button, stop button, 2 photocells, safety band, opening and closing limit switches.

Output: on-board flash circuit card 230 Vac, courtesy light and 24 Vdc accessory power supply.

Dimensions (mm) W x D x H = 90 x 125 x 35 SK
