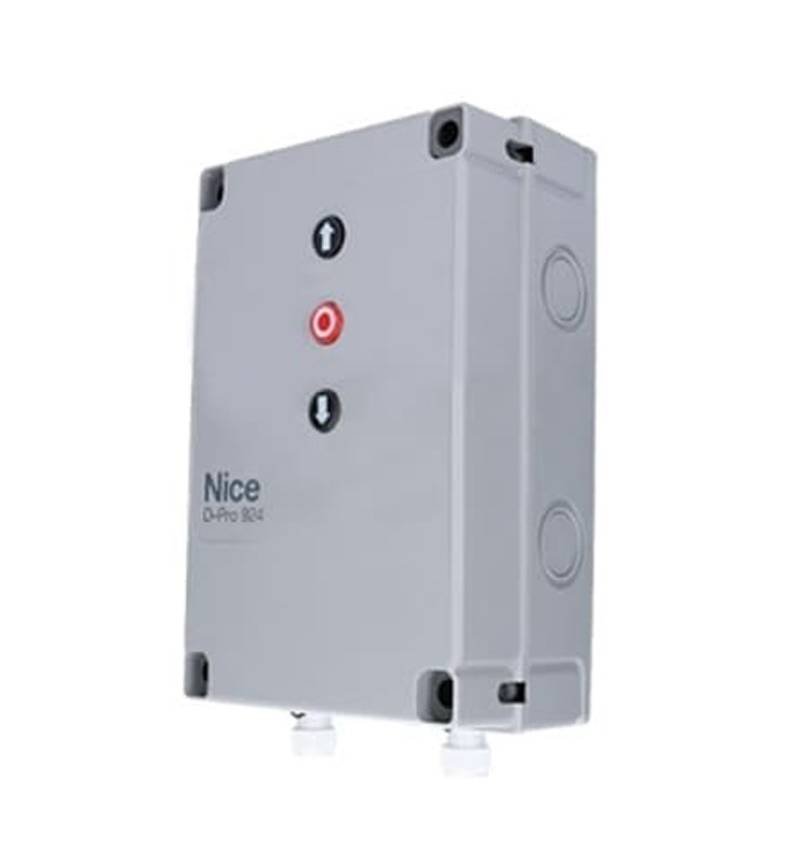

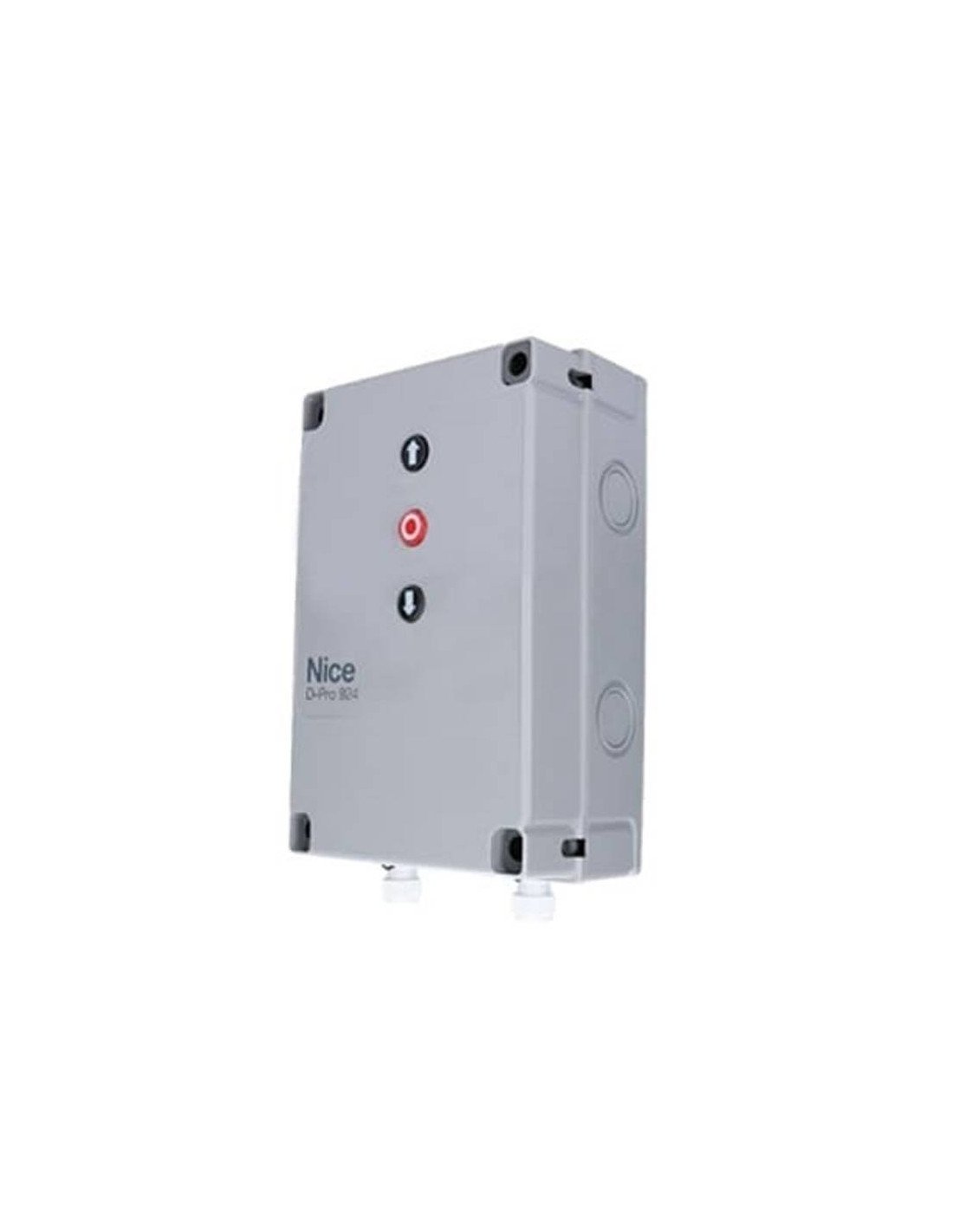

Control plant Nice DPRO 924 for 24 V motors

The Nice D-Pro 924 is a control plant for 24 V motors for sectional doors, compatible with systems equipped with Encoder or end of electromechanical race and especially indicated for automations Nice High.

It is an advanced maneuvering chart that allows you to precisely manage the operation of the automation, incorporating numerous programming possibilities, security entries and systems compatibility Nice Opera, Bidi, Yubii and Solemyo.

Main features of Nice D-Pro 924

• Central control for 24 V motors.
• Particularly indicated for sectional doors.
• Compatible with engines Nice High.
• Compatible with systems with Encoder or end of electromechanical race.
• Compatible with systems Nice Opera, Bidi, Yubii and Solemyo.
• Detection of obstacles during the doorway.
• Inputs prepared for the connection of Sensitive safety edges.
• Automatic diagnosis of anomalies.
• Ample interior space to facilitate the Wiring and installation of accessories.
• Programming by buttons, dip switch and removable terminals.

Technical characteristics

Compatible Nice Opera and pro-view

The central Nice D-Pro 924 It is compatible with the system Nice Opera and allows you to use the multifunction display Pro-view, which can be installed directly inside the box.

Through this system it is possible to perform an advanced configuration of the automation and modify parameters such as the Opening and closing positions, decelerations, strength, speed and sensitivity of obstacle detection.

Connection through IBT4N interface

The control panel has a dedicated slot for the interface Nice Ibt4n, allowing connecting accessories compatible with Bus t4 and different programming interfaces.

It also offers different possibilities for configuration of tickets and outputs, facilitating the integration of Safety devices, Resistive sensitive edges or optical and additional accessories.

Security and obstacle detection

The electronics of the Nice D-Pro 924 It controls the presence of obstacles during the door tour and has specific connections for safety devices.

In addition, it incorporates Automatic diagnosis of anomalies By means of intermittent light and confirmation LEDs, facilitating installation, configuration and maintenance operations.

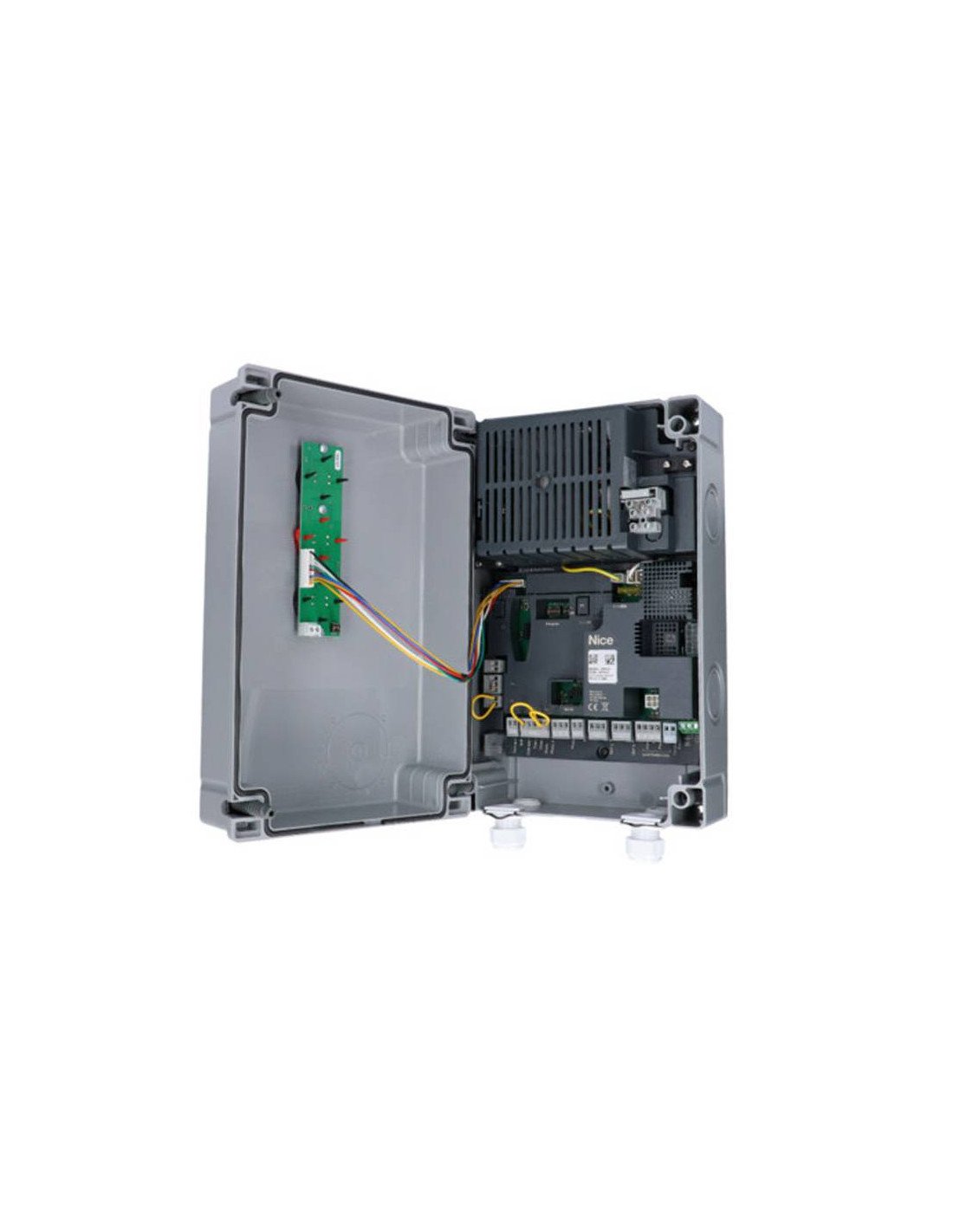

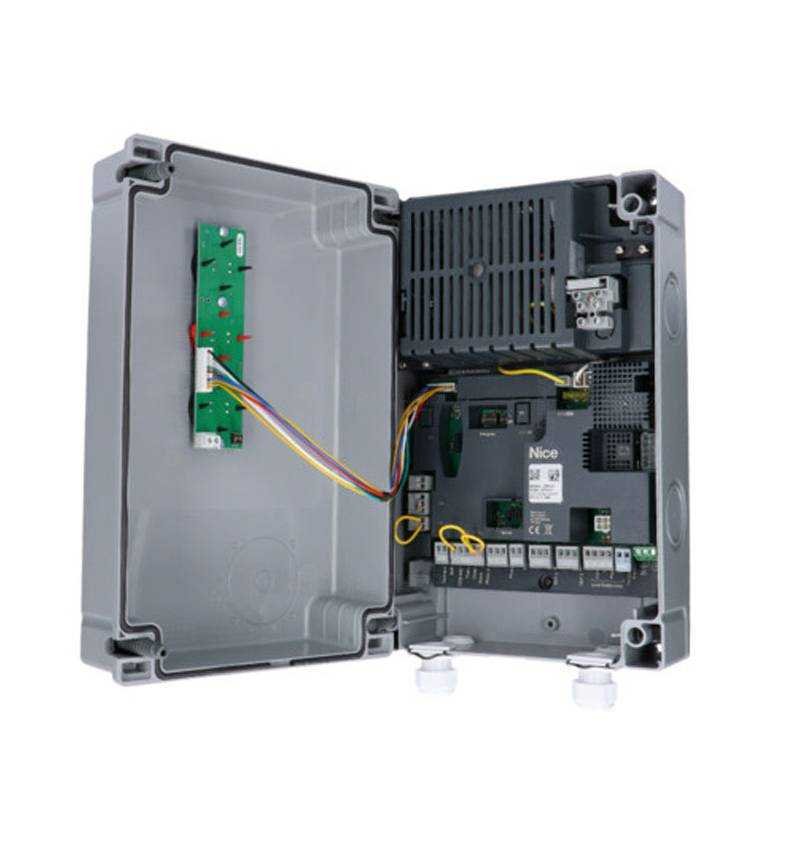

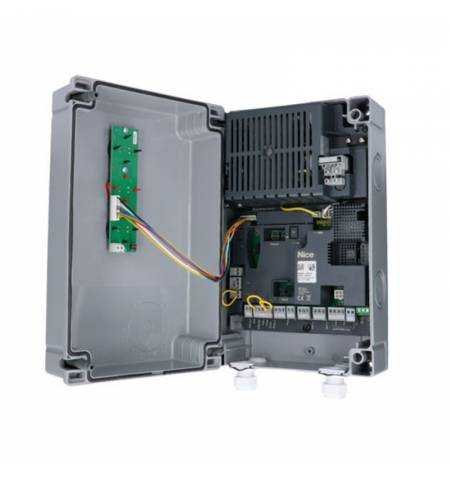

Simple and large programming interior space

The box of D-Pro 924 has Three integrated programming buttons on the top and a configuration system using buttons and DIP switch.

The removable terminals Facilitate electrical connections, while the ample space available inside the box allows you to comfortably organize the wiring and the different installation accessories.

Operation with emergency battery

The plant can work with a system of Emergency feeding by battery, allowing automatism to be operative in case of interruption of power supply.

Between the accessories available for the D-Pro 924 is the booking battery Nice PS224 of 24 VDC.

Spare parts and accessories Nice D-Pro 924

For this plant there are also specific spare parts, such as the Exchange Center Replacement Nice DPCU1 for DPRO924.

Before applying for any accessory or replacement we recommend checking the Exact reference of the installed plant to guarantee its compatibility.

Documentation

Manual Nice Dpro924
