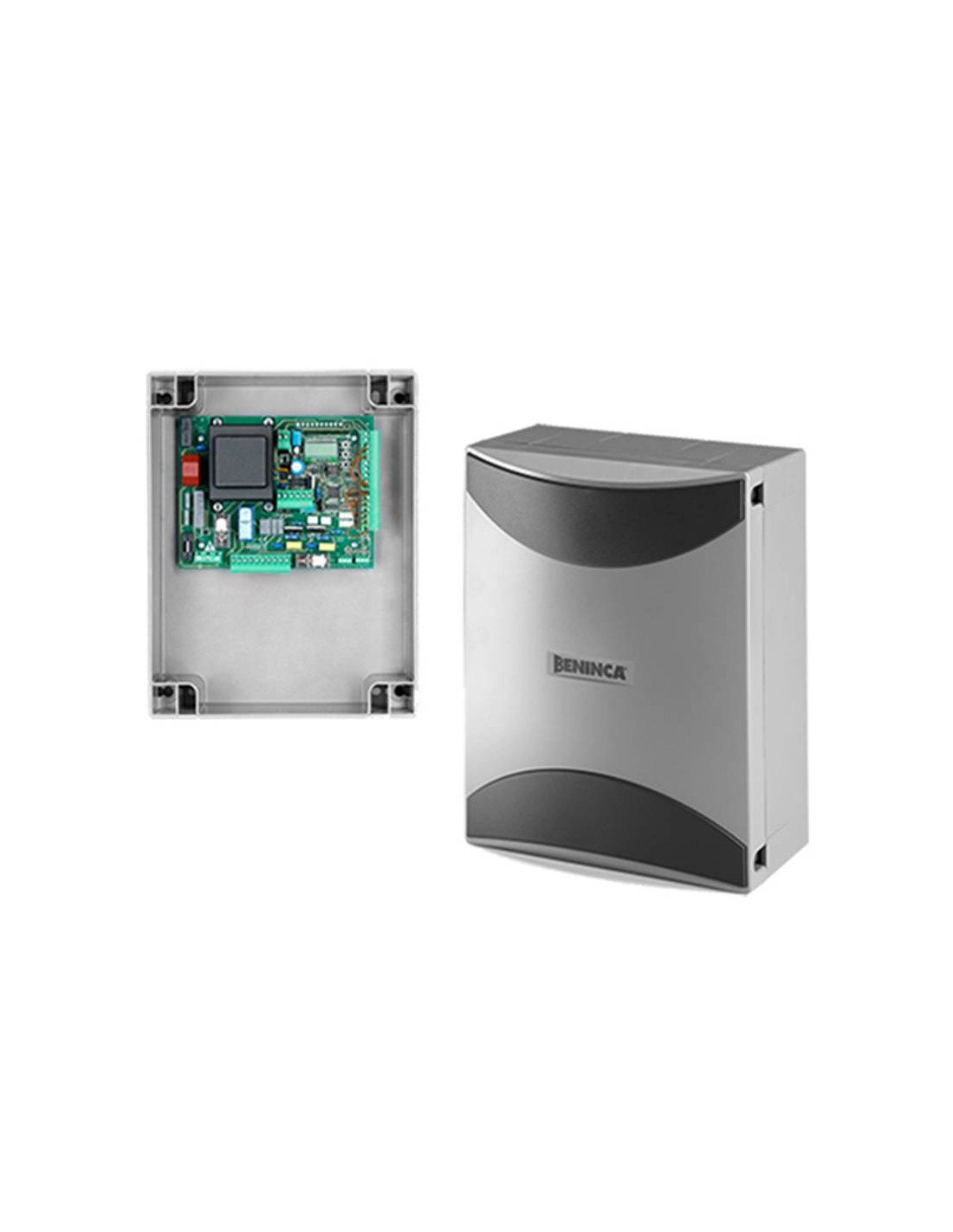

BRAINY Beninca control panel for 1 or 2 actuators at 230V ideal for swinging, sliding or overhead doors.

CHARACTERISTICS

• Frame power: 230 Vac
• Power motors: 230 Vac 600W + 600W
• Built-in LCD display
• Built-in radio receiver 433.92 MHz 64 codes and 3 radio encodings (Advanced Rolling Code,
• Rolling Code, Fixed Code) | Removable power strips
• Automatic, semi-automatic and man-present operating logic
• Encoder input for obstacle detection
• Separate limit switch inputs for each engine
• Entrances for opening, closing, pedestrian, step-by-step and stop
• Separate inputs for active photocell in open-close and active photocell only in closing
• Sensitive edge input for safety N.C. or 8K2
• Output for electric lock 230 Vac and 12 Vac/dc
• Configurable outputs such as door open indication pilot light, service light, second channel radio and photocell test
• Self-adjusting of operating parameters with encoder-equipped motors
• Separate electronic torque adjustment for each motor and working times
• Adjustable decelerations
• Possibility to configure parameters and management of remote controls with Advantouch system
• Number of manoeuvres
• Programming Access Password
• Maintenance Notice

MANUAL

BRAINY Beninca Instruction Manual
