Aprimatic

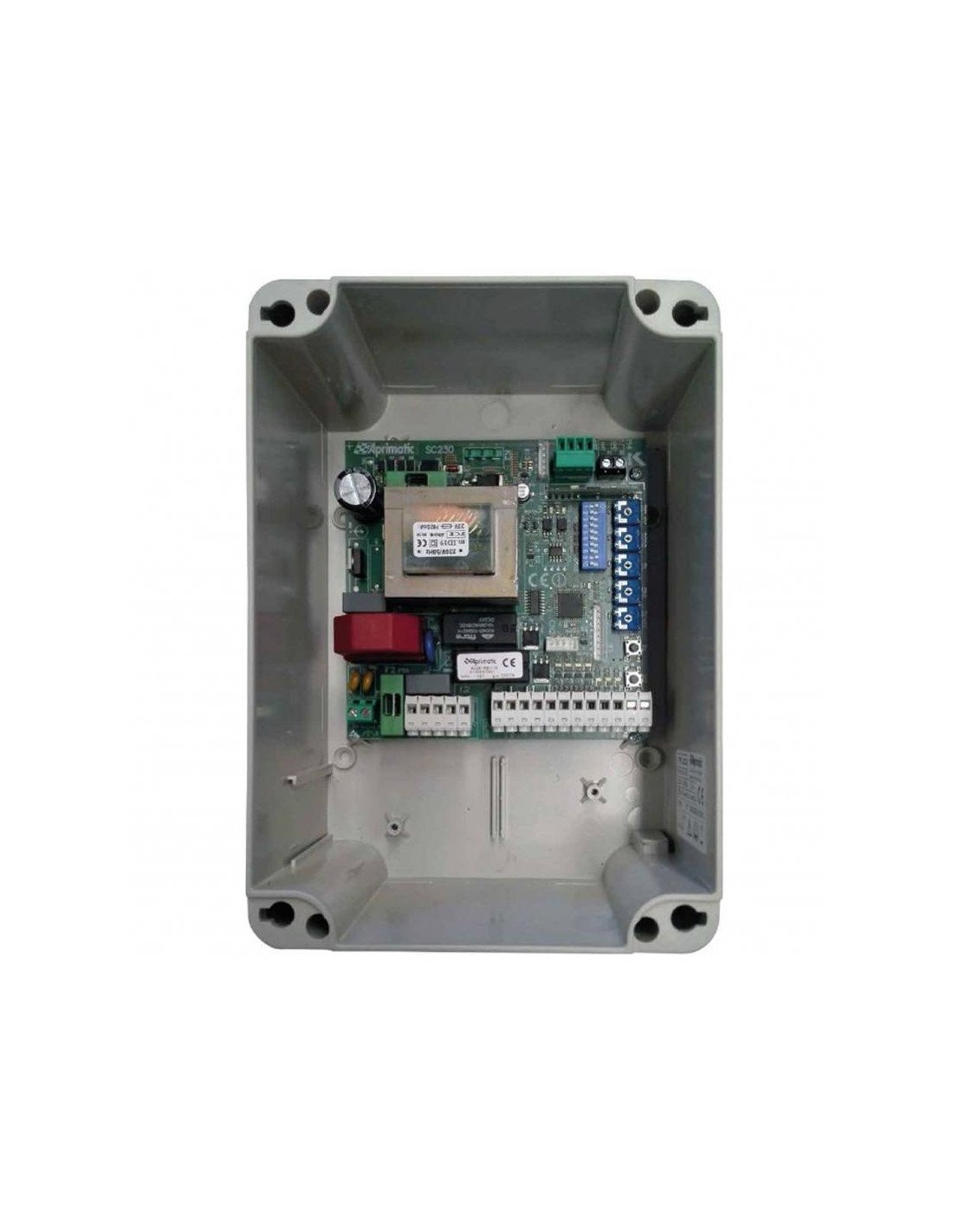

Table of manoeuvres Aprimatic SC230 analogue for electro-mechanical operators of 230 V
Referencia: 41626/001
€149.00
IVA excluido
180,29 €
IVA incluido
Table of manoeuvres Aprimatic SC230 analogue for electro-mechanical operators of 230Vac with running ends. What. Anti-crush function by torque limitation.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain
Except bulky
Maneuvering Aprimatic Analog SC230 for 230VAC electromechanical operators with career finishes. Anti-explashing function by torque limitation.
· Adjusting the torque.
· Speed adjustment in slow zone.
· Electric brake intensity adjustment.
· Travel programming with a single push button.
· Integrated Appricode and Memory System receiver with capacity for 250 controls.
· Built-in 3-pin connector.
· Selectable input for 8k2 Ohm and NC contact band.
· Interchangeable with T2E, T22 and Slide boxes.
Technical characteristics
| Food (V) | 230 VAC |
| Current Max Accessories (W) | 350ma |
| Tension accessories | 24 VCC |
| Integrated receiver | APRICODE AND MEMOTY SYSTEM 250 users |
| Dimensions | 107x100x50mm |
| Safety band | 8k2 or NC |
| Temperature range | -20º C / + 70º C |
Manual
Product Details
41626/001
Data sheet
- Type of frame
- Frame for sliding motor
