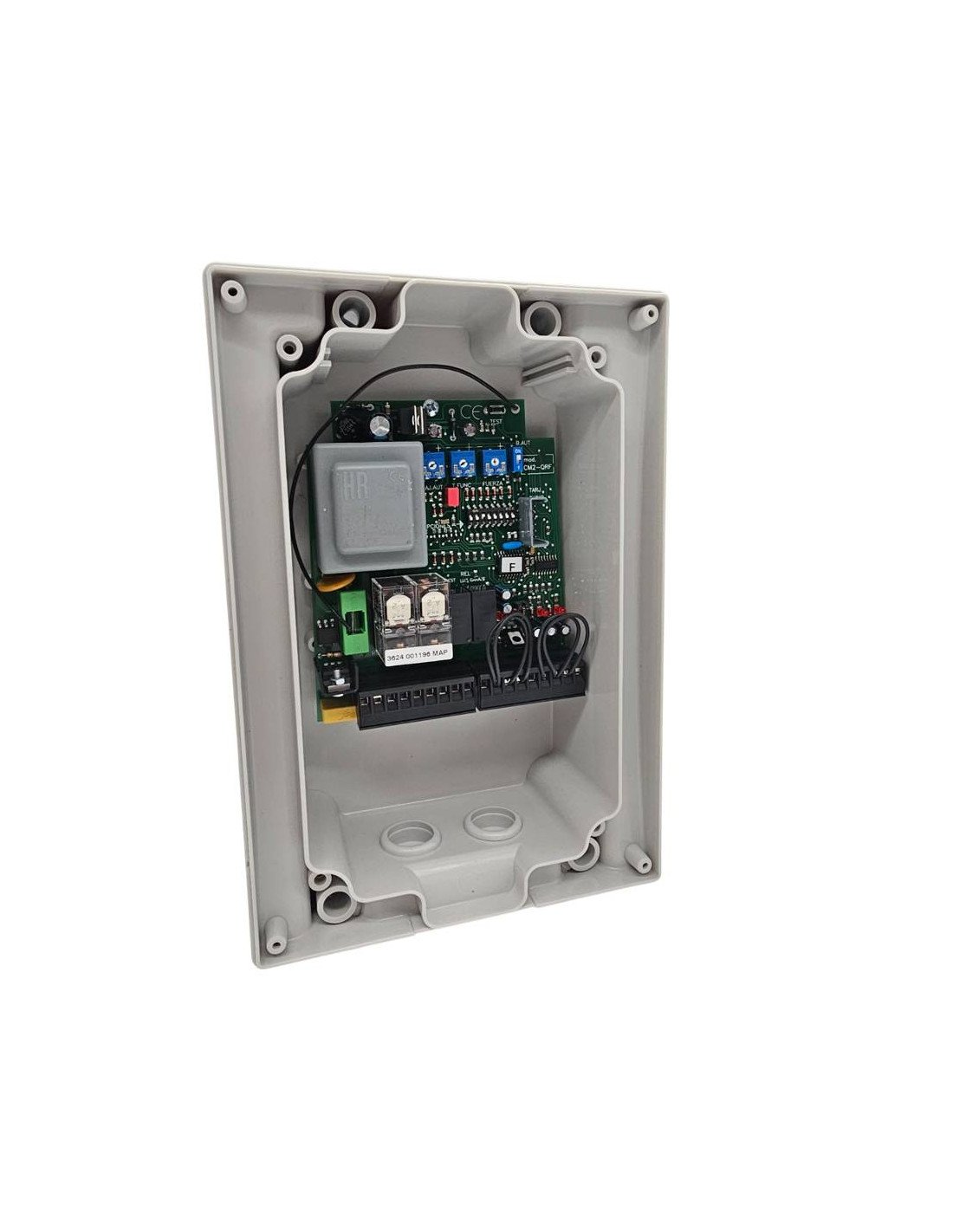

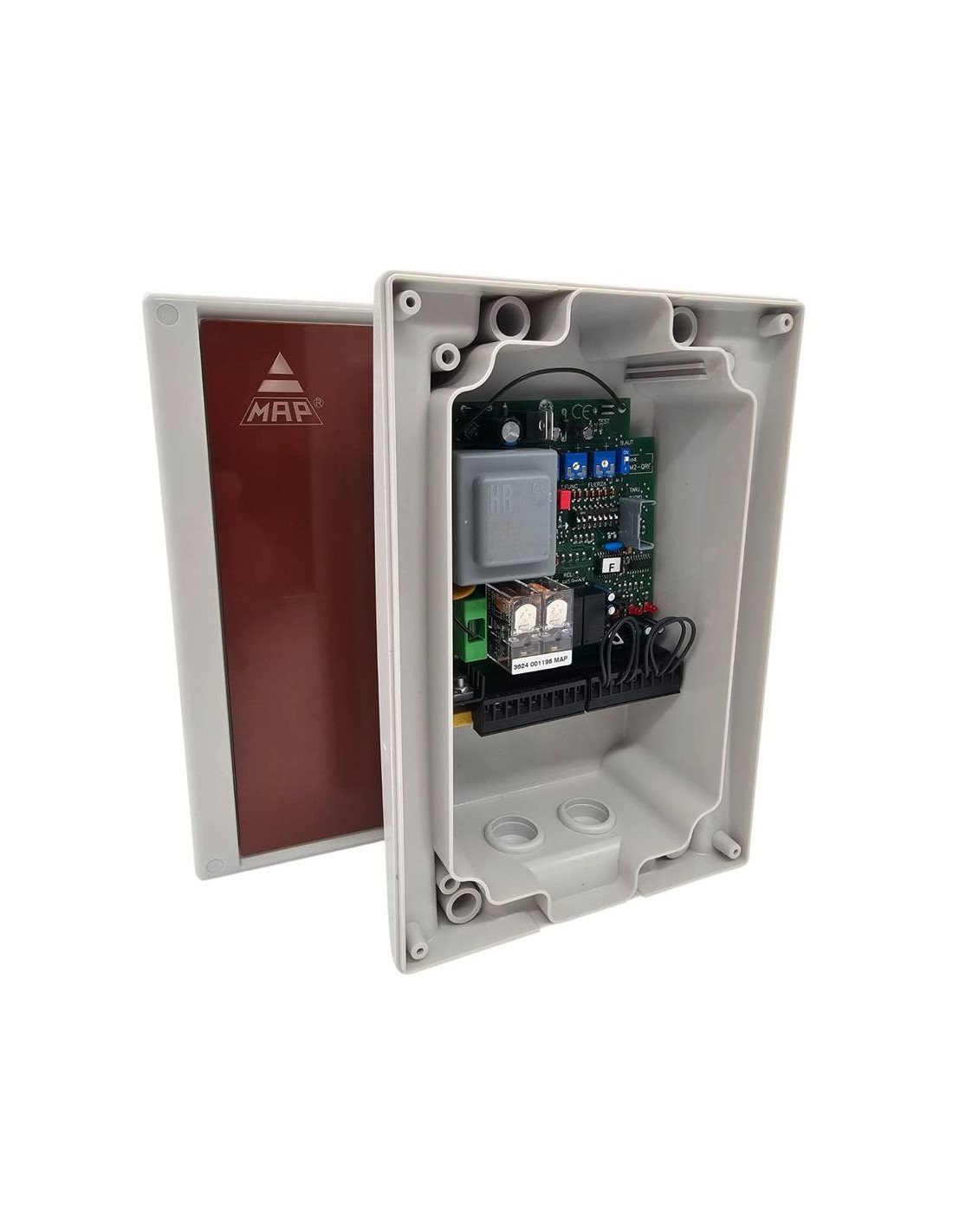

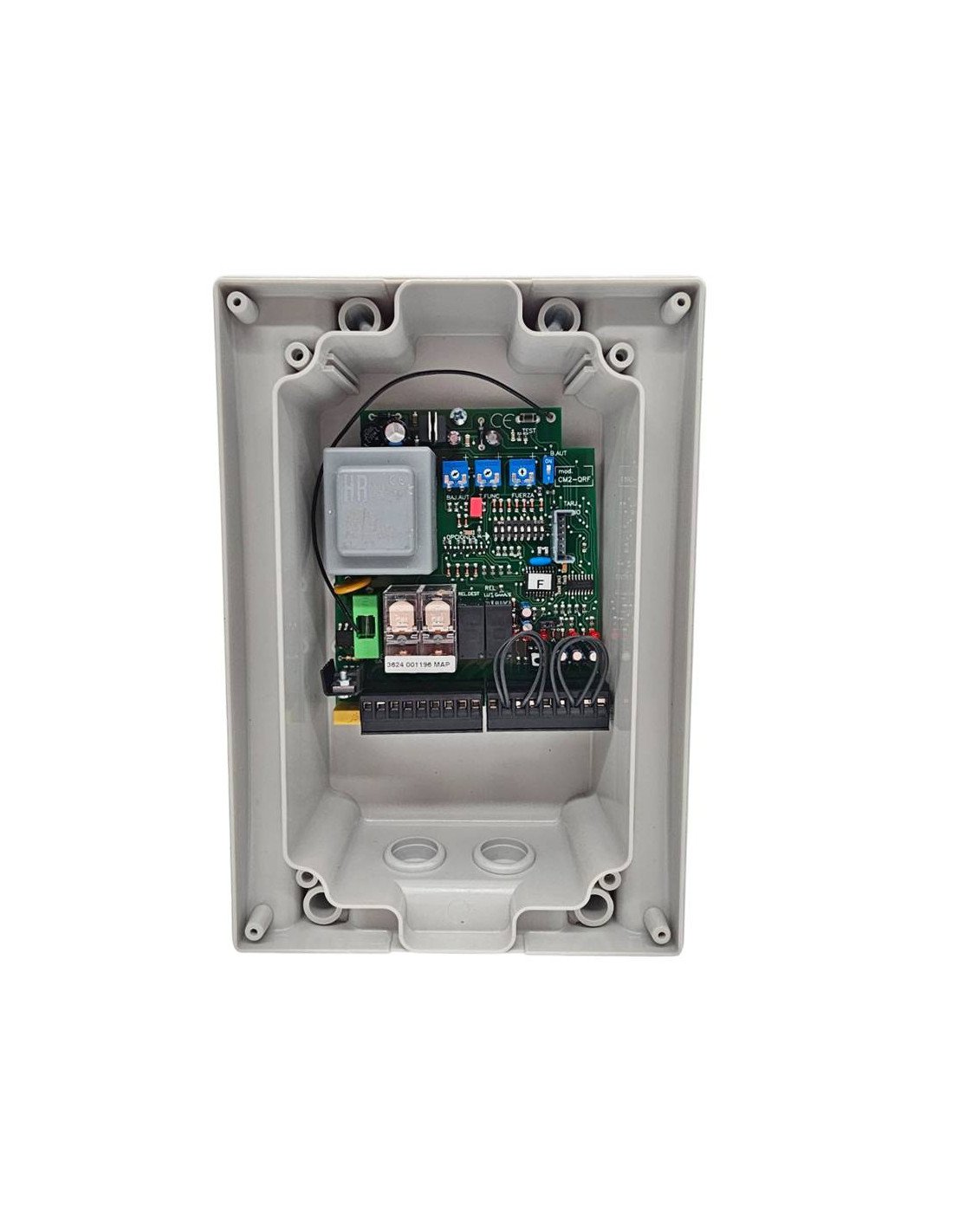

CRF MINI EMFA electronic panel with force regulation for electromechanics.

Support for 6-pin plug-in receiver cards (not included), but can be included from product accessories.

• Single-phase frame with force regulation.
• Inputs with light indication.
• Output for flash activation 230V,50Hz/ 120V,60Hz.
• Contact garage light.
• It has two independent "Safety" inputs, one for a photocell that acts during the closing of the door and another that can be connected to a photocell or a "Pneumatic Belt" with resistive contact.
• The frame has an output for photocell testing. It can be used in the case of mounting photocells with test input or Emitter-Receiver photocells.
• Programming of potentiometer times.
• Plug-in terminals.
• Radio card connector.
• Output: 12 V DC.
• Security entry.
• Contact: security, opening and closing.
• Force regulation.
• Automatic closing.
• Reciprocating, pedestrian push-button.
• Limit switch, opening and closing.
• Soft stop final opening and closing.

SPECIFICATIONS

MANUAL

Instruction manual EMFA CRF MINI
