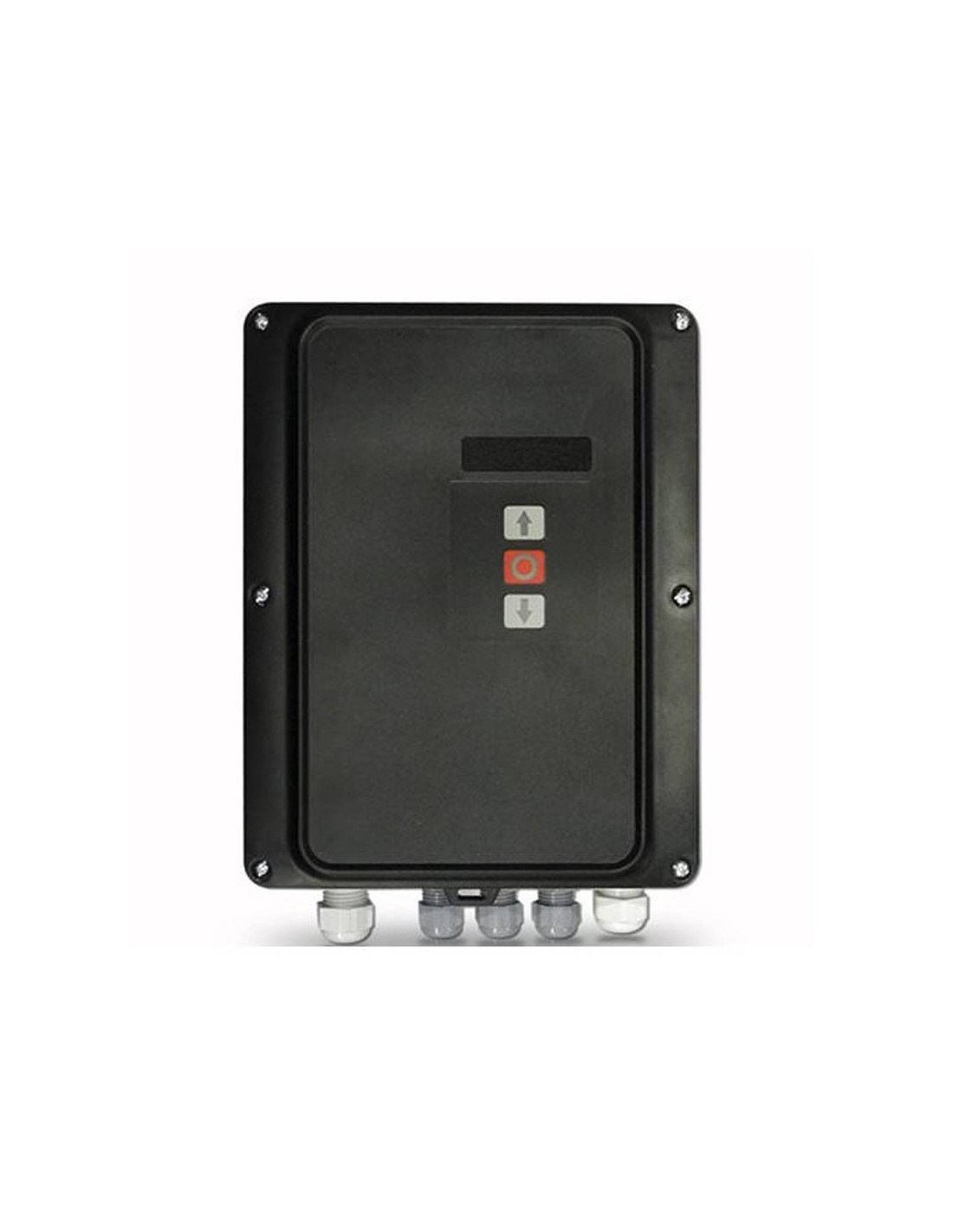

Medva "VERSUS I20ES" three-phase 230/400 V control panel, absolute or limit encoder, with configurable inputs and outputs.

Three-phase control panel with Elektromaten or Kostal absolute encoder control or limit switches, designed for high-speed doors.

It has engine brake and flash outputs at 230Vac, and voltage-free contact outputs indicating the door open and door closed status.

It has a 24Vac output and two 24Vdc outputs for connecting photocells with self-test or other accessories such as radars. These outputs provide a maximum of 700mA shared between the three.

It has partial or full opening and closing button inputs. It also has end-of-stroke inputs, safety contacts, a safety band and a stop.

It also has connectors for outdoor cards: motion STICK receiver, radioband3G RSEC3 receiver, TL-CARD-V traffic light card and MTC1 magnetic detector card.

In the event of activation of a security entrance, if any control input is kept active, the movement of the door becomes by maintained pressure (Man Present), and the LED on the lid indicates this by flashing.

This panel complies with the current electrical safety standard EN 60335-1:2012.

CHARACTERISTICS

• 400Vac three-phase / 230Vac power supply
• Maximum motor power 2.2kW / 1.2kW
• Optional cards (EXPANSION1/EXPANSION2) RSEC3, TL-CARD-V
• Conextor for Motion STICK / DCS RACK receiver card
• Output: 230V Engine Brake & Flash
• Voltage-free outputs Door status signals OPEN/CLOSED
• Outputs 24Vac / 24Vdc / 24Vdc TEST Power supply for accessories / Test
• photocells (700mA shared)
• ENCODER connector Connector for absolute encoder with selector
• Encoder Inhibition
• Self-closing time: Adjustable from 3s to 60s
• Operating temperature -20ºC to +55ºC
• IP65 waterproofing
• Dimensions 285 x 225 x 92 mm

MANUAL

Medva VERSUS I20ES Instruction Manual
