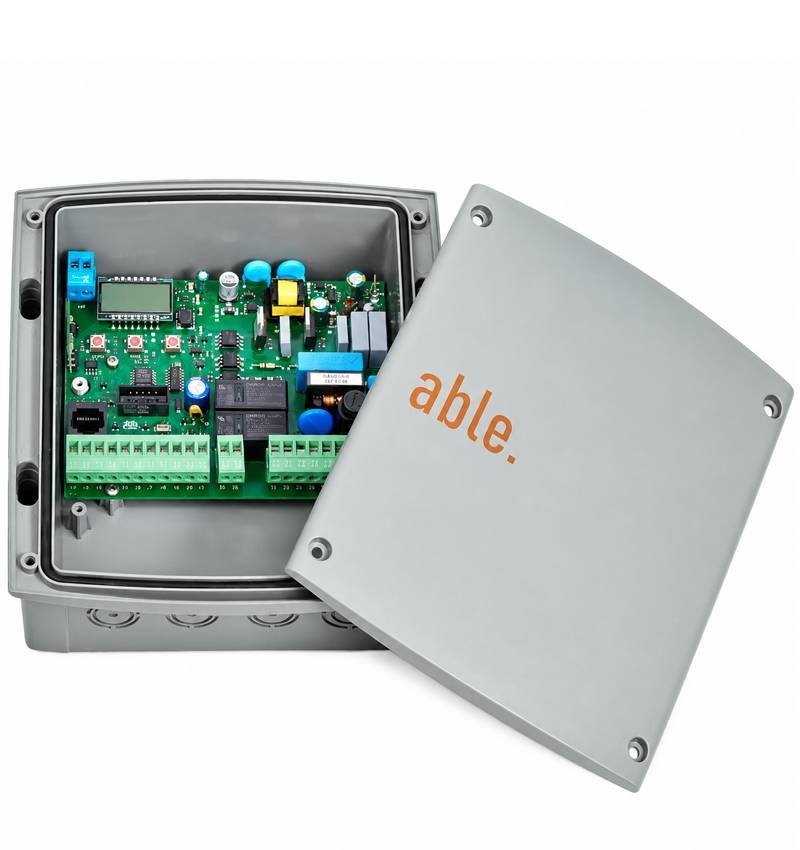

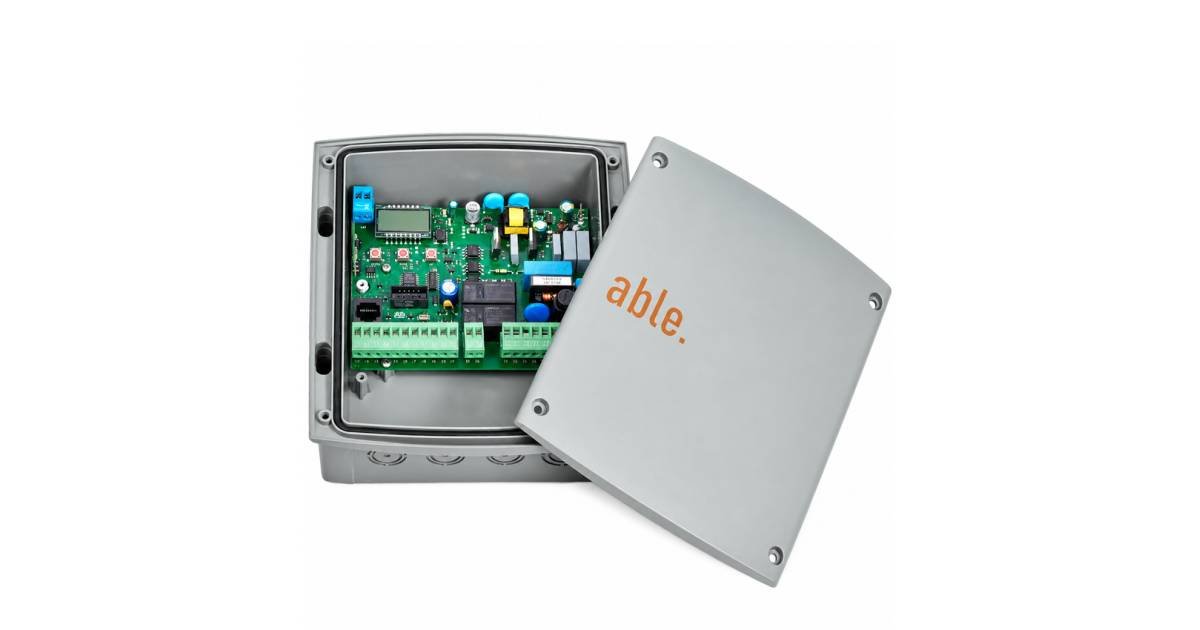

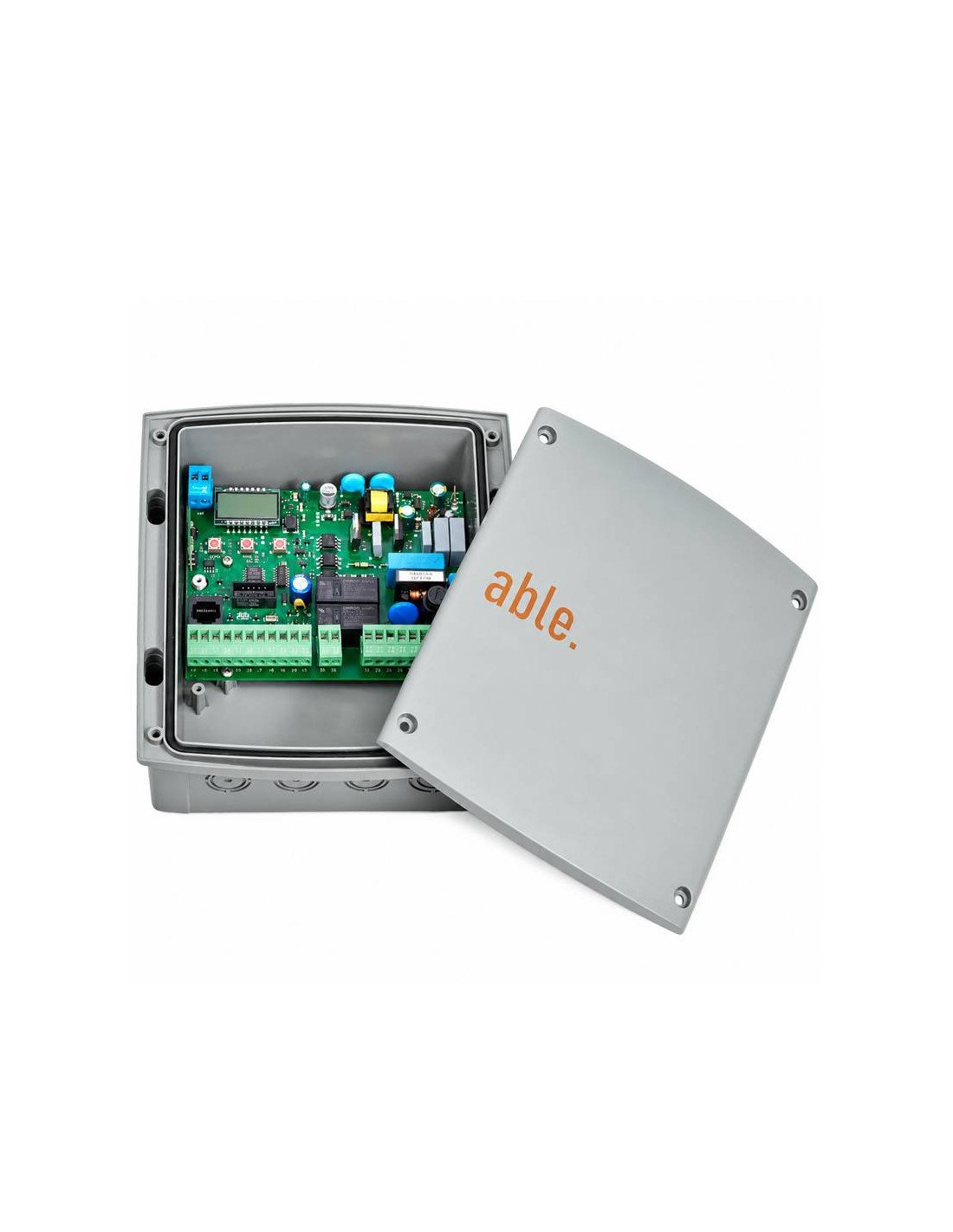

Maneuver box Able Cx Flexy for 230V motors

The Able Cx Flexy It is an electronic control center designed for automatic swing and sliding door automation. This maneuver box replaces the plate V2 Flexy2 Ref. 12g035 and allows us to manage up Two 230V single-phase engines.

Thanks to its programming via menu and integrated display, it allows you to configure different operating logics, adjust the power of the motor and manage the maneuvering times easily.

Incorporate radio a receiver 433,92 MHz, with capacity to memorize up 240 Personal Estabilors Pass. It also has push-button tickets, key selector, photocells, safety bands and race enders.

Main features

• Maneuver box for 1 or 2 single-phase motors 230V / 120V
• Compatible with swing and sliding doors
• Programming via Menu and Integrated Display
• Entry for key selector or push button
• Tickets for photocells and safety bands
• Tickets for late opening and closing end
• 24V flashing light output
• Exit for courtesy light
• Security Device Test before opening
• Setting force and operating time from the menu
• Radio receiver 433,92 MHz built-in
• Memorization of up to 240 Personal Estabilors Pass
• Visualization of the status of the entries
• RJ45 connector for Prog2 programmer using UTP cable
• In accordance with European regulations 2023/826 on Ecodesign in standby mode

Technical characteristics

Manual

Manual V2 Flexy2
