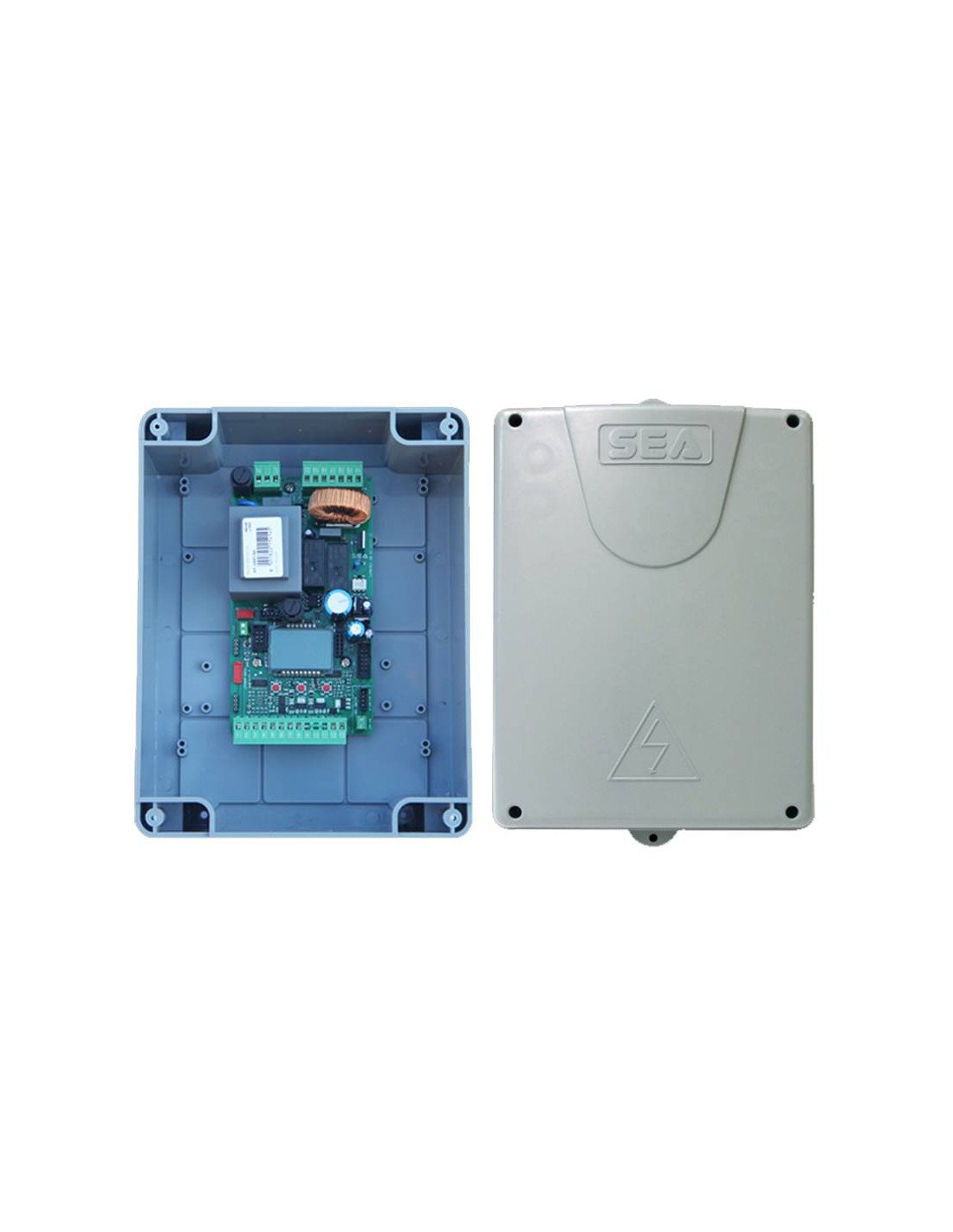

Table of manoeuvres Forsa-SEA 'Gate 1 DG' for electro-mechanical operators of 230 V. What. The Gate 1 electronic board can be continuously updated and customized when combined with the Jolly Programmer module. Its comprehensive features include a dedicated 8K2 security edge input, encoder and boundary switch support.

The plate has a display to perform parameter configuration and programming adjustment of paths and actuator force.

CHARACTERISTICS

• 2 independently configurable photocell contacts with 7 logical settings for sliding doors or traffic barriers
• Dedicated safety edge contact that can accept NC or 8k2 inputs
• 6 separate logical configurations
• 9 24 V DC auxiliary output options for maximum flexibility, perfect for any location
• Diagnostic scripts on screen for quick reference
• Diagnostic menu in the Jolly programmer
• Compatible limit switches
• The encoder provides a force detection system
• Sensitivity of the encoder, torque adjustment and end-of-course tolerance
• The firmware can be upgraded to keep the panel at the forefront of Gate Industry technology
