THINKY Beninca Control Center

Control panel for 1 actuator for sectional and roll-up doors, book doors with more than two leaves, unbalanced blinds, and industrial sliding doors.

» The power supply to the power unit is 230Vac or 400Vac.

» The motor power supply is 230Vac 900W or 400W 2200W.

MAIN FEATURES BENINCA THINKY

• Built-in LCD display
• Built-in radio receiver 433.92 MHz 64 codes, ARC radio encoding, and plug-in radio receiver preparation
• Ready for absolute encoder connection and quick wiring (VN "ESW" motors)
• Self-adjustment of operating parameters with motors equipped with absolute encoder (VN "ESW")
• Removable power strips
• Automatic, semi-automatic and man-present operating logic
• Engine End-of-Stroke Tickets
• Entrances for opening, closing, step-by-step, pedestrian and stop
• Inputs for 4 pairs of photocells (configurable active both in opening and closing or active only in closing) and with PHOTO TEST logic
• Safety Sensitive Edge Input N.C. or 8K2
• Safety Sensor Input
• Configurable output as door open indicator pilot light, second radio channel, courtesy light and zone light
• Configurable output as an open-door indication pilot light or photocell test
• Phase Failure Protection and Exceeding the Motor Current Limit
• Possibility of configuring the stored parameters in the electronic control unit with Advantouch system
• Number of manoeuvres
• Programming Access Password
• Maintenance Notice

POWER PLANT MODELS

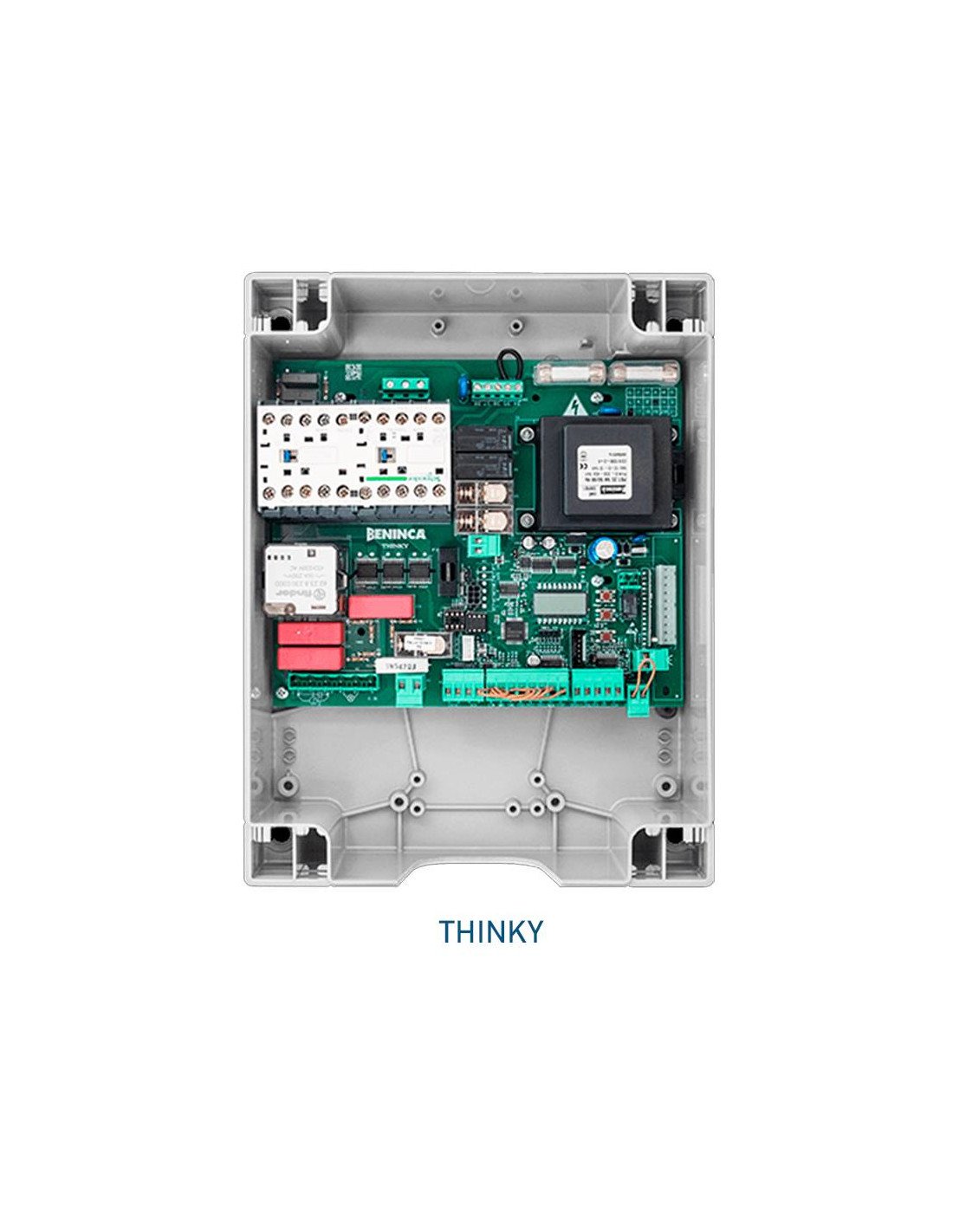

• THINKY: THINKY control panel with smooth housing without pushbuttons.

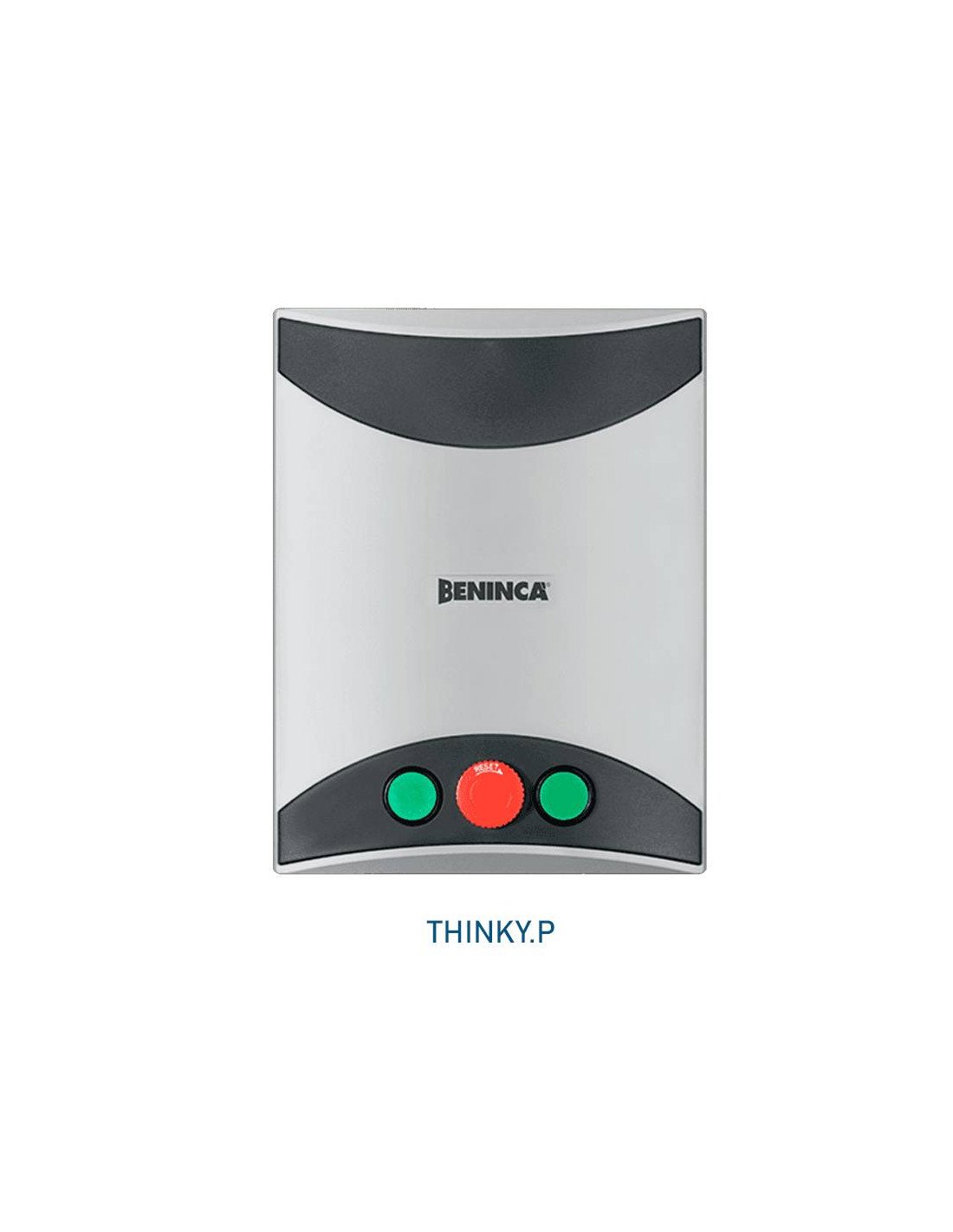

• THINKY. Q: THINKY control unit equipped with buttons to open, close and stop integrated into the control panel.

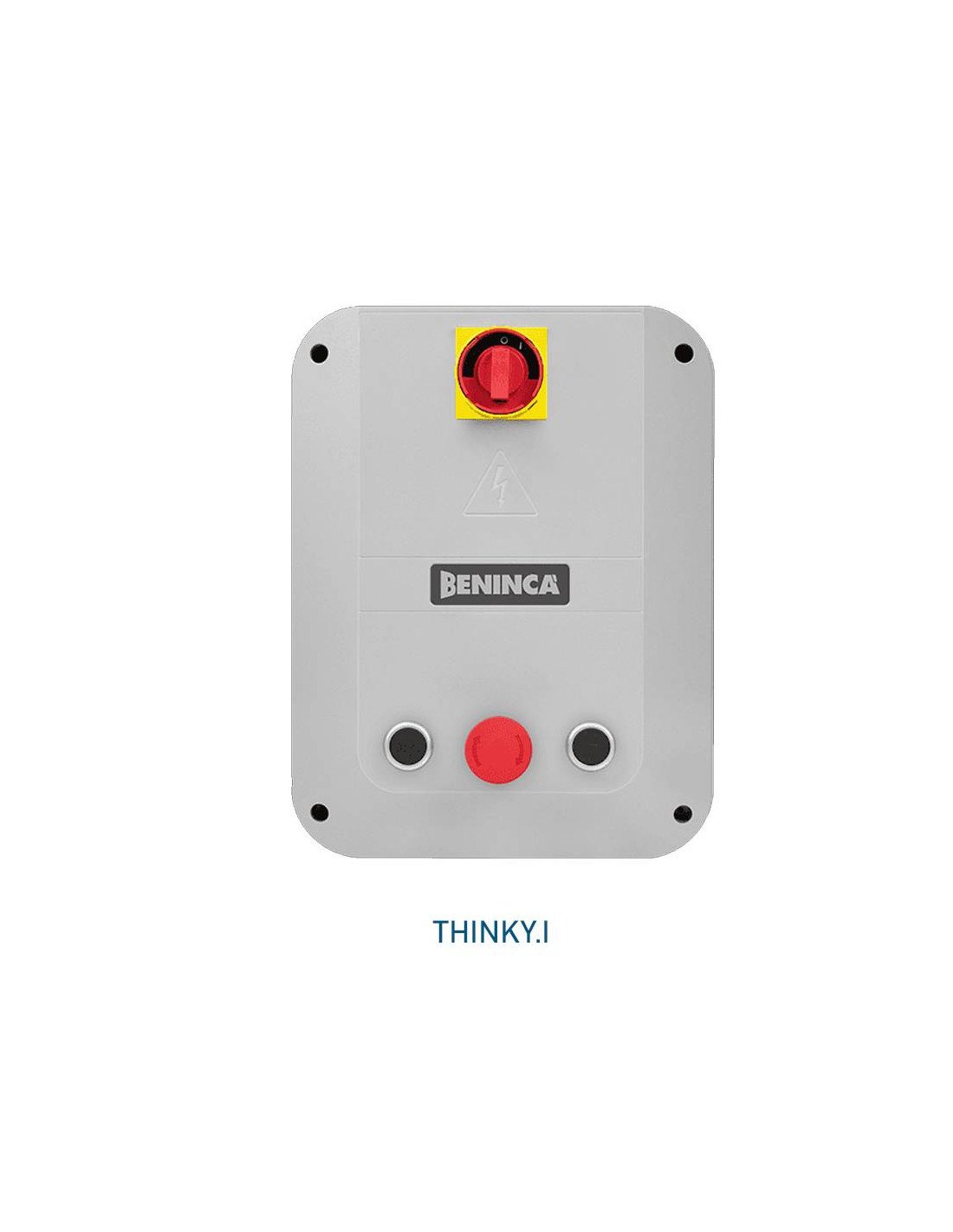

• THINKY. I: THINKY control unit with buttons for opening, closing, stopping, self-locking and three-pole switch with door lock incorporated into the control panel. Flashing lamp available as an accessory (XLB. L).

MANUAL BENINCA THINKY

Thinky Beninca Central Instruction Manual
