OXYGEN WASATO

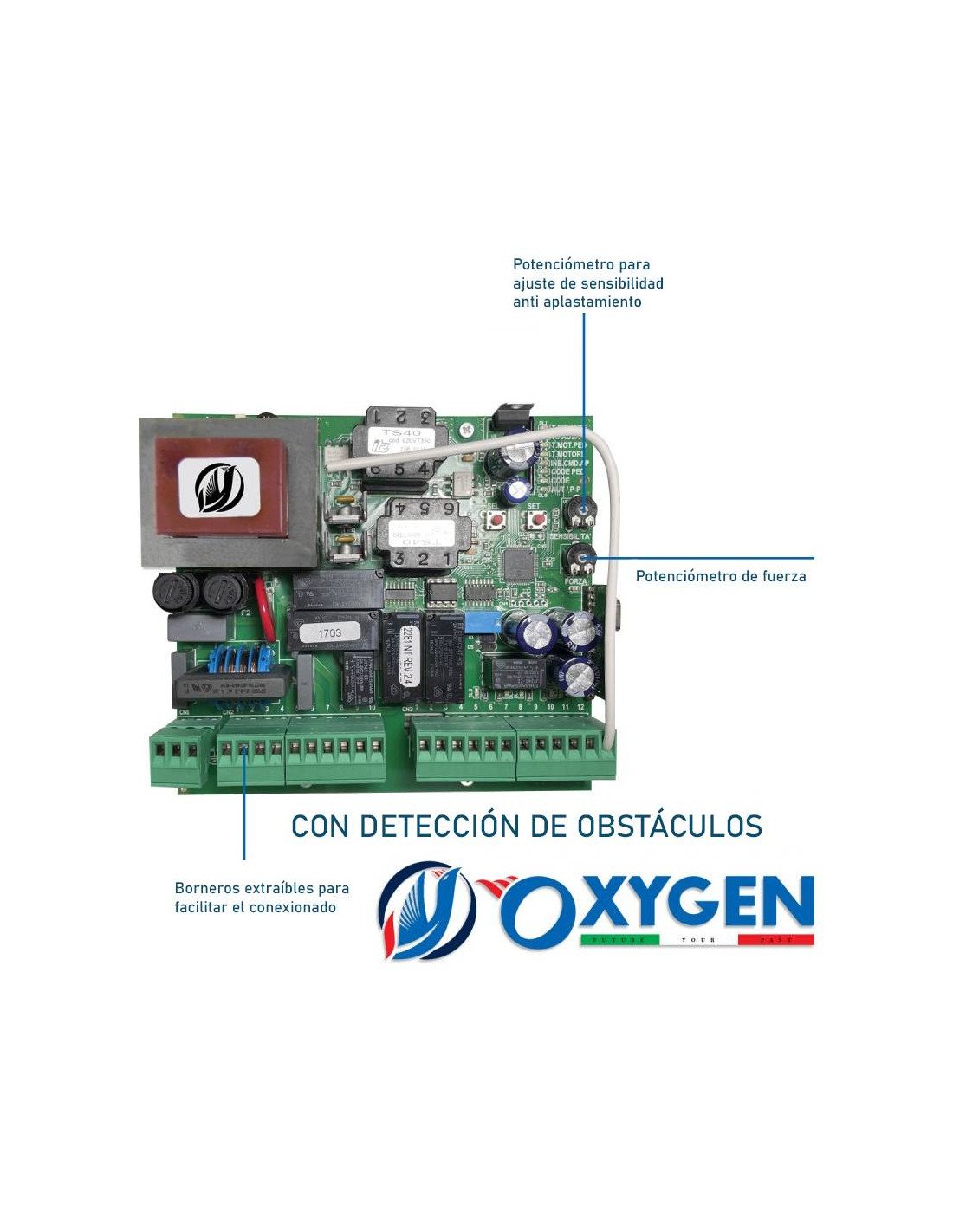

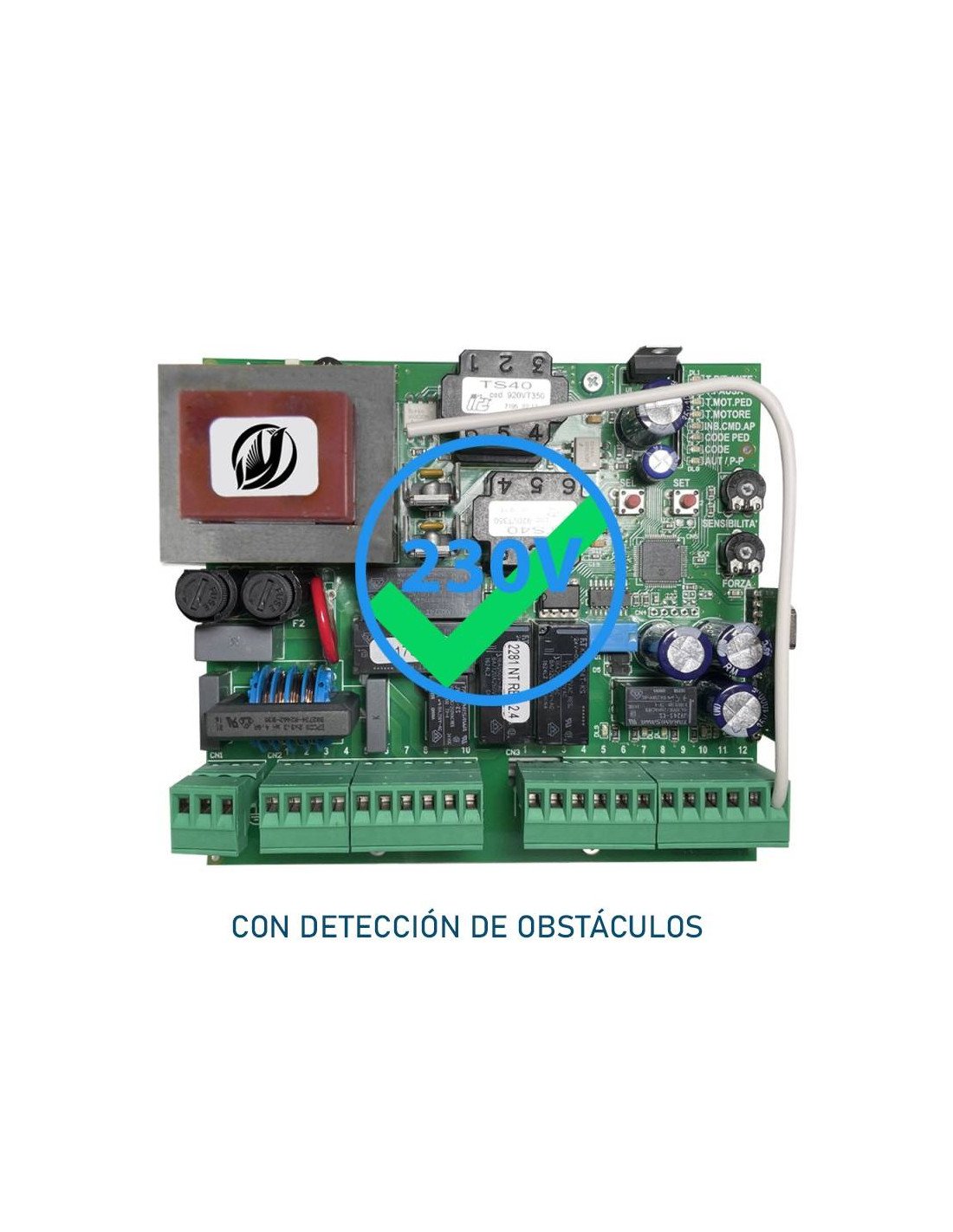

Table of manoeuvres Oxygen ERATO for one- or two-bladed 230Vac pulsed motors with integrated receiver at 433 MHz.

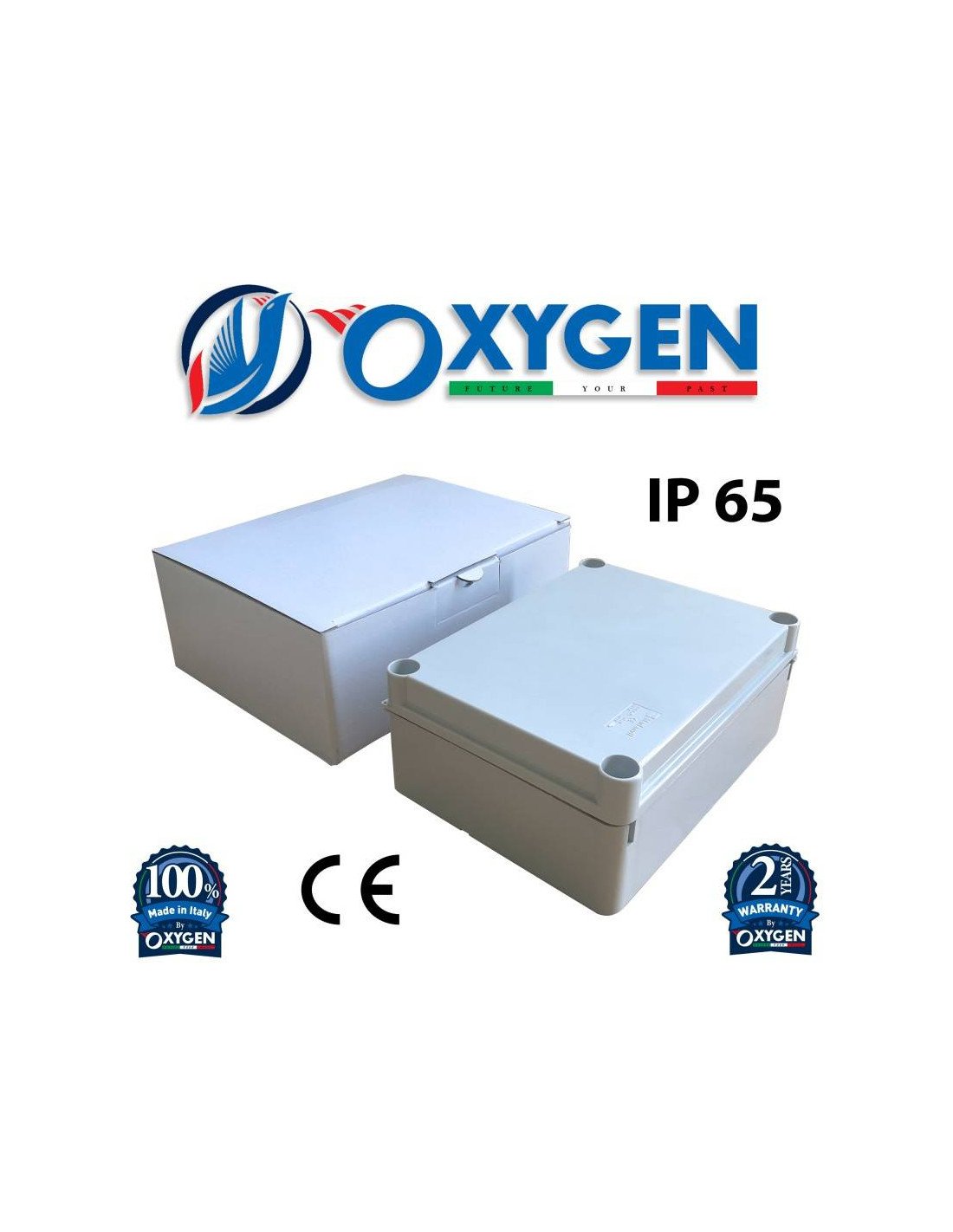

Includes IP65 plastic case.

CHARACTERISTICS OF OXYGEN ERATO

• Power supply 230Vac 50-60Hz 1600W maximum.
• The measurements shall be performed in accordance with the requirements of this Regulation.
• Output from engines 2x 230VAC 50/60Hz 500W maximum.
• Electric lock output 12Vdc 15W maximum with setting
• Power supply to photocells 24Vac 3W max.
• Operating temperature is -10/+55 °C
• Radio receiver (built-in) 433 MHz
• Maximum memory transfer codes 150 (PED code or code)
• Dimensions of the plate 140x125x45mm
• Logic selectable: automatic or step by step
• Adjustable slowdown and soft start functions
• Pedestrian opening with adjustment of pedestrian working time
• 2 inputs from different safety devices
• Easy electronic power adjustment with designated trimmer
• Easy adjustment of obstacle detection sensitivity with designated trimmer
• Connection of external devices Free contact normally open
• Easy adjustment of the working time of the motors separately
• Maintenance of hydraulic engine pressure
• Open and close on two different remote control buttons
