Roger B70 / 2ml / Box Brushless 24V Maneuver Box
B70/2ML/BOX
€226.00
VAT excluded
273,46 €
Tax incl.

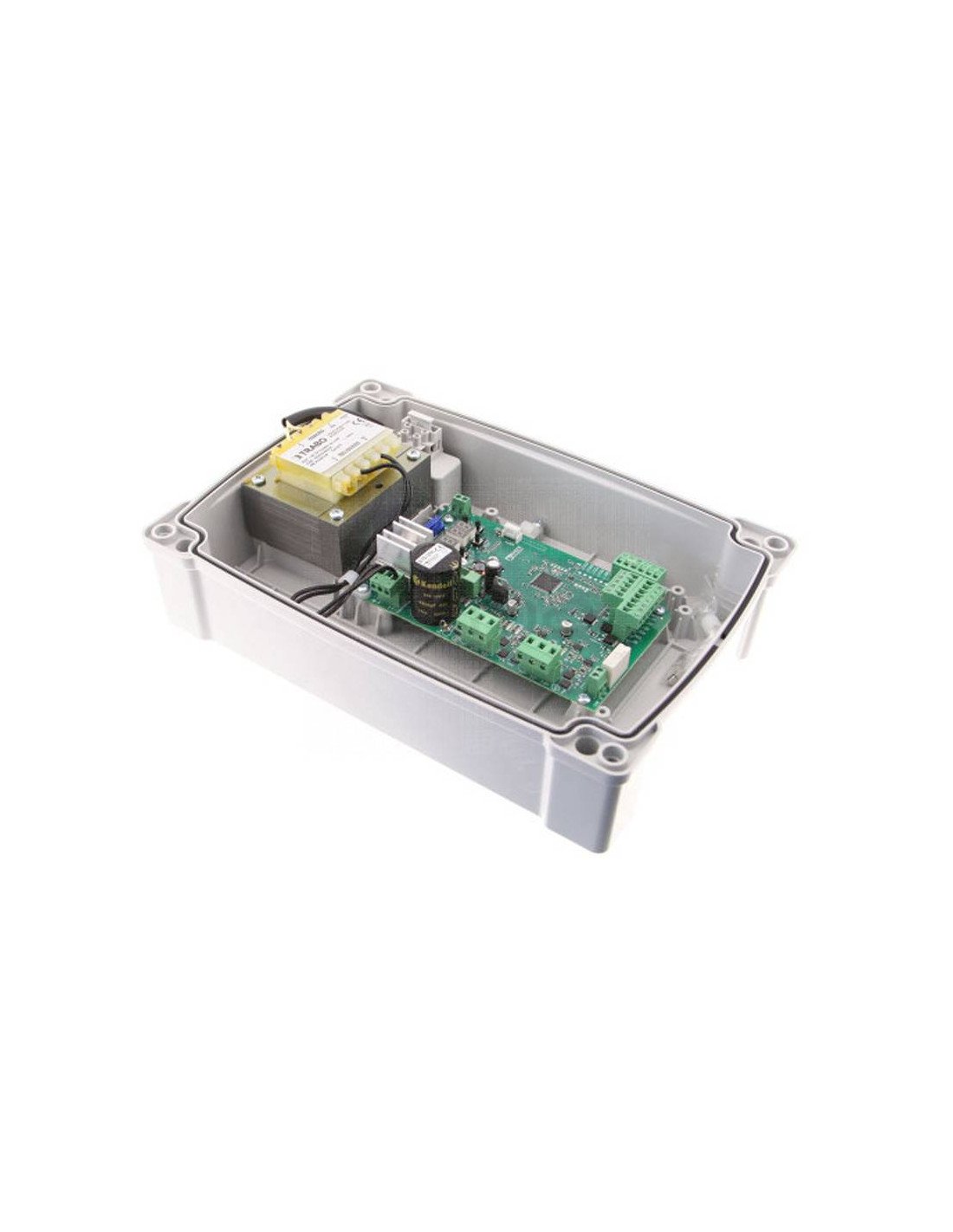

Roger B70 / 2ml / Box maneuver box For 2 swing motors Brushless at 24V.
The central 24V B70 / 2ml For actuators of one or two engines Roger Brushless, intended for applications with Folding leaves for residential or community use. Has a Display of functions and keys for the programming and configuration of the parameters.
We ship your order within 24/72 hours
Secure payment: Card, Bank transfer, Bizum
Fast shipping from Spain Except bulky
Roger B70 / 2ml
Roger B70 / 2ml / Box maneuver box For 2 swing motors Brushless at 24V.
The central 24V B70 / 2ml For actuators of one or two engines Roger Brushless, intended for applications with Folding leaves for residential or community use. Has a Display of functions and keys for the programming and configuration of the parameters.
Technical characteristics Roger B70 / 2ml
| B70 / 2ml / box | |
|---|---|
| Line | 230 VAC - 50 Hz |
| Operating temperature | -10 ° C / + 55 ° C |
| Degree | Ip54 |
| Number of driven engines | 2 Brushless motors |
| Motor power | 110w |
| Max power courtesy | 100W 230 VAC - 40W 24V AC / DC |
| Current max light beam open | 3W (24 VDC) |
| Map power | 15W (12 VDC) |
| Blinking light | 24 VDC |
