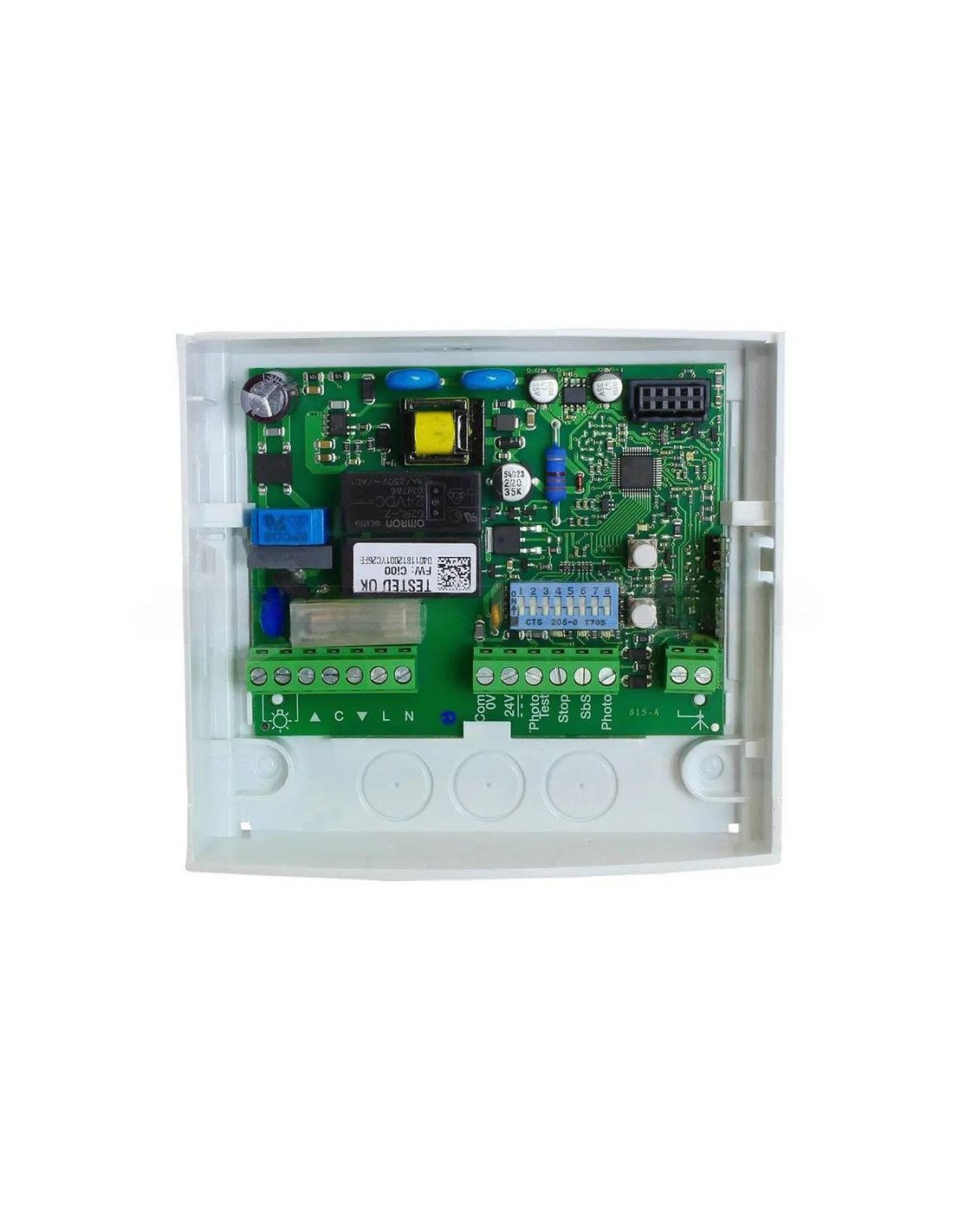

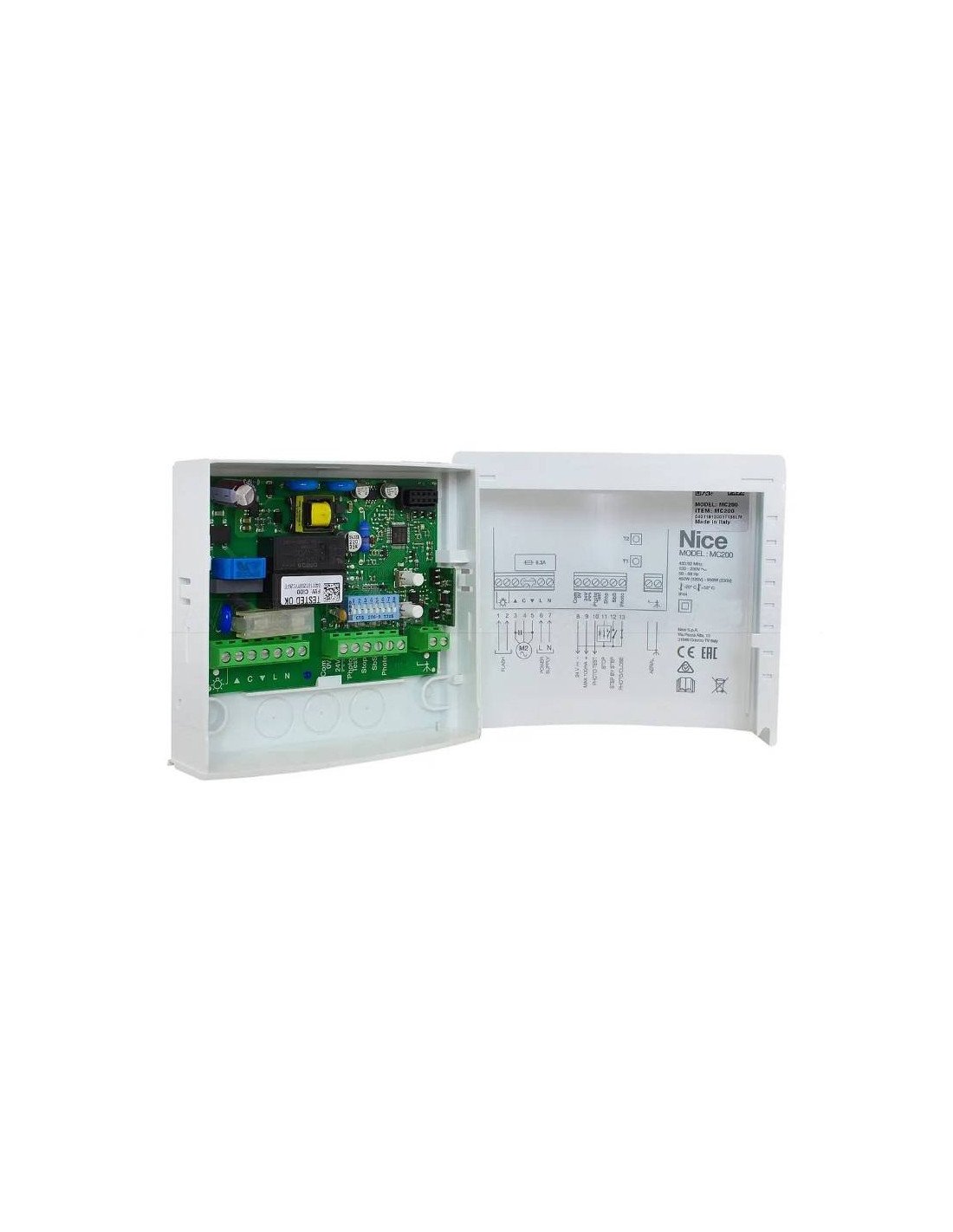

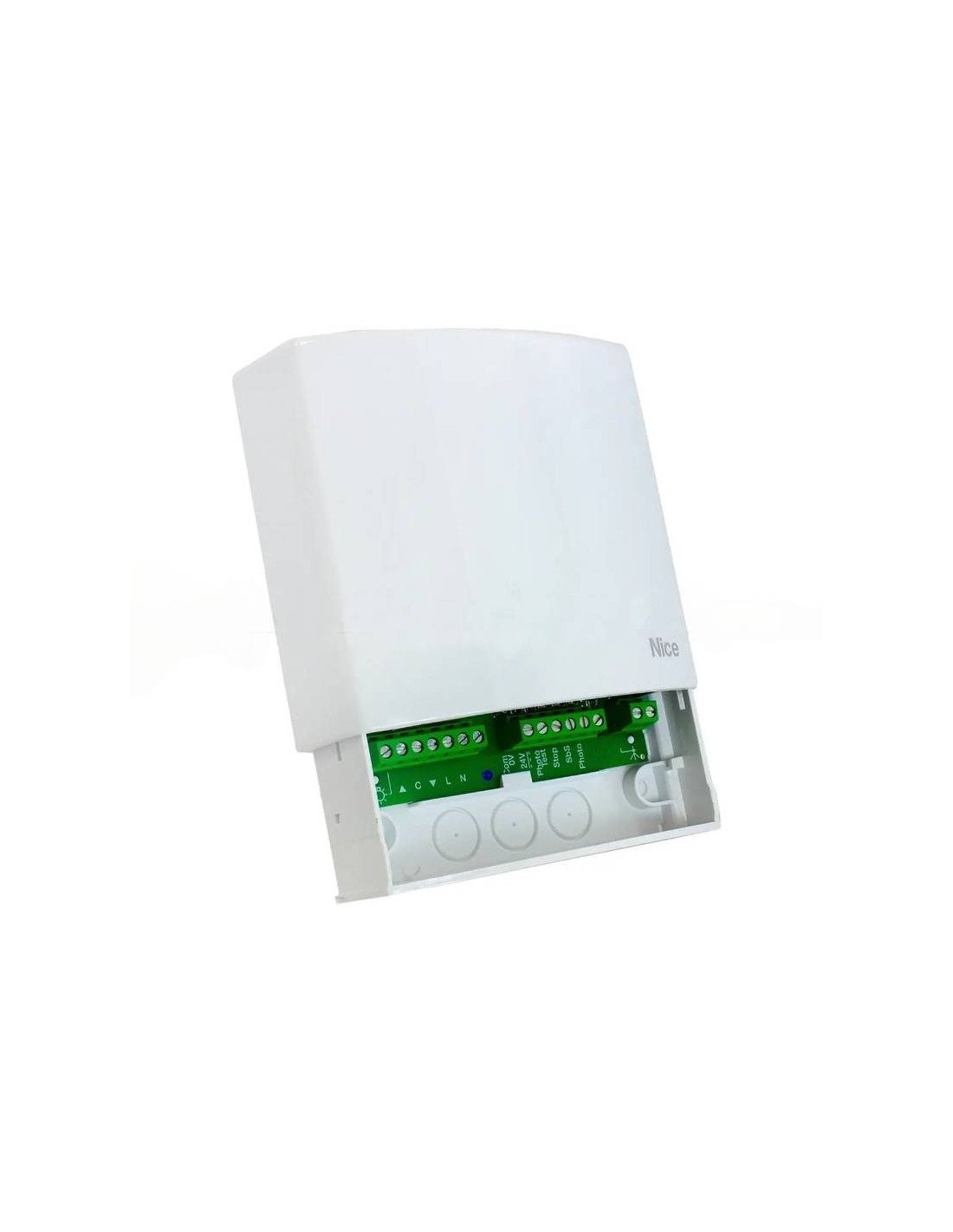

MC200 is an electronics switchboard enabling the control and operation of a motor for the automation of a blind, or a sliding door, or a sectional door, or a curtain, or other similar applications.

Compatible with the IT4WIFI module to be able to open and close via a mobile device (Android or iOS) thanks to the built-in WiFi connectivity.

Technical characteristics of the product

• It is programmed by configuring 8 micro-switches;
• It is equipped with a built-in radio receiver enabling control of the automation by means of a radio transmitter;
• Different accessories can be connected to the control unit: a pair of photocells, an intermittent (with power supply at network voltage) for light signalling, a wall key for automation control with step-by-step controls, an external radio antenna, a sensitive band, etc.
• It is equipped with a tipoIBT4N tipo type connector, compatible with the IBT4N interface, which allows connecting all devices equipped with BusT4 interface, such as the Oview programming unit.

The MC200 may only be used with a single-phase asynchronous motor. What. The engine shall be: (a) supplied by an electrical grid, measured for the same voltage as the power plant; (b) equipped with thermal protection; (c) equipped with an electromechanical device to limit movement (stop); (d) equipped with 3 conductor connections: Common”, Open, Close”. • The radio receiver built into the control unit allows the exclusive use of transmitters using the FLOR, O-CODE or SMILO radio coding protocols (they are Nice). • In the chapter Technical characteristics of the product” the other limits of use are indicated

MANUAL

Instructions and warnings for installation and use
